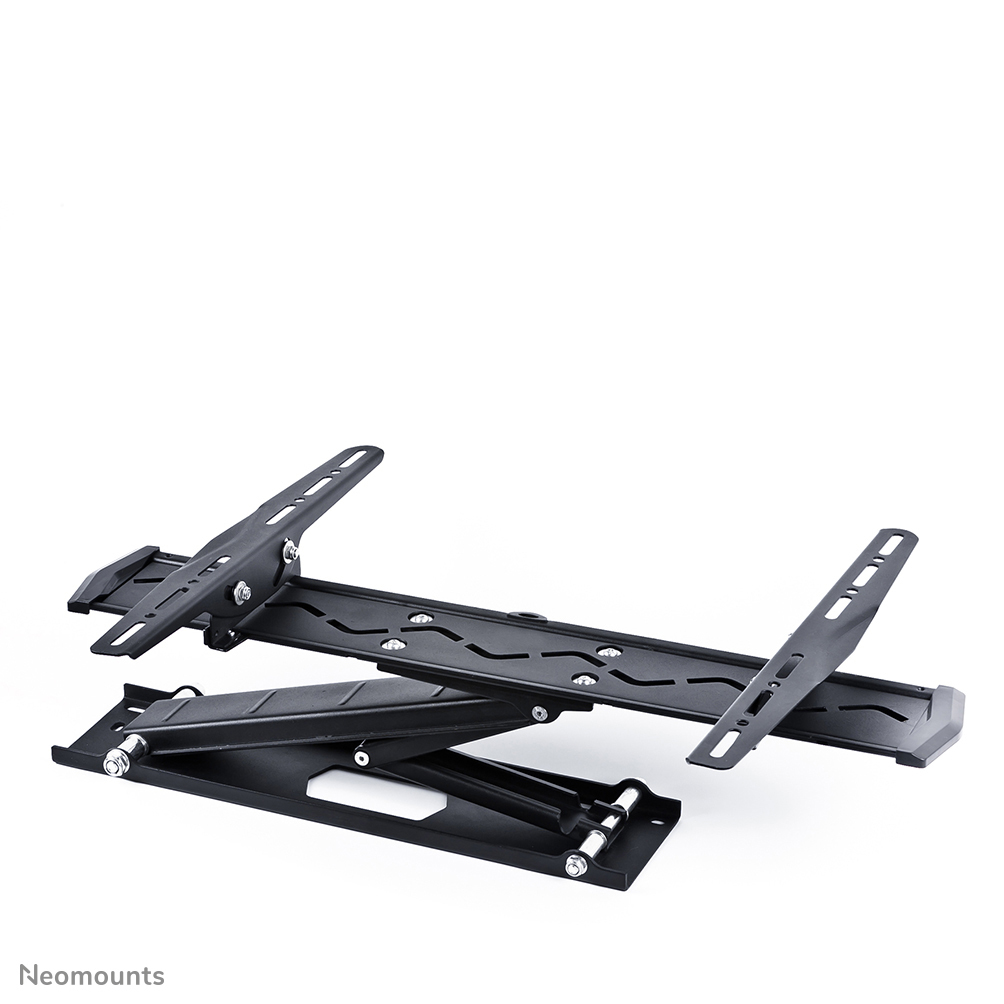

Neomounts LED-W560 TV mount wall 32-75" - full motion

LED-W560 TV mount wall 32-75" - full motion

Model LED-W560EAN 8717371443009

36 specifications

TypeFull motion
Weight6.88 kg
ColourBlack
Number of displays supported1
Tilt adjustmentYes
Country of originChina

See all specifications

Overview

Type: Full motion
Weight: 6.88 kg
Colour: Black
Number of displays supported: 1
Tilt adjustment: Yes
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: LED-W560
Part number: LED-W560
EAN / UPC: 8717371443009, 5052916711063, 5054484724414, 5054533724419 +2 more
Also known as: Neomounts LED-W560 TV mount wall 32-75" - full motion

Specifications

36 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	50 kg
Maximum weight capacity	50 kg
Minimum screen size	81.3 cm (32")
Maximum screen size	190.5 cm (75")
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 200,100 x 100,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400,75 x 75

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	0 - 20°
Swivelling	Yes
Swivel angle	110°
Swivel angle range	0 - 110°
Rotating	Yes
Angle of rotation	6°
Type	Full motion
Distance to the wall (max)	38 cm
Distance to the wall (min)	9 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Package net weight	6.88 kg

Weight & dimensions

Specification	Value
Weight	6.88 kg

Packaging data

Specification	Value
Package width	165 mm
Package depth	62 mm
Package height	745 mm
Package weight	6.9 kg

Logistics data

Specification	Value
Master (outer) case width	760 mm
Master (outer) case length	180 mm
Master (outer) case height	206 mm
Master (outer) case gross weight	22.5 kg
Master (outer) case net weight	20.6 kg
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	108 pc(s)
