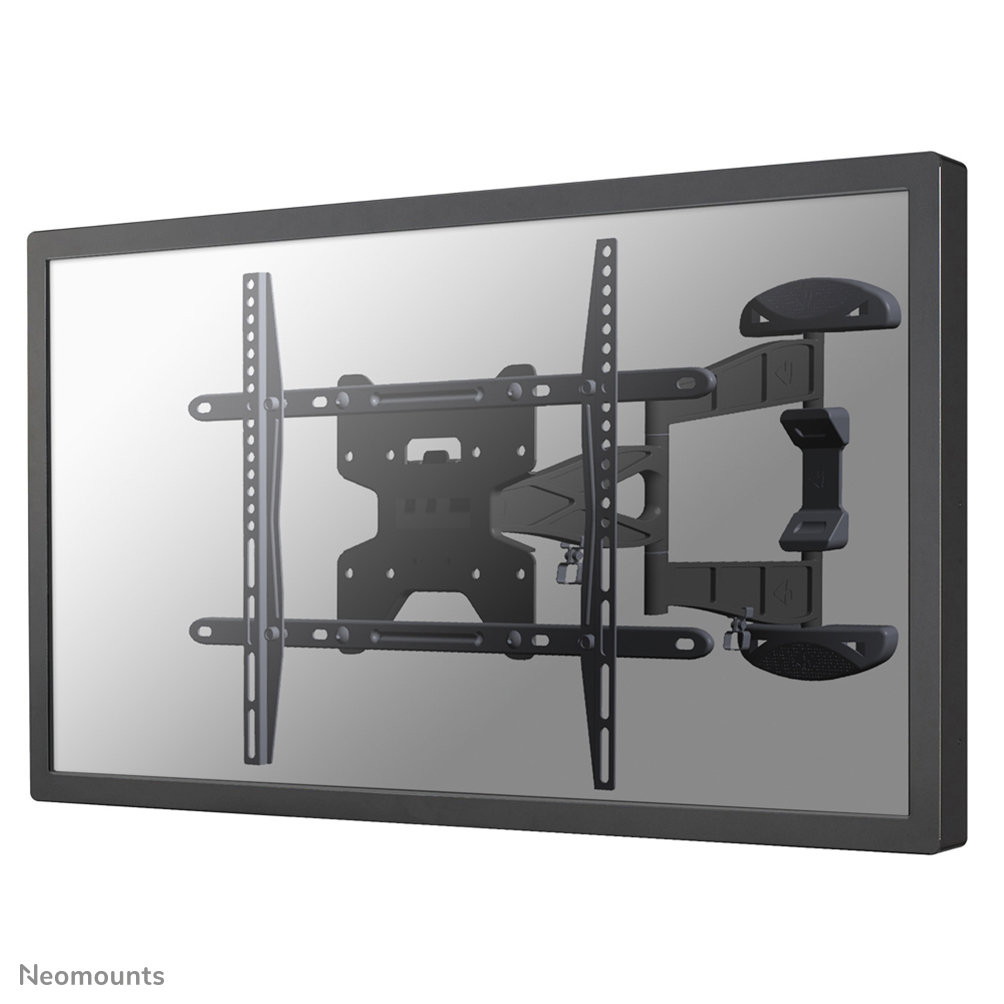

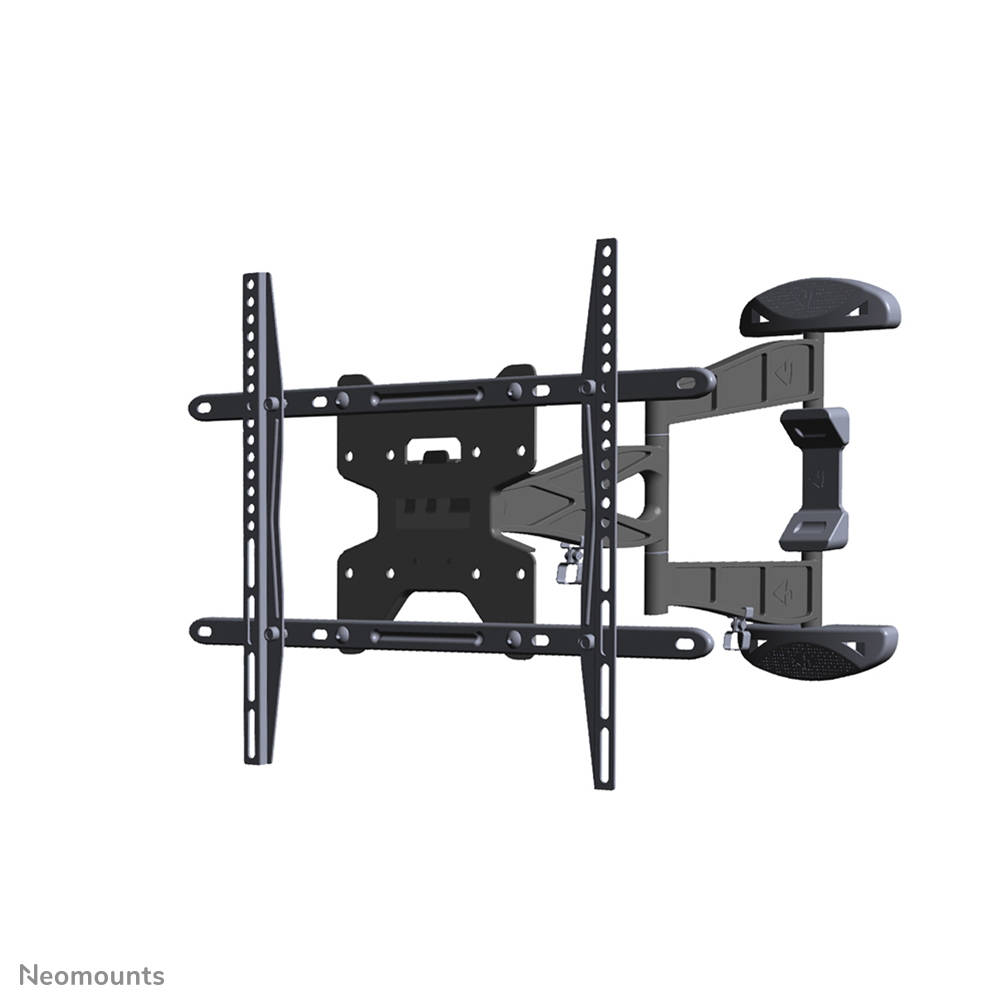

Neomounts LED-W500 TV mount wall 32-60" - full motion

LED-W500 TV mount wall 32-60" - full motion

Model LED-W500Part no. LED-W500SILVEREAN 8717371443849

35 specifications

TypeFull motion
ColourBlack
Number of displays supported1
Tilt adjustmentYes
Country of originChina

See all specifications

Overview

Type: Full motion
Colour: Black
Number of displays supported: 1
Tilt adjustment: Yes
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: LED-W500
Part numbers: LED-W500SILVER, LED-W500
EAN / UPC: 8717371443849, 5052883749717, 8716065283839, 8717371443733 +1 more
Also known as: Neomounts LED-W500 TV mount wall 32-60" - full motion

Specifications

35 specifications in 6 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	30 kg
Maximum weight capacity	30 kg
Minimum screen size	81.3 cm (32")
Maximum screen size	152.4 cm (60")
Mounting type	Wall

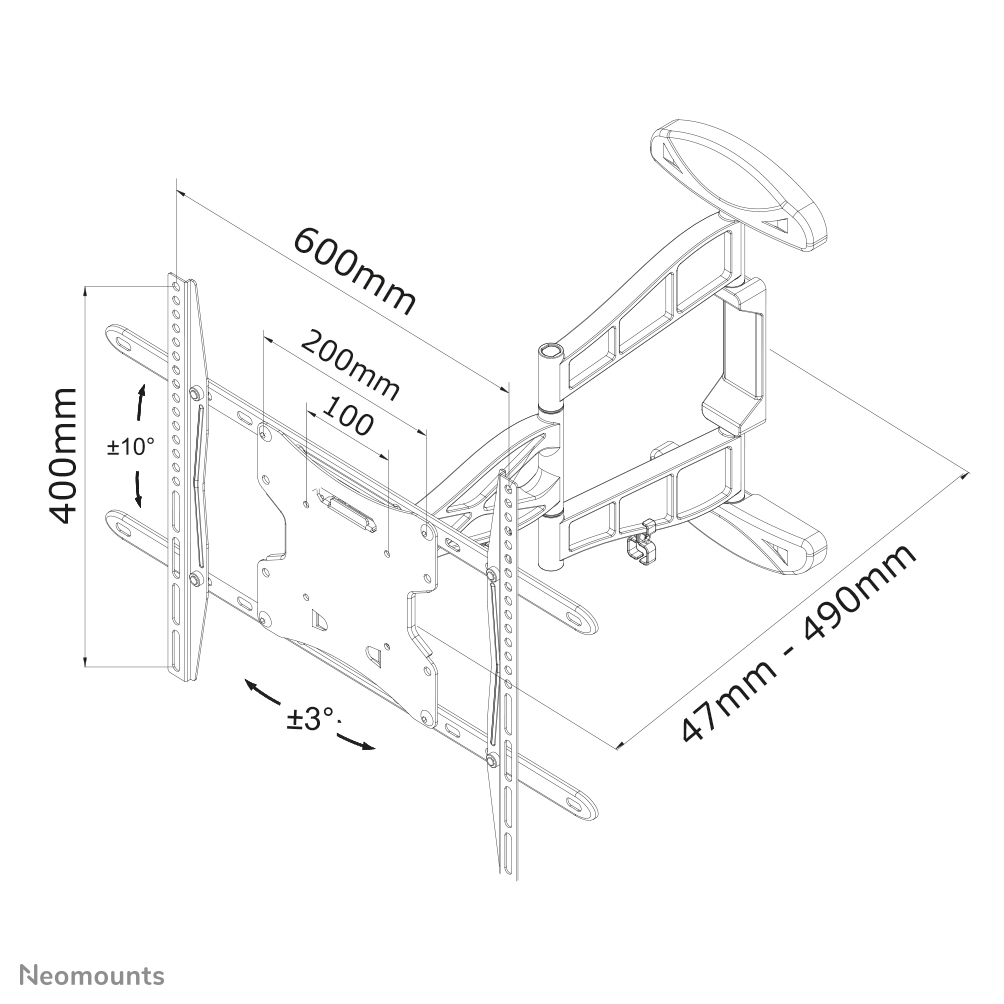

Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 200,100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	0 - 10°
Swivelling	Yes
Swivel angle	180°
Swivel angle range	0 - 180°
Rotating	Yes
Angle of rotation	6°
Type	Full motion
Distance to the wall (max)	49 cm
Distance to the wall (min)	4.7 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Package net weight	5.2 kg

Packaging data

Specification	Value
Package width	580 mm
Package depth	380 mm
Package height	70 mm
Package weight	5.2 kg

Logistics data

Specification	Value
Master (outer) case width	390 mm
Master (outer) case length	600 mm
Master (outer) case height	220 mm
Master (outer) case gross weight	18.2 kg
Master (outer) case net weight	15.7 kg
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	84 pc(s)
