tv wall mount
Model LED-W430Part no. LED-W430BLACKEAN 8717371446260
28 specifications
- ColourBlack
- Number of displays supported1
- Tilt angle range0 - 12°
- Country of originChina
Overview
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- 0 - 12°
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- LED-W430
- Part number
- LED-W430BLACK
- EAN / UPC
- 8717371446260
- Also known as
- Neomounts tv wall mount
Specifications
28 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 30 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Suitable for computer monitor | Yes |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,400 x 400 mm |

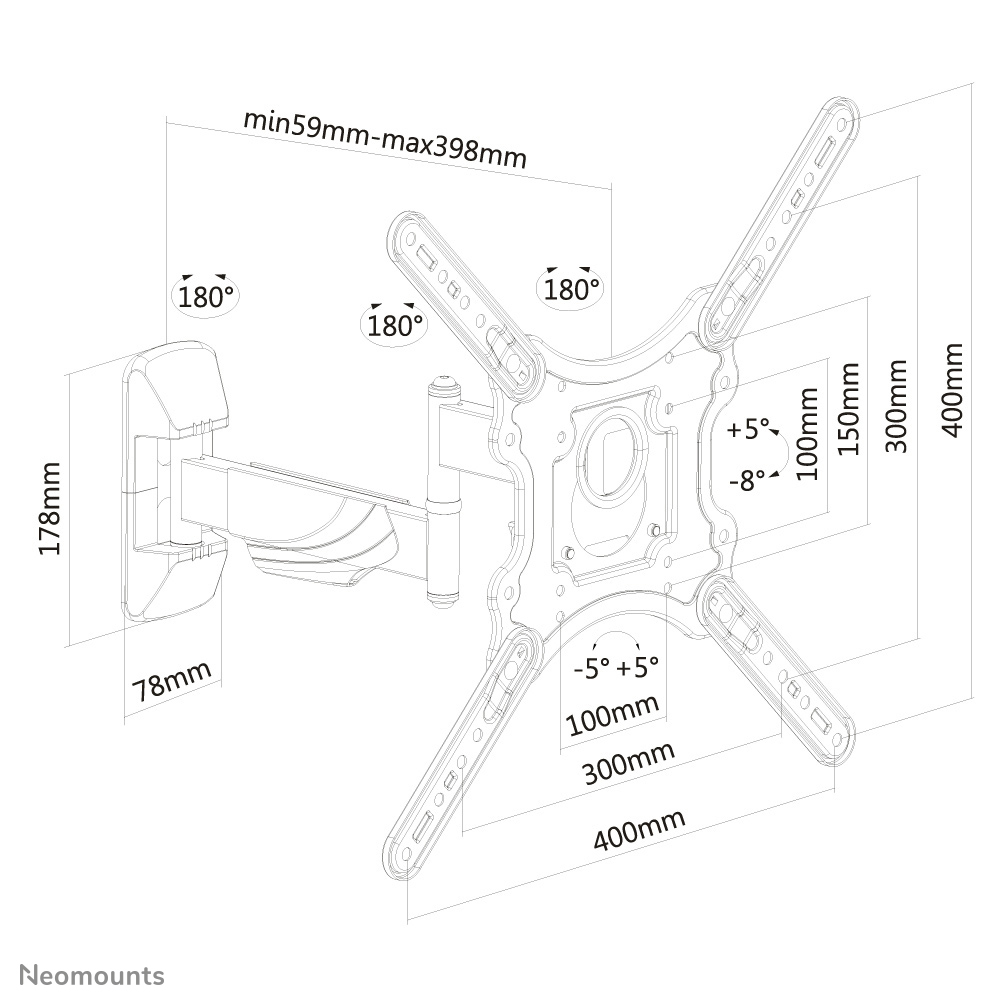

Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | 0 - 12° |
| Swivel angle | 180° |
| Angle of rotation | 10° |
| Distance to the wall (max) | 40 cm |
| Distance to the wall (min) | 6 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 2.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 269 mm |
| Package depth | 53 mm |
| Package height | 288 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 588 mm |
| Master (outer) case length | 281 mm |
| Master (outer) case height | 179 mm |
| Master (outer) case gross weight | 16.6 kg |
| Master (outer) case net weight | 15.6 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Products per pallet (EU) | 168 pc(s) |
