LED-W220 TV mount wall 22-40" - tiltable
Model LED-W220EAN 8717371442972
29 specifications
- Weight840 g
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Country of originChina
Overview
- Weight
- 840 g
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- LED-W220
- Part number
- LED-W220
- EAN / UPC
- 8717371442972, 4056324539548, 5052181313238, 5054484344209 +2 more
- Also known as
- Neomounts LED-W220 TV mount wall 22-40" - tiltable
Specifications
29 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 50 kg |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 55.9 cm (22") |
| Maximum screen size | 101.6 cm (40") |
| Mounting type | Wall |

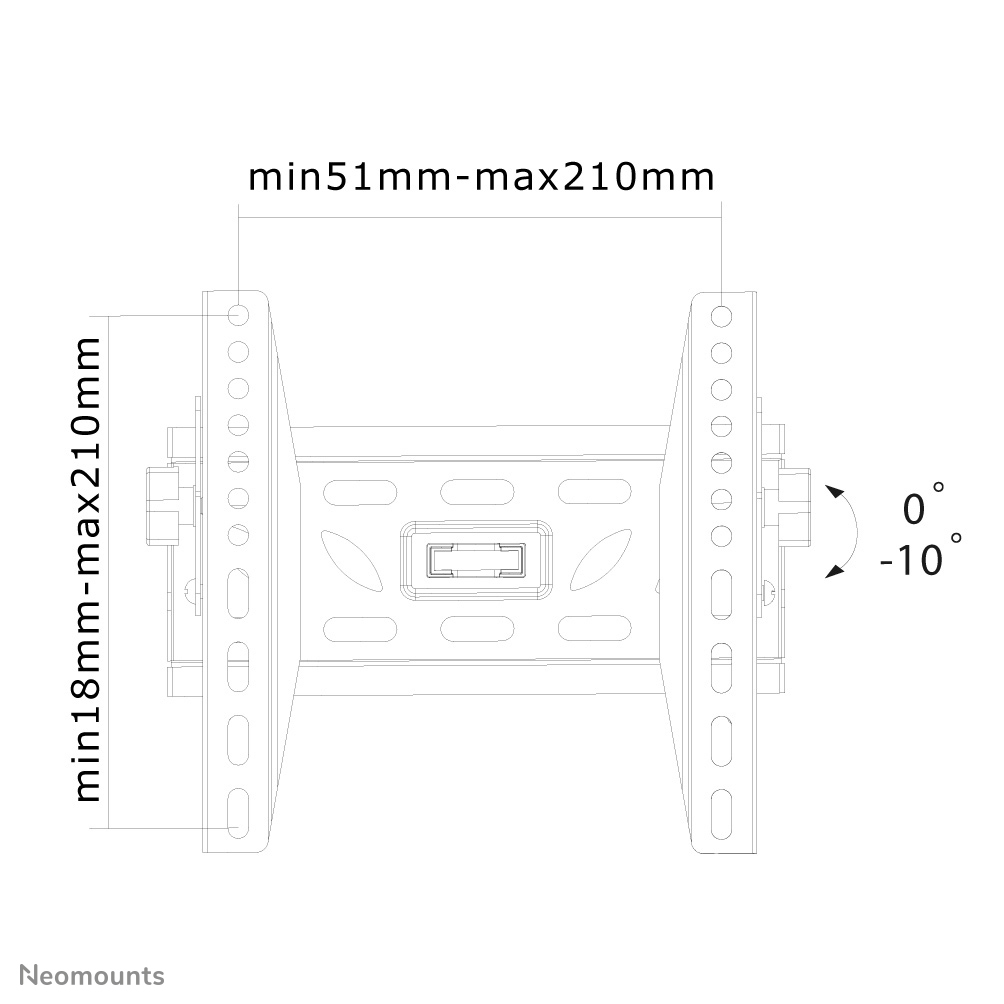

| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 200,100 x 100,100 x 150,120 x 120,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 10° |
| Distance to the wall (max) | 3.9 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 840 g |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 840 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 115 mm |
| Package depth | 60 mm |
| Package height | 270 mm |
| Package weight | 800 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 485 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case gross weight | 12.6 kg |
| Master (outer) case net weight | 10.1 kg |
| Products per master (outer) case | 12 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 288 pc(s) |
