LED-W040 TV mount wall 23-52" - ultra-flat
Model LED-W040EAN 5054533344433
28 specifications
- TypeFixed
- ColourBlack
- Number of displays supported1
- Country of originChina
Overview
- Type
- Fixed
- Colour
- Black
- Number of displays supported
- 1
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- LED-W040
- Part number
- LED-W040
- EAN / UPC
- 5054533344433, 5054629333525, 8717371442941
- Also known as
- Neomounts LED-W040 TV mount wall 23-52" - ultra-flat
Specifications
28 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 50 kg |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 132.1 cm (52") |
| Mounting type | Wall |

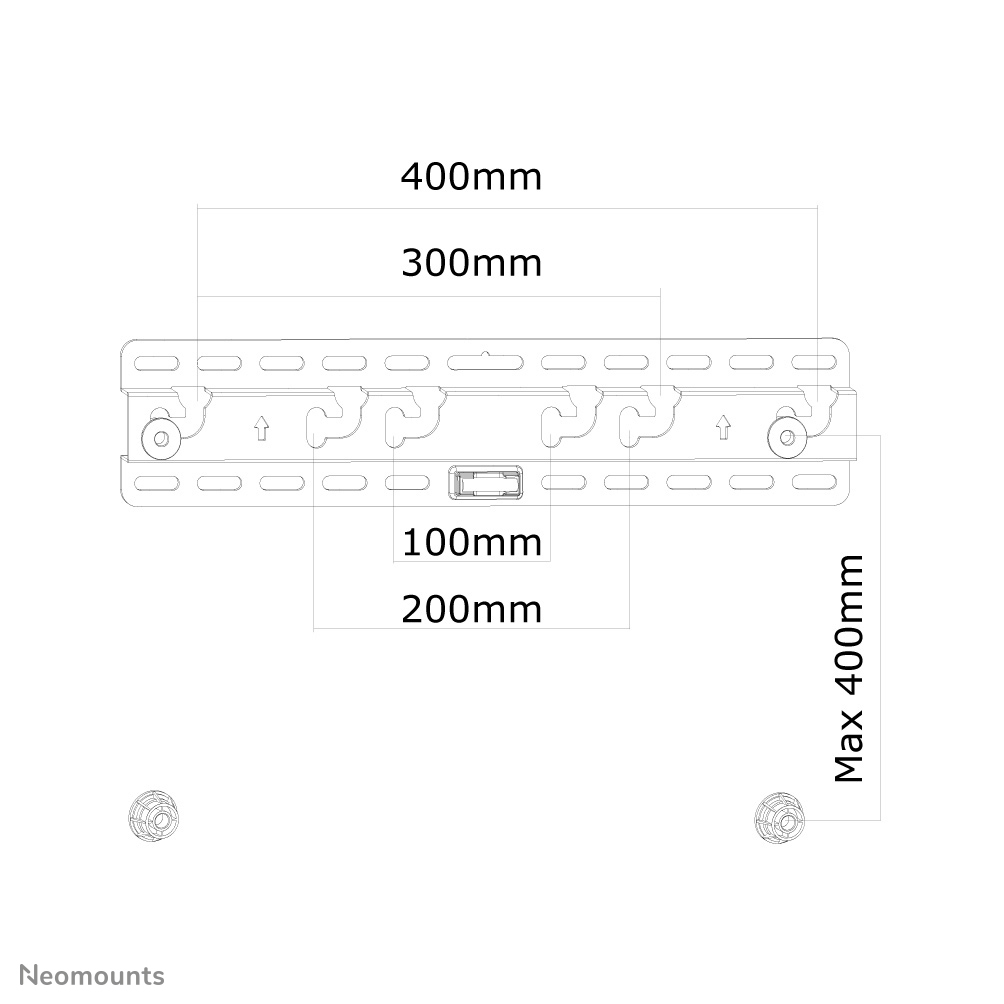

| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 200,100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Type | Fixed |
| Distance to the wall (max) | 3 cm |
| Distance to the wall (min) | 1.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Package net weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 490 mm |
| Package depth | 30 mm |
| Package height | 120 mm |
| Package weight | 1.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 270 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 150 mm |
| Master (outer) case gross weight | 13.5 kg |
| Master (outer) case net weight | 13 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 490 pc(s) |
