Neomounts tv wall mount

tv wall mount

Model FPMA-W950EAN 8717371444815

39 specifications

TypeFull motion
ColourSilver
Number of displays supported1
Height adjustmentYes
Country of originChina
Height340 mm

See all specifications

Overview

Type: Full motion
Colour: Silver
Number of displays supported: 1
Height adjustment: Yes
Country of origin: China
Height: 340 mm

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-W950
Part number: FPMA-W950
EAN / UPC: 8717371444815
Also known as: Neomounts tv wall mount

Specifications

39 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	20 kg
Maximum weight capacity	20 kg
Minimum screen size	25.4 cm (10")
Maximum screen size	101.6 cm (40")
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 200,100 x 100,200 x 100,200 x 200

Ergonomics

Specification	Value
Height adjustment	Yes
Height adjustment type	Gas spring

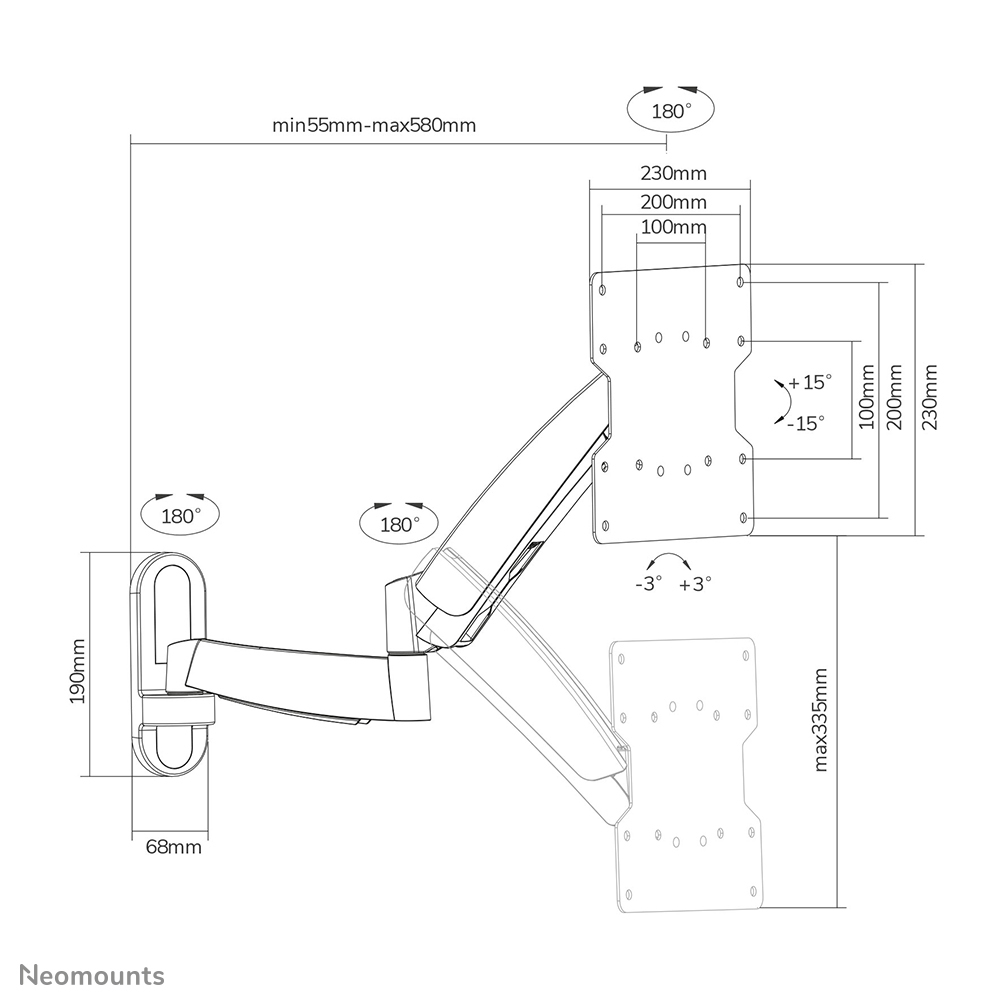

Height adjustment range	0 - 340 mm

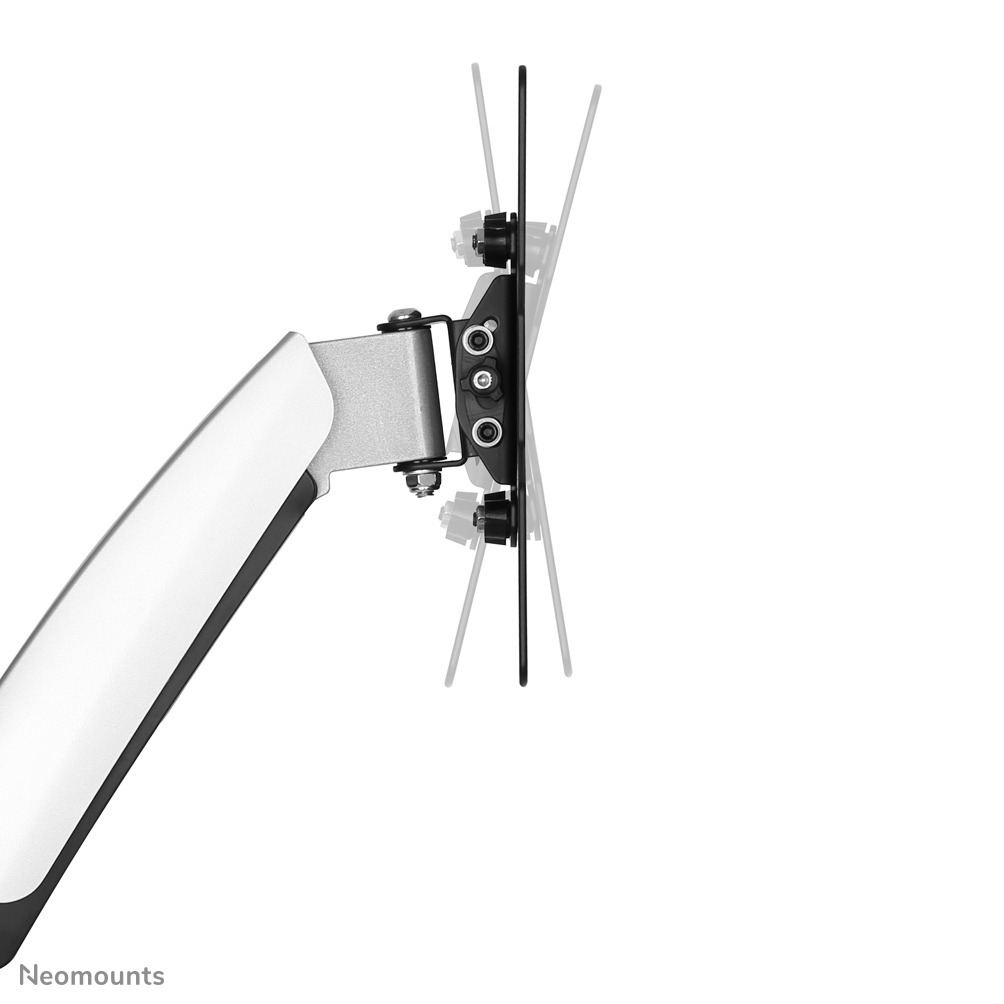

Tilt adjustment	Yes
Tilt angle range	0 - 30°
Swivelling	Yes
Swivel angle	180°
Swivel angle range	0 - 180°
Rotating	Yes
Angle of rotation	5°
Type	Full motion
Distance to the wall (max)	58 cm
Distance to the wall (min)	5 cm

Design

Specification	Value
Product colour	Silver
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Package net weight	3.67 kg

Weight & dimensions

Specification	Value
Height	340 mm

Packaging data

Specification	Value
Package width	320 mm
Package depth	88 mm
Package height	440 mm
Package weight	0 g

Logistics data

Specification	Value
Master (outer) case width	520 mm
Master (outer) case length	420 mm
Master (outer) case height	385 mm
Master (outer) case gross weight	19 kg
Master (outer) case net weight	14.7 kg
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	72 pc(s)
