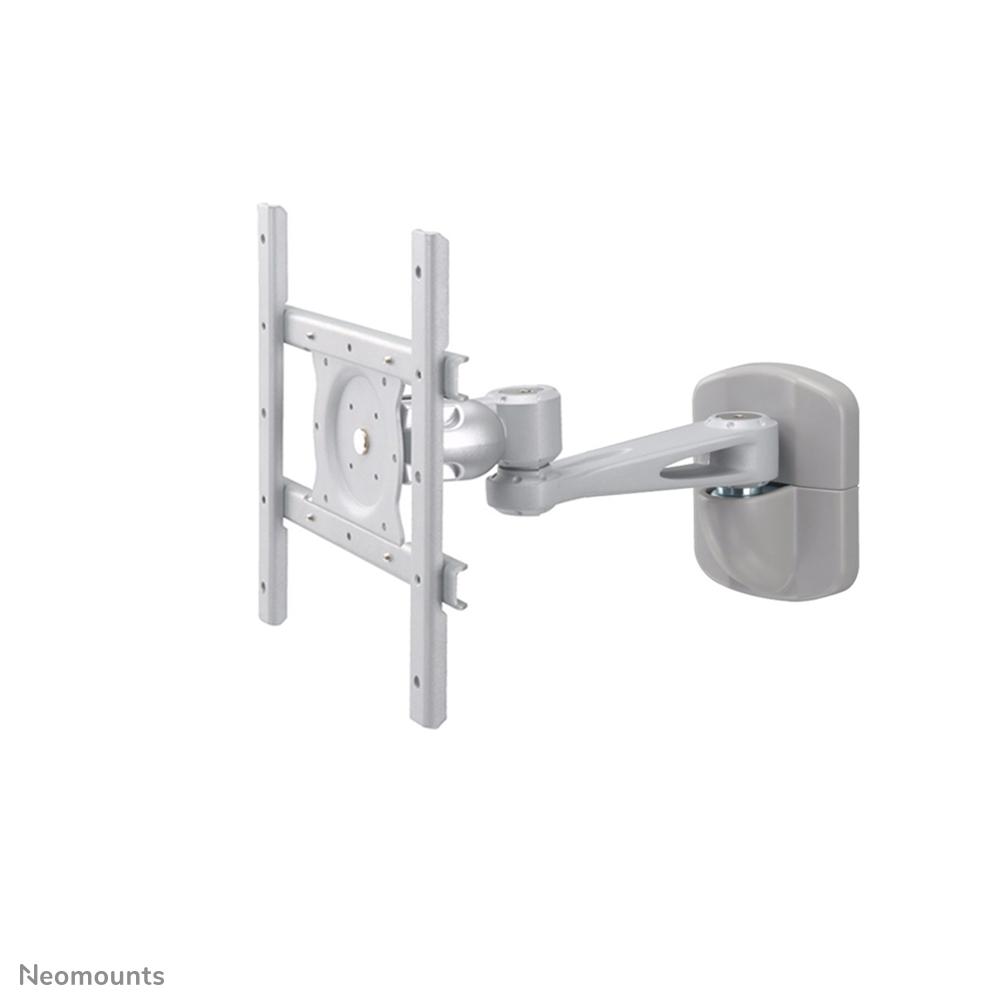

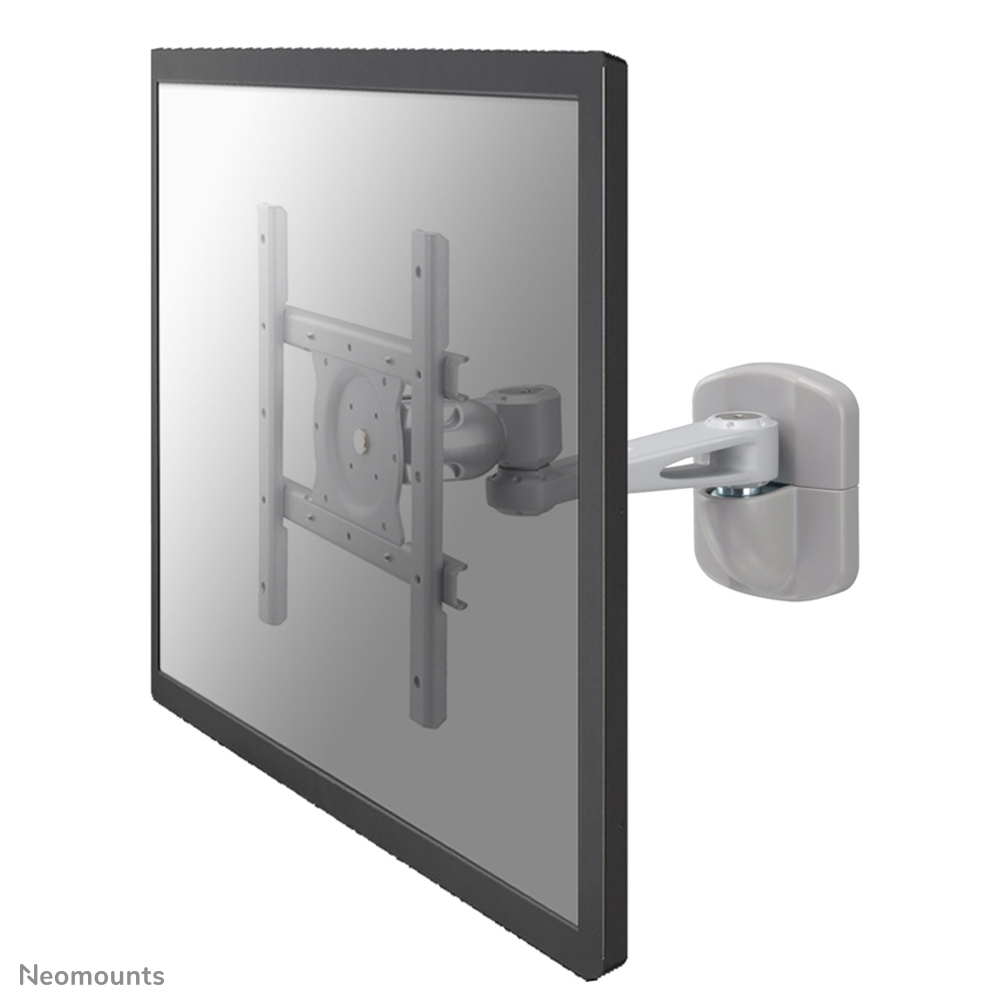

tv wall mount
Model FPMA-W925EAN 5054629234822
27 specifications
- ColourSilver
- Number of displays supported1
- Tilt angle range0 - 15°
- Country of originTaiwan
Overview
- Colour
- Silver
- Number of displays supported
- 1
- Tilt angle range
- 0 - 15°
- Country of origin
- Taiwan
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- FPMA-W925
- Part number
- FPMA-W925
- EAN / UPC
- 5054629234822, 5052180745757, 5052916712374, 5711045520662 +1 more
- Also known as
- Neomounts tv wall mount
Specifications
27 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 20 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 101.6 cm (40") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200 |

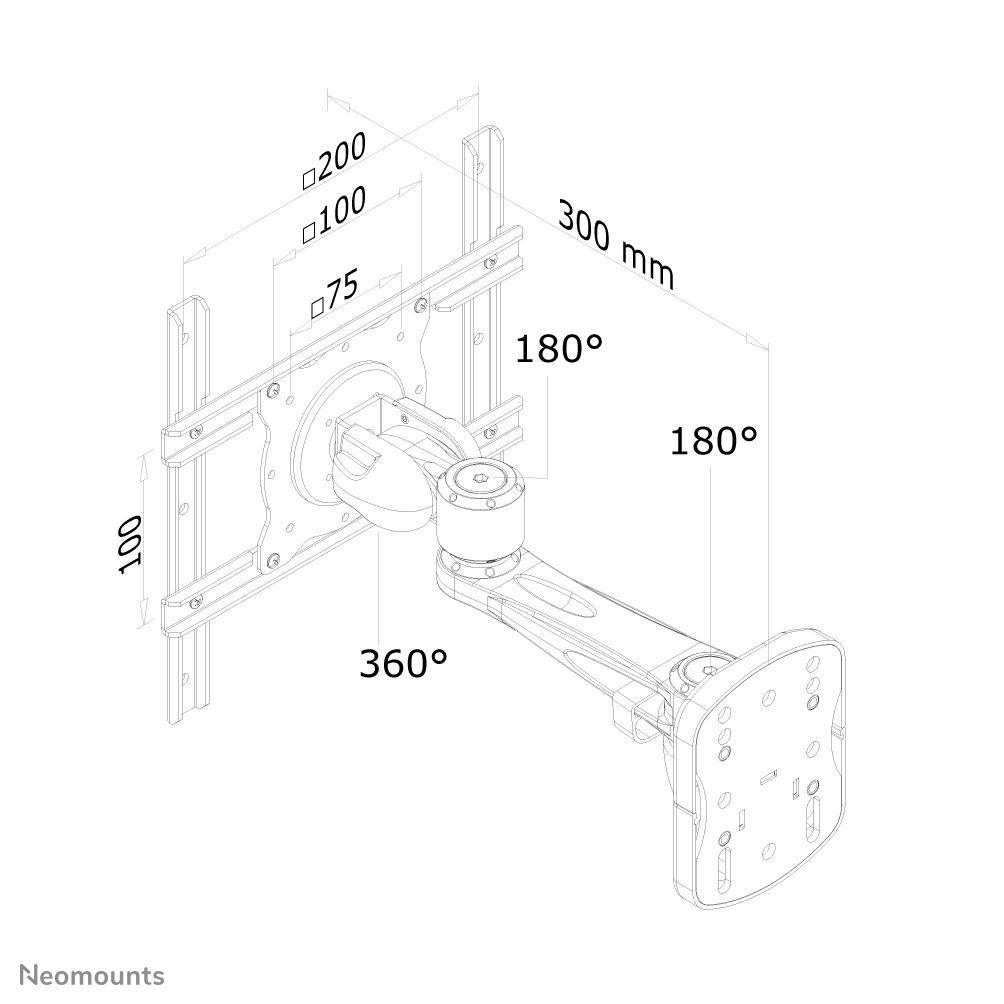

Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | 0 - 15° |
| Swivel angle | 180° |
| Angle of rotation | 360° |
| Distance to the wall (max) | 30 cm |
| Distance to the wall (min) | 12 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Package net weight | 2.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 245 mm |
| Package depth | 128 mm |
| Package height | 133 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 415 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 316 mm |
| Master (outer) case gross weight | 17 kg |
| Master (outer) case net weight | 16.3 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Products per pallet (EU) | 144 pc(s) |
