tv wall mount
Model FPMA-W920EAN 5054629841846
28 specifications
- ColourSilver
- Number of displays supported1
- Tilt angle range0 - 180°
- Country of originTaiwan
Overview
- Colour
- Silver
- Number of displays supported
- 1
- Tilt angle range
- 0 - 180°
- Country of origin
- Taiwan
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- FPMA-W920
- Part number
- FPMA-W920
- EAN / UPC
- 5054629841846, 8716065231373, 8717371440558
- Also known as
- Neomounts tv wall mount
Specifications
28 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 10 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 76.2 cm (30") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
Ergonomics
| Specification | Value |
|---|---|

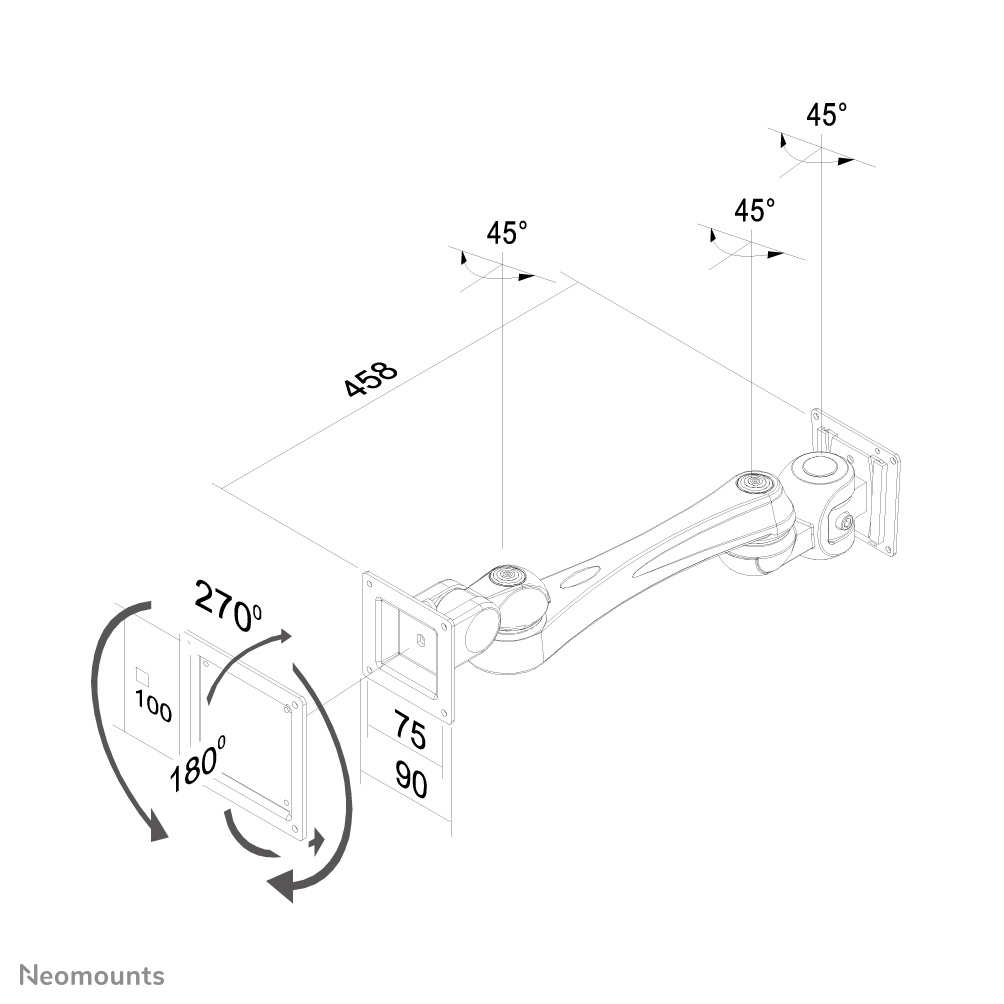

| Tilt angle range | 0 - 180° |
| Swivel angle | 180° |
| Angle of rotation | 270° |
| Distance to the wall (max) | 46 cm |
| Distance to the wall (min) | 19 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Compatibility | LCD/LED/TFT |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Package net weight | 2.77 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 127.5 mm |
| Package depth | 220 mm |
| Package height | 280 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 510 mm |
| Master (outer) case length | 220 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 12 kg |
| Master (outer) case net weight | 11.1 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Products per pallet (EU) | 84 pc(s) |
Other features
| Specification | Value |
|---|---|
| Mounting interface | VESA |
