tv wall mount
Model FPMA-W910EAN 5054629774113
36 specifications
- TypeFull motion
- ColourSilver
- Number of displays supported1
- Tilt adjustmentYes
- Country of originTaiwan
Overview
- Type
- Full motion
- Colour
- Silver
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- Taiwan
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- FPMA-W910
- Part number
- FPMA-W910
- EAN / UPC
- 5054629774113, 8716065231366, 8717371440565
- Also known as
- Neomounts tv wall mount
Specifications
36 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 12 kg |
| Maximum weight capacity | 12 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 76.2 cm (30") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100,75 x 75 mm |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |

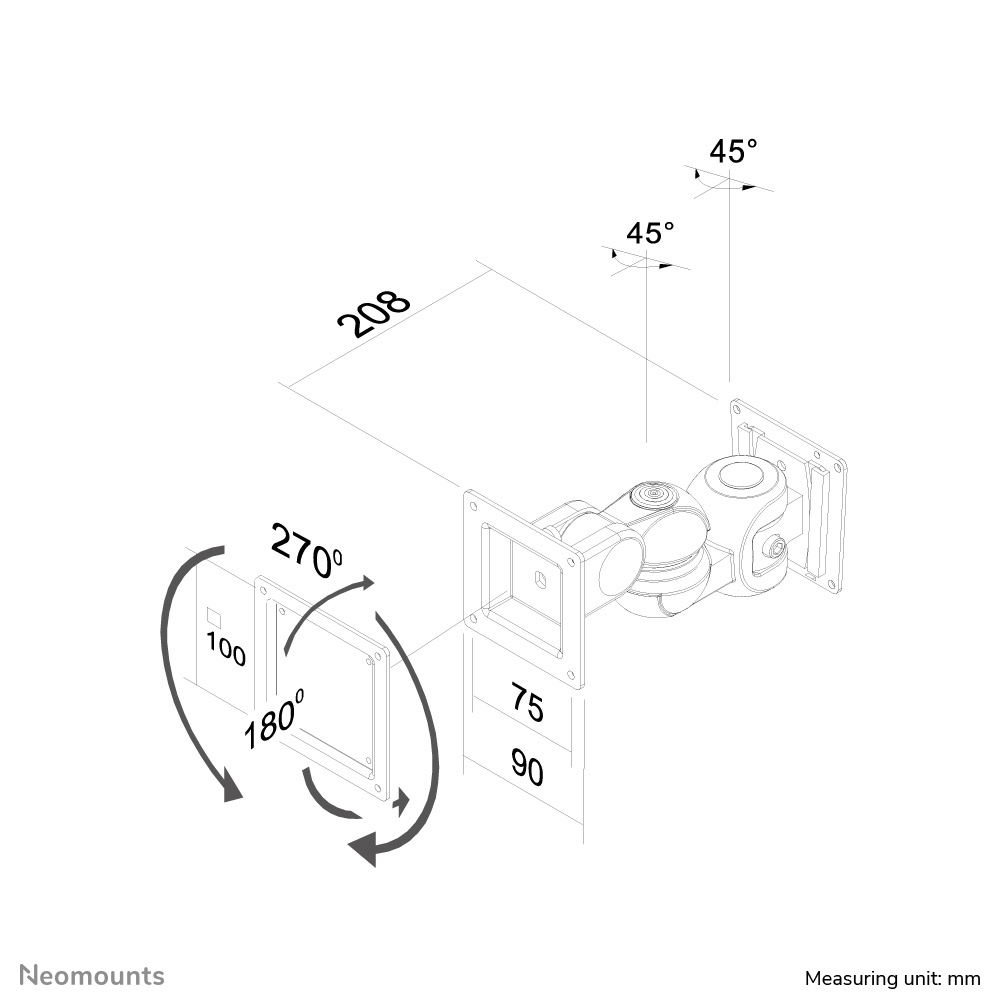

| Tilt angle range | 0 - 180° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Swivel angle range | 0 - 180° |
| Rotating | Yes |
| Angle of rotation | 270° |
| Type | Full motion |
| Distance to the wall (max) | 21 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Aluminium |
| Compatibility | LCD/LED/TFT |
Technical details
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Package net weight | 1.99 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 68 mm |
| Package depth | 260 mm |
| Package height | 280 mm |
| Package weight | 0 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 270 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 8.4 kg |
| Master (outer) case net weight | 8 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 83025000 |
| Products per pallet (EU) | 144 pc(s) |
Other features
| Specification | Value |
|---|---|
| Mounting interface | VESA |
