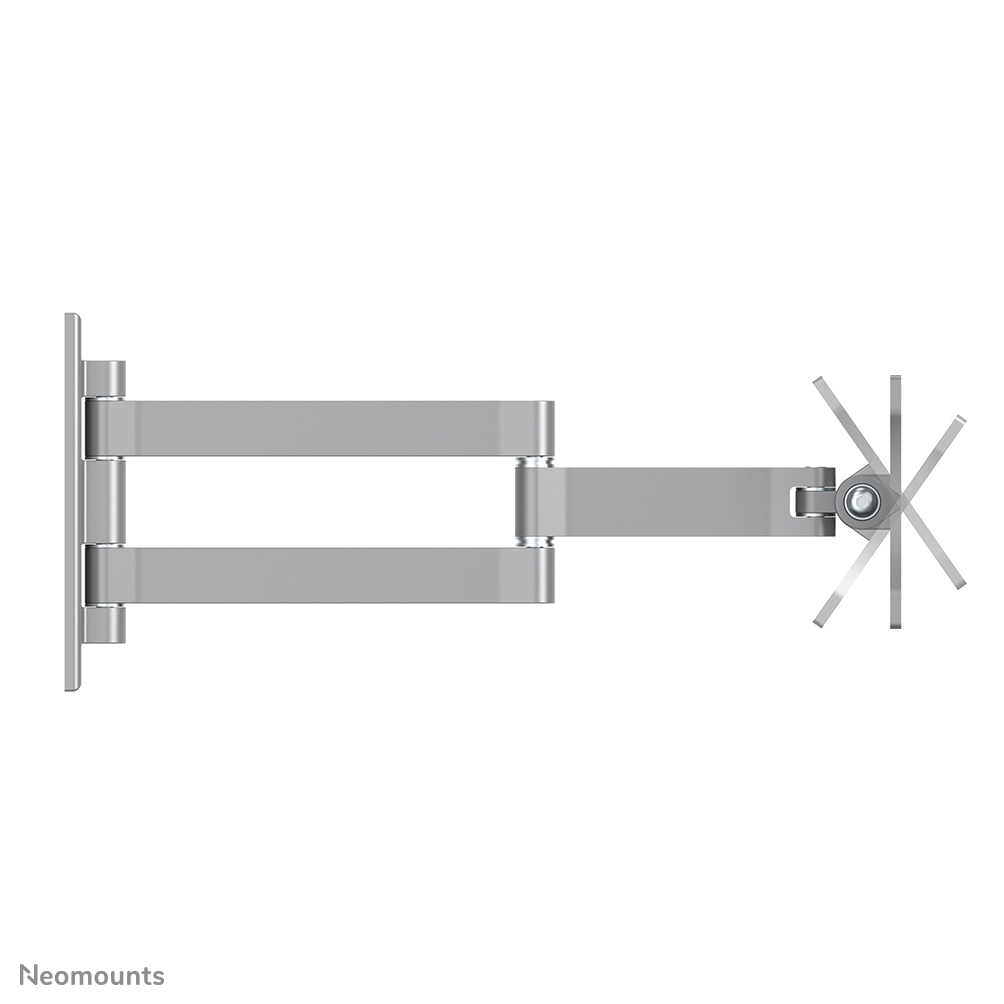

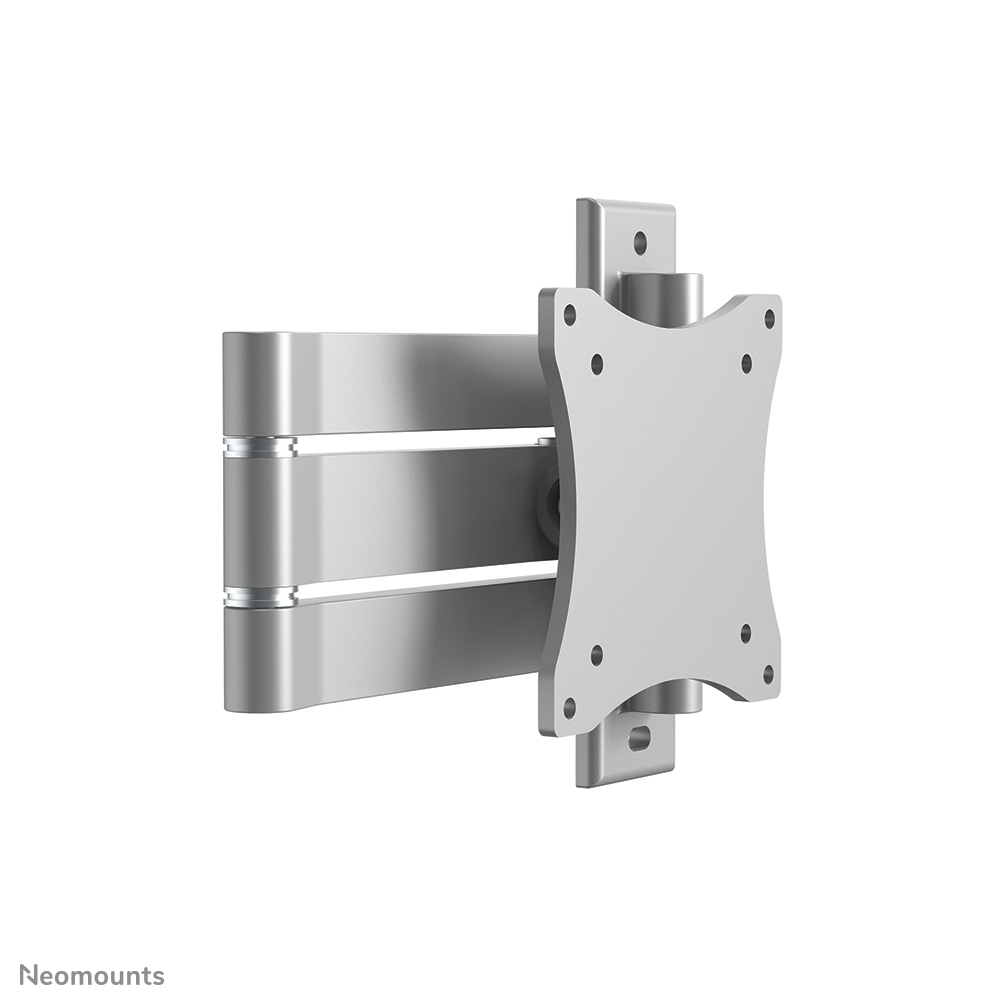

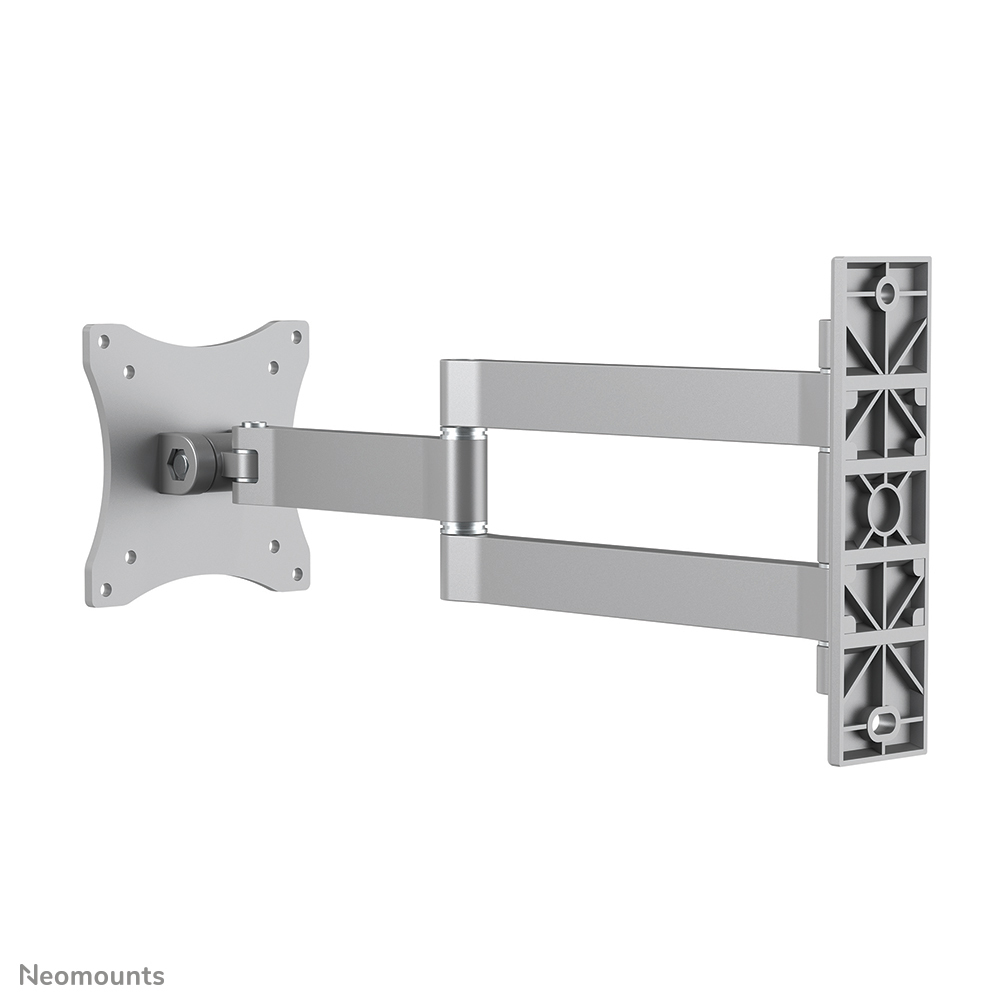

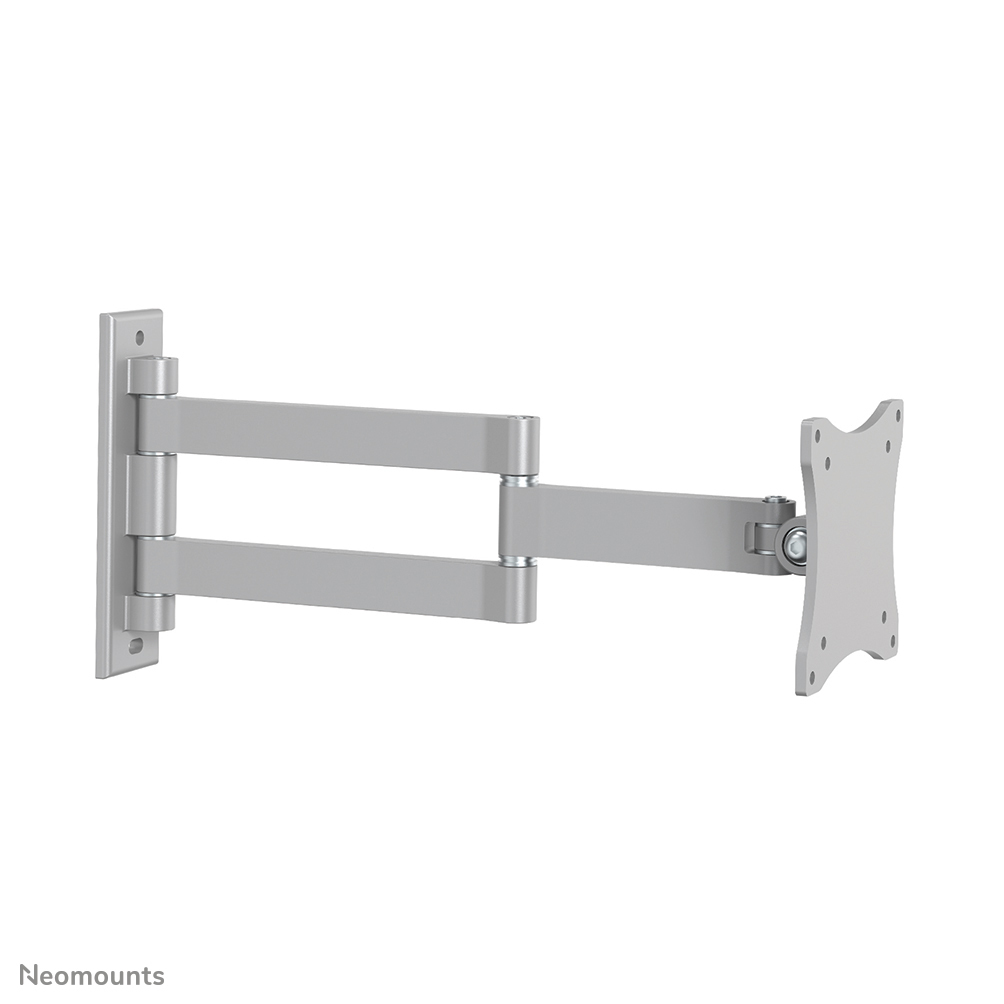

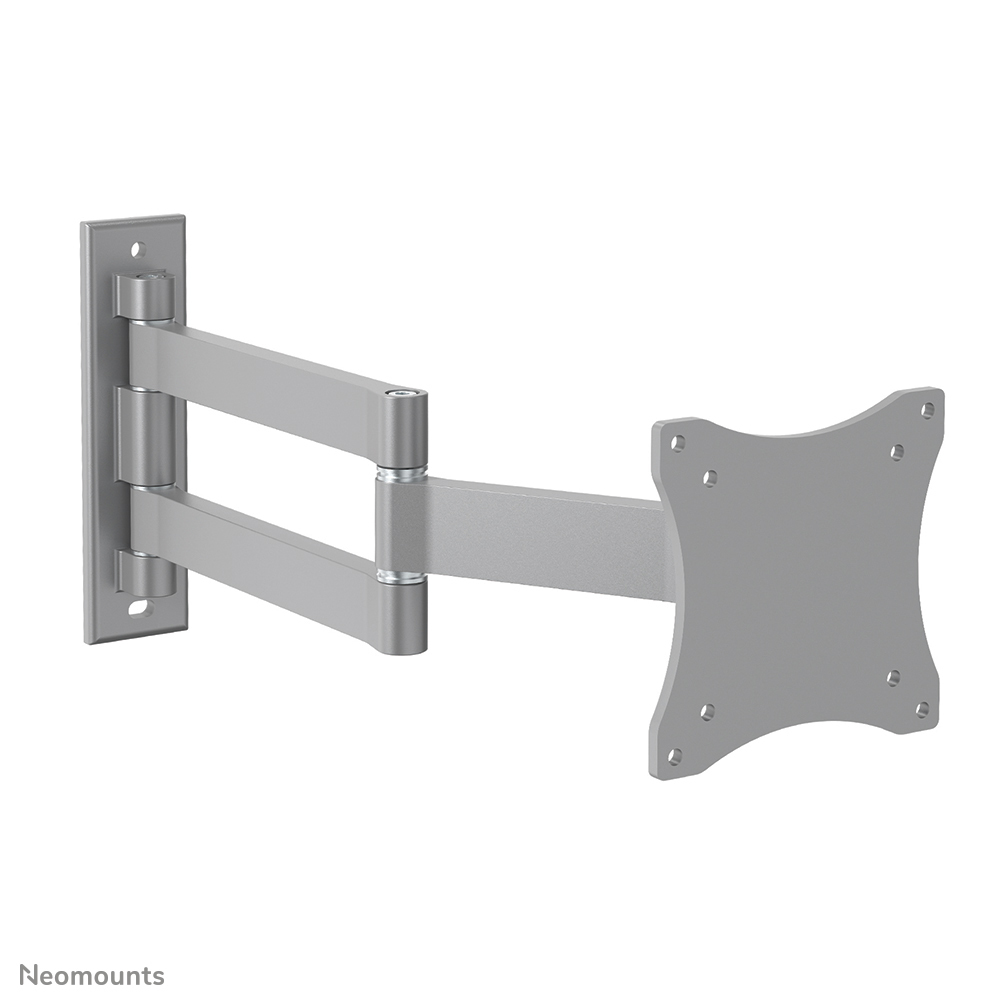

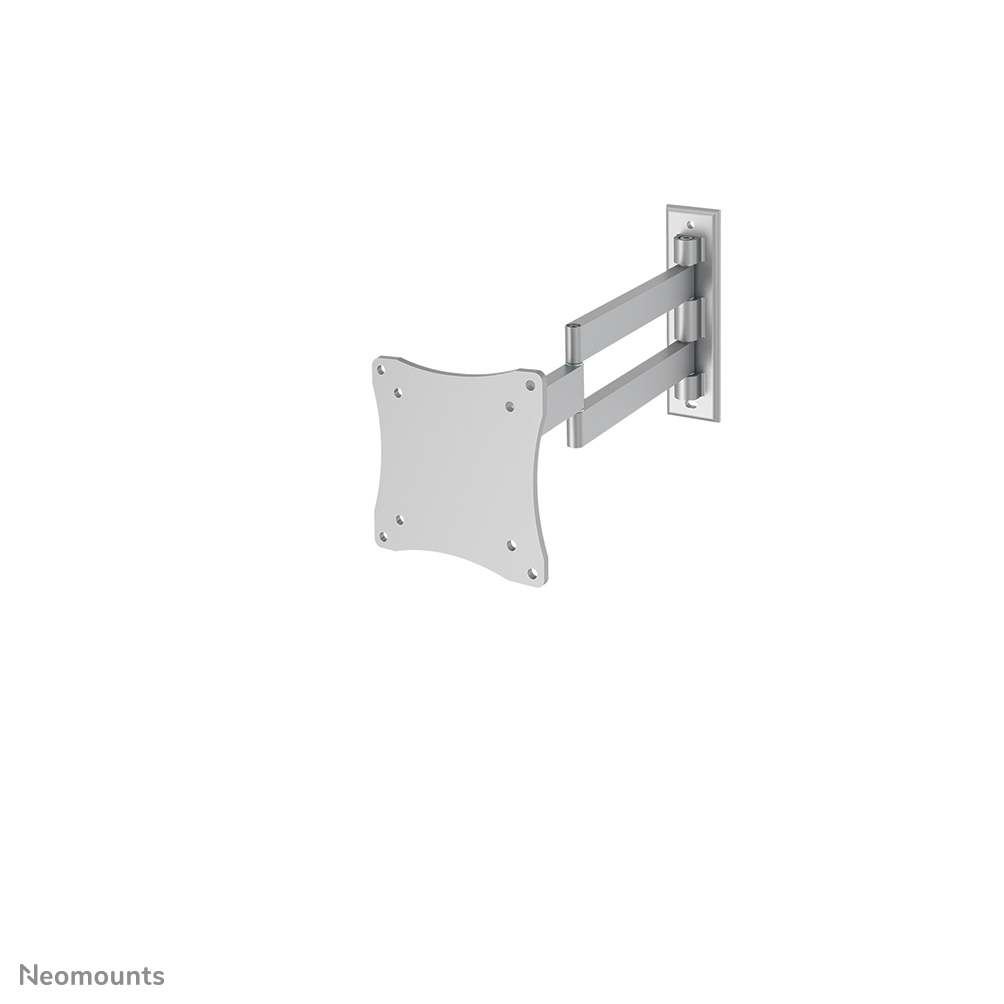

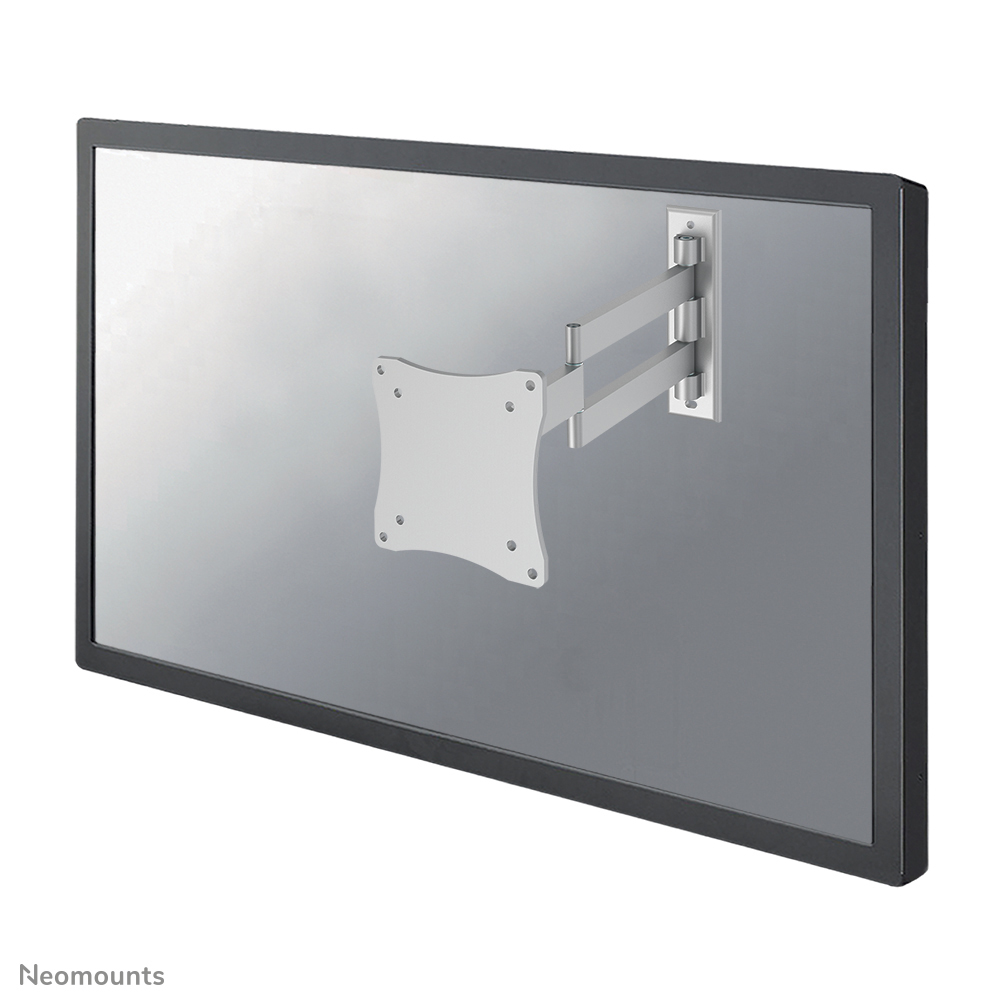

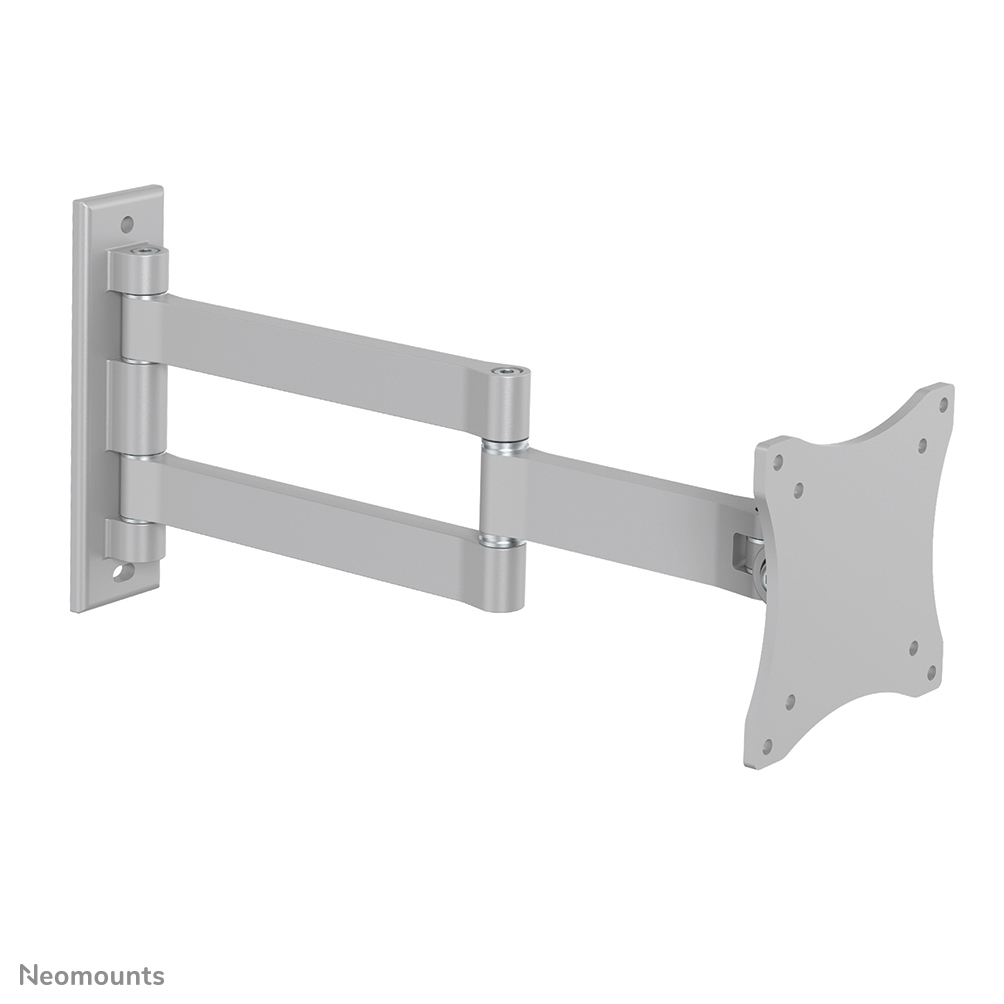

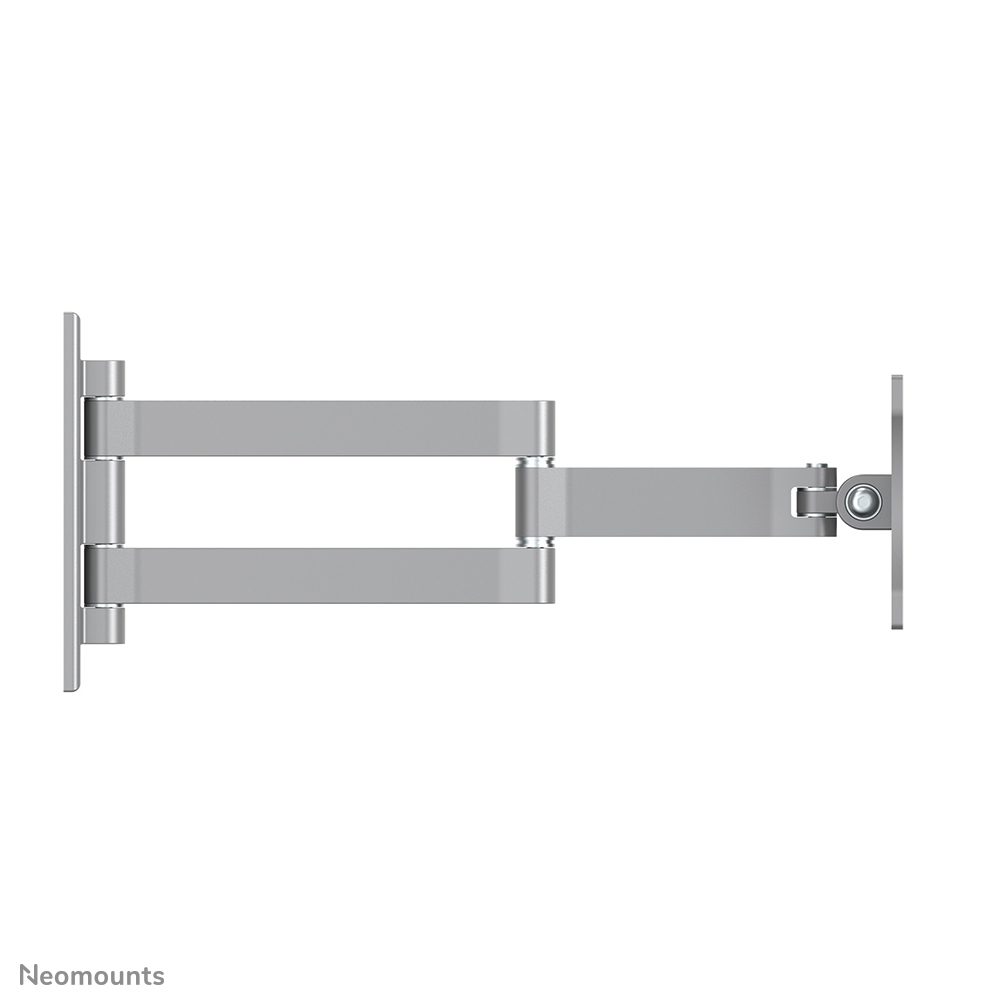

Neomounts FPMA-W830 Monitor/TV mount wall 10-27" - full motion

FPMA-W830 Monitor/TV mount wall 10-27" - full motion

Model FPMA-W830EAN 8717371441258

37 specifications

TypeFull motion
Weight880 g
ColourSilver
Number of displays supported1
Tilt adjustmentYes
Country of originChina

See all specifications

Overview

Type: Full motion
Weight: 880 g
Colour: Silver
Number of displays supported: 1
Tilt adjustment: Yes
Country of origin: China

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-W830
Part number: FPMA-W830
EAN / UPC: 8717371441258, 5052217457868, 5054484052388, 5054533052383 +2 more
Also known as: Neomounts FPMA-W830 Monitor/TV mount wall 10-27" - full motion

Specifications

37 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	12 kg
Maximum weight capacity	12 kg
Minimum screen size	25.4 cm (10")
Maximum screen size	68.6 cm (27")
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100,75 x 75 mm

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	0 - 140°
Swivelling	Yes
Swivel angle	180°
Swivel angle range	0 - 180°
Rotating	Yes
Type	Full motion
Distance to the wall (max)	37 cm
Distance to the wall (min)	5 cm

Design

Specification	Value
Product colour	Silver
Housing material	Aluminium
Compatibility	LCD/LED/TFT

Technical details

Specification	Value
Country of origin	China
Package net weight	960 g

Weight & dimensions

Specification	Value
Weight	880 g

Packaging data

Specification	Value
Package width	178 mm
Package depth	45 mm
Package height	233 mm
Package weight	1 kg

Logistics data

Specification	Value
Master (outer) case width	375 mm
Master (outer) case length	330 mm
Master (outer) case height	250 mm
Master (outer) case gross weight	12.9 kg
Master (outer) case net weight	11.5 kg
Products per master (outer) case	12 pc(s)
Harmonized System (HS) code	7616991099
Products per pallet (EU)	360 pc(s)

Other features

Specification	Value
Mounting interface	VESA
