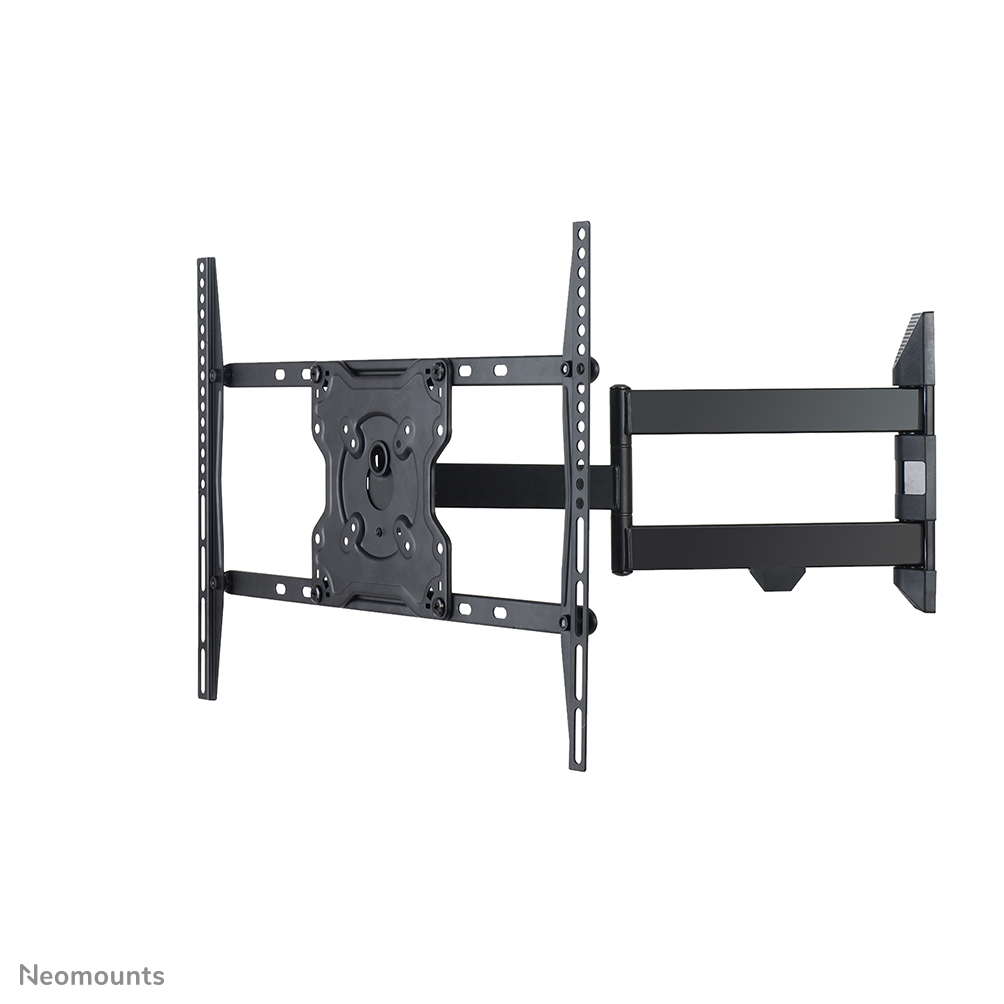

Neomounts FPMA-W460BLACK TV mount wall 42-70" - full motion

FPMA-W460BLACK TV mount wall 42-70" - full motion

Model FPMA-W460BLACKEAN 8717371446222

36 specifications

Weight3.6 kg
ColourBlack
Number of displays supported1
Tilt angle range0 - 20°
Country of originChina
Depth (min)6 cm

See all specifications

Overview

Weight: 3.6 kg
Colour: Black
Number of displays supported: 1
Tilt angle range: 0 - 20°
Country of origin: China
Depth (min): 6 cm

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-W460BLACK
Part number: FPMA-W460BLACK
EAN / UPC: 8717371446222, 8717371449995
Also known as: Neomounts FPMA-W460BLACK TV mount wall 42-70" - full motion

Specifications

36 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	40 kg
Maximum weight capacity	40 kg
Minimum screen size	106.7 cm (42")
Maximum screen size	177.8 cm (70")
Mounting type	Wall

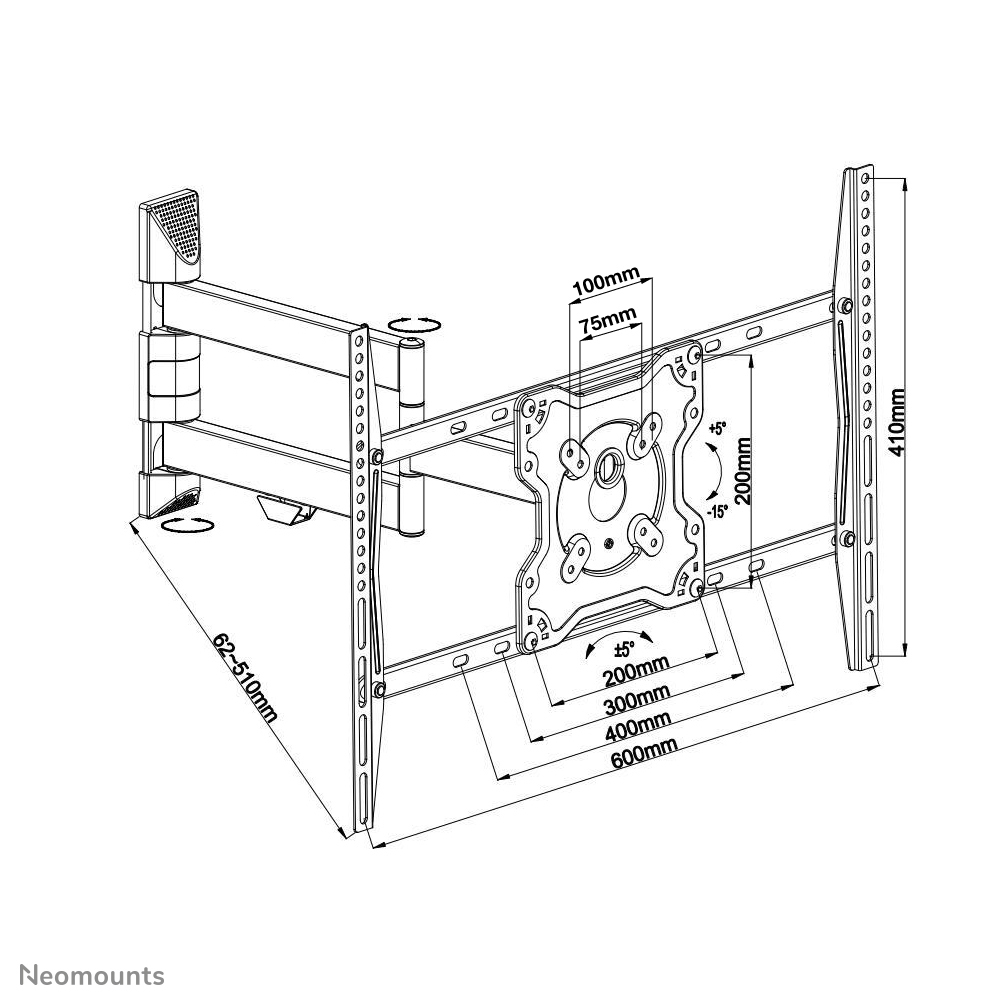

Minimum VESA mount	75 x 75 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 200,100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400,75 x 75

Ergonomics

Specification	Value
Tilt angle range	0 - 20°
Swivelling	Yes
Swivel angle	180°
Swivel angle range	0 - 180°
Angle of rotation	10°
Cable management	Yes
Distance to the wall (max)	51 cm
Distance to the wall (min)	6 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Package net weight	7.5 kg

Weight & dimensions

Specification	Value
Depth (min)	6 cm
Depth (max)	51 cm
Weight	3.6 kg

Packaging data

Specification	Value
Package width	660 mm
Package depth	300 mm
Package height	75 mm
Package weight	7.5 kg

Logistics data

Specification	Value
Master (outer) case width	309 mm
Master (outer) case length	305 mm
Master (outer) case height	665 mm
Master (outer) case gross weight	7.5 kg
Master (outer) case net weight	7.5 kg
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	60 pc(s)
