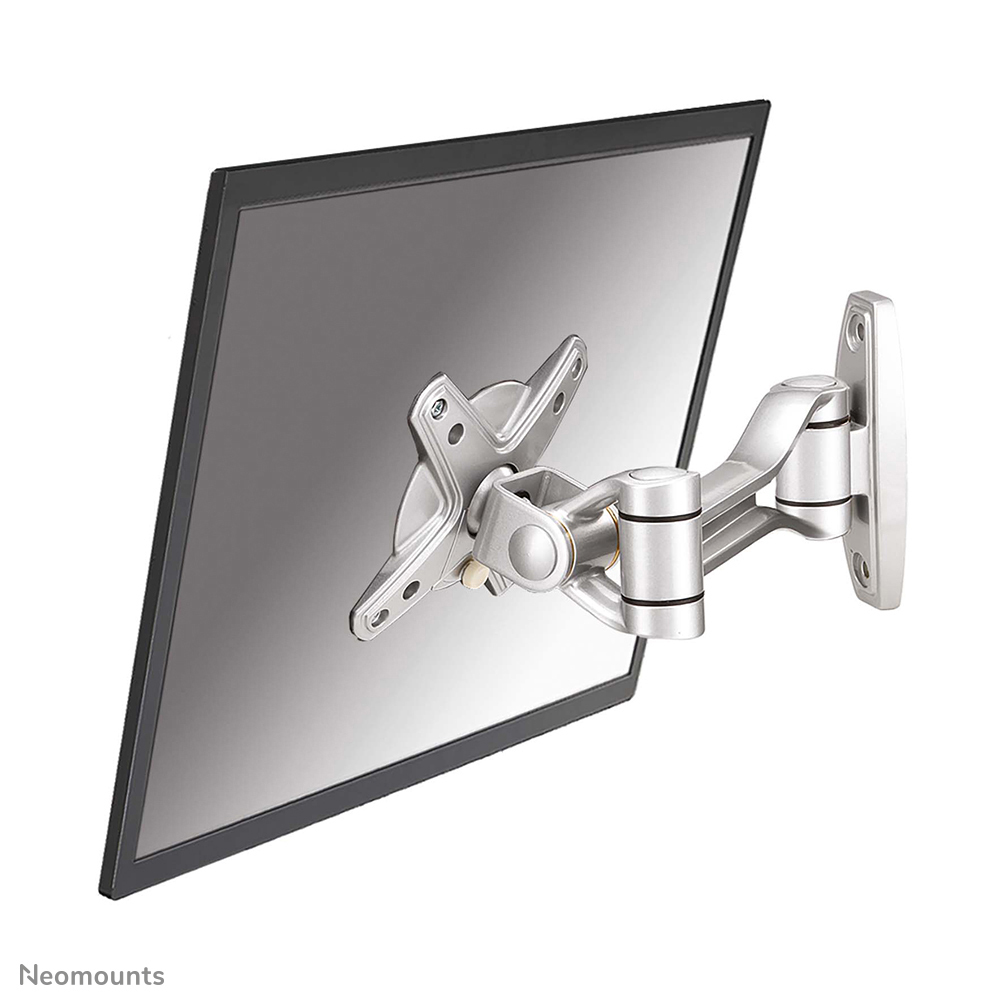

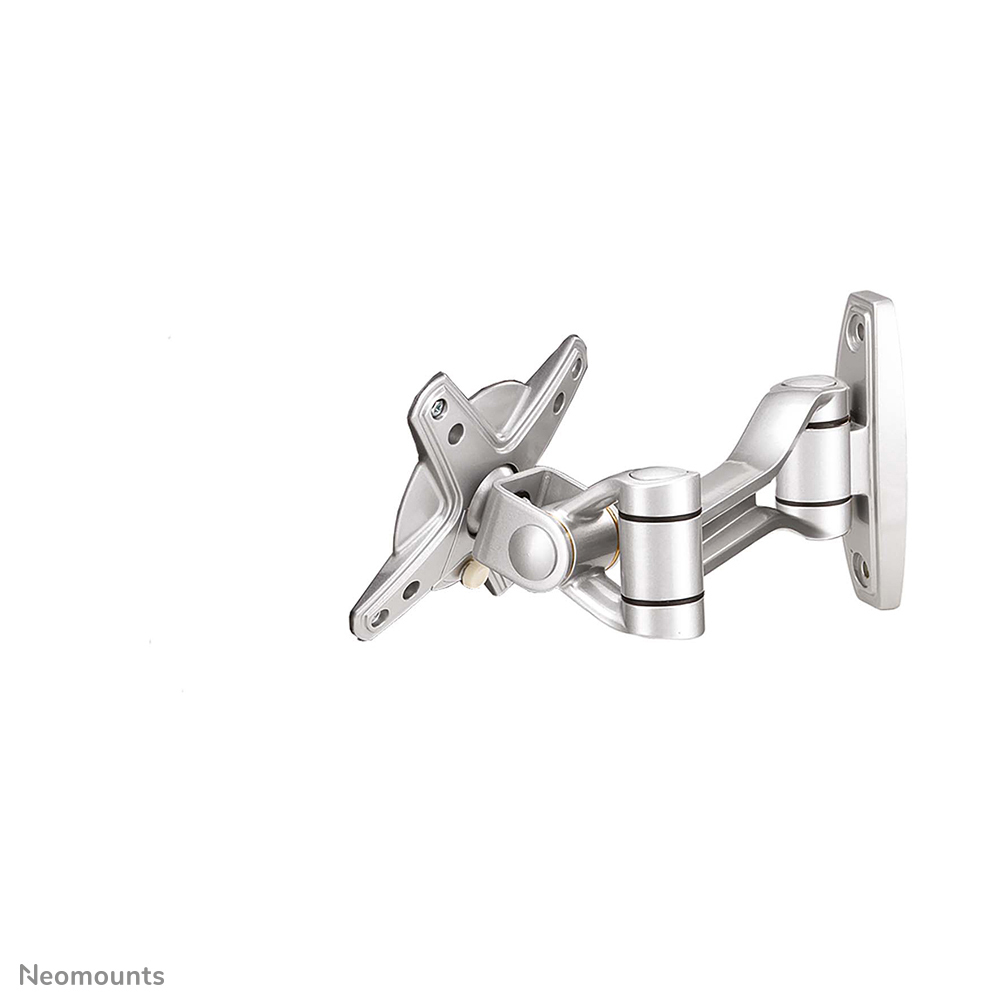

Neomounts FPMA-W1020 Monitor/TV mount wall 10-30" - full motion

FPMA-W1020 Monitor/TV mount wall 10-30" - full motion

Model FPMA-W1020EAN 4055895357315

36 specifications

Weight2 kg
ColourSilver
Number of displays supported1
Tilt adjustmentYes
Country of originTaiwan

See all specifications

Overview

Weight: 2 kg
Colour: Silver
Number of displays supported: 1
Tilt adjustment: Yes
Country of origin: Taiwan

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-W1020
Part number: FPMA-W1020
EAN / UPC: 4055895357315, 5052916704119, 8435397349630, 8717371441807
Also known as: Neomounts FPMA-W1020 Monitor/TV mount wall 10-30" - full motion

Specifications

36 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	10 kg
Maximum weight capacity	10 kg
Minimum screen size	25.4 cm (10")
Maximum screen size	76.2 cm (30")
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100,75 x 75 mm

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	0 - 180°
Swivelling	Yes
Swivel angle	260°
Swivel angle range	0 - 260°
Rotating	Yes
Angle of rotation	180°
Distance to the wall (max)	34 cm
Distance to the wall (min)	14 cm

Design

Specification	Value
Product colour	Silver
Housing material	Aluminium

Technical details

Specification	Value
Country of origin	Taiwan
Package net weight	1.75 kg

Weight & dimensions

Specification	Value
Weight	2 kg

Packaging data

Specification	Value
Package width	330 mm
Package depth	160 mm
Package height	140 mm
Package weight	1.8 kg

Logistics data

Specification	Value
Master (outer) case width	360 mm
Master (outer) case length	340 mm
Master (outer) case height	300 mm
Master (outer) case gross weight	8.8 kg
Master (outer) case net weight	8 kg
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	7616991099
Products per pallet (EU)	96 pc(s)

Other features

Specification	Value
Mounting interface	75x75mm / 100x100mm
