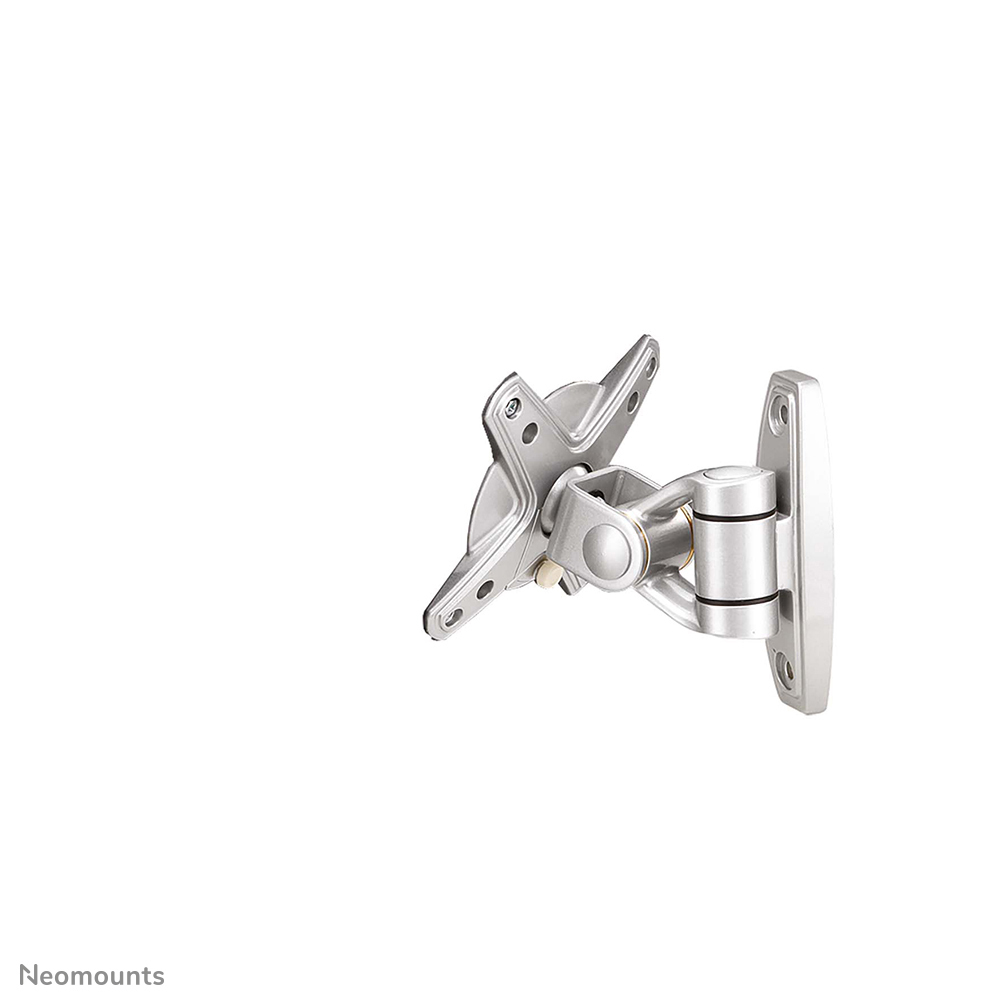

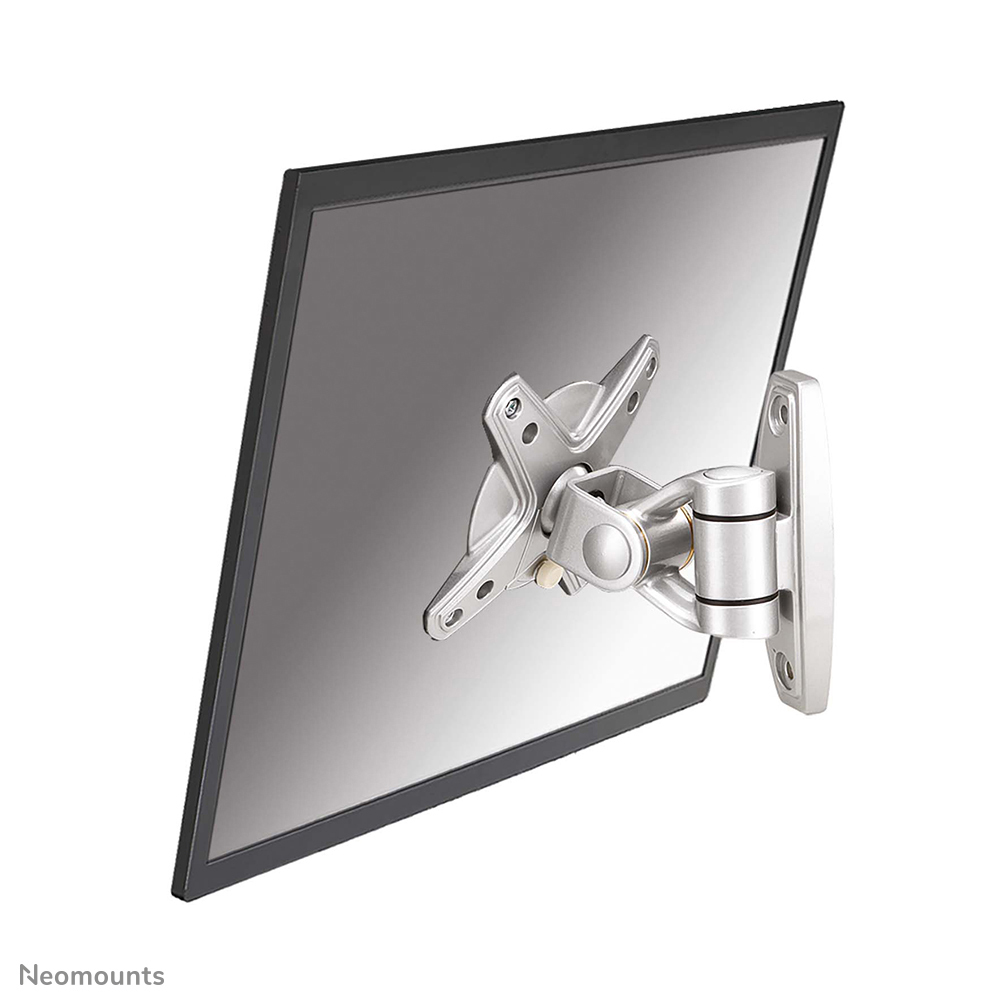

Neomounts FPMA-W1010 Monitor/TV mount wall 10-30" - full motion

FPMA-W1010 Monitor/TV mount wall 10-30" - full motion

Model FPMA-W1010EAN 4055895234241

36 specifications

Weight1.6 kg
ColourSilver
Number of displays supported1
Tilt adjustmentYes
Country of originTaiwan

See all specifications

Overview

Weight: 1.6 kg
Colour: Silver
Number of displays supported: 1
Tilt adjustment: Yes
Country of origin: Taiwan

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-W1010
Part number: FPMA-W1010
EAN / UPC: 4055895234241, 5057103001293, 8717371441791
Also known as: Neomounts FPMA-W1010 Monitor/TV mount wall 10-30" - full motion

Specifications

36 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	12 kg
Maximum weight capacity	12 kg

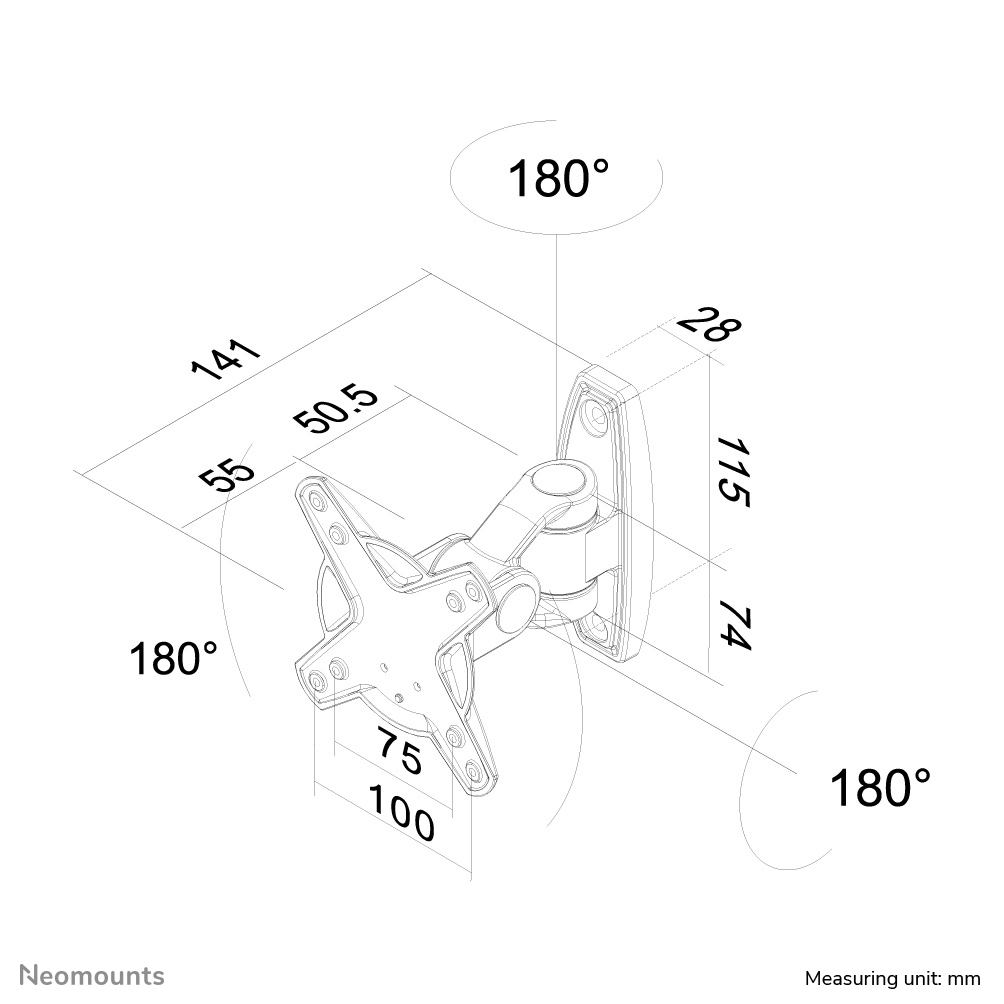

Minimum screen size	25.4 cm (10")
Maximum screen size	76.2 cm (30")
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100,75 x 75 mm

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	0 - 180°
Swivelling	Yes
Swivel angle	180°
Swivel angle range	0 - 180°
Rotating	Yes
Angle of rotation	180°
Distance to the wall (max)	14 cm
Distance to the wall (min)	14 cm

Design

Specification	Value
Product colour	Silver
Housing material	Aluminium

Technical details

Specification	Value
Country of origin	Taiwan
Package net weight	1.45 kg

Weight & dimensions

Specification	Value
Weight	1.6 kg

Packaging data

Specification	Value
Package width	160 mm
Package depth	140 mm
Package height	160 mm
Package weight	1.5 kg

Logistics data

Specification	Value
Master (outer) case width	300 mm
Master (outer) case length	180 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	6.8 kg
Master (outer) case net weight	6.4 kg
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	83025000
Products per pallet (EU)	192 pc(s)

Other features

Specification	Value
Mounting interface	75x75mm / 100x100mm
