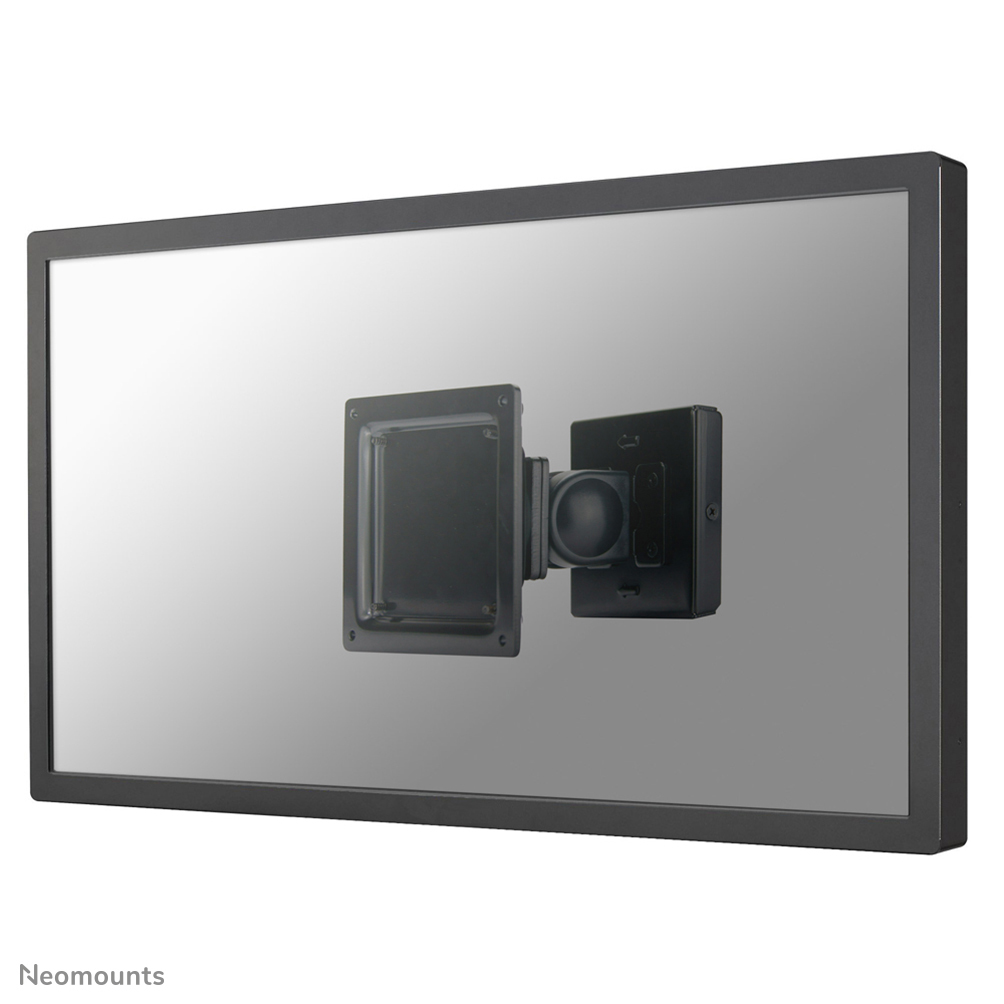

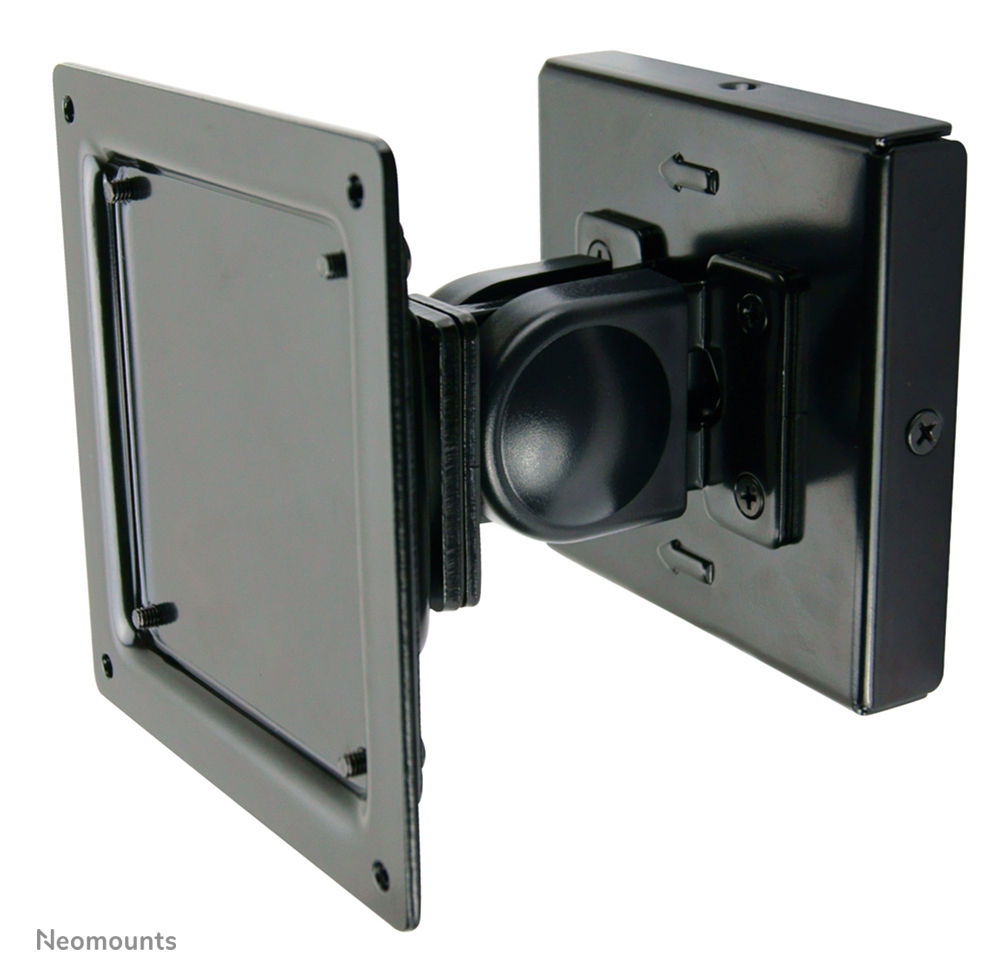

Neomounts FPMA-W100 Monitor/TV mount wall 10-30" - full motion

FPMA-W100 Monitor/TV mount wall 10-30" - full motion

Model FPMA-W100EAN 8717371440398

36 specifications

Weight1.62 kg
ColourBlack
Number of displays supported1
Tilt adjustmentYes
Country of originTaiwan

See all specifications

Overview

Weight: 1.62 kg
Colour: Black
Number of displays supported: 1
Tilt adjustment: Yes
Country of origin: Taiwan

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-W100
Part number: FPMA-W100
EAN / UPC: 8717371440398, 5054484769910, 5054533769915, 5054629239155 +2 more
Also known as: Neomounts FPMA-W100 Monitor/TV mount wall 10-30" - full motion

Specifications

36 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	10 kg
Maximum weight capacity	10 kg
Minimum screen size	25.4 cm (10")
Maximum screen size	76.2 cm (30")
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100,75 x 75 mm

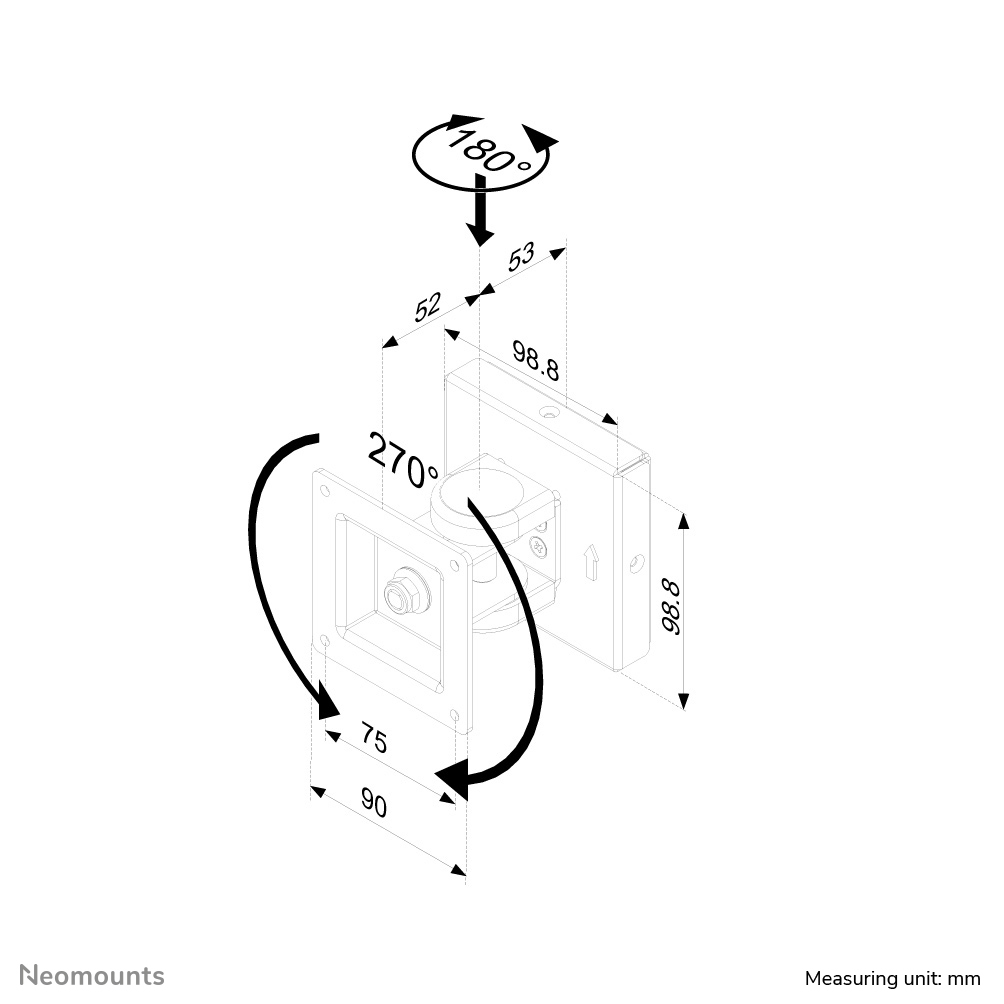

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	0 - 180°
Swivelling	Yes
Swivel angle	180°
Swivel angle range	0 - 180°
Rotating	Yes
Angle of rotation	270°
Distance to the wall (max)	11 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel
Compatibility	LCD/LED/TFT TVs

Technical details

Specification	Value
Country of origin	Taiwan
Package net weight	1.2 kg

Weight & dimensions

Specification	Value
Weight	1.62 kg

Packaging data

Specification	Value
Package width	120 mm
Package depth	120 mm
Package height	120 mm
Package weight	1.2 kg

Logistics data

Specification	Value
Master (outer) case width	520 mm
Master (outer) case length	400 mm
Master (outer) case height	150 mm
Master (outer) case gross weight	15.5 kg
Master (outer) case net weight	12.7 kg
Products per master (outer) case	12 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	384 pc(s)

Other features

Specification	Value
Mounting interface	VESA 75 x 75mm, 100 x 100mm
