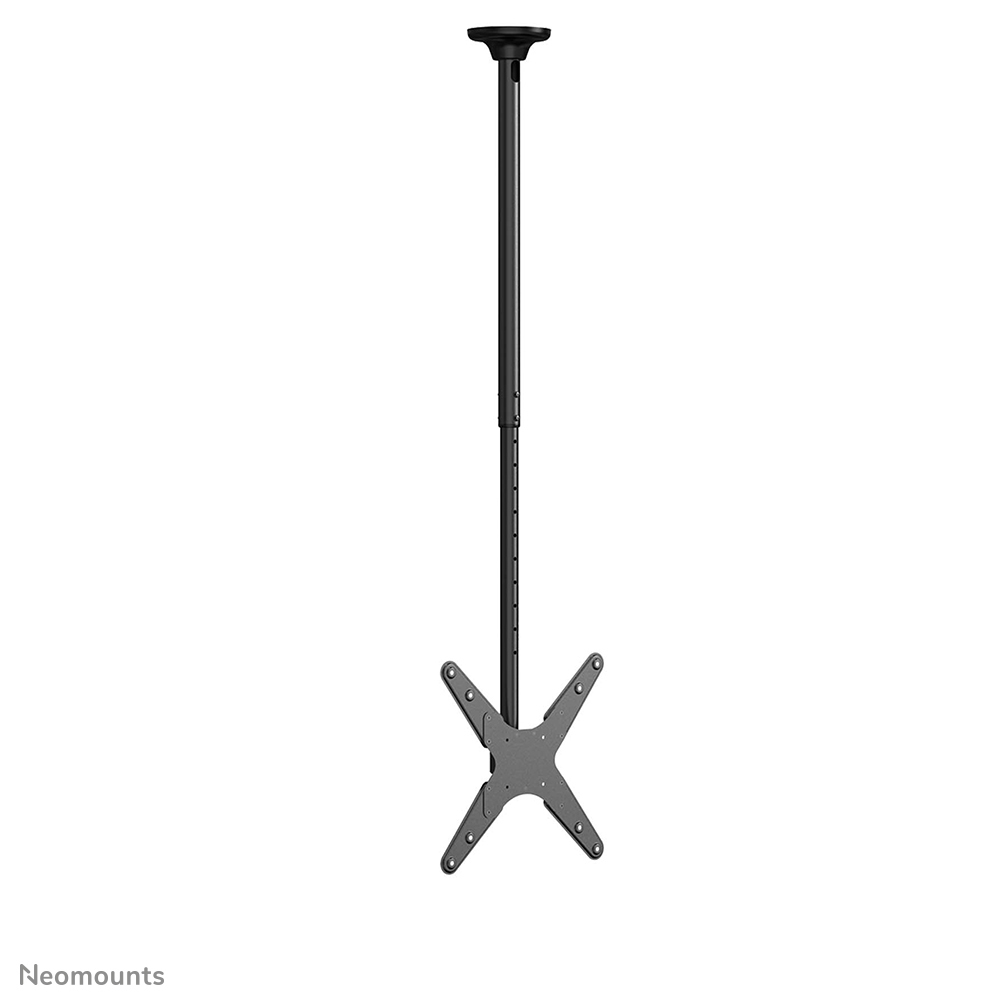

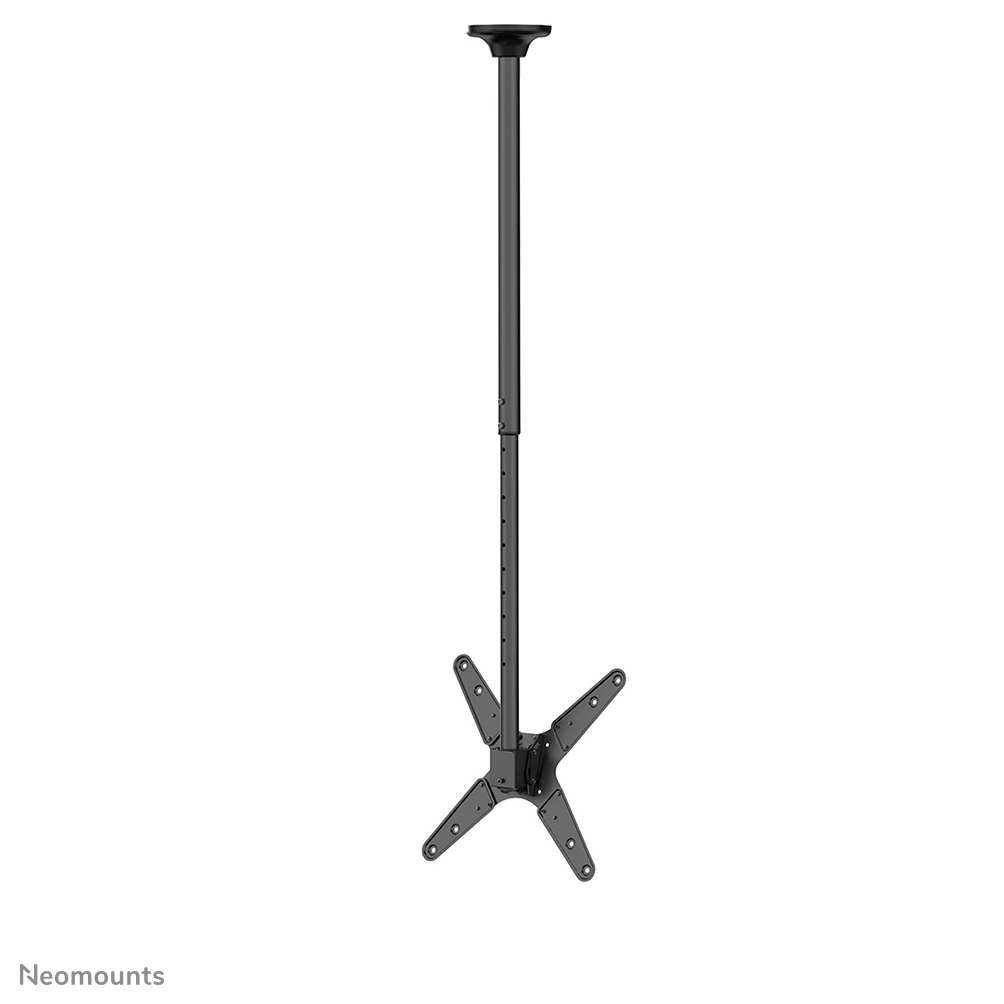

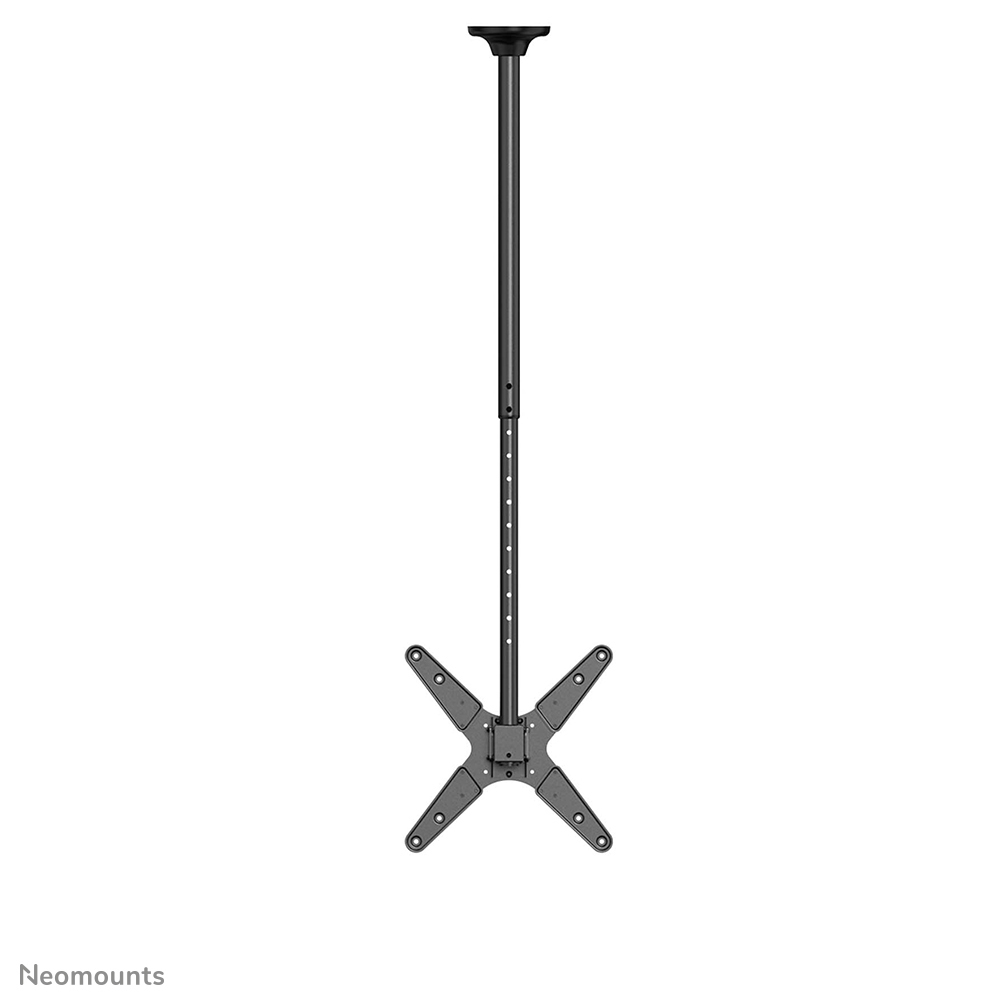

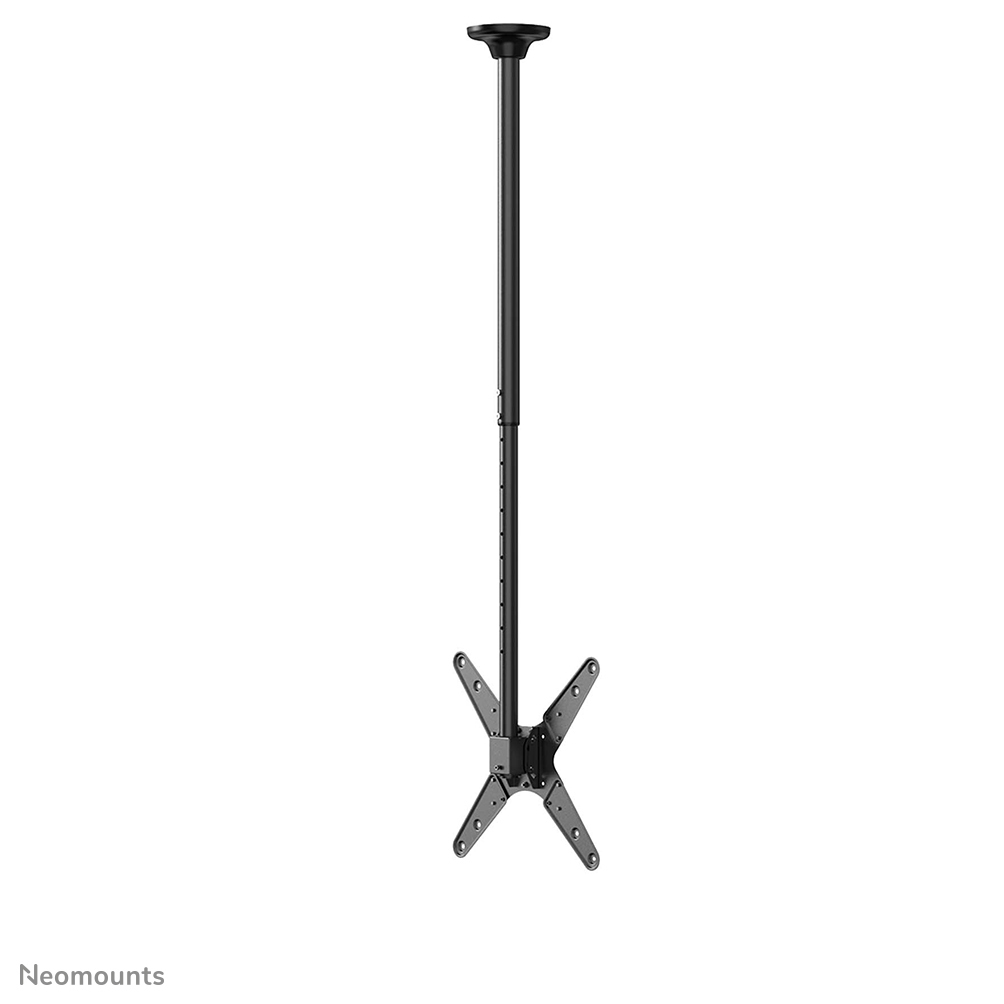

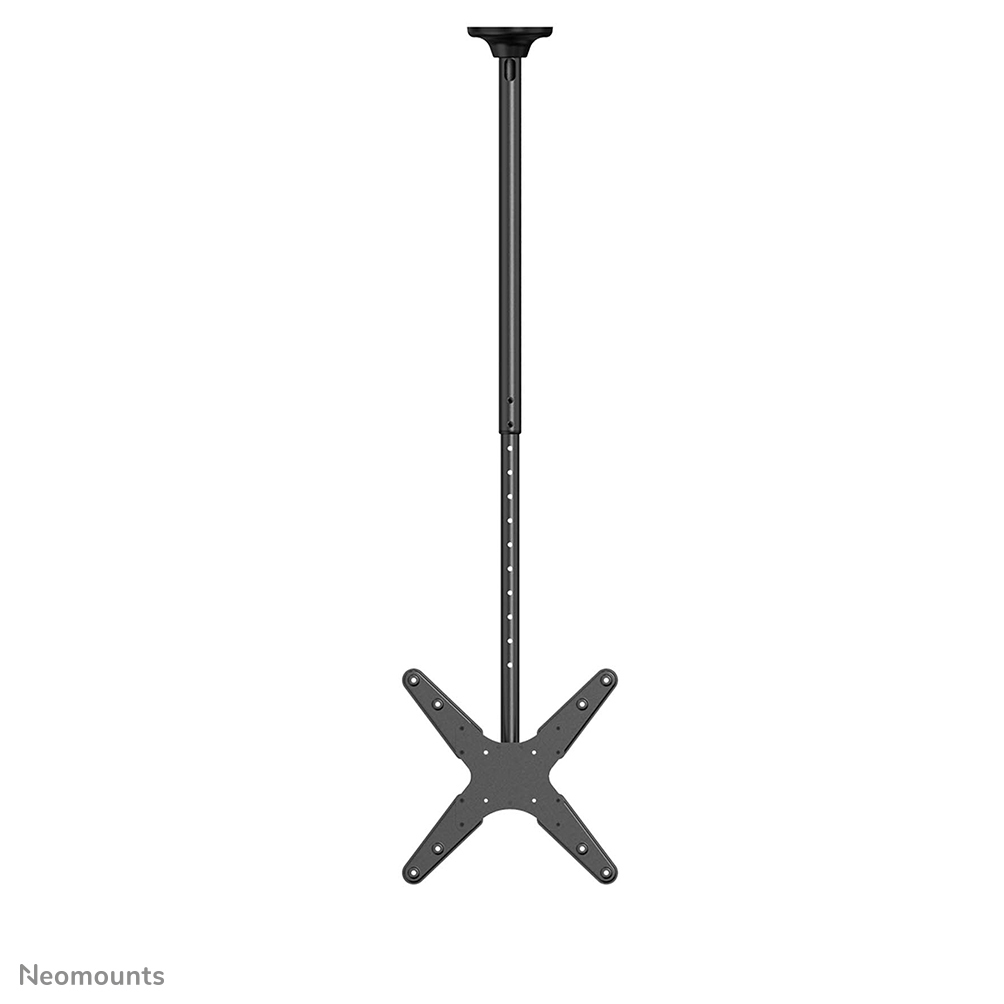

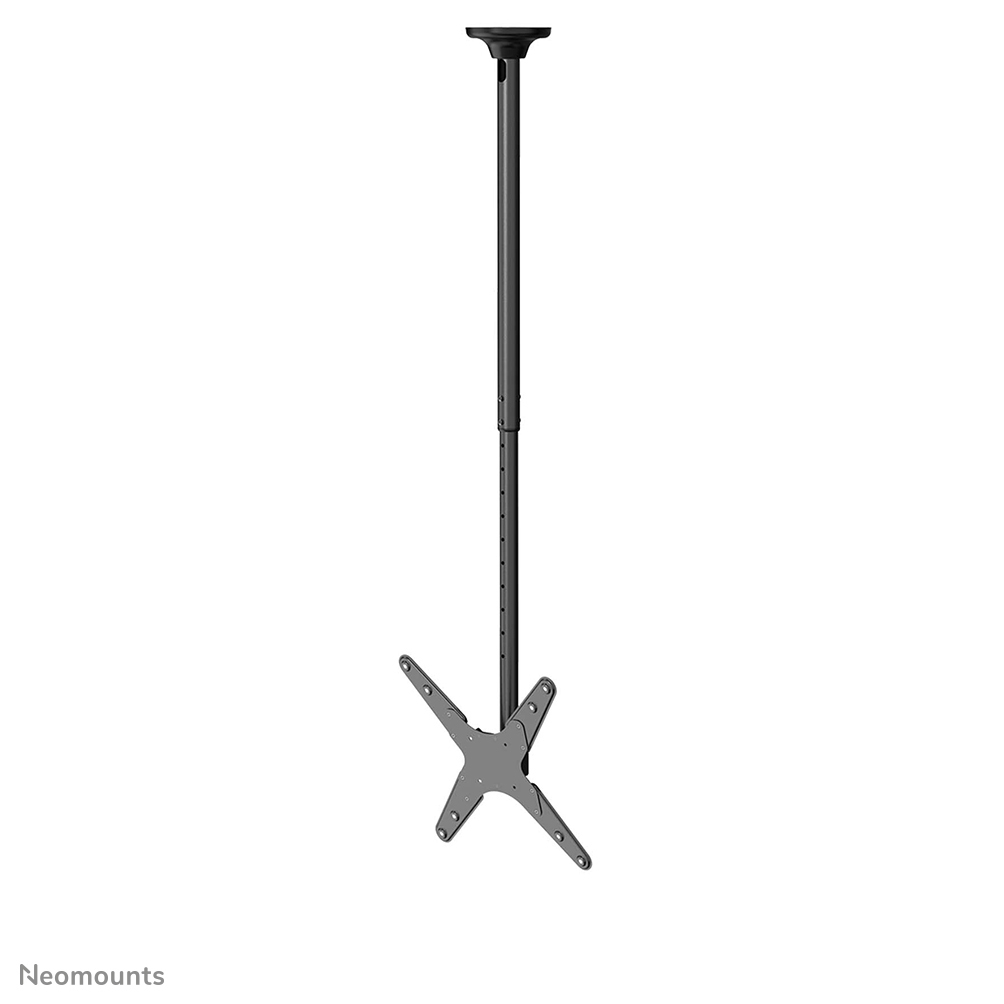

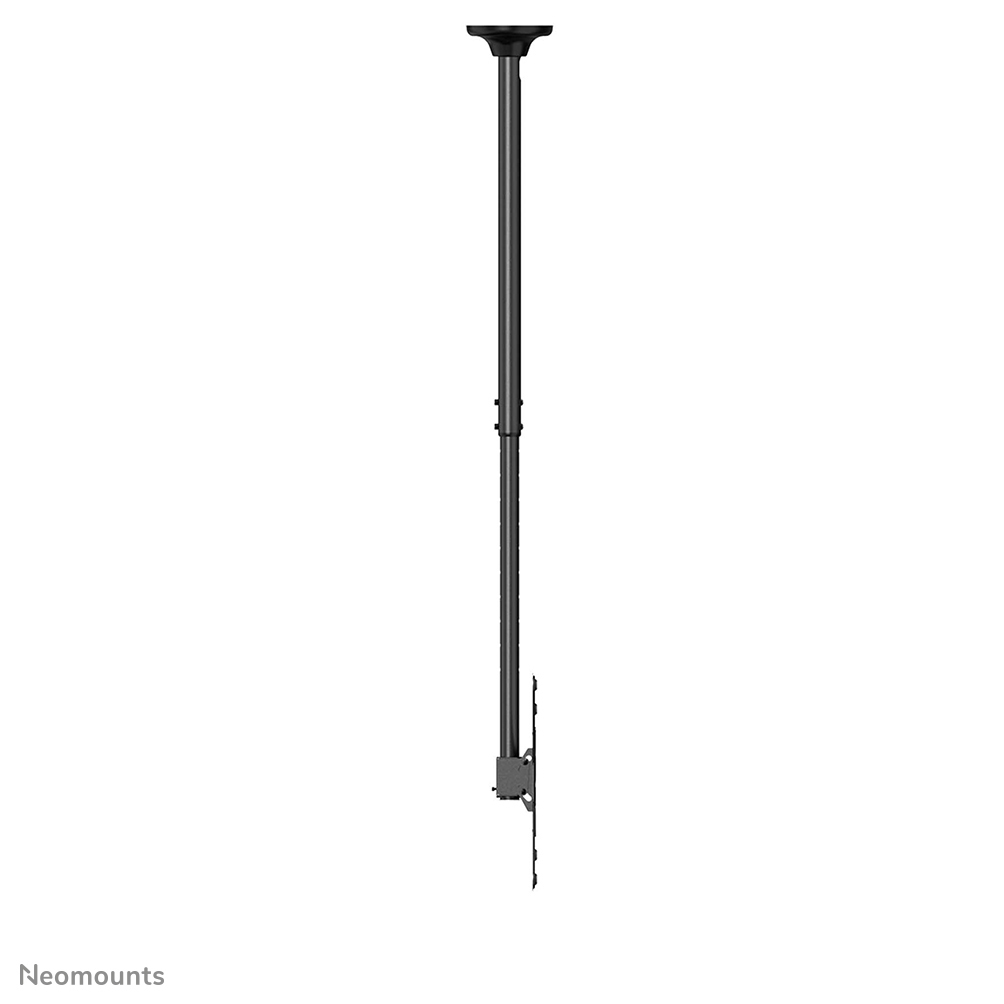

Neomounts FPMA-C340BLACK Monitor/TV mount ceiling 32-75" - h 106-156 cm

FPMA-C340BLACK Monitor/TV mount ceiling 32-75" - h 106-156 cm

Model FPMA-C340BLACKEAN 8717371446369

40 specifications

Weight5.54 kg
ColourBlack
Number of displays supported1
Height adjustmentYes
Country of originChina
Height1785 mm

See all specifications

Overview

Weight: 5.54 kg
Colour: Black
Number of displays supported: 1
Height adjustment: Yes
Country of origin: China
Height: 1785 mm

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-C340BLACK
Part number: FPMA-C340BLACK
EAN / UPC: 8717371446369
Also known as: Neomounts FPMA-C340BLACK Monitor/TV mount ceiling 32-75" - h 106-156 cm

Specifications

40 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	50 kg
Maximum weight capacity	50 kg
Minimum screen size	81.3 cm (32")
Maximum screen size	190.5 cm (75")
Mounting type	Ceiling
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	100 x 100,150 x 200,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400

Ergonomics

Specification	Value
Height adjustment	Yes
Height adjustment type	Manual
Height adjustment range	1060 - 1560 mm
Tilt adjustment	Yes
Tilt angle range	-25 - 0°
Swivelling	Yes
Swivel angle	360°
Swivel angle range	-180 - 180°
Rotating	Yes
Angle of rotation	6°
Pivot angle	-3 - 3°
Number of pivot points	1
Tilt angle	25°

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Package net weight	12.8 kg

Weight & dimensions

Specification	Value
Height	1785 mm
Weight	5.54 kg

Packaging data

Specification	Value
Package width	250 mm
Package depth	145 mm
Package height	930 mm
Package weight	8.8 kg

Logistics data

Specification	Value
Master (outer) case width	310 mm
Master (outer) case length	270 mm
Master (outer) case height	950 mm
Master (outer) case gross weight	17.6 kg
Master (outer) case net weight	17.6 kg
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	30 pc(s)
