Neomounts FPMA-C200 Monitor/TV mount ceiling 10-40" - h 64-104 cm

FPMA-C200 Monitor/TV mount ceiling 10-40" - h 64-104 cm

Model FPMA-C200EAN 5711045105890

39 specifications

TypeFull motion
Weight5.83 kg
ColourSilver
Number of displays supported1
Height adjustmentYes
Country of originTaiwan

See all specifications

Overview

Type: Full motion
Weight: 5.83 kg
Colour: Silver
Number of displays supported: 1
Height adjustment: Yes
Country of origin: Taiwan

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-C200
Part number: FPMA-C200
EAN / UPC: 5711045105890, 8171371441364, 8717371441364
Also known as: Neomounts FPMA-C200 Monitor/TV mount ceiling 10-40" - h 64-104 cm

Specifications

39 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	20 kg
Maximum weight capacity	20 kg
Minimum screen size	25.4 cm (10")
Maximum screen size	101.6 cm (40")
Mounting type	Ceiling
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 200,100 x 100,200 x 100,200 x 200,75 x 75

Ergonomics

Specification	Value
Height adjustment	Yes
Height adjustment type	Manual

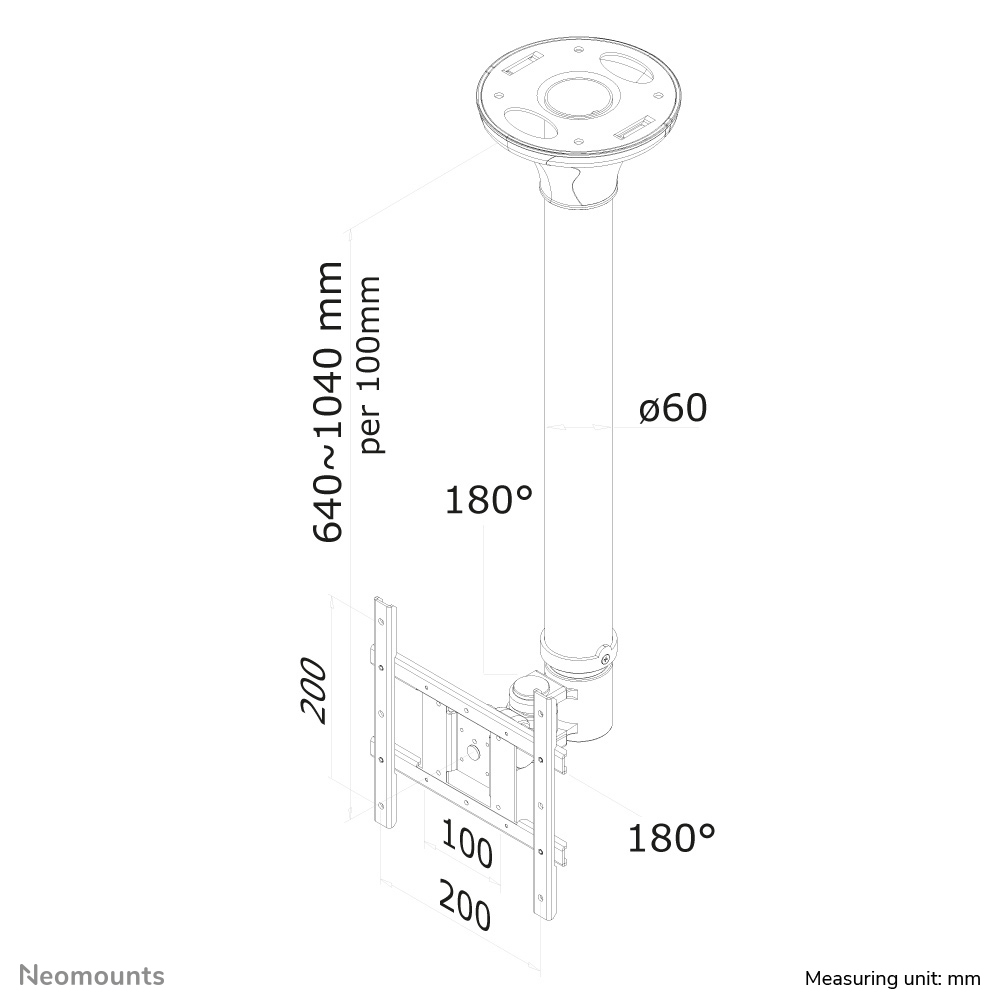

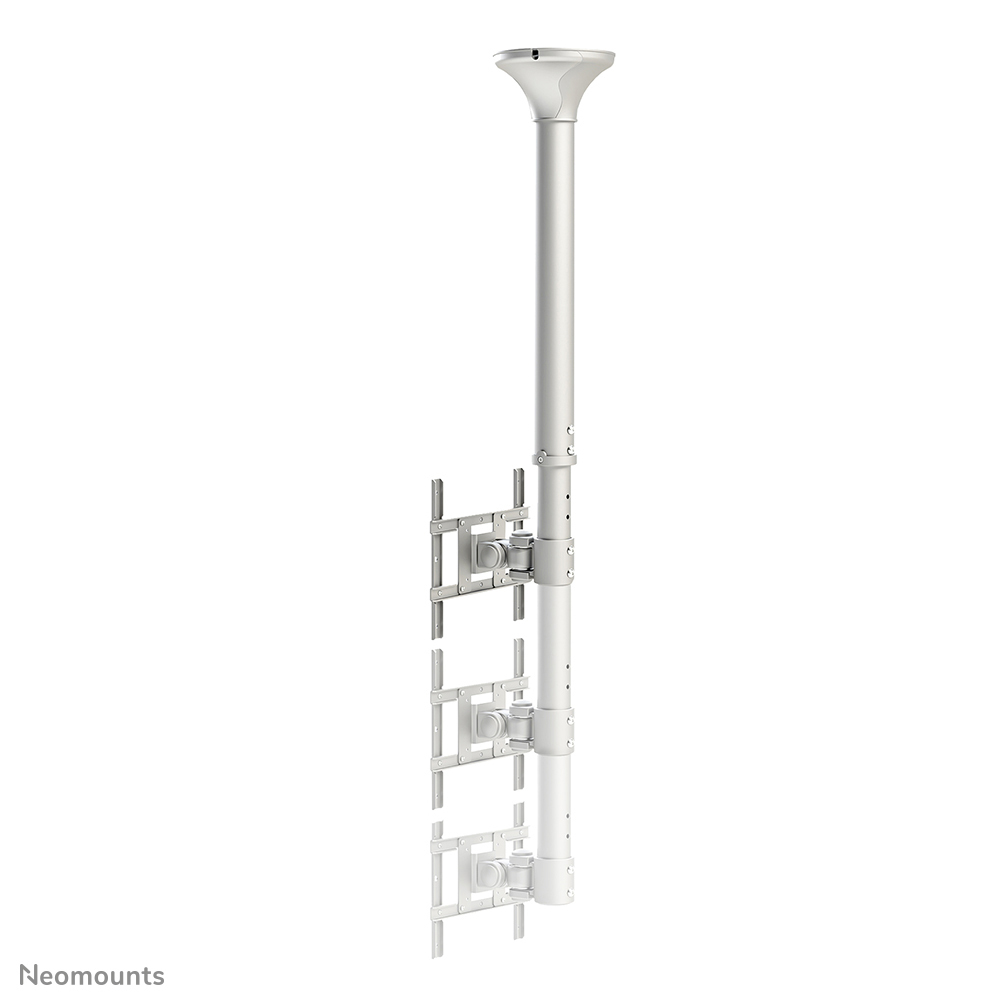

Height adjustment range	640 - 1040 mm
Tilt adjustment	Yes
Tilt angle range	0 - 180°
Swivelling	Yes
Swivel angle	180°
Swivel angle range	0 - 180°
Rotating	Yes
Angle of rotation	360°
Type	Full motion

Design

Specification	Value
Product colour	Silver
Housing material	Steel

Technical details

Specification	Value
Country of origin	Taiwan

Weight & dimensions

Specification	Value
Depth	90 mm
Height	1040 mm
Weight	5.83 kg

Packaging data

Specification	Value
Package width	760 mm
Package depth	225 mm
Package height	190 mm
Package weight	6 kg

Logistics data

Specification	Value
Master (outer) case width	760 mm
Master (outer) case length	225 mm
Master (outer) case height	190 mm
Master (outer) case gross weight	6.6 kg
Master (outer) case net weight	6 kg
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	45 pc(s)

Other features

Specification	Value
Depth adjustment range	0 - 90 mm
