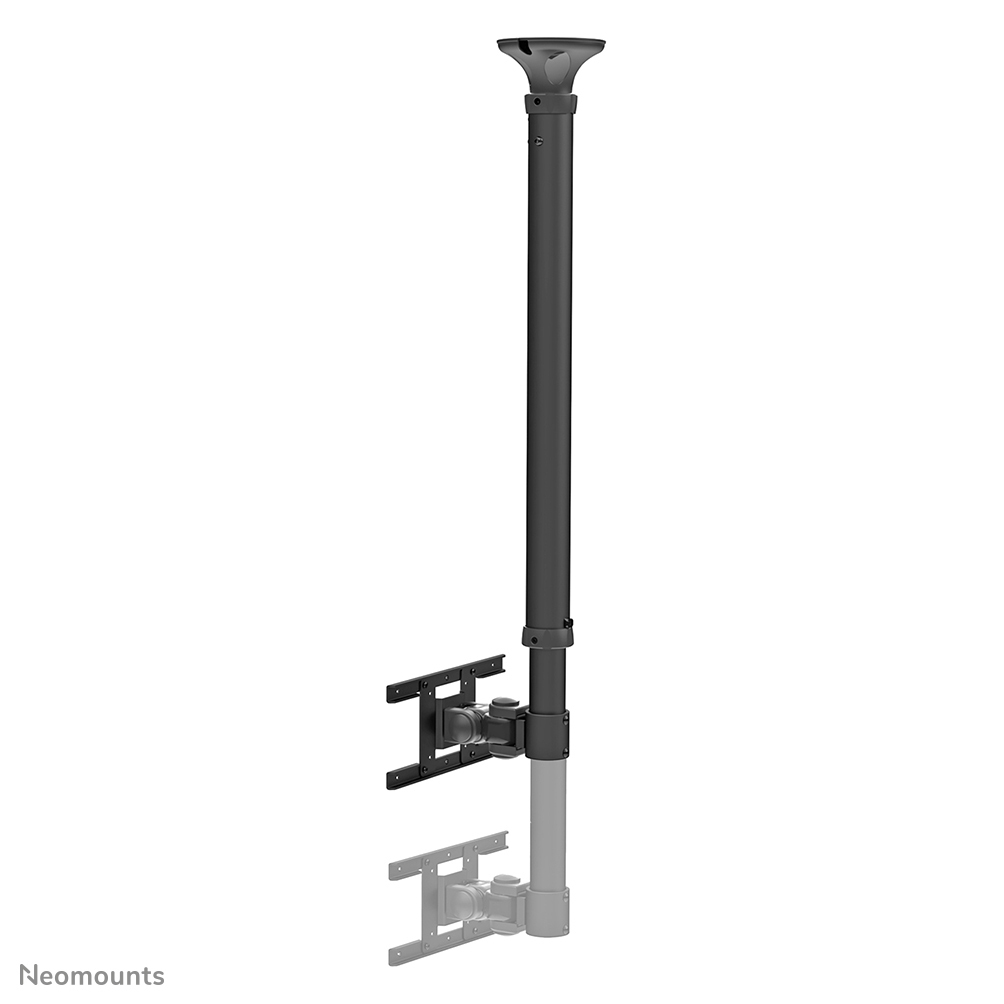

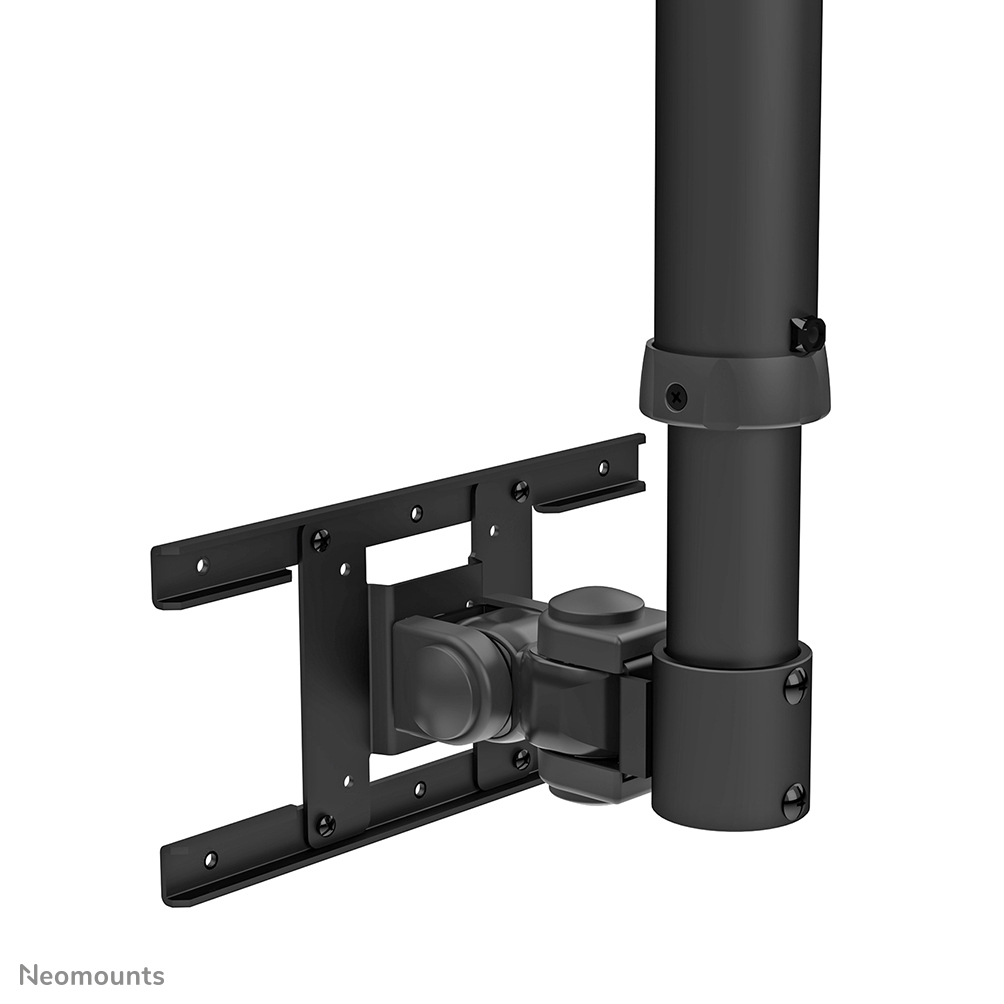

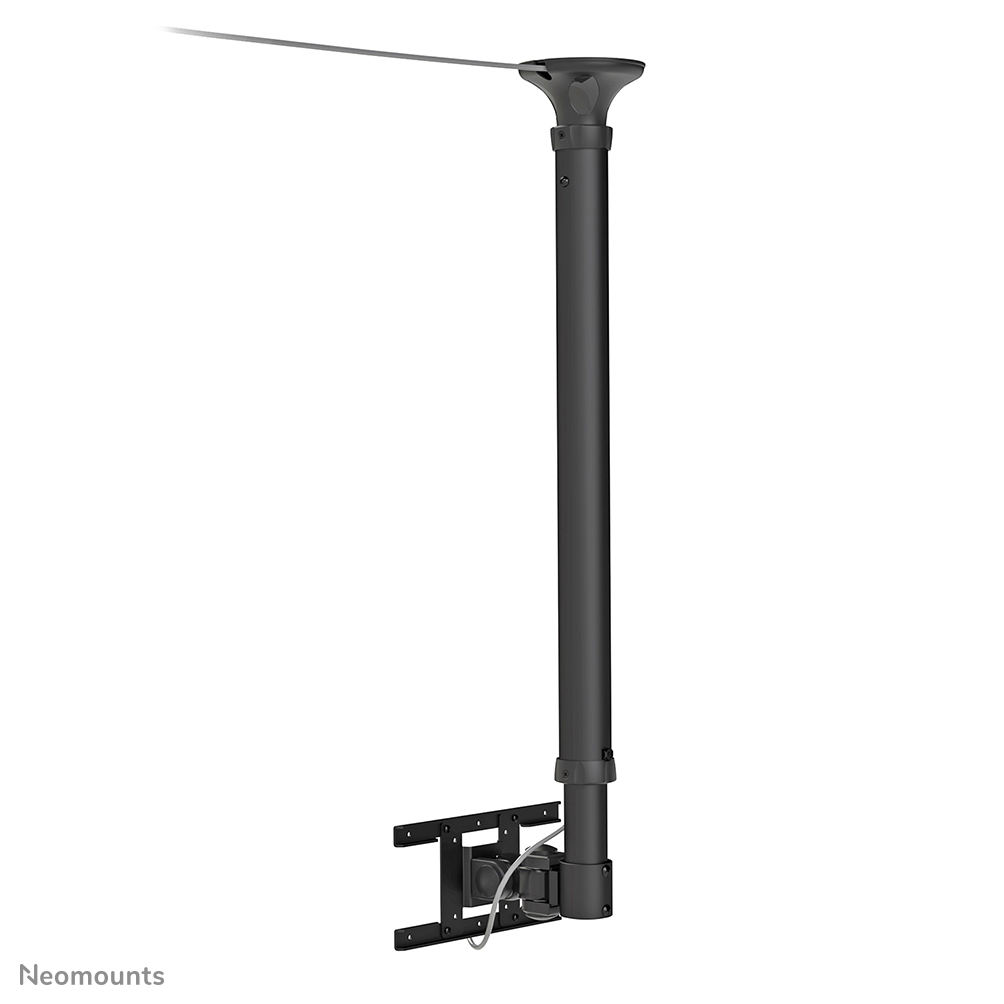

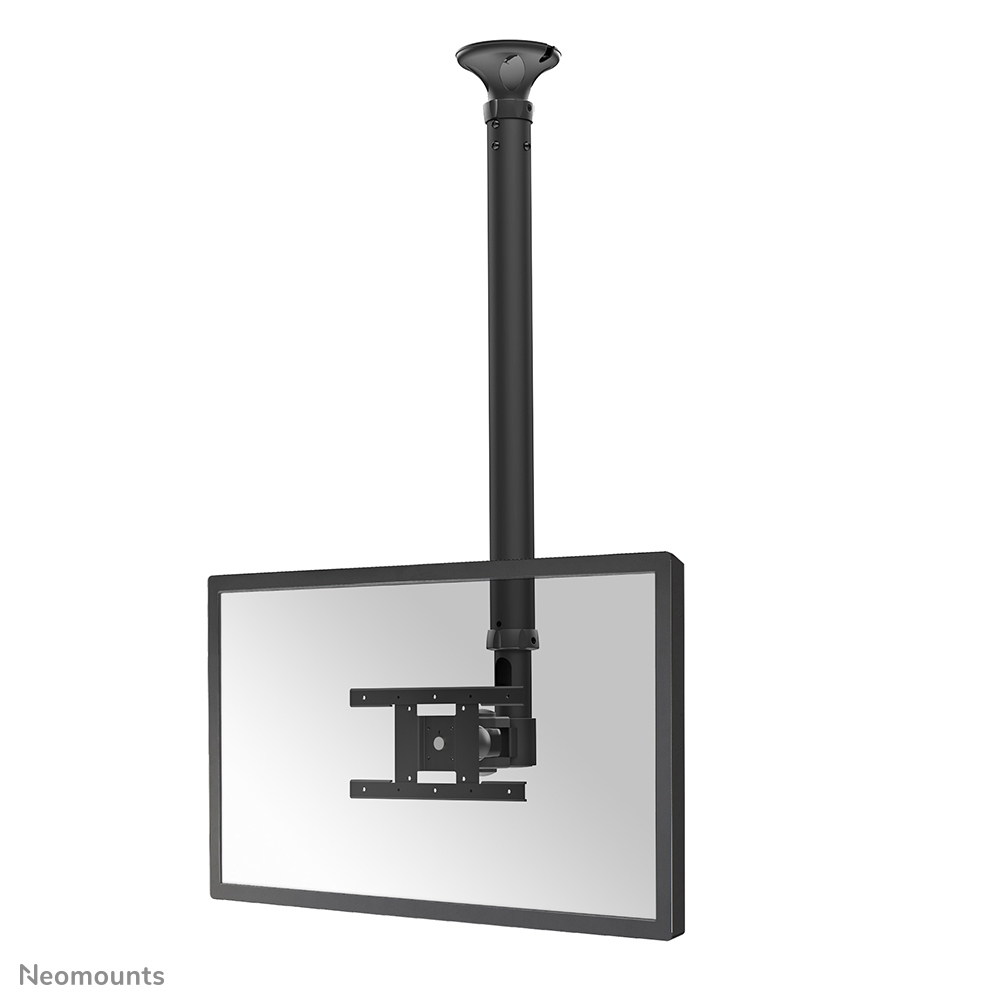

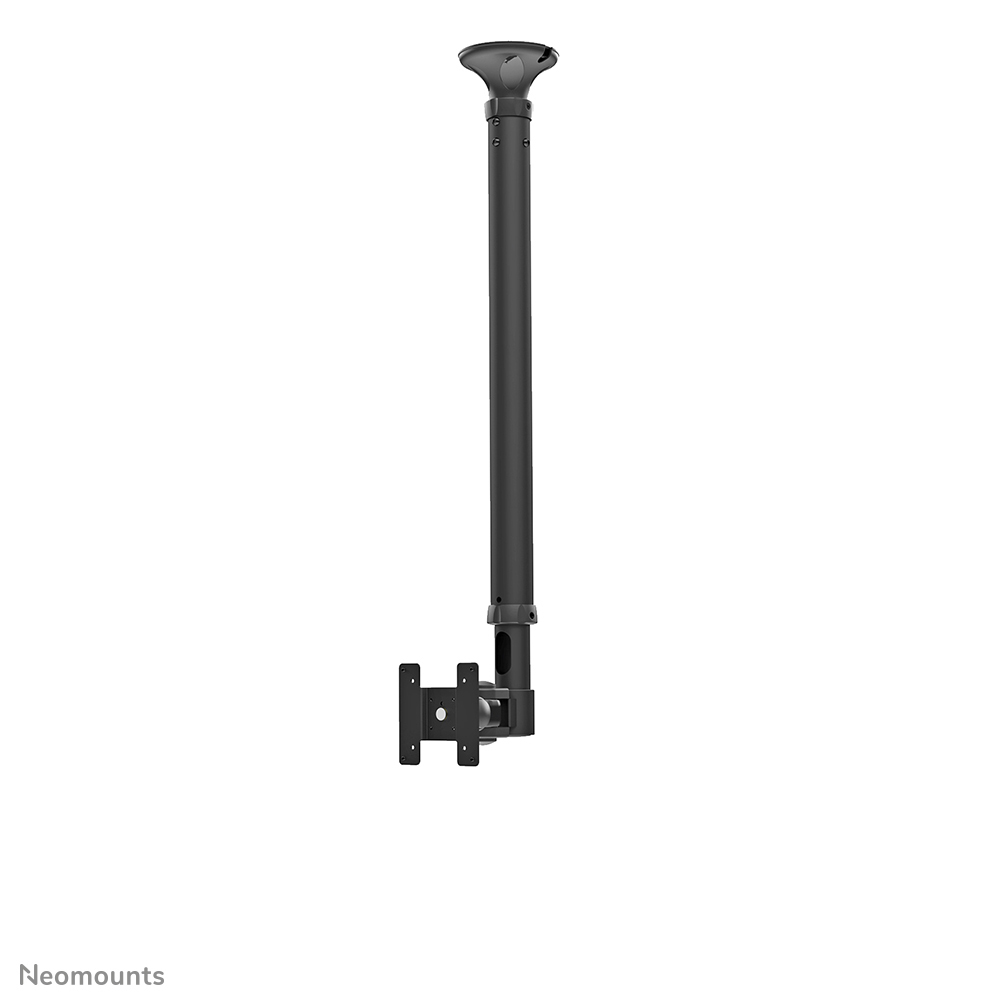

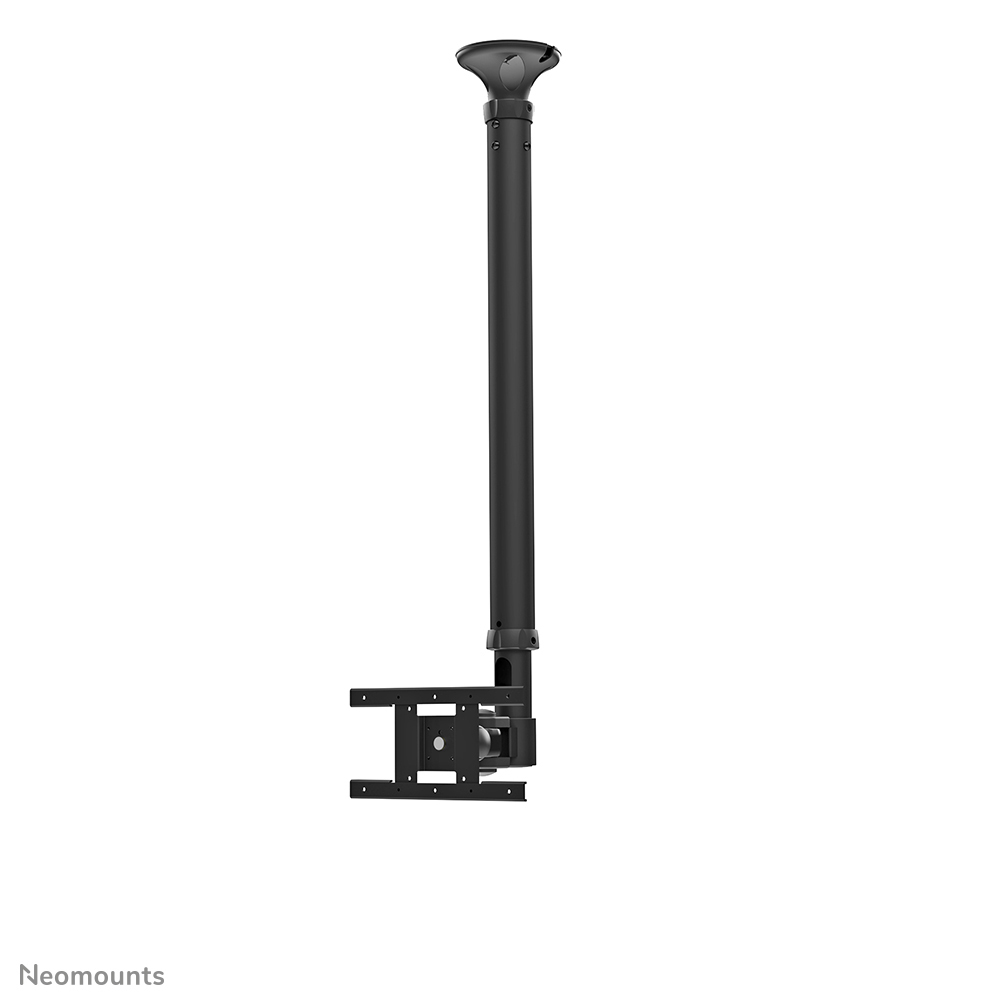

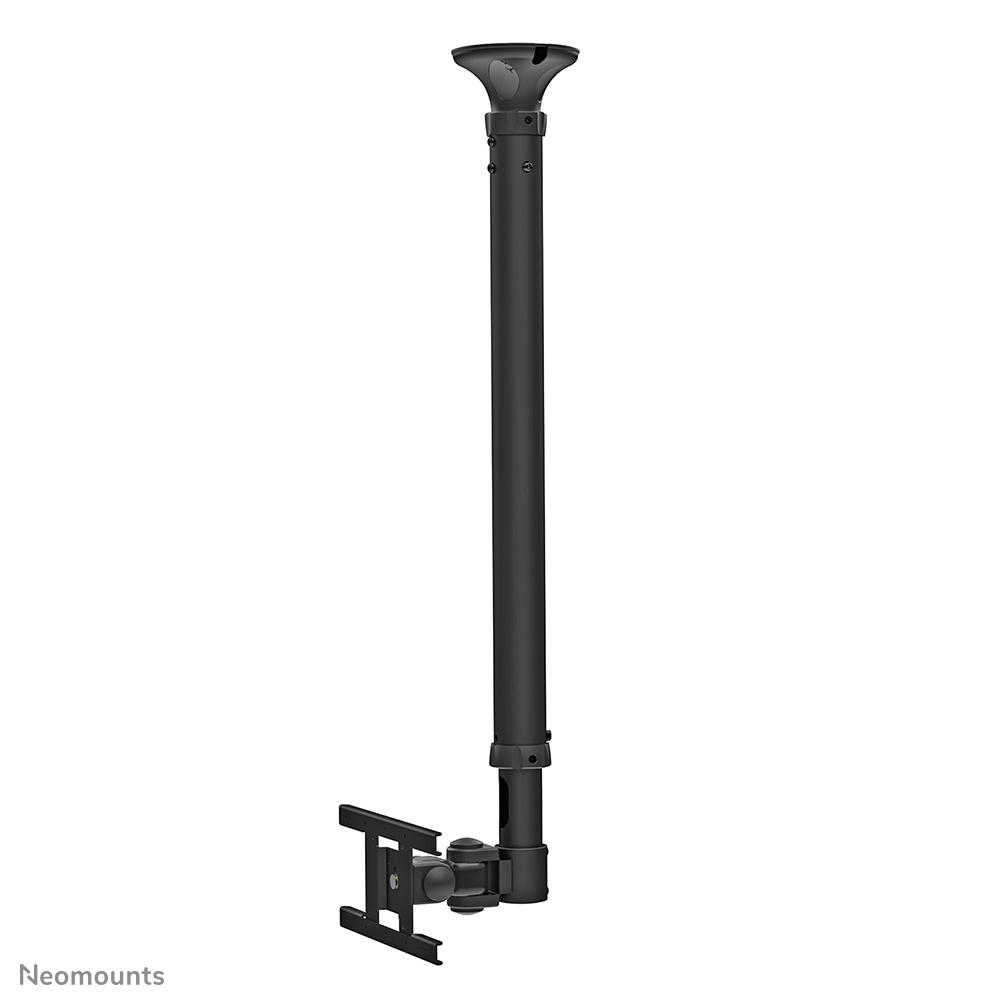

Neomounts FPMA-C100 Monitor/TV mount ceiling 10-30" - h 79-129 cm

FPMA-C100 Monitor/TV mount ceiling 10-30" - h 79-129 cm

Model FPMA-C100Part no. FPMAC100EAN 5054629479551

38 specifications

Weight4.32 kg
ColourBlack
Number of displays supported1
Height adjustment typeManual
Country of originTaiwan
Depth90 mm

See all specifications

Overview

Weight: 4.32 kg
Colour: Black
Number of displays supported: 1
Height adjustment type: Manual
Country of origin: Taiwan
Depth: 90 mm

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-C100
Part numbers: FPMAC100, FPMA-C100
EAN / UPC: 5054629479551, 5052180744842, 5052916704201, 8717371440879
Also known as: Neomounts FPMA-C100 Monitor/TV mount ceiling 10-30" - h 79-129 cm

Specifications

38 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	12 kg
Maximum weight capacity	12 kg
Minimum screen size	25.4 cm (10")
Maximum screen size	76.2 cm (30")
Mounting type	Ceiling
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 100 mm
Panel mounting interface	100 x 200,100 x 100,75 x 75

Ergonomics

Specification	Value
Height adjustment type	Manual

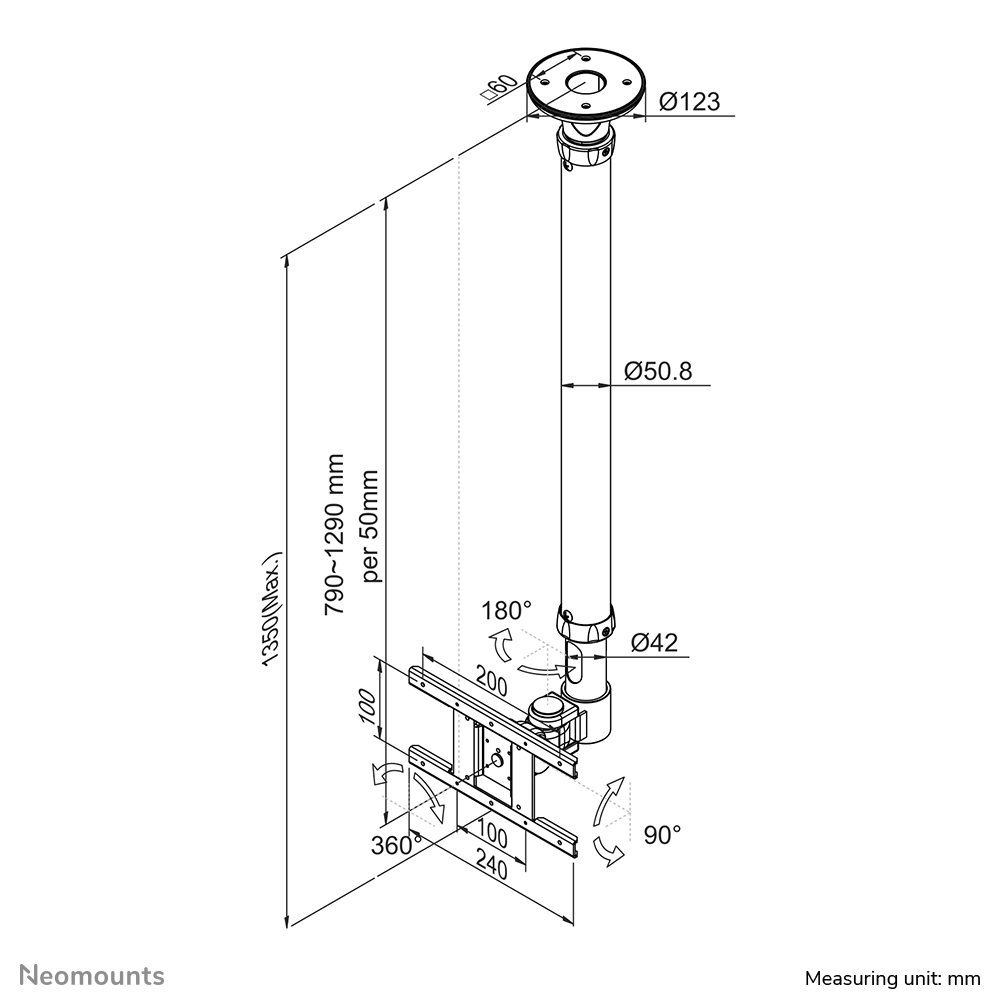

Height adjustment range	790 - 1290 mm
Tilt adjustment	Yes
Tilt angle range	0 - 180°
Swivelling	Yes
Swivel angle	180°
Swivel angle range	0 - 180°
Rotating	Yes
Angle of rotation	360°
Tilt angle	180°

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	Taiwan

Weight & dimensions

Specification	Value
Depth	90 mm
Height	1290 mm
Weight	4.32 kg

Packaging data

Specification	Value
Package width	858 mm
Package depth	152 mm
Package height	188 mm
Package weight	4.5 kg

Logistics data

Specification	Value
Master (outer) case width	880 mm
Master (outer) case length	495 mm
Master (outer) case height	175 mm
Master (outer) case gross weight	16.2 kg
Master (outer) case net weight	14.6 kg
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	45 pc(s)

Other features

Specification	Value
Depth adjustment range	0 - 90 mm
