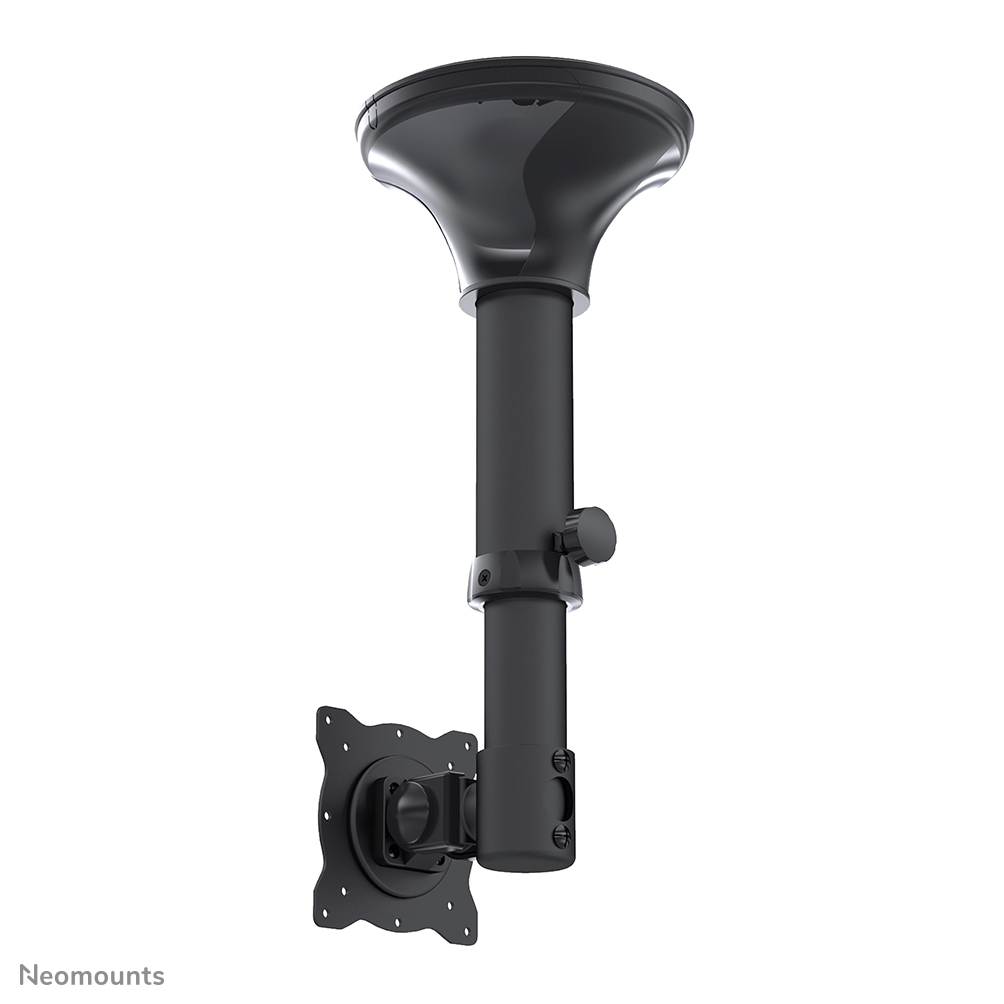

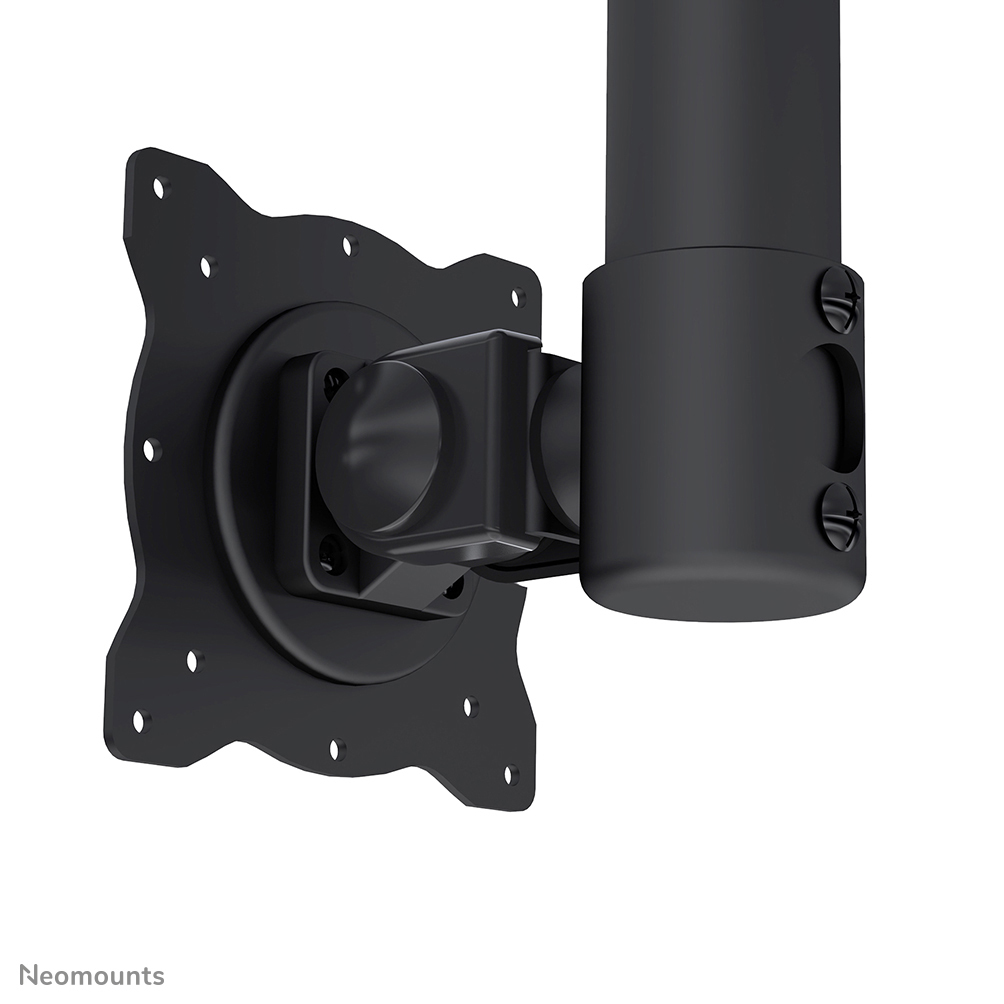

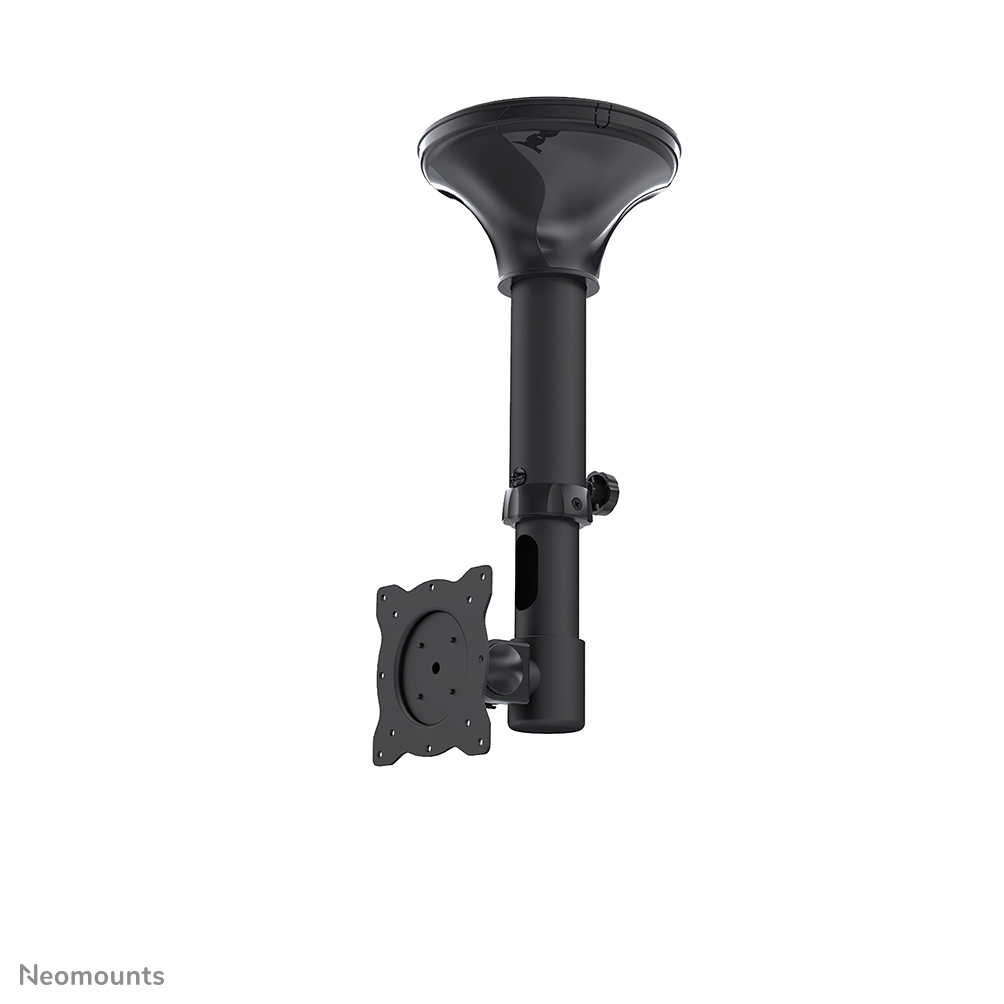

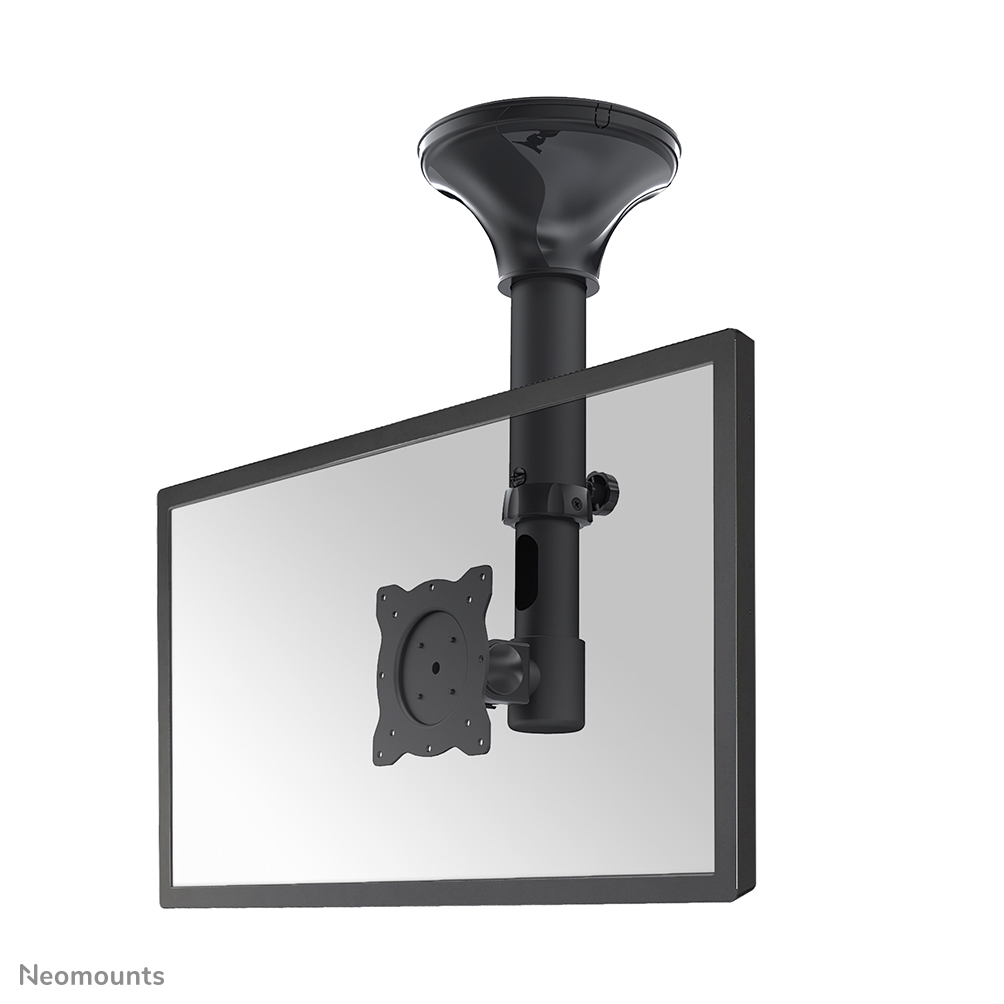

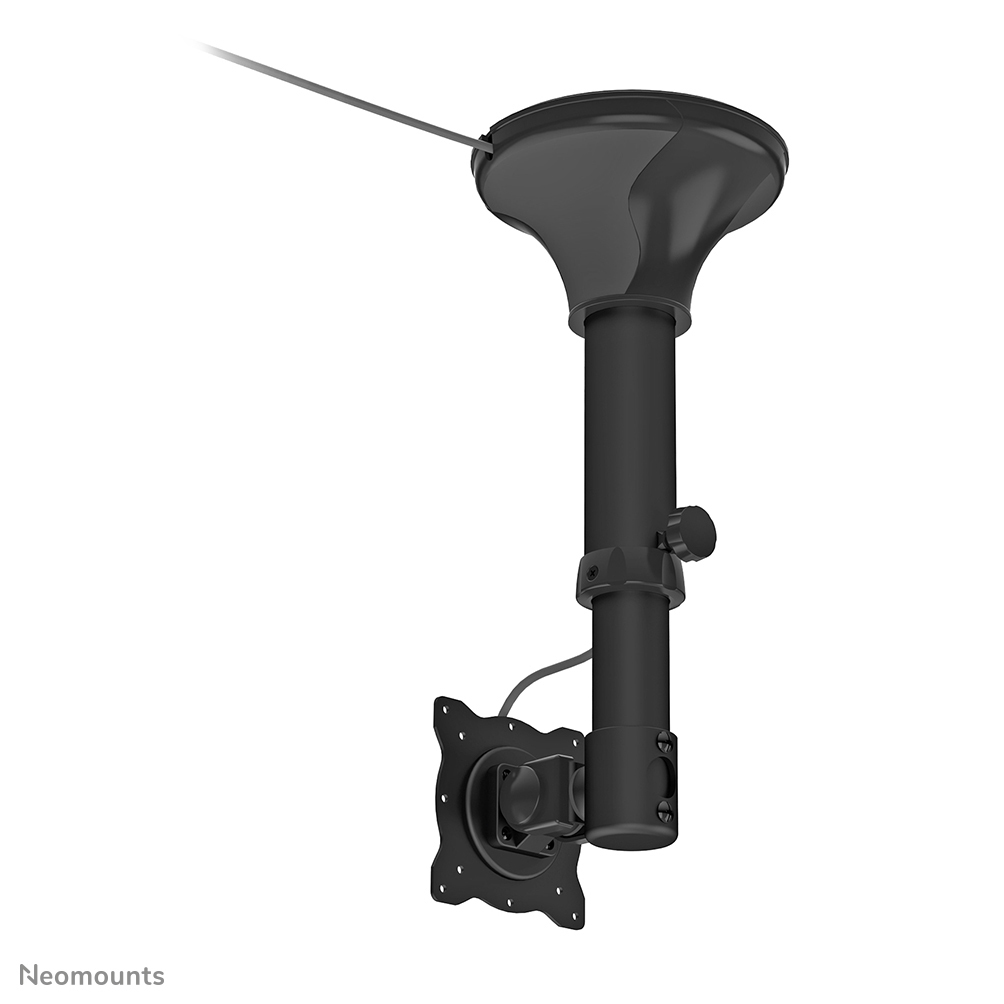

Neomounts FPMA-C025BLACK Monitor/TV mount ceiling 10-30" - h 37-47 cm - tiltable

FPMA-C025BLACK Monitor/TV mount ceiling 10-30" - h 37-47 cm - tiltable

Model FPMA-C025BLACKEAN 8717371445027

35 specifications

Weight2.37 kg
ColourBlack
Number of displays supported1
Height adjustmentYes
Country of originTaiwan
Depth50 mm

See all specifications

Overview

Weight: 2.37 kg
Colour: Black
Number of displays supported: 1
Height adjustment: Yes
Country of origin: Taiwan
Depth: 50 mm

Brand: Neomounts
Category: TV Mounts & Stands
Model: FPMA-C025BLACK
Part number: FPMA-C025BLACK
EAN / UPC: 8717371445027
Also known as: Neomounts FPMA-C025BLACK Monitor/TV mount ceiling 10-30" - h 37-47 cm - tiltable

Specifications

35 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	12 kg
Maximum weight capacity	12 kg

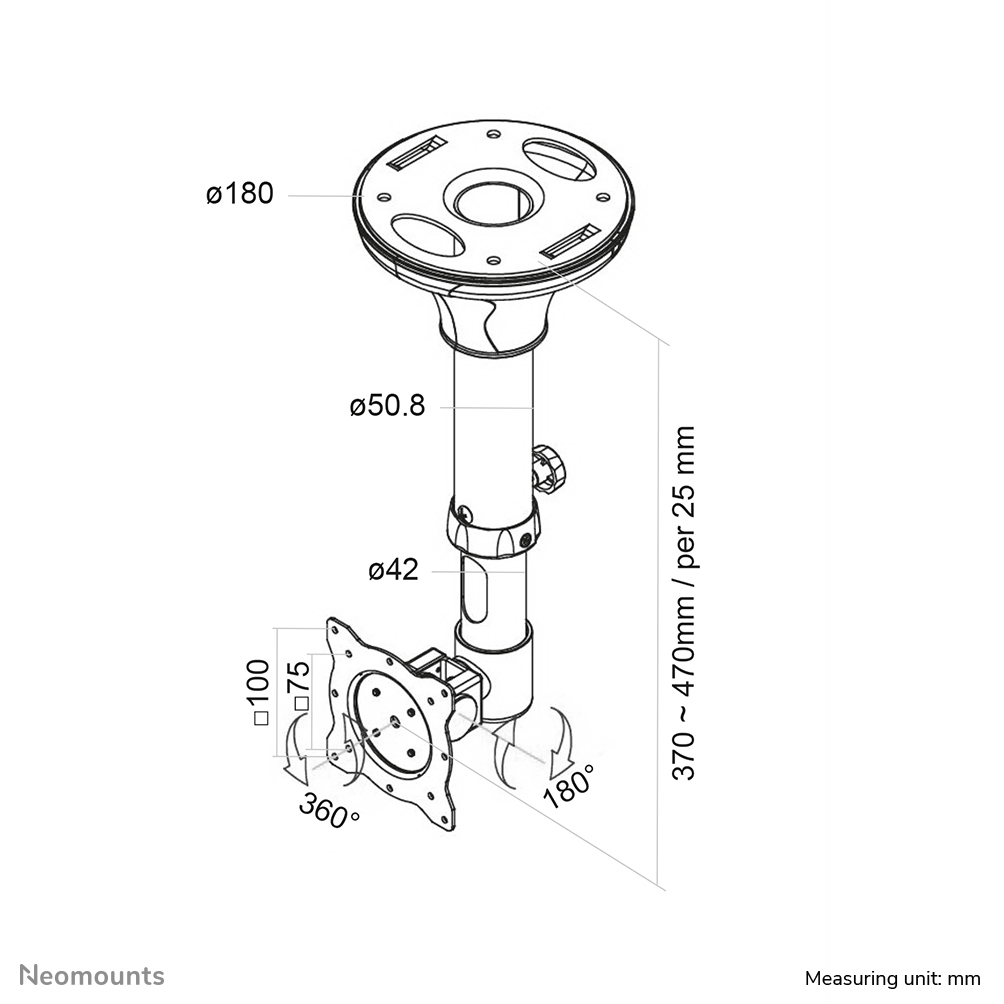

Minimum screen size	25.4 cm (10")
Maximum screen size	76.2 cm (30")
Mounting type	Ceiling
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100,75 x 75 mm

Ergonomics

Specification	Value
Height adjustment	Yes
Height adjustment type	Manual

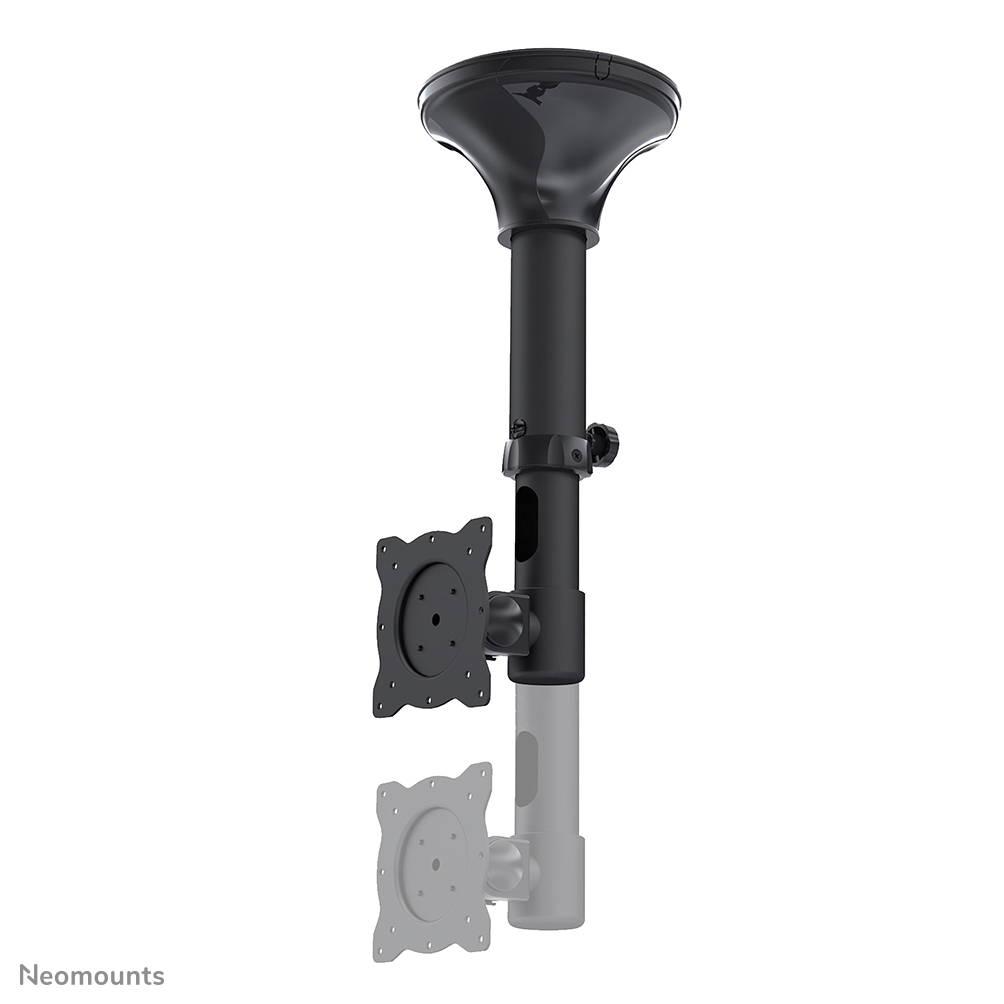

Height adjustment range	370 - 470 mm
Tilt adjustment	Yes
Tilt angle range	0 - 180°
Angle of rotation	360°
Tilt angle	180°

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	Taiwan

Weight & dimensions

Specification	Value
Depth	50 mm
Height	470 mm
Weight	2.37 kg

Packaging data

Specification	Value
Package width	403 mm
Package depth	182 mm
Package height	191 mm
Package weight	2.8 kg

Logistics data

Specification	Value
Master (outer) case width	590 mm
Master (outer) case length	437 mm
Master (outer) case height	240 mm
Master (outer) case gross weight	10.5 kg
Master (outer) case net weight	9.3 kg
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	84 pc(s)

Other features

Specification	Value
Depth adjustment range	0 - 50 mm
