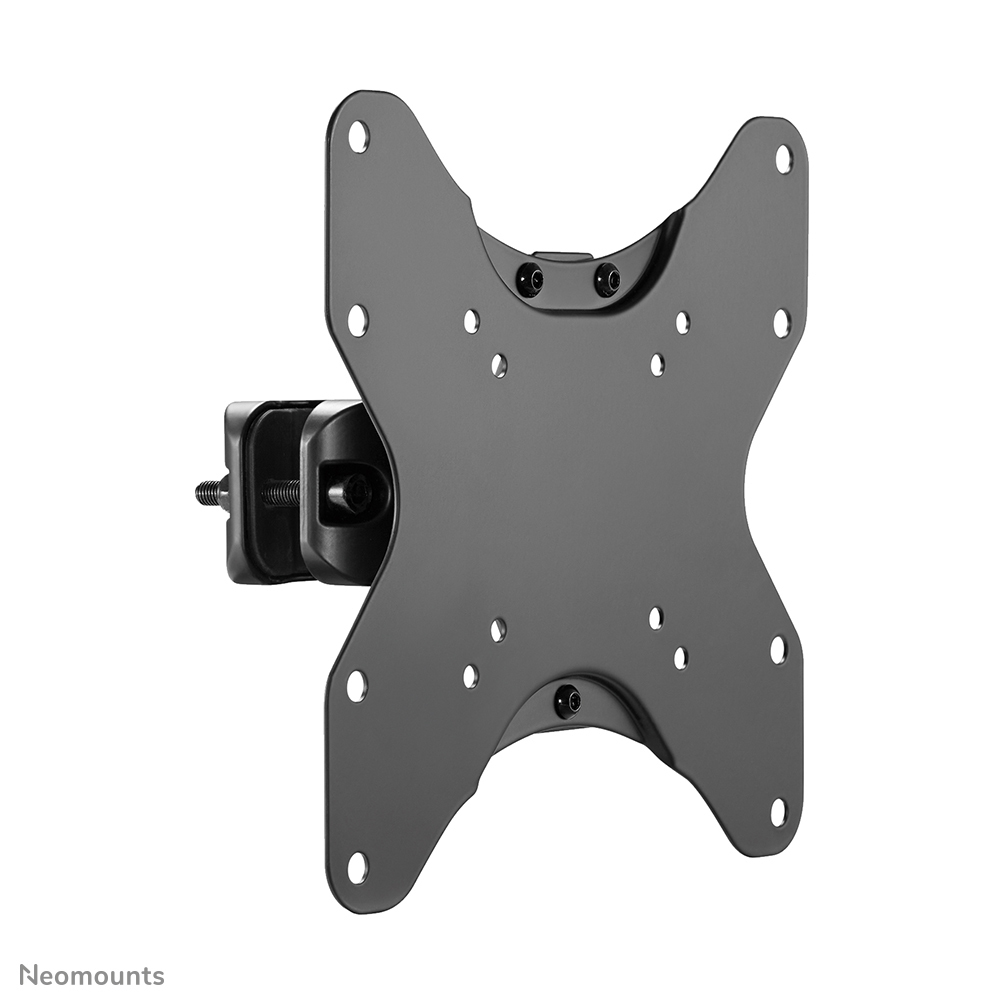

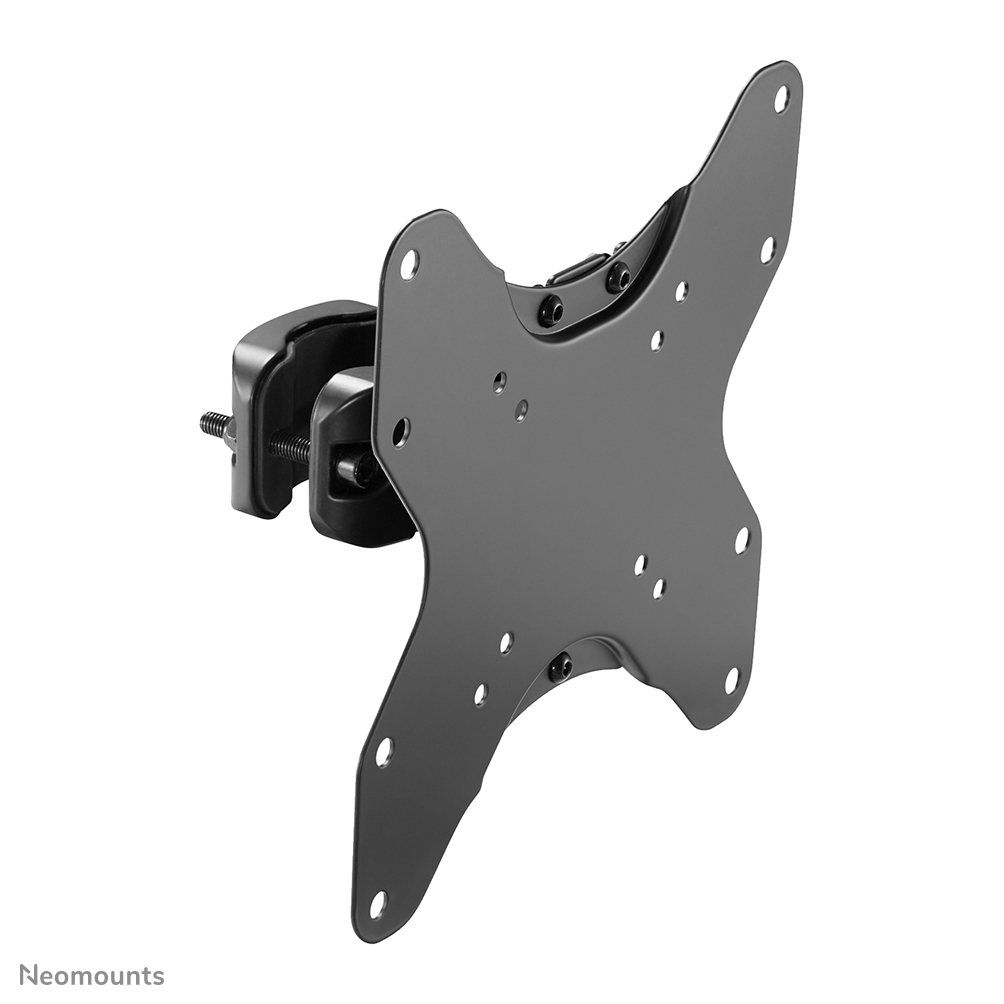

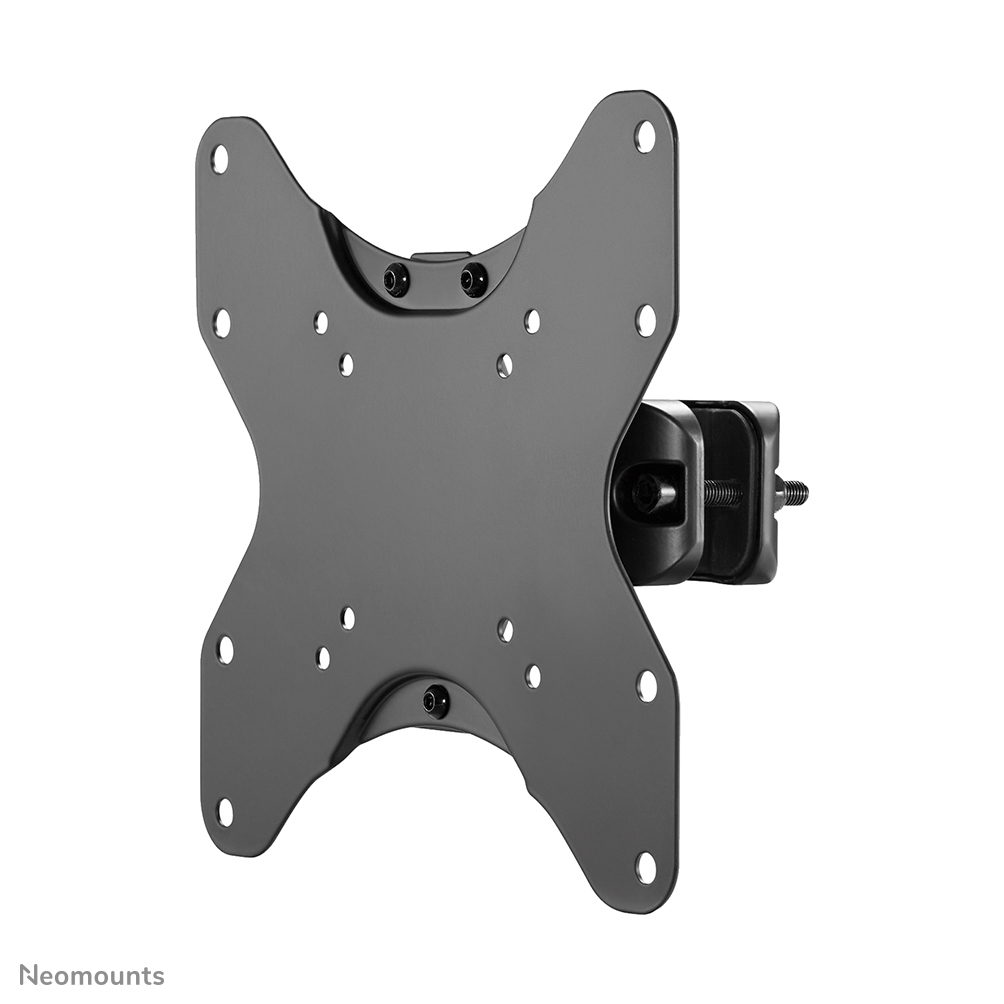

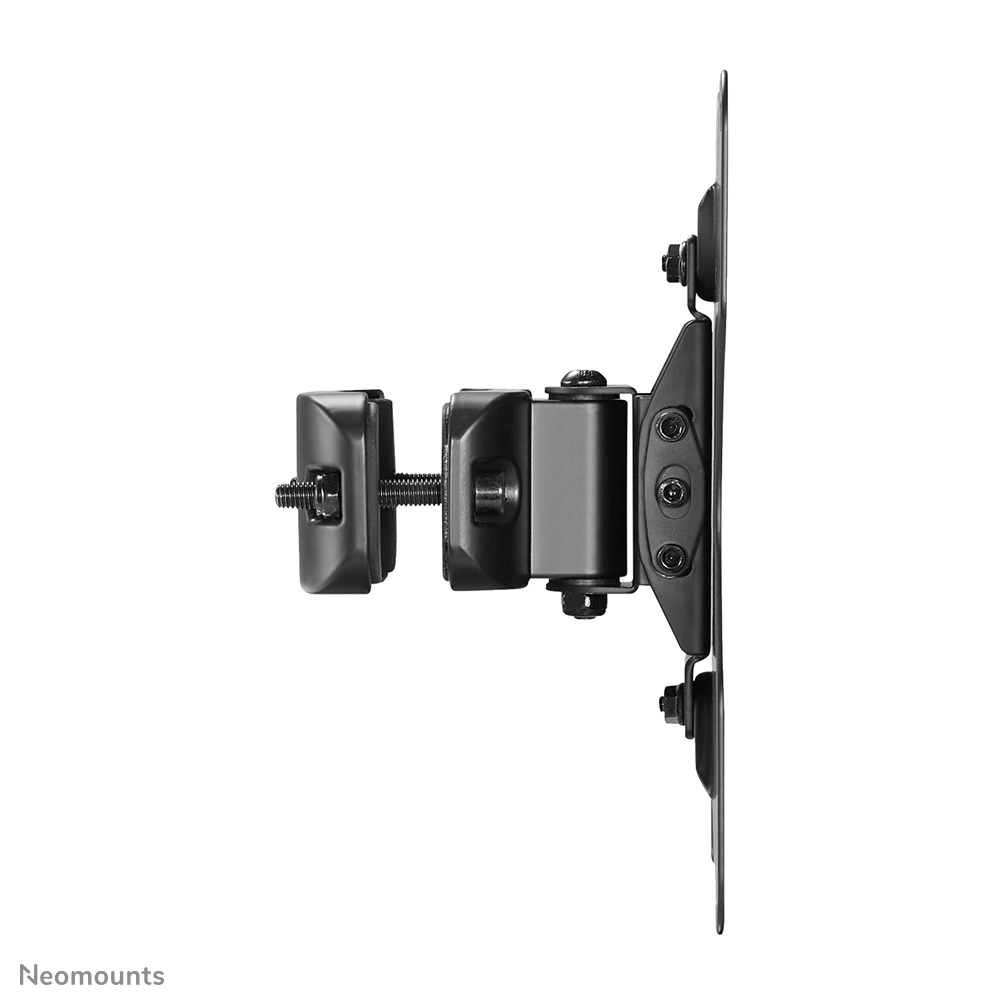

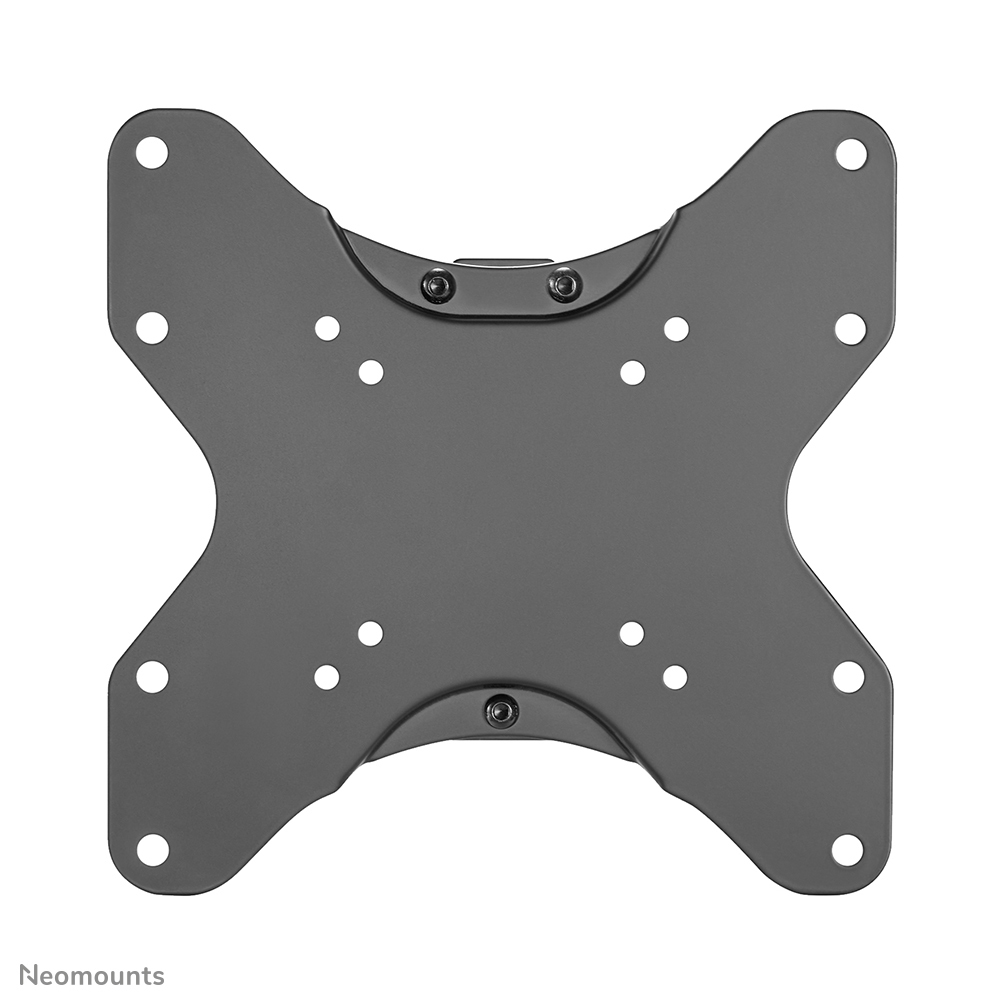

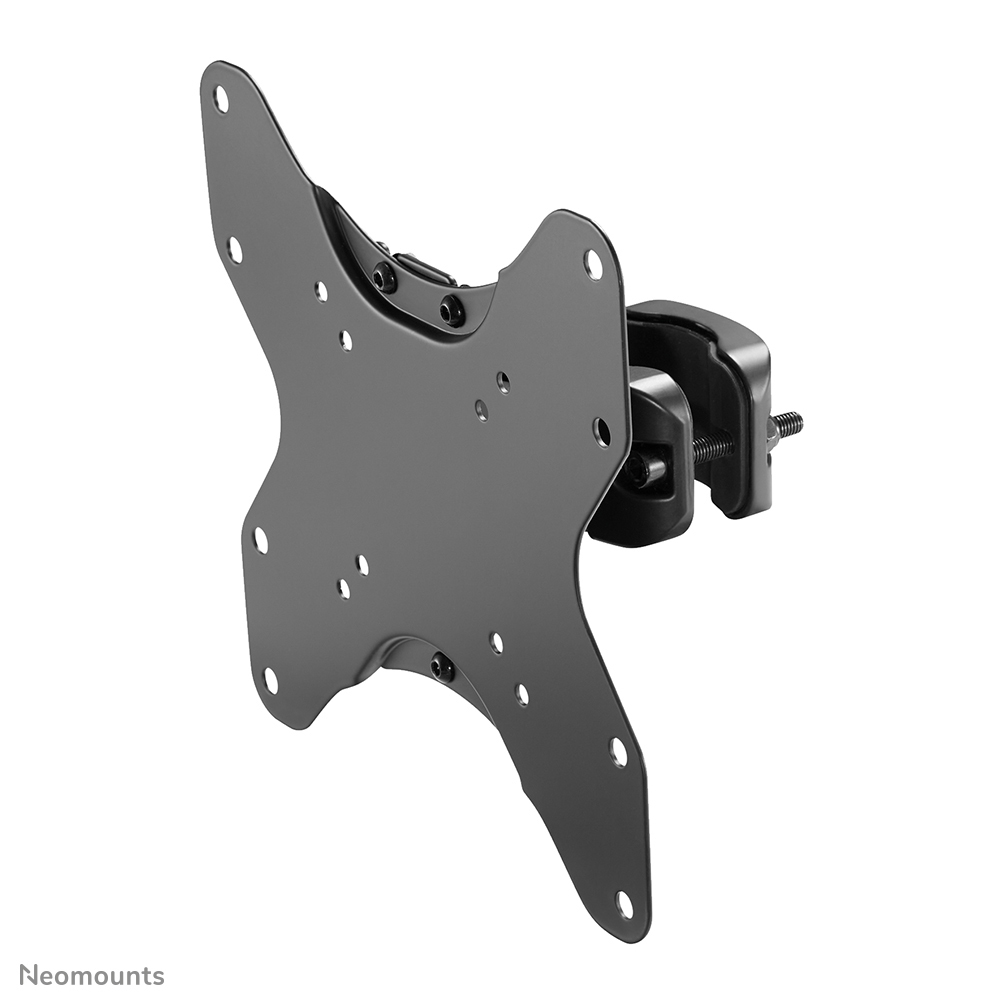

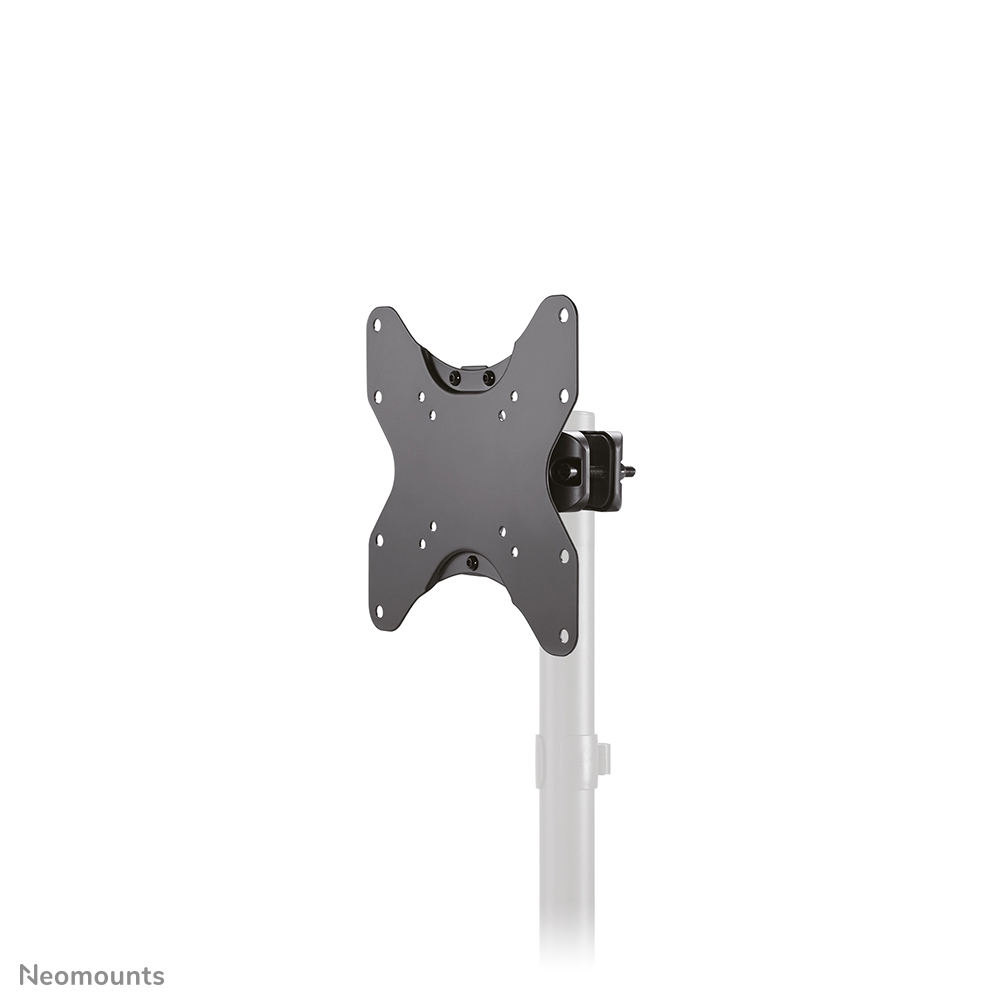

Neomounts FL40-430BL12 TV pole mount 23-42" - diam. 28-50 mm

FL40-430BL12 TV pole mount 23-42" - diam. 28-50 mm

Model FL40-430BL12EAN 8717371448998

38 specifications

Weight1.42 kg
ColourBlack
Number of displays supported1
Tilt adjustmentYes
Country of originChina
Width226 mm

See all specifications

Overview

Weight: 1.42 kg
Colour: Black
Number of displays supported: 1
Tilt adjustment: Yes
Country of origin: China
Width: 226 mm

Brand: Neomounts
Category: TV Mounts & Stands
Model: FL40-430BL12
Part number: FL40-430BL12
EAN / UPC: 8717371448998
Also known as: Neomounts FL40-430BL12 TV pole mount 23-42" - diam. 28-50 mm

Specifications

38 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	25 kg
Maximum weight capacity	25 kg
Minimum screen size	58.4 cm (23")
Maximum screen size	106.7 cm (42")
Mounting type	Pole
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 100,200 x 200,75 x 75

Ergonomics

Specification	Value

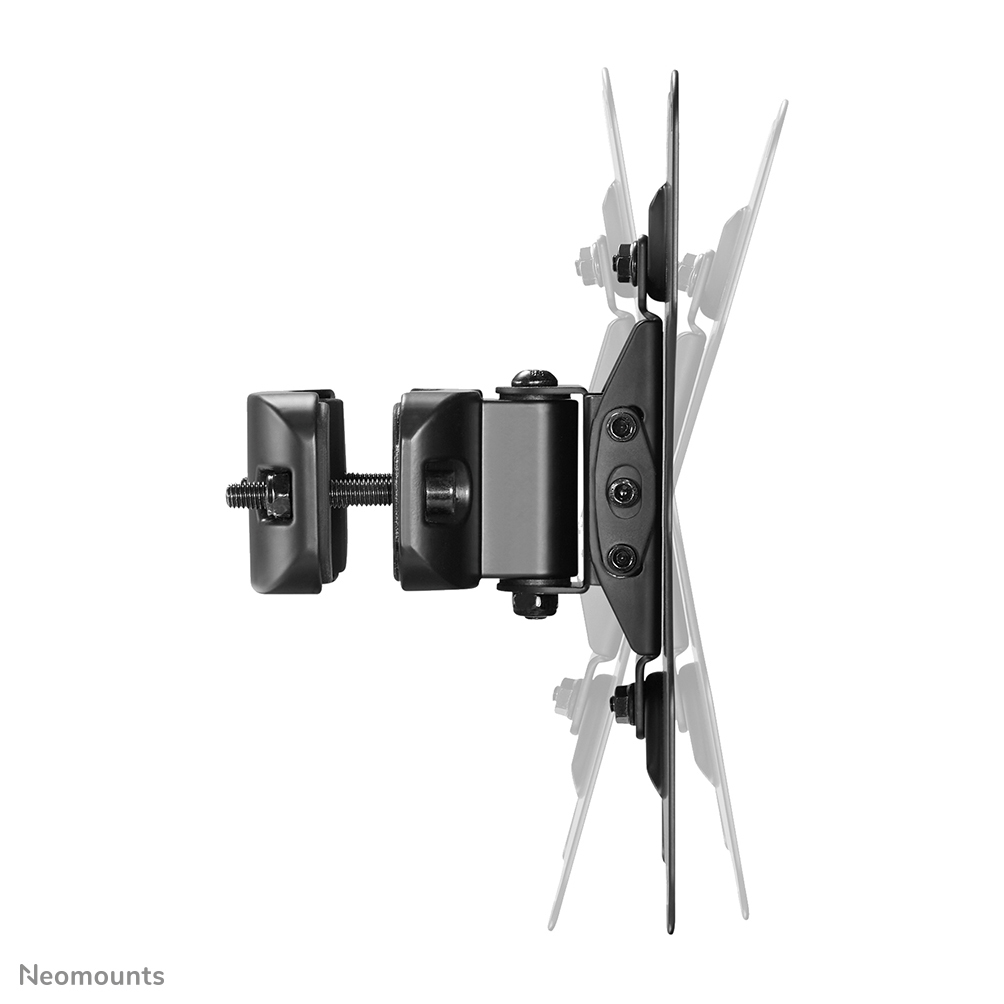

Tilt adjustment	Yes
Tilt angle range	-15 - 10°
Swivelling	Yes
Swivel angle	120°
Swivel angle range	0 - 120°
Rotating	Yes
Distance to the wall (max)	7.6 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel

Technical details

Specification	Value
Country of origin	China
Quantity per pack	1 pc(s)
Package net weight	1.6 kg

Weight & dimensions

Specification	Value
Width	226 mm
Depth	76 mm
Depth (max)	7.6 cm
Height	226 mm
Weight	1.42 kg

Packaging data

Specification	Value
Package width	245 mm
Package depth	245 mm
Package height	80 mm
Package weight	1.6 kg

Logistics data

Specification	Value
Master (outer) case width	340 mm
Master (outer) case length	510 mm
Master (outer) case height	260 mm
Master (outer) case gross weight	13.6 kg
Master (outer) case net weight	11.4 kg
Products per master (outer) case	8 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	192 pc(s)
