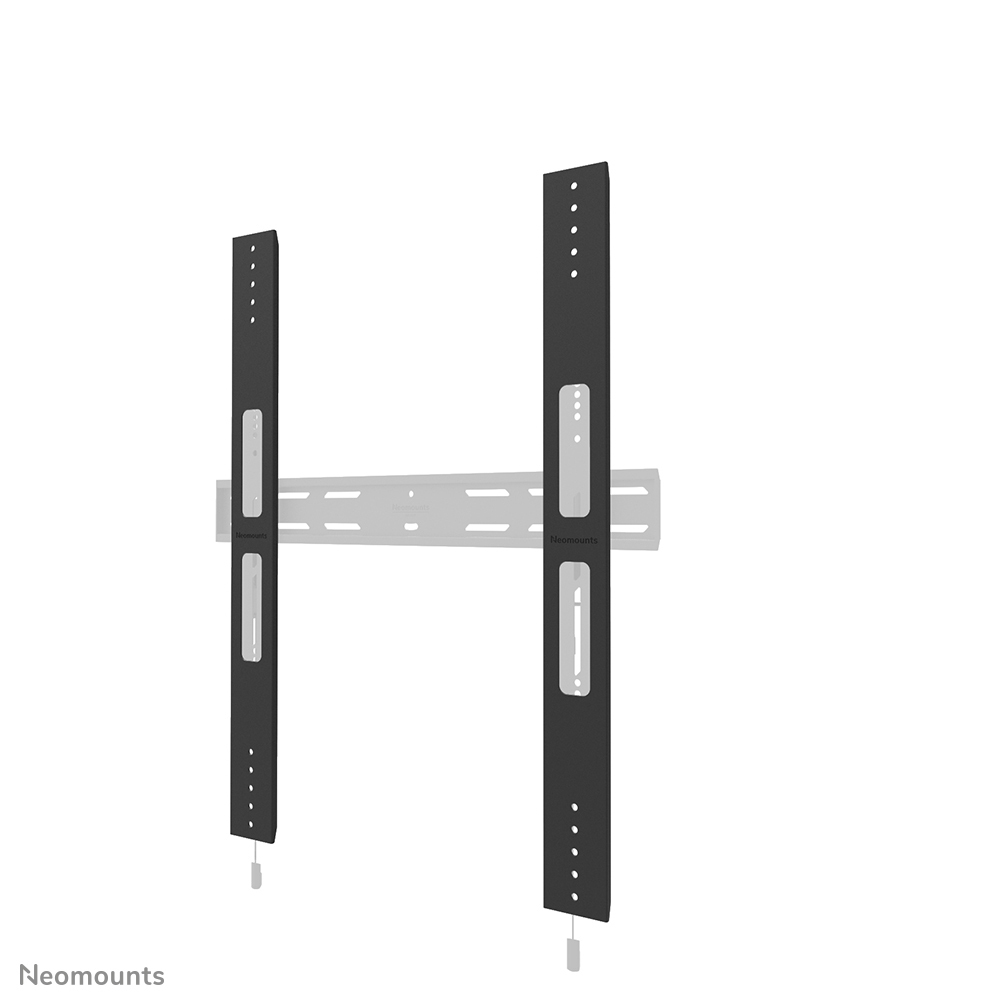

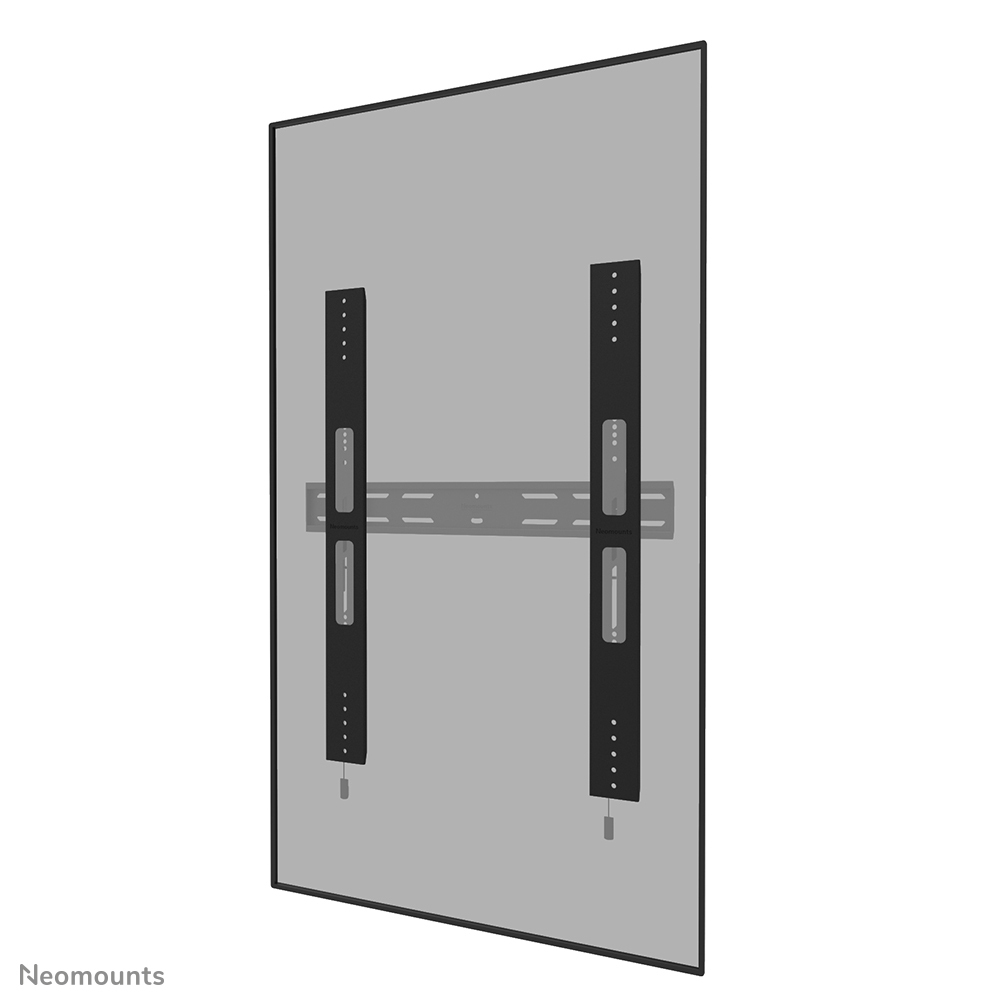

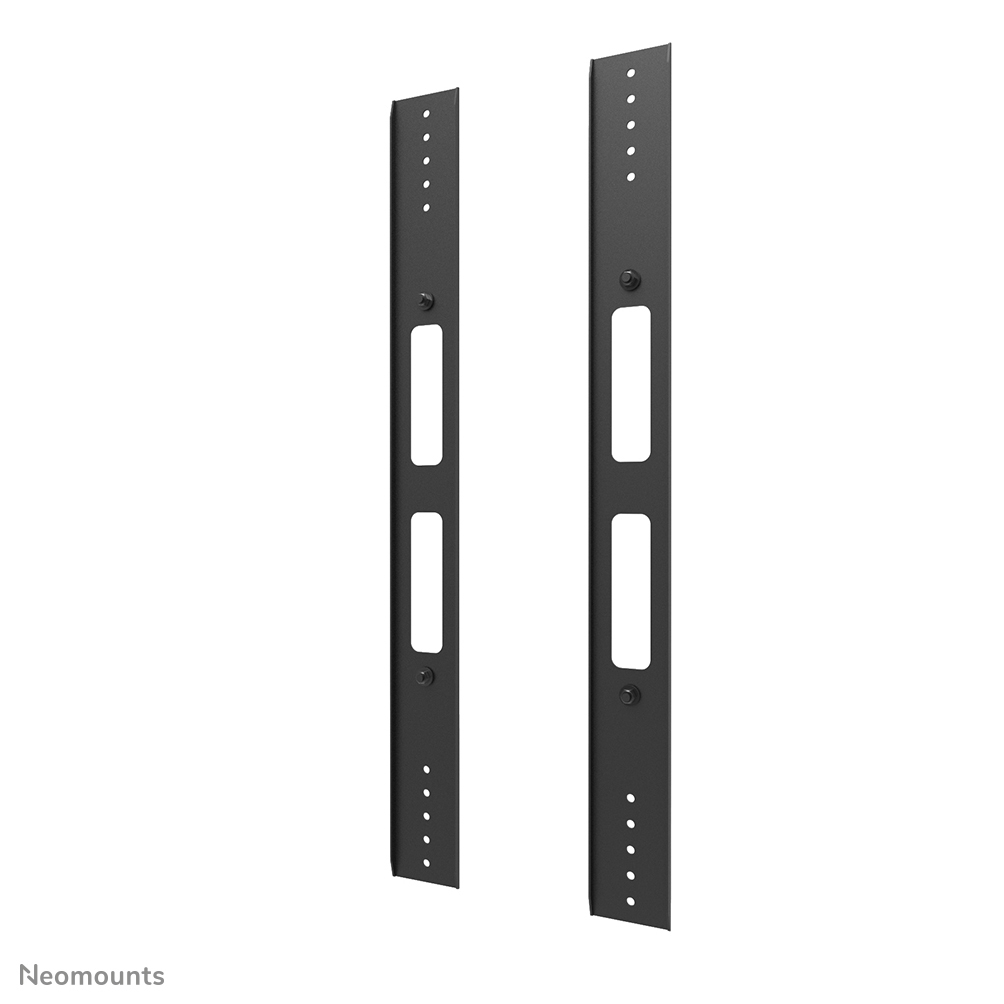

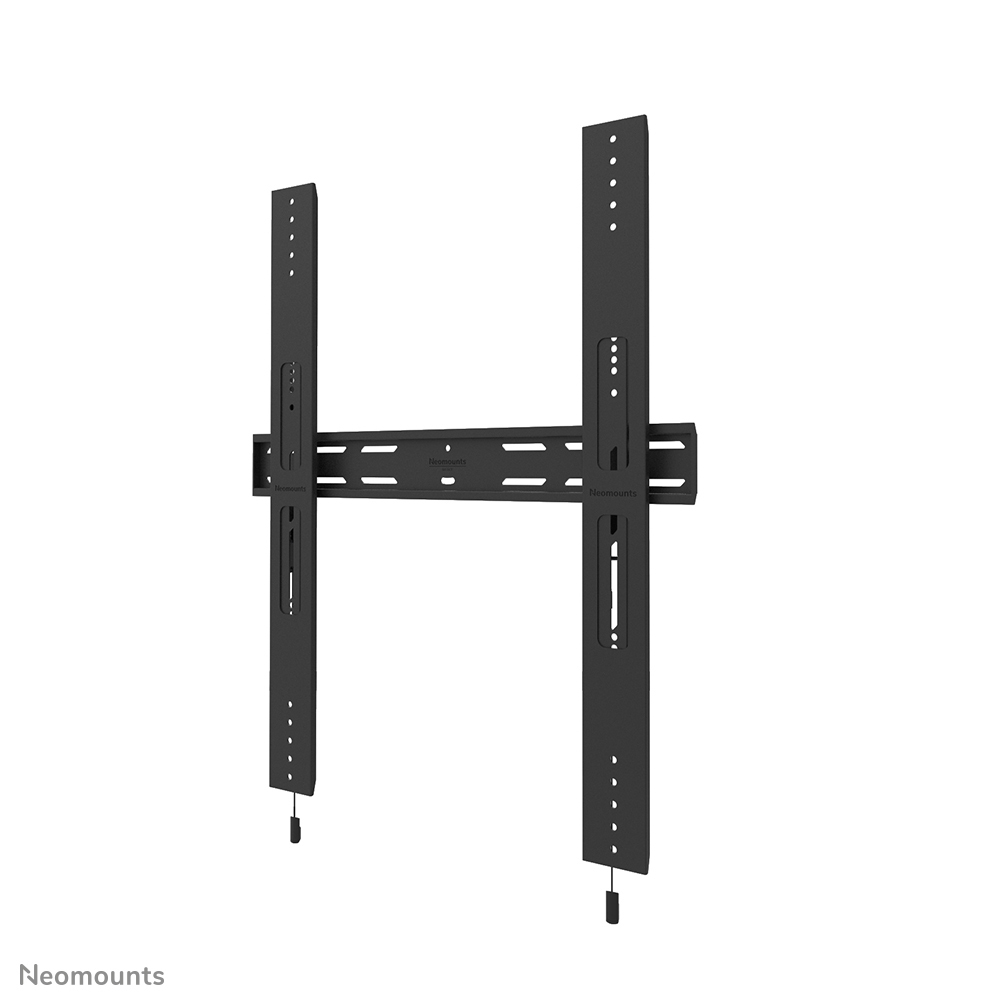

AWL-250BL18 VESA extension kit
Model AWL-250BL18EAN 8717371449605
32 specifications
- TypeExtension kit
- Weight2.13 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Country of originChina
Overview
- Type
- Extension kit
- Weight
- 2.13 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- China
- Brand
- Neomounts
- Category
- TV Mounts & Stands
- Model
- AWL-250BL18
- Part number
- AWL-250BL18
- EAN / UPC
- 8717371449605
- Also known as
- Neomounts AWL-250BL18 VESA extension kit
Specifications
32 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 75 kg |
| Maximum weight capacity | 75 kg |
| Mounting type | Wall |
| Minimum VESA mount | 600 x 600 mm |
| Maximum VESA mount | 800 x 800 mm |
| Panel mounting interface | 1000 x 400,1000 x 600,1000 x 800,1000 x 700,1200 x 600,1200 x 800,1400 x 800,1500 x 600,1600 x 600,400 x 600,600 x 600,800 x 800,800 x 600 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Rotating | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
| Warranty period | 5 year(s) |

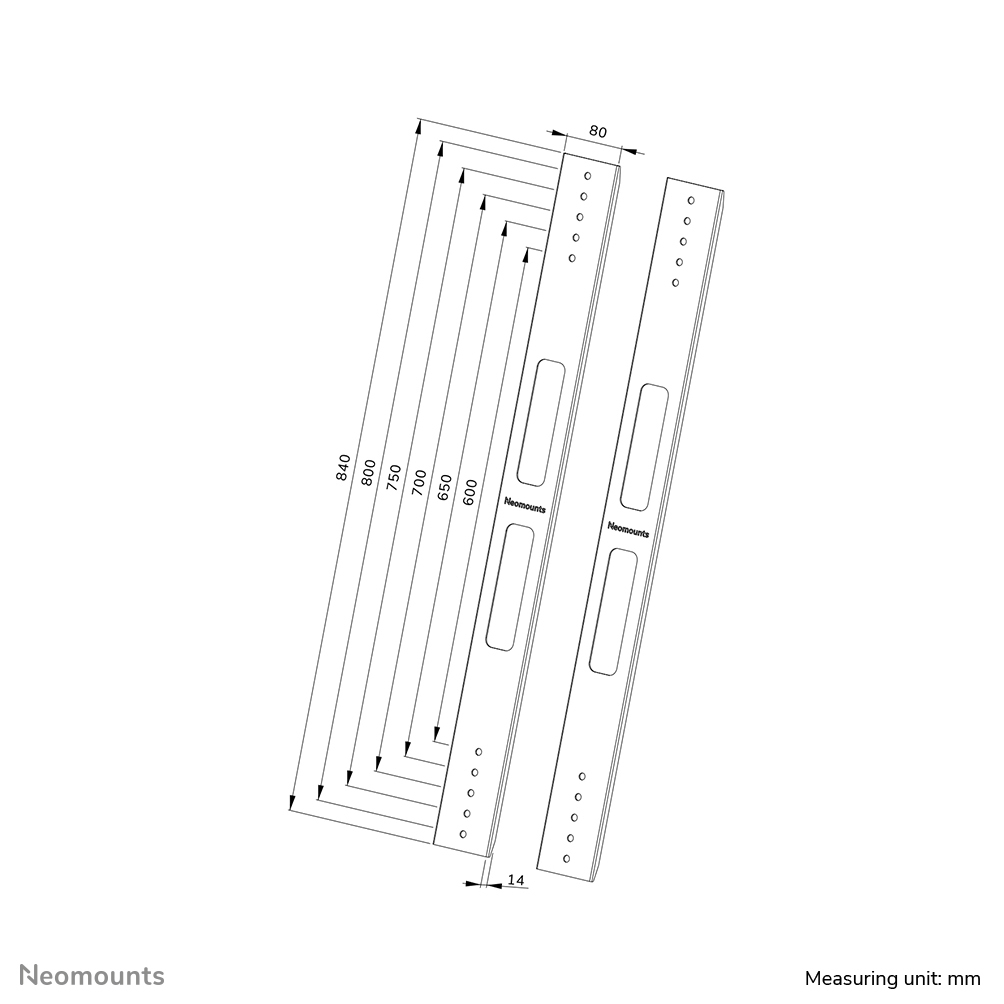

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 10 mm |
| Depth (max) | 1 cm |
| Height | 840 mm |
| Weight | 2.13 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 86 mm |
| Package depth | 34 mm |
| Package height | 855 mm |
| Package weight | 2.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 187 mm |
| Master (outer) case length | 194 mm |
| Master (outer) case height | 875 mm |
| Master (outer) case gross weight | 22.4 kg |
| Master (outer) case net weight | 21.3 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 360 pc(s) |
Other features
| Specification | Value |
|---|---|
| Product type | Extension kit |
