Multibrackets M Motorized Pull Down Full Motion Flexarm

M Motorized Pull Down Full Motion Flexarm

37"-70"

Model 9615EAN 7350073739615

38 specifications

Weight9 kg
ColourBlack
Number of displays supported1
Height adjustmentYes
AC input voltage100 - 240 V
Width485 mm

See all specifications

Overview

Weight: 9 kg
Colour: Black
Number of displays supported: 1
Height adjustment: Yes
AC input voltage: 100 - 240 V
Width: 485 mm

Brand: Multibrackets
Category: TV Mounts & Stands
Model: 9615
Part number: 9615
EAN / UPC: 7350073739615
Also known as: Multibrackets M Motorized Pull Down Full Motion Flexarm 37"-70"

Specifications

38 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity	35 kg
Minimum screen size	94 cm (37")
Maximum screen size	177.8 cm (70")
Mounting type	Wall
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400

Ergonomics

Specification	Value
Height adjustment	Yes

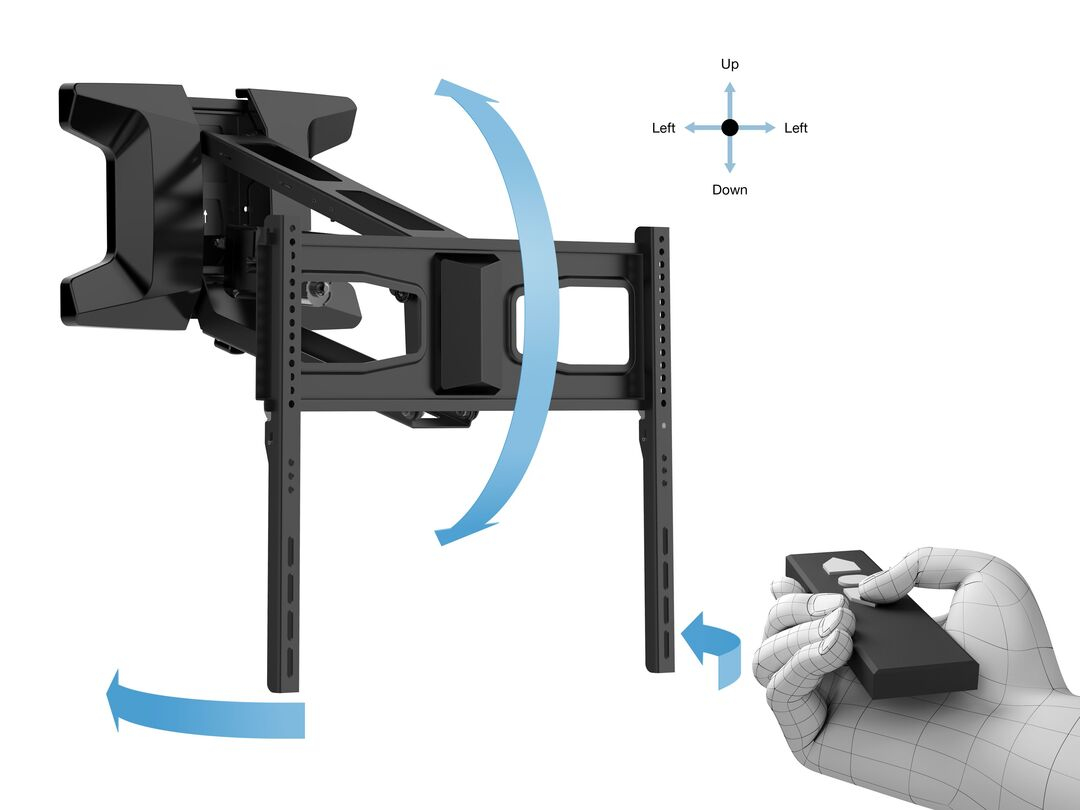

Height adjustment type	Electric
Tilt adjustment	Yes
Tilt angle range	-3 - 3°
Swivel angle range	-25 - 25°

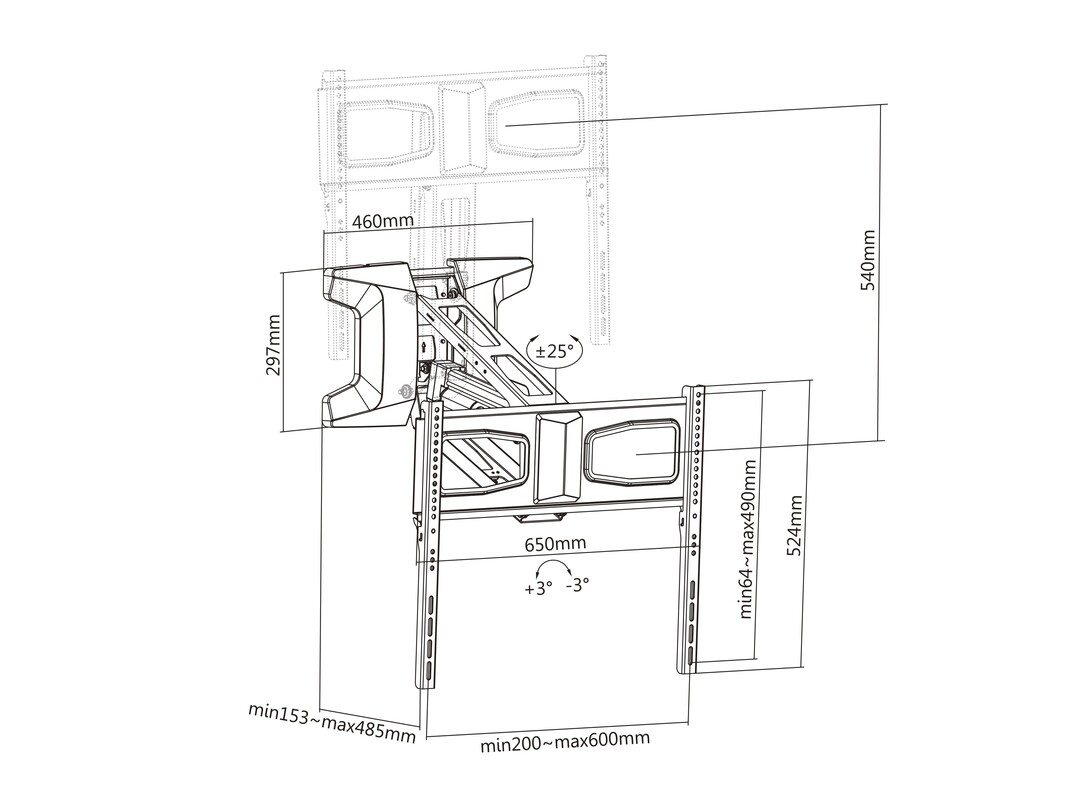

Distance to the wall (max)	48.5 cm
Distance to the wall (min)	15.3 cm

Design

Specification	Value
Product colour	Black

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	24 V
Output current	1.5 A
Power cable length	1.5 m

Packaging content

Specification	Value
Remote control included	Yes

Technical details

Specification	Value
Metal packaging weight	9 kg
Paper/cardboard packaging weight	1.7 kg
Plastic packaging weight	1.3 kg
Quantity per pack	1 pc(s)

Weight & dimensions

Specification	Value
Width	485 mm
Depth (max)	55.9 cm
Height	650 mm
Weight	9 kg
Aluminium content weight	8.26 kg
Steel content weight	740 g
Other metals content weight	0 g

Packaging data

Specification	Value
Package width	530 mm
Package depth	720 mm
Package height	170 mm
Package weight	12 kg
Package type	Box
