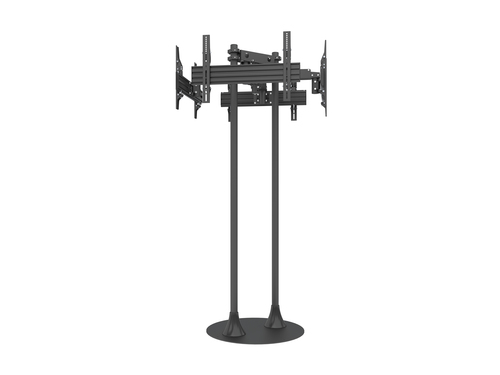

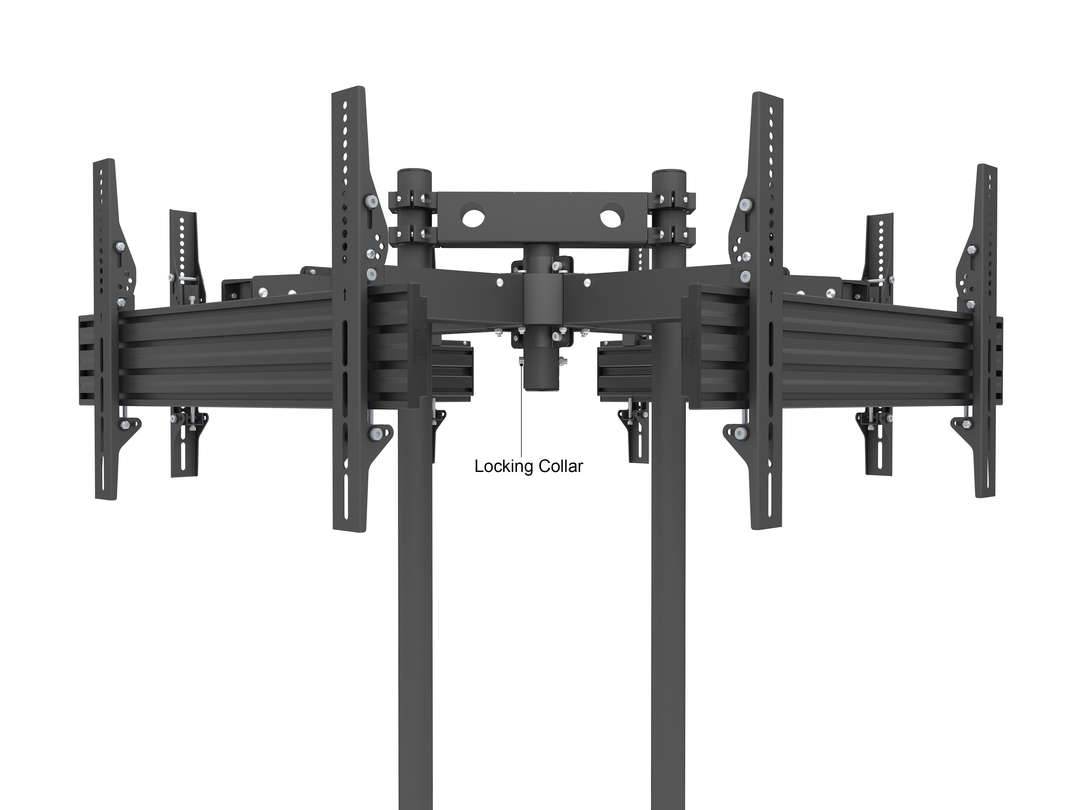

M Pro Series - Floorstand Quad Pro MBF4U
Model 7703EAN 7350073737703
29 specifications
- Weight52.9 kg
- ColourBlack
- Number of displays supported4
- Height adjustmentYes
- Metal packaging weight0 g
- Depth (min)102 cm
Overview
- Weight
- 52.9 kg
- Colour
- Black
- Number of displays supported
- 4
- Height adjustment
- Yes
- Metal packaging weight
- 0 g
- Depth (min)
- 102 cm
- Brand
- Multibrackets
- Category
- TV Mounts & Stands
- Model
- 7703
- Part number
- 7703
- EAN / UPC
- 7350073737703
- Also known as
- Multibrackets M Pro Series - Floorstand Quad Pro MBF4U
Specifications
29 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 4 |
| Maximum weight capacity | 120 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Floor |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 200,200 x 200,300 x 300,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Tilt adjustment | Yes |
| Tilt angle range | -6 - 15° |
| Cable management | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium, Plastic, Steel |
Technical details
| Specification | Value |
|---|---|
| Metal packaging weight | 0 g |
| Paper/cardboard packaging weight | 3 kg |
| Plastic packaging weight | 120 g |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth (min) | 102 cm |
| Depth (max) | 147 cm |
| Height | 2014 mm |
| Weight | 52.9 kg |
| Aluminium content weight | 4.2 kg |
| Steel content weight | 52.9 kg |
| Other metals content weight | 0 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 320 mm |
| Package depth | 1900 mm |
| Package height | 170 mm |
| Package weight | 56 kg |
