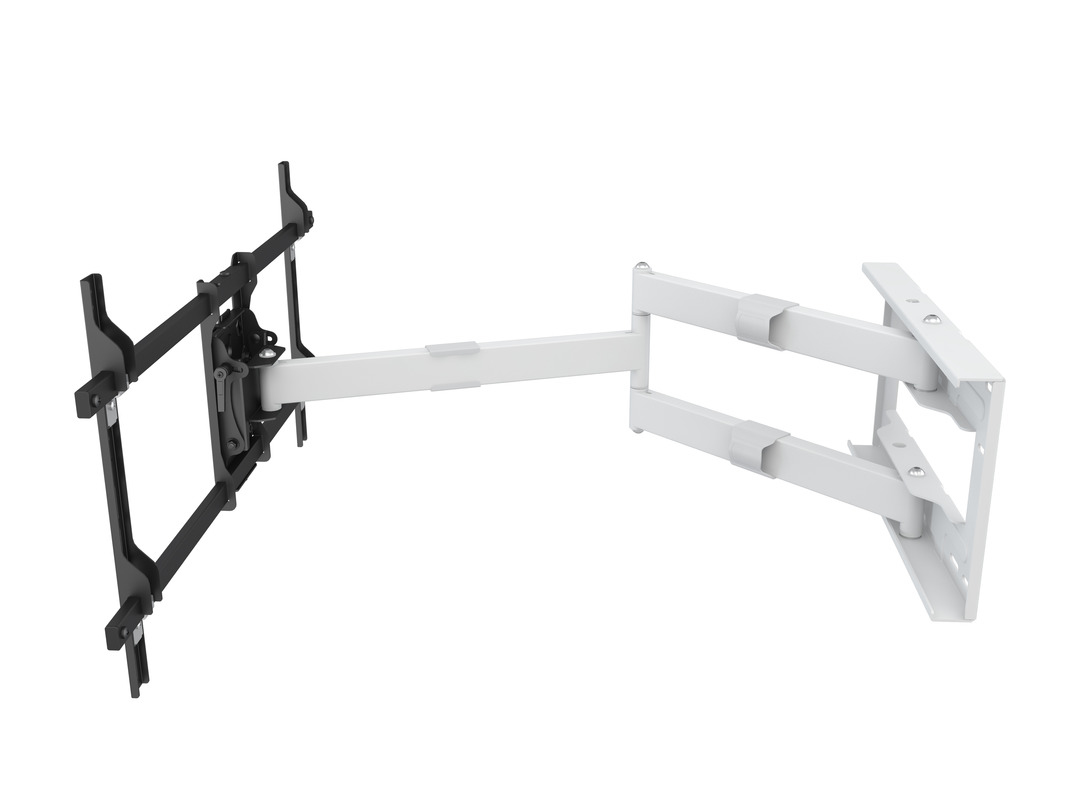

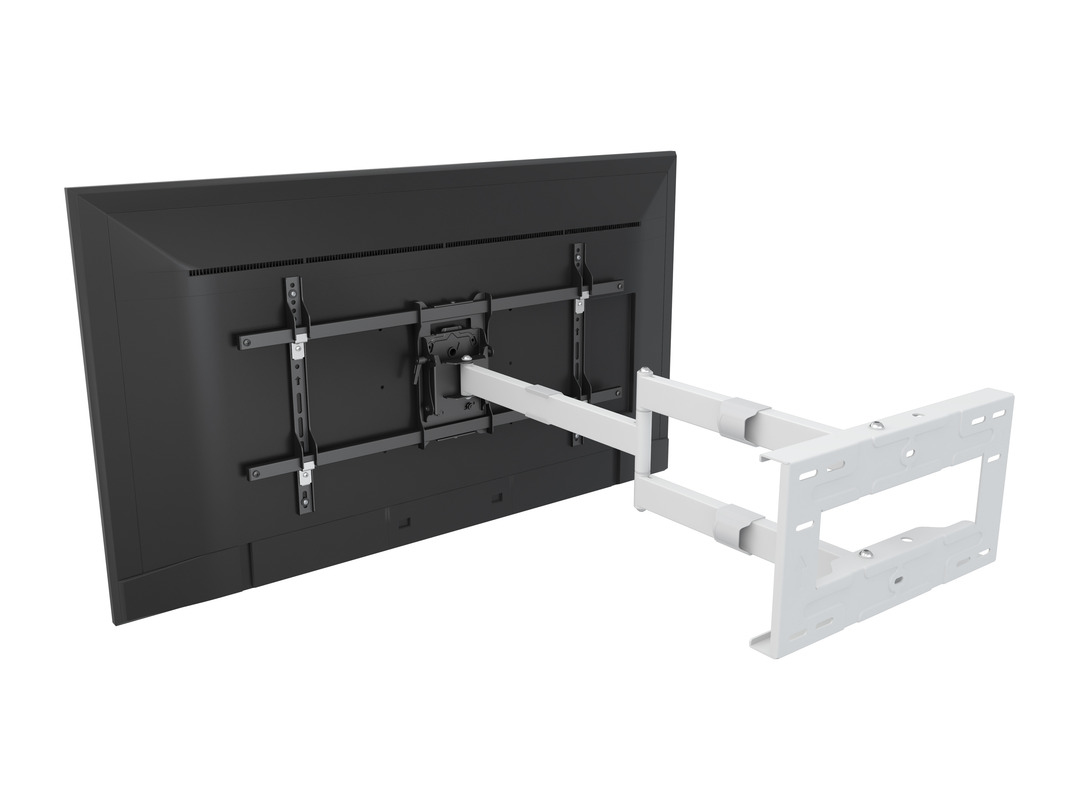

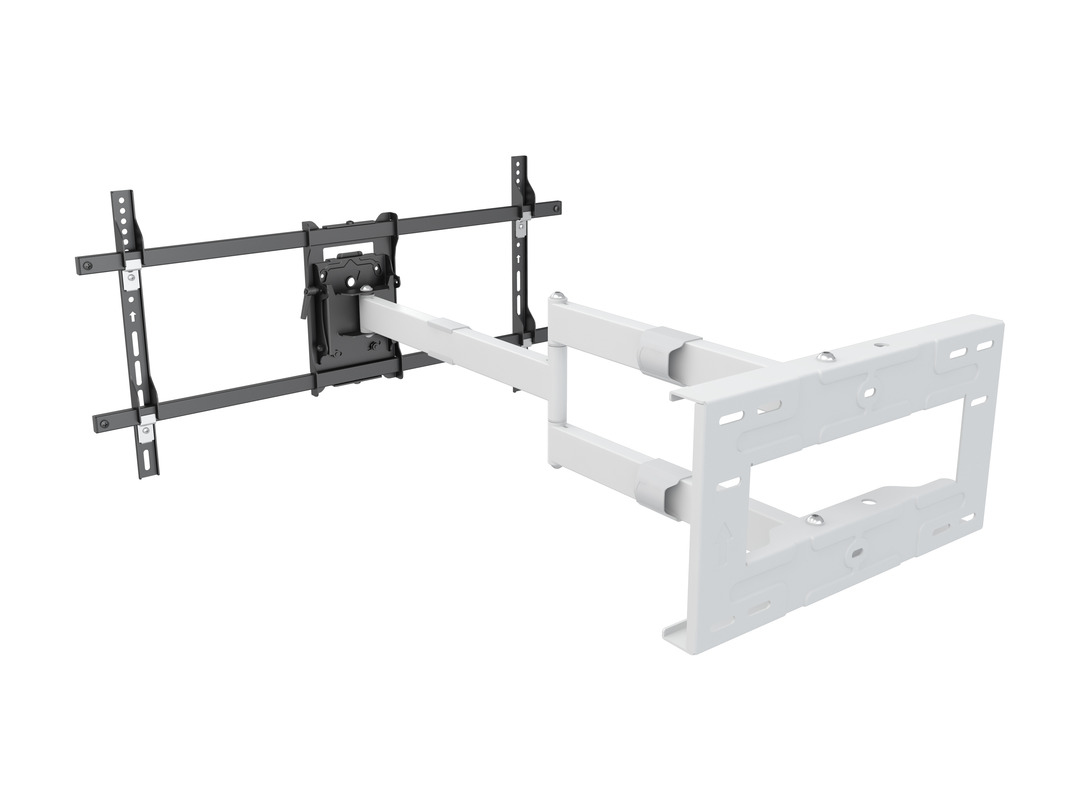

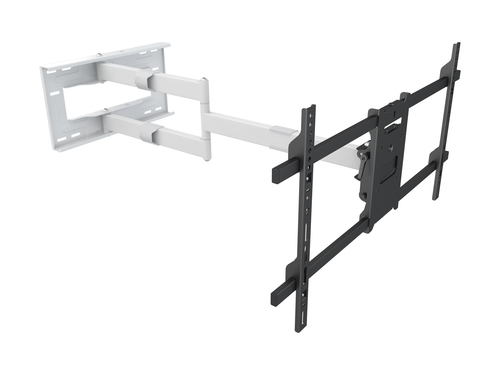

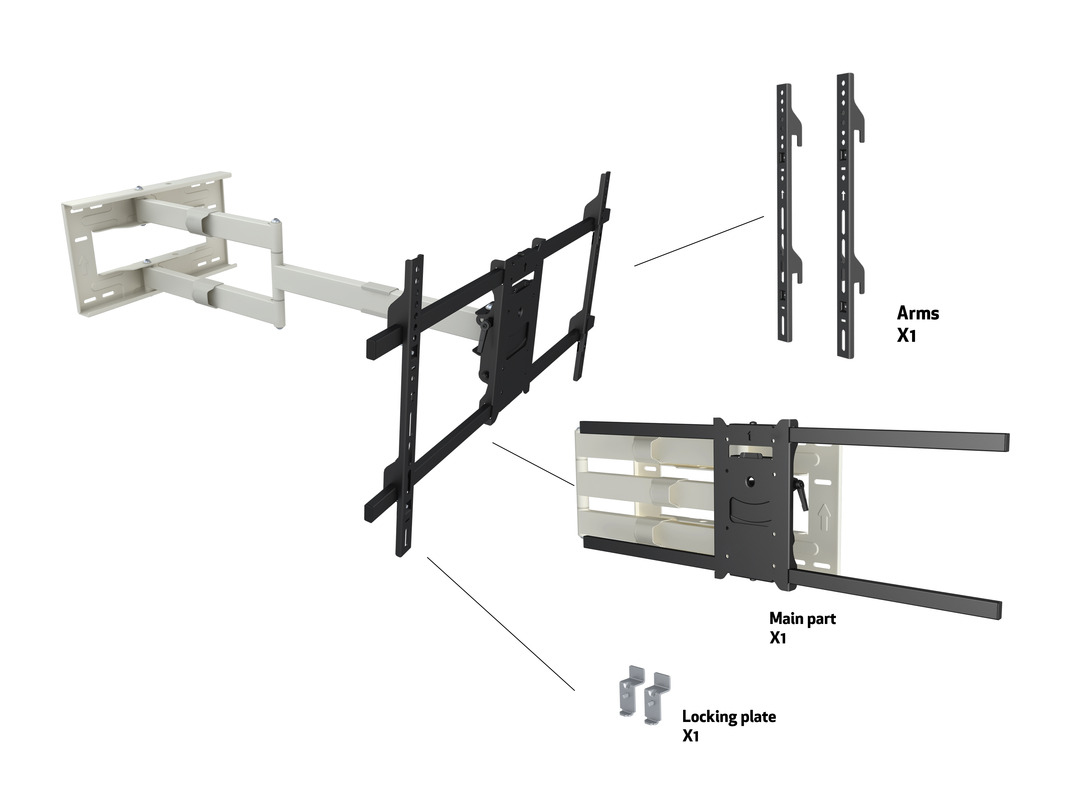

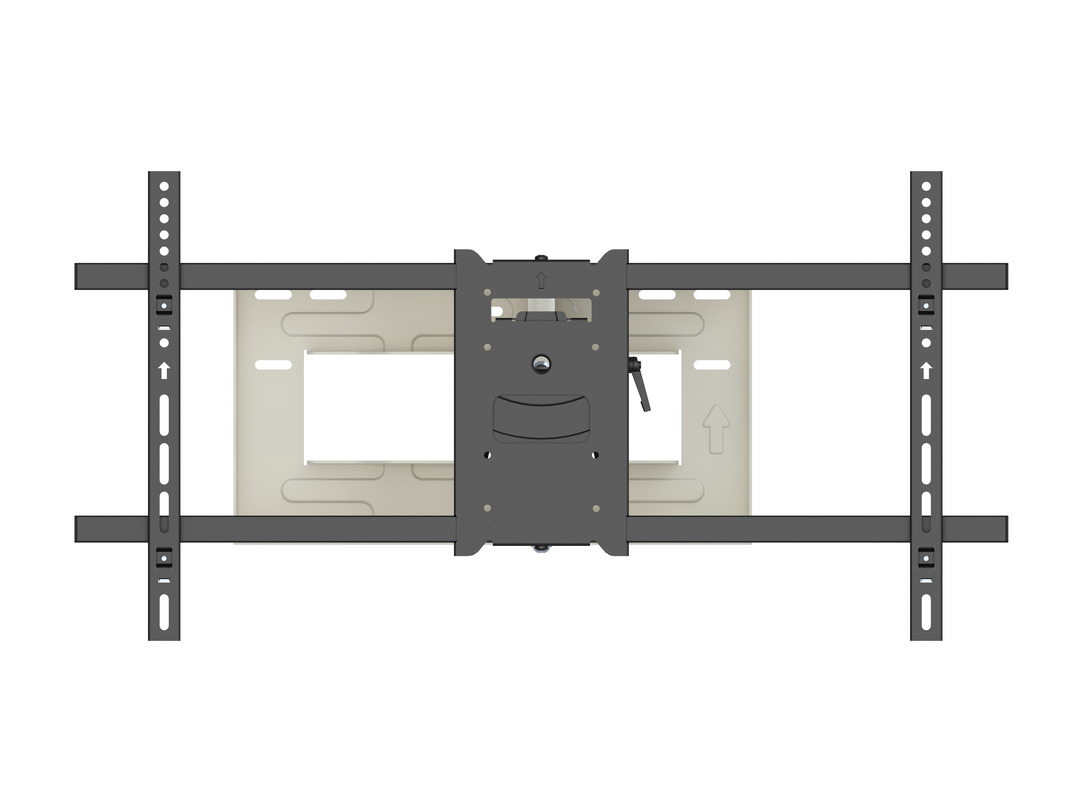

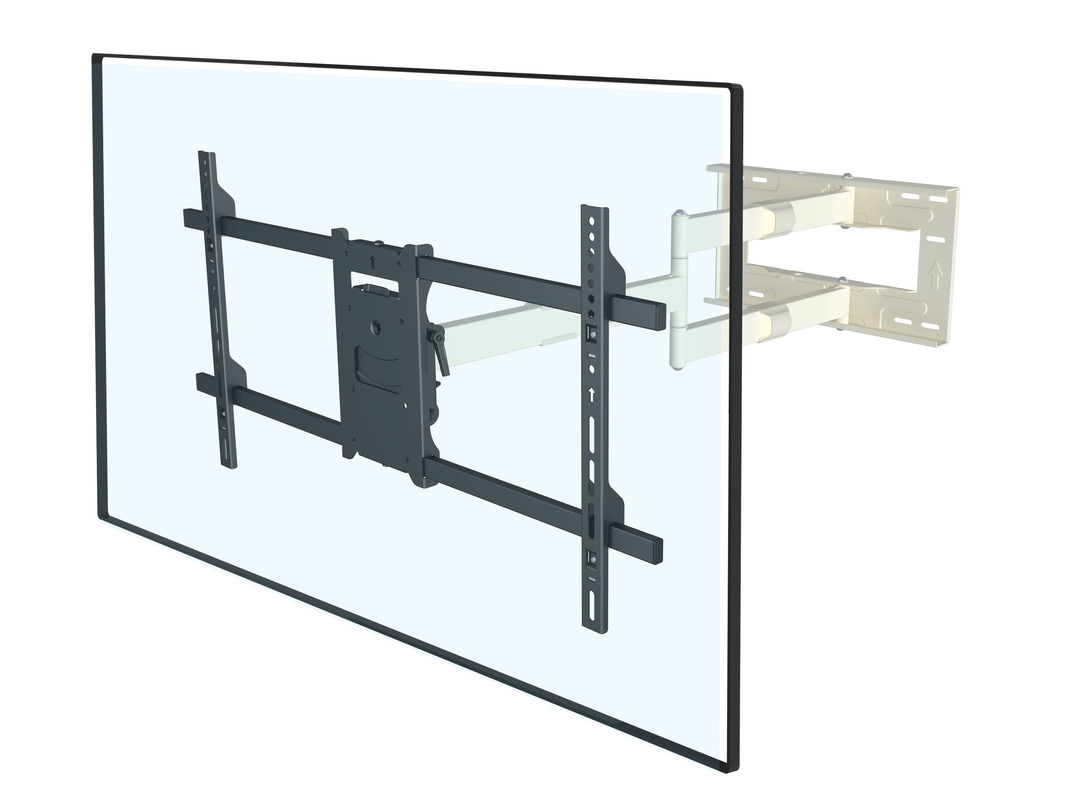

M Universal Long Reach Arm HD
1010mm Single White
Model 6874EAN 7350073736874
33 specifications
- Weight10.7 kg
- ColourBlack, White
- Number of displays supported1
- Tilt adjustmentYes
- Metal packaging weight0 g
- Width1010 mm
Overview
- Weight
- 10.7 kg
- Colour
- Black, White
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Metal packaging weight
- 0 g
- Width
- 1010 mm
- Brand
- Multibrackets
- Category
- TV Mounts & Stands
- Model
- 6874
- Part number
- 6874
- EAN / UPC
- 7350073736874
- Also known as
- Multibrackets M Universal Long Reach Arm HD 1010mm Single White
Specifications
33 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 106.7 cm (42") |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 800 x 400 mm |

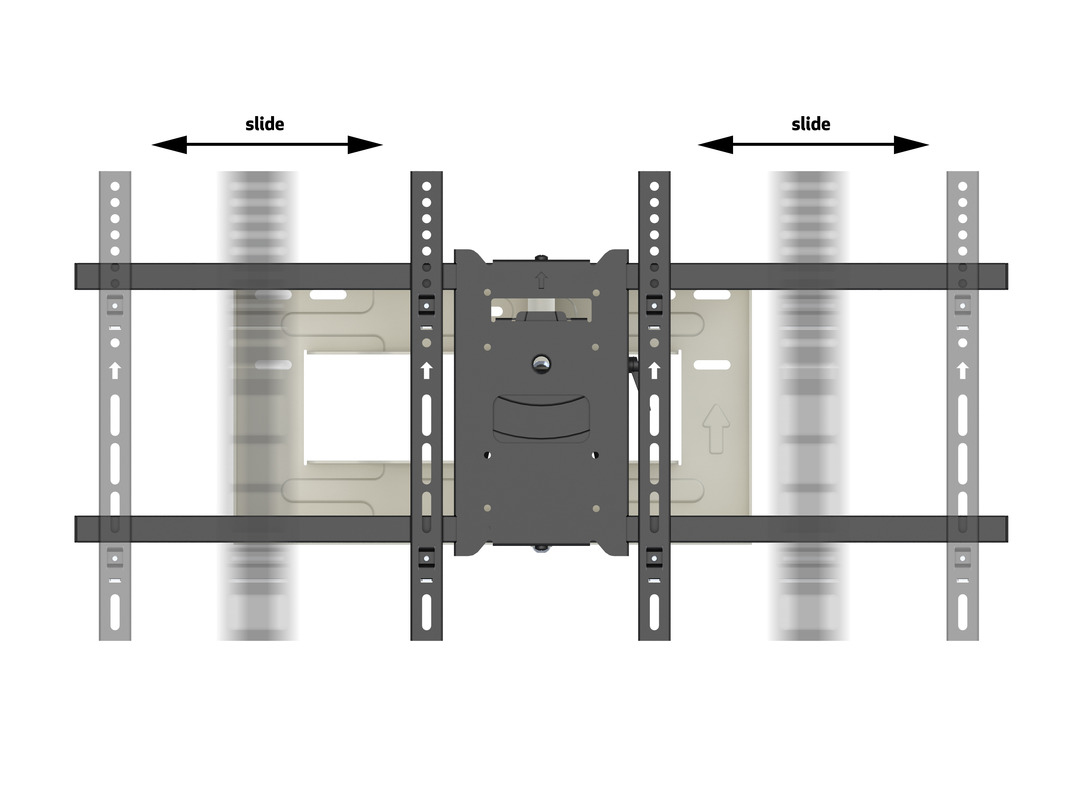

| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 10° |

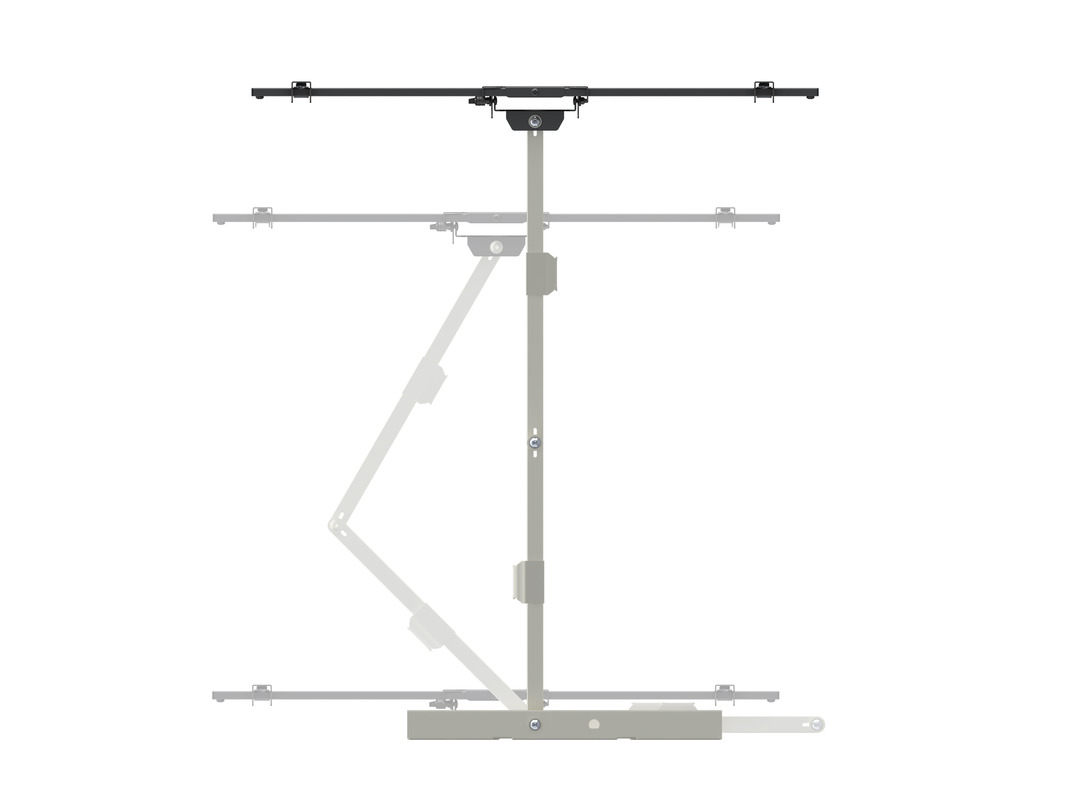

| Swivel angle range | -90 - 90° |
| Cable management | Yes |
| Distance to the wall (max) | 101 cm |
| Distance to the wall (min) | 8.3 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Metal packaging weight | 0 g |
| Paper/cardboard packaging weight | 800 g |
| Plastic packaging weight | 50 g |
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1010 mm |
| Depth (max) | 40.7 cm |
| Height | 830 mm |
| Weight | 10.7 kg |
| Aluminium content weight | 0 g |
| Steel content weight | 10.7 kg |
| Other metals content weight | 0 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 320 mm |
| Package depth | 955 mm |
| Package height | 100 mm |
| Package weight | 11.5 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet (EU) | 16 pc(s) |
