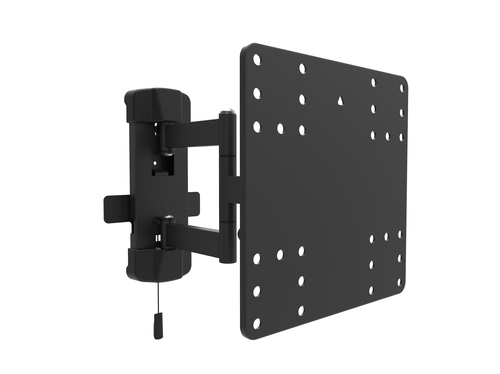

M VESA Full Motion Outdoor 100/200
Model 6843EAN 7350073736843
33 specifications
- Weight4.1 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Metal packaging weight3.4 kg
- Width215 mm
Overview
- Weight
- 4.1 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Metal packaging weight
- 3.4 kg
- Width
- 215 mm
- Brand
- Multibrackets
- Category
- TV Mounts & Stands
- Model
- 6843
- Part number
- 6843
- EAN / UPC
- 7350073736843
- Also known as
- Multibrackets M VESA Full Motion Outdoor 100/200
Specifications
33 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 20 kg |
| Minimum screen size | 66 cm (26") |
| Maximum screen size | 109.2 cm (43") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 150 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Distance to the wall (max) | 32.2 cm |
| Distance to the wall (min) | 6.7 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Metal packaging weight | 3.4 kg |
| Paper/cardboard packaging weight | 1.02 kg |
| Plastic packaging weight | 100 g |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth (min) | 6.5 cm |
| Depth (max) | 31.9 cm |
| Height | 200 mm |
| Weight | 4.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 309 mm |
| Package depth | 412 mm |
| Package height | 73 mm |
| Package weight | 4.52 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet (EU) | 20 pc(s) |
| Shipping (inner) case width | 38.5 cm |
| Shipping (inner) case length | 43.2 cm |
| Shipping (inner) case height | 33.4 cm |
| Shipping (inner) case gross weight | 20.7 kg |
| Products per shipping (inner) case | 5 pc(s) |
