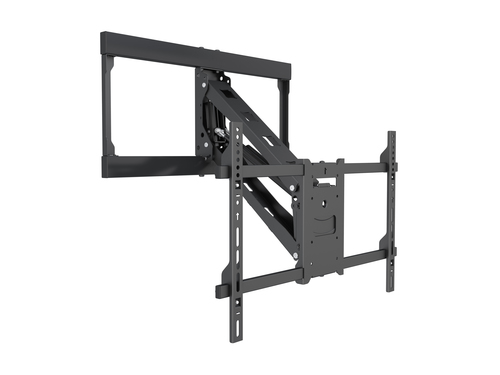

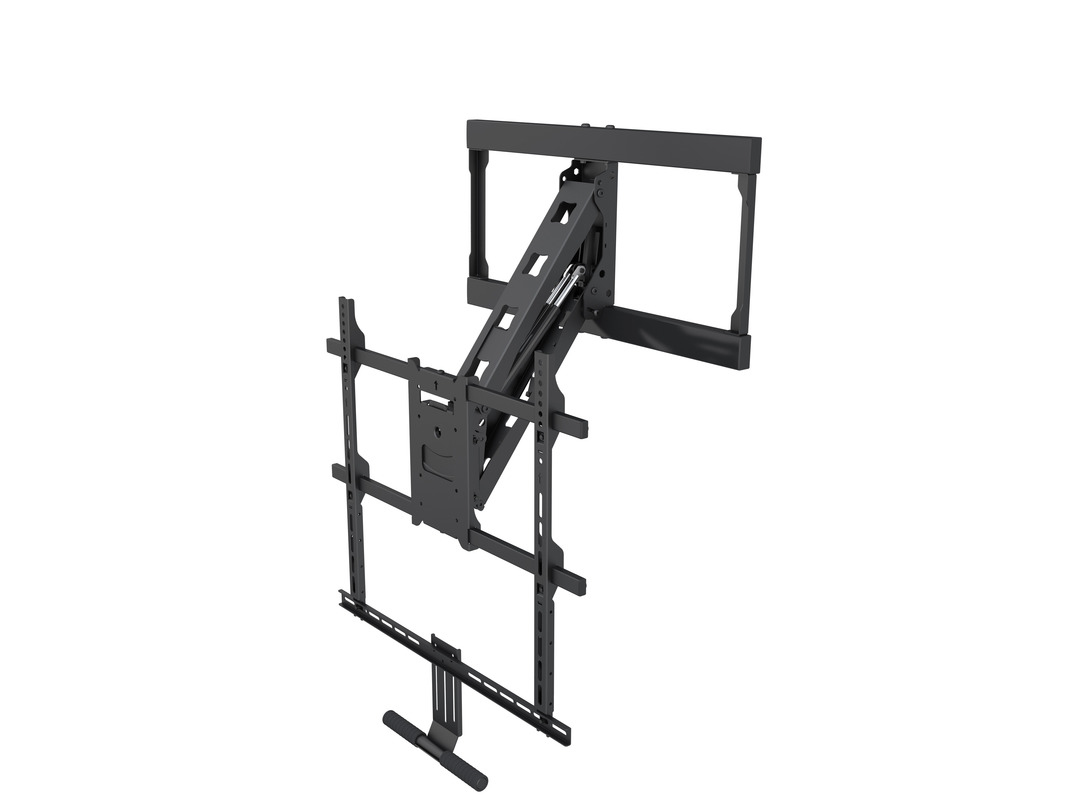

M Pull Down Full Motion Flexarm
Model 6744EAN 7350073736744
35 specifications
- Weight15.1 kg
- ColourBlack
- Number of displays supported1
- Height adjustmentYes
- Metal packaging weight0 g
- Width680 mm
Overview
- Weight
- 15.1 kg
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- Yes
- Metal packaging weight
- 0 g
- Width
- 680 mm
- Brand
- Multibrackets
- Category
- TV Mounts & Stands
- Model
- 6744
- Part number
- 6744
- EAN / UPC
- 7350073736744
- Also known as
- Multibrackets M Pull Down Full Motion Flexarm
Specifications
35 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 28 kg |
| Minimum screen size | 101.6 cm (40") |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 500 mm |
| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 300,600 x 400,600 x 500 |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 730 mm |
| Adjustable depth | Yes |
| Tilt adjustment | Yes |

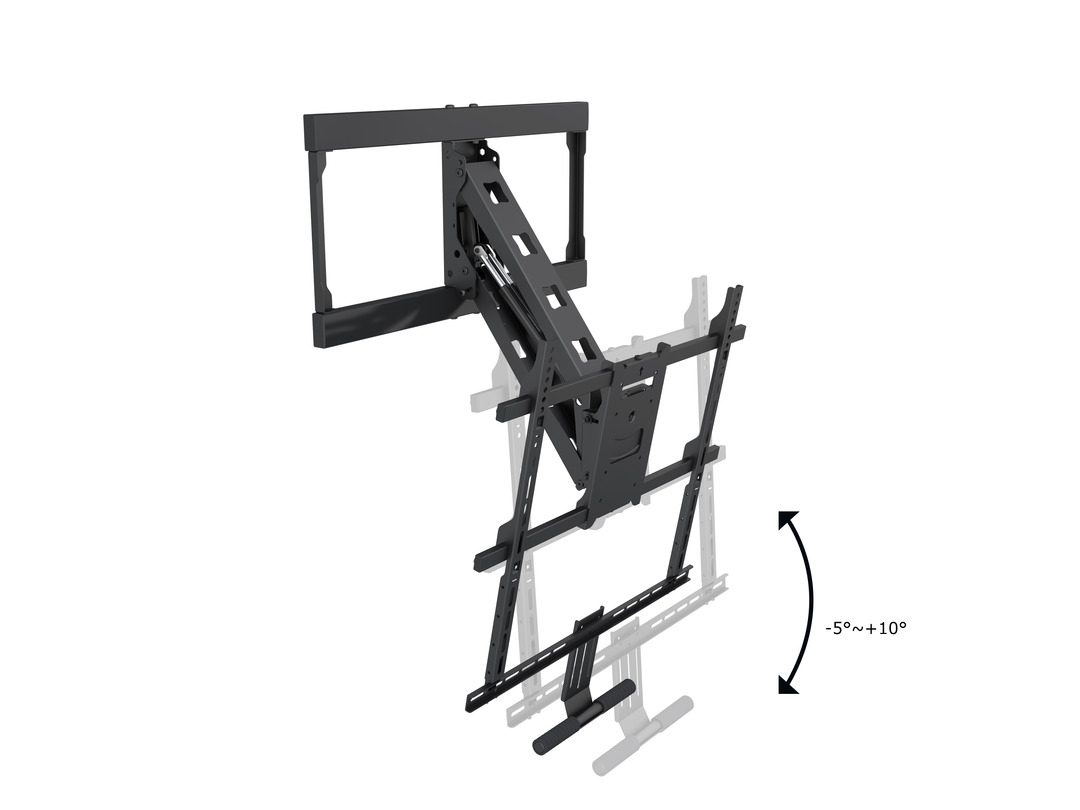

| Tilt angle range | -5 - 10° |

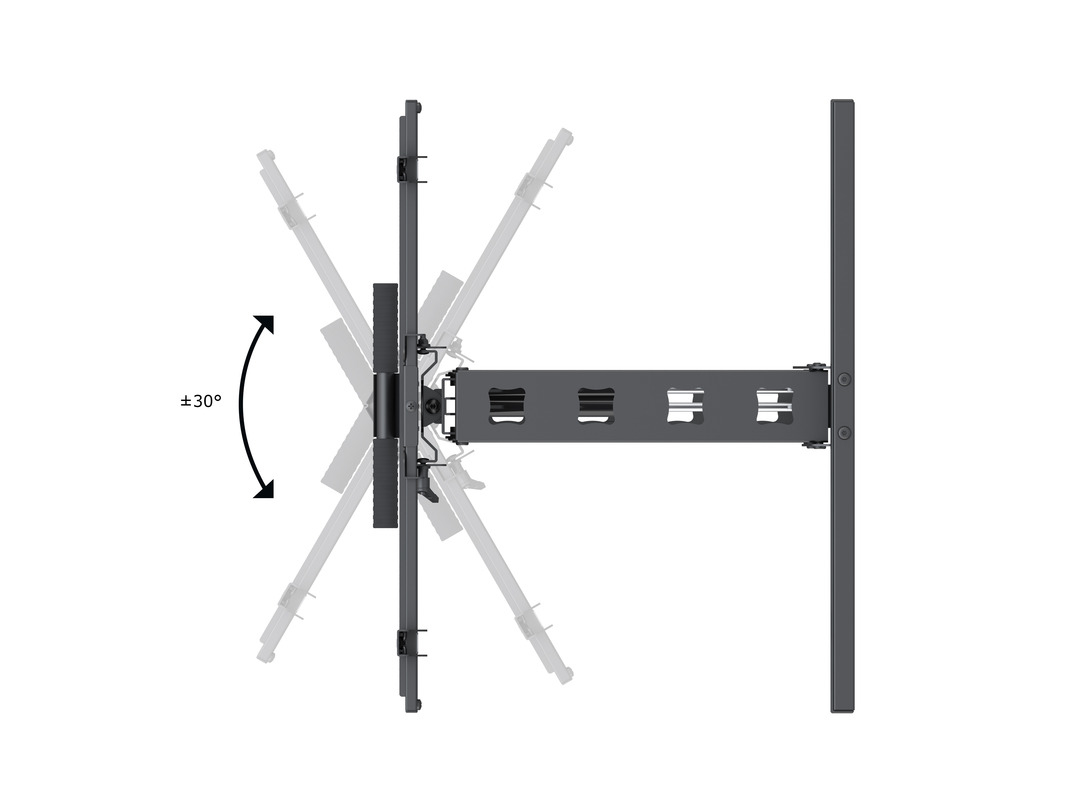

| Turn angle | 60° |
| Distance to the wall (max) | 51 cm |
| Distance to the wall (min) | 12 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Technical details
| Specification | Value |
|---|---|
| Metal packaging weight | 0 g |
| Paper/cardboard packaging weight | 700 g |
| Plastic packaging weight | 60 g |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 680 mm |
| Depth (min) | 12 cm |
| Height | 335 mm |
| Weight | 15.1 kg |
| Aluminium content weight | 0 g |
| Steel content weight | 15.1 kg |
| Other metals content weight | 0 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 390 mm |
| Package depth | 720 mm |
| Package height | 140 mm |
| Package weight | 15.9 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
