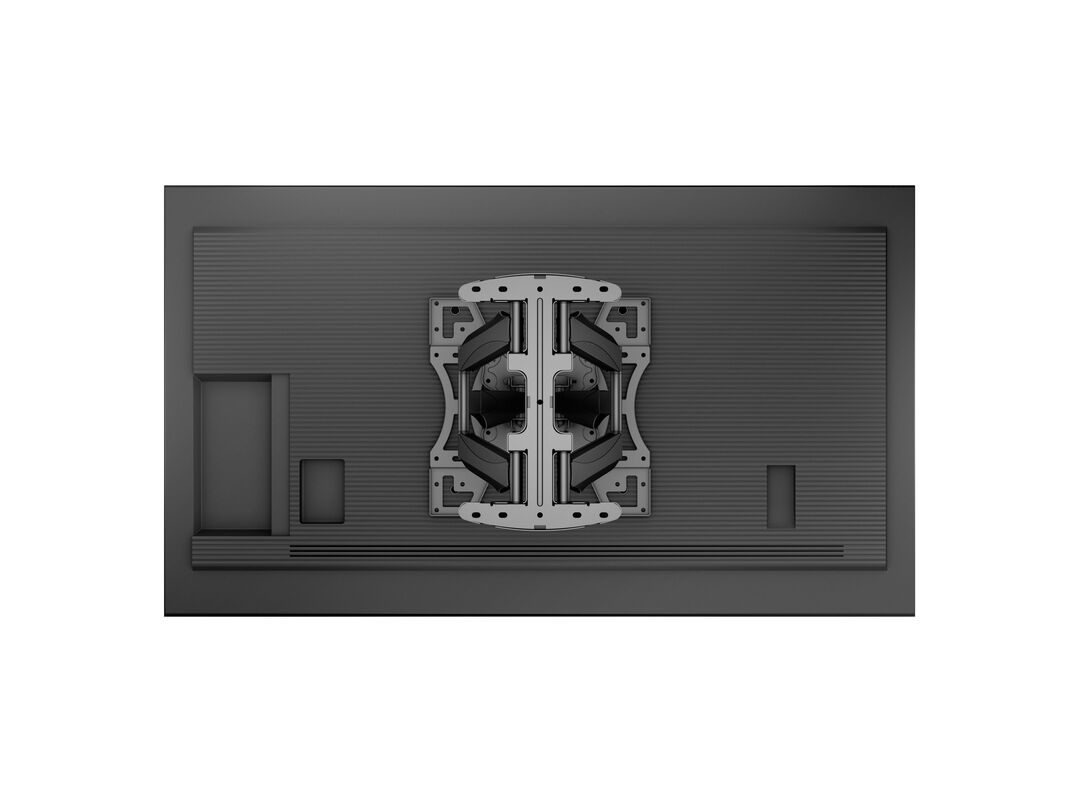

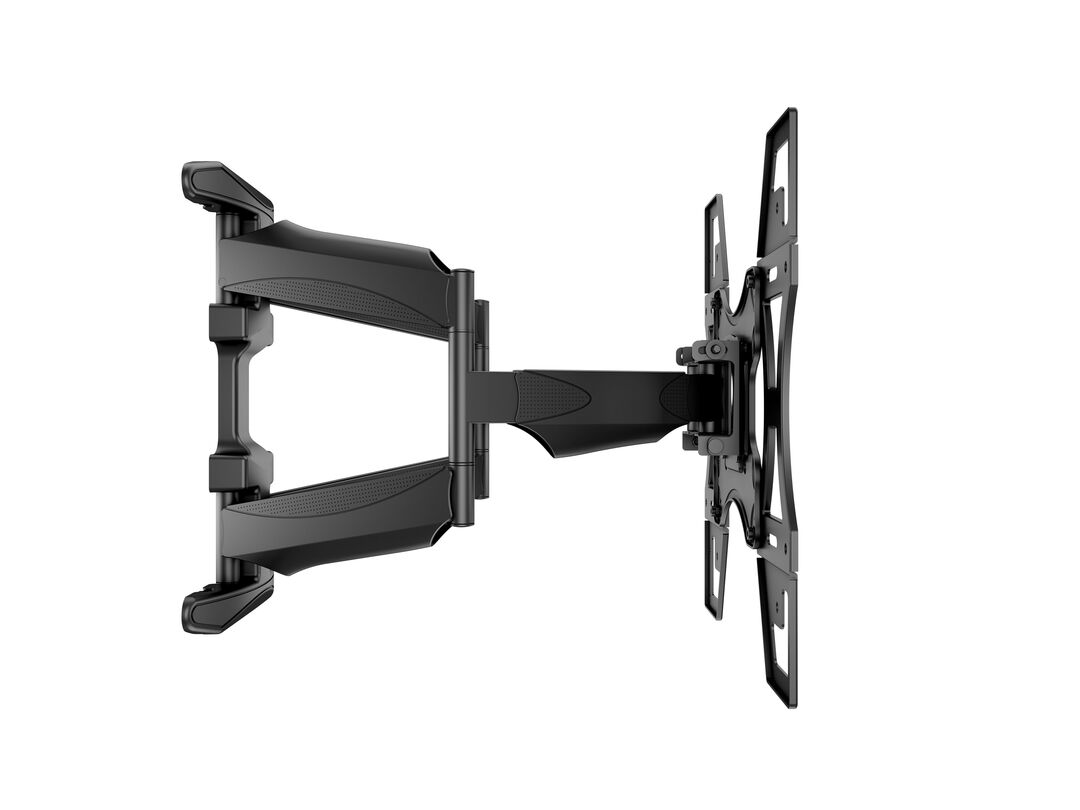

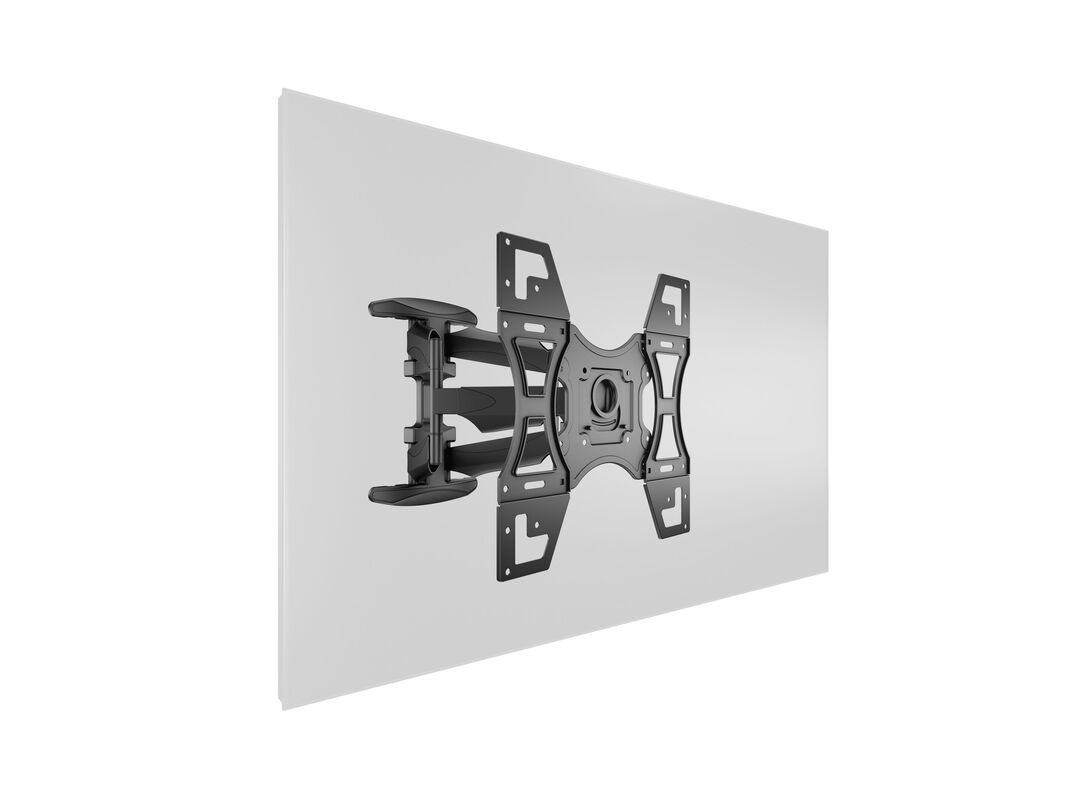

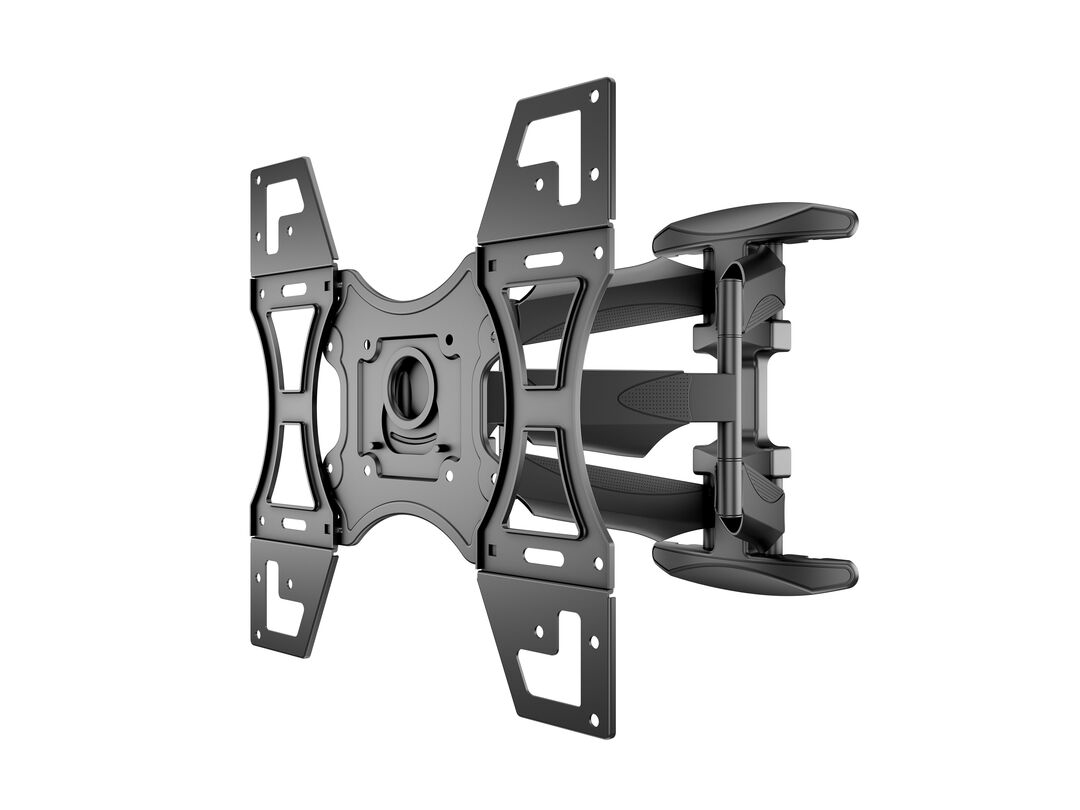

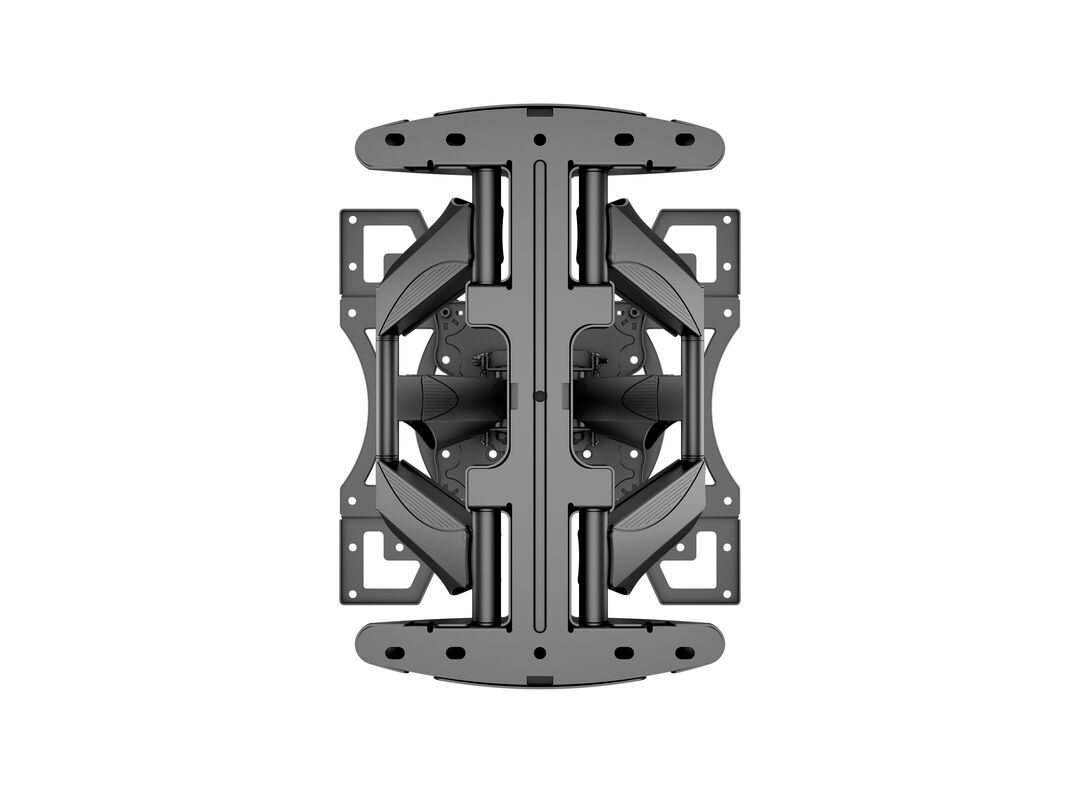

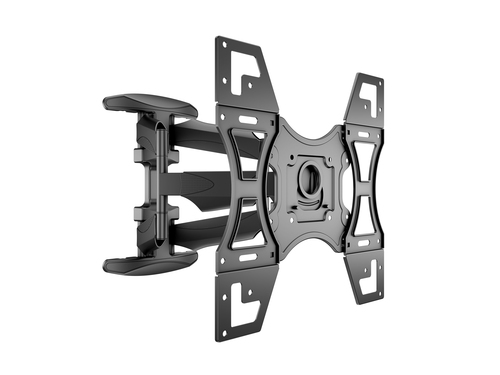

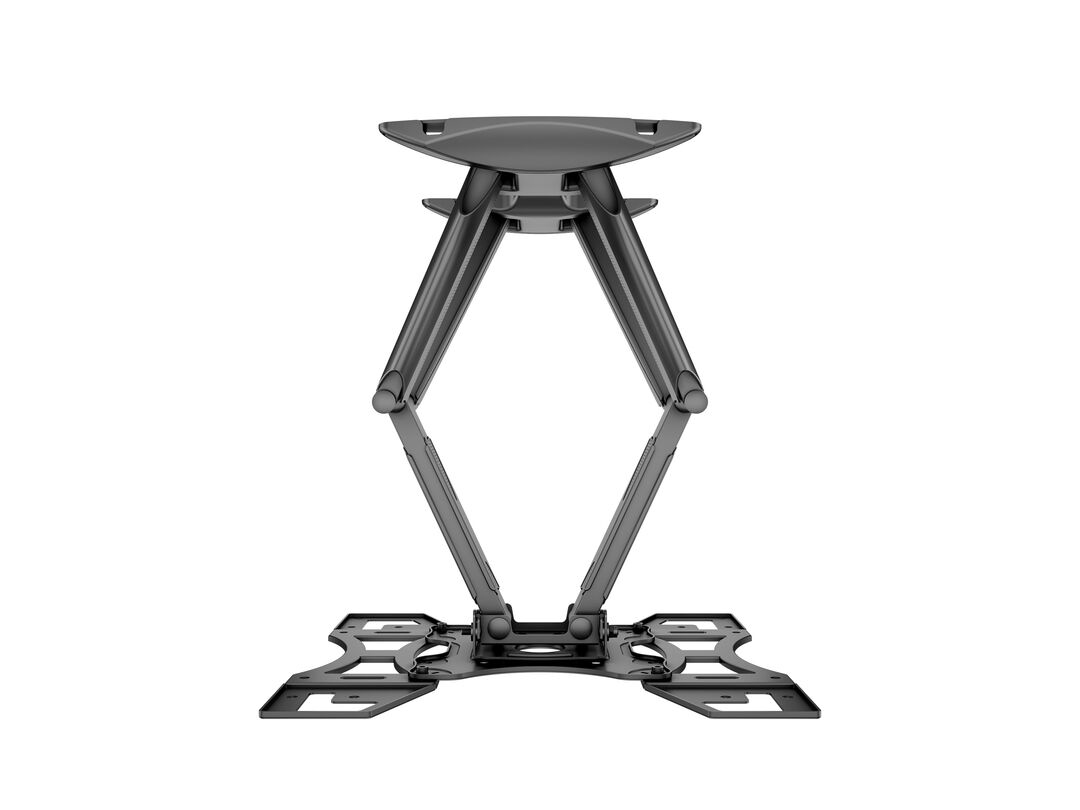

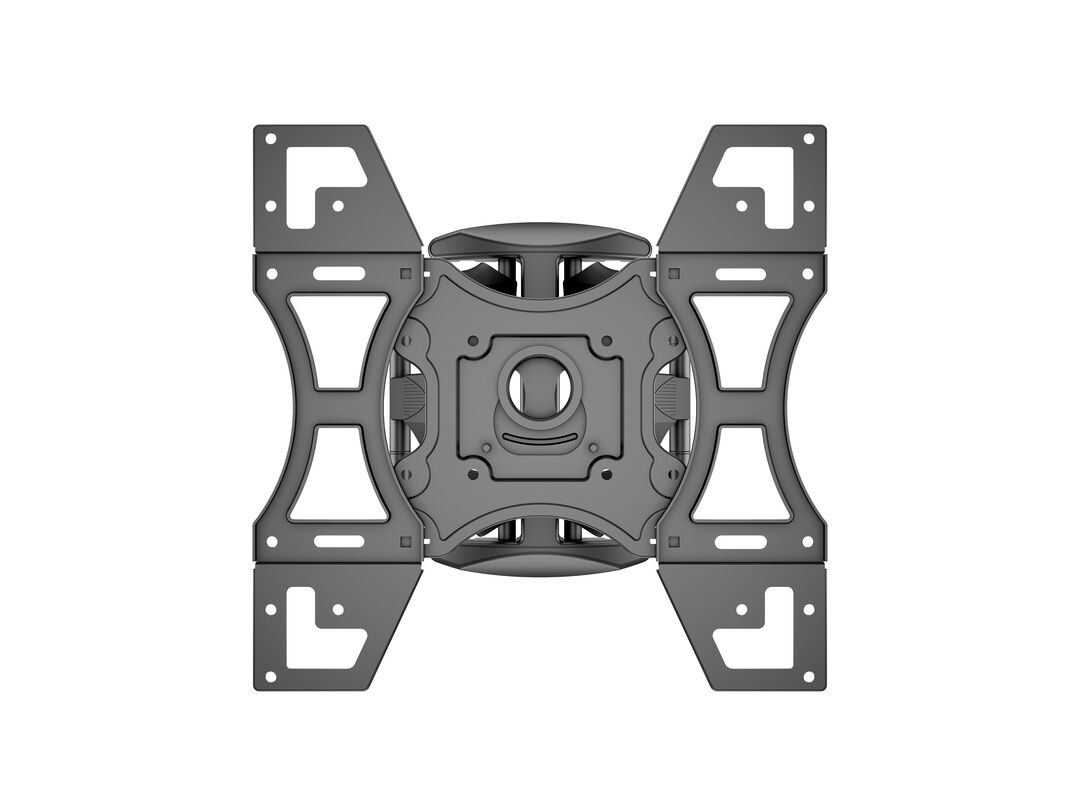

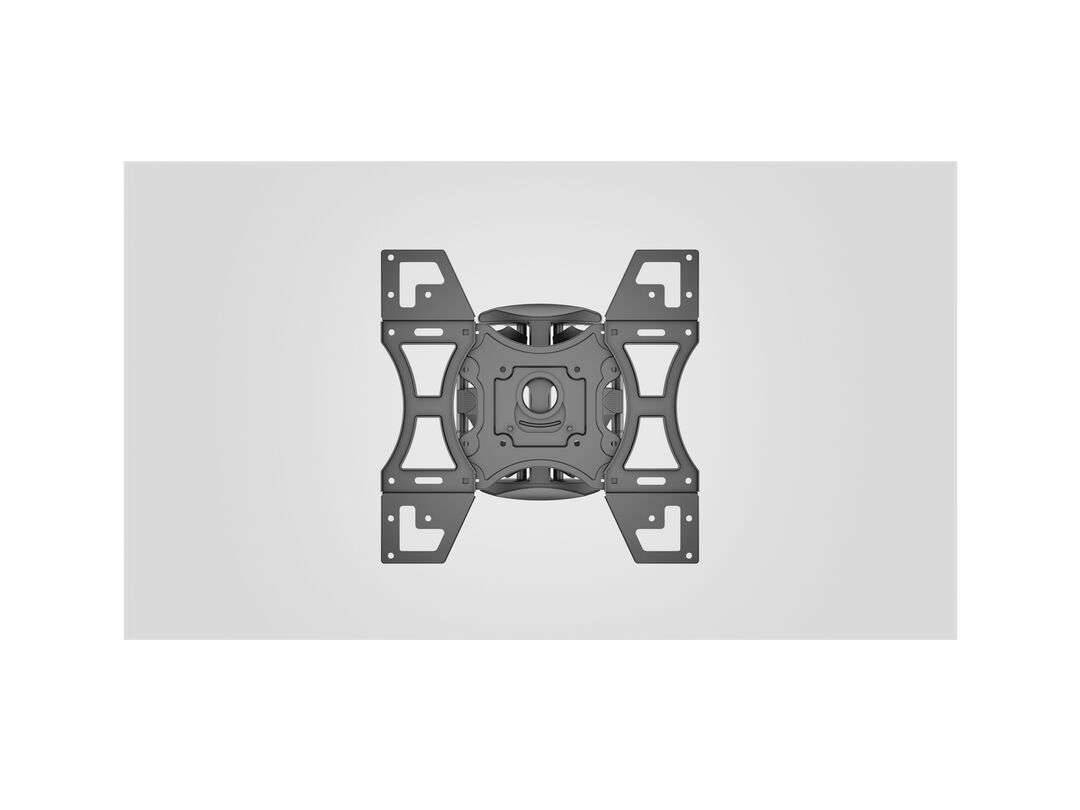

M VESA Flexarm Full Motion Dual
400x400
Model 5266EAN 7350073735266
31 specifications
- Weight8 kg
- ColourBlack
- Number of displays supported1
- Adjustable depthYes
- Width595 mm
Overview
- Weight
- 8 kg
- Colour
- Black
- Number of displays supported
- 1
- Adjustable depth
- Yes
- Width
- 595 mm
- Brand
- Multibrackets
- Category
- TV Mounts & Stands
- Model
- 5266
- Part number
- 5266
- EAN / UPC
- 7350073735266
- Also known as
- Multibrackets M VESA Flexarm Full Motion Dual 400x400
Specifications
31 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 45 kg |
| Minimum screen size | 101.6 cm (40") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 10° |
| Turn angle | 90° |
| Distance to the wall (max) | 48.8 cm |
| Distance to the wall (min) | 4.6 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth (min) | 4.6 cm |
| Depth (max) | 48.8 cm |
| Height | 46 mm |
| Weight | 8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 450 mm |
| Package depth | 590 mm |
| Package height | 70 mm |
| Package weight | 0 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet (EU) | 36 pc(s) |
| Shipping (inner) case width | 45 cm |
| Shipping (inner) case length | 59 cm |
| Shipping (inner) case height | 14 cm |
| Shipping (inner) case gross weight | 13.6 kg |
| Products per shipping (inner) case | 4 pc(s) |
