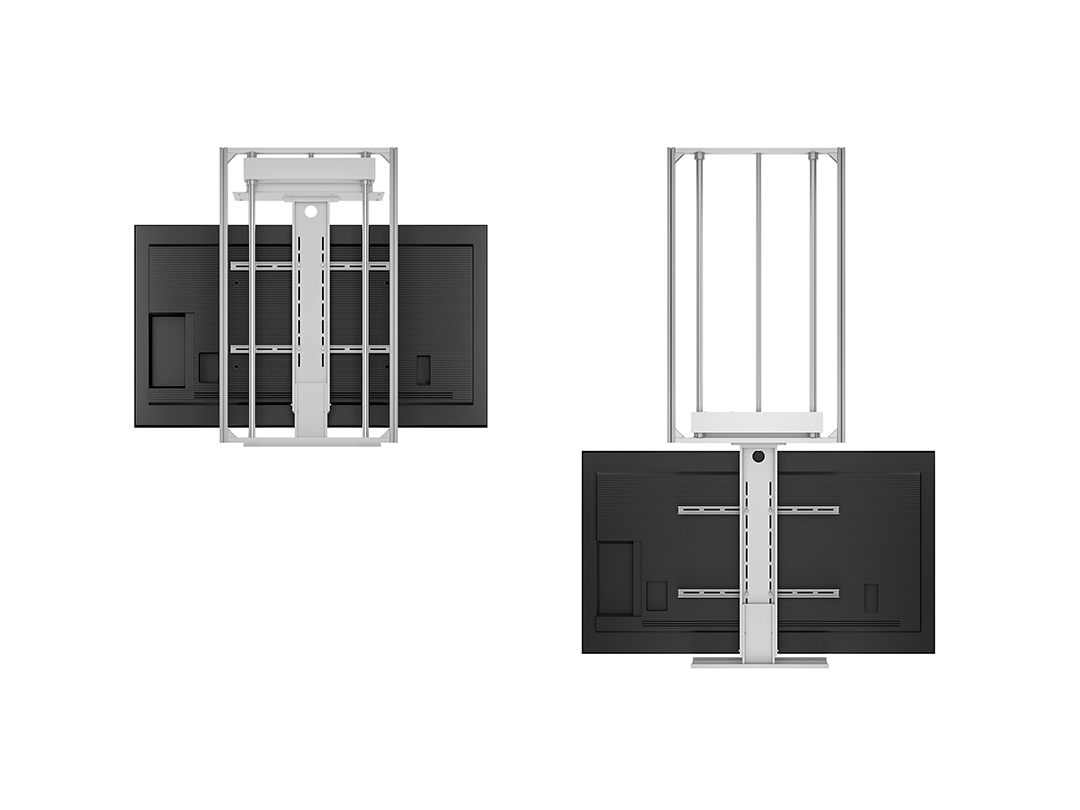

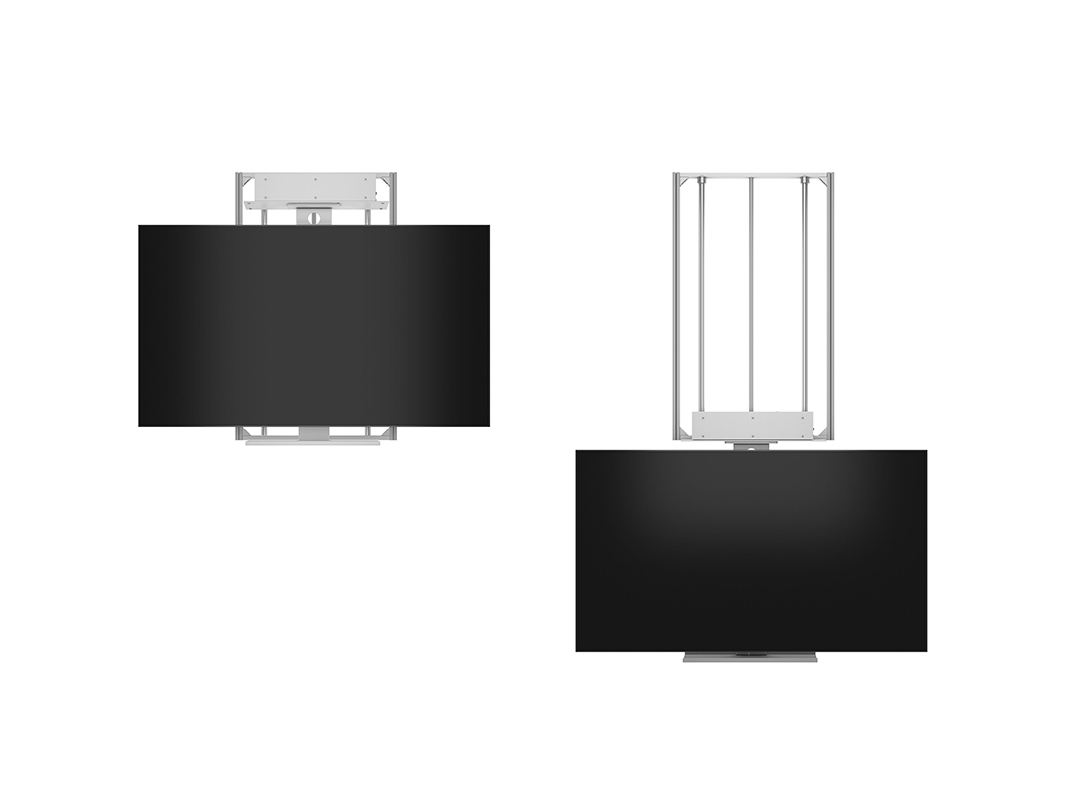

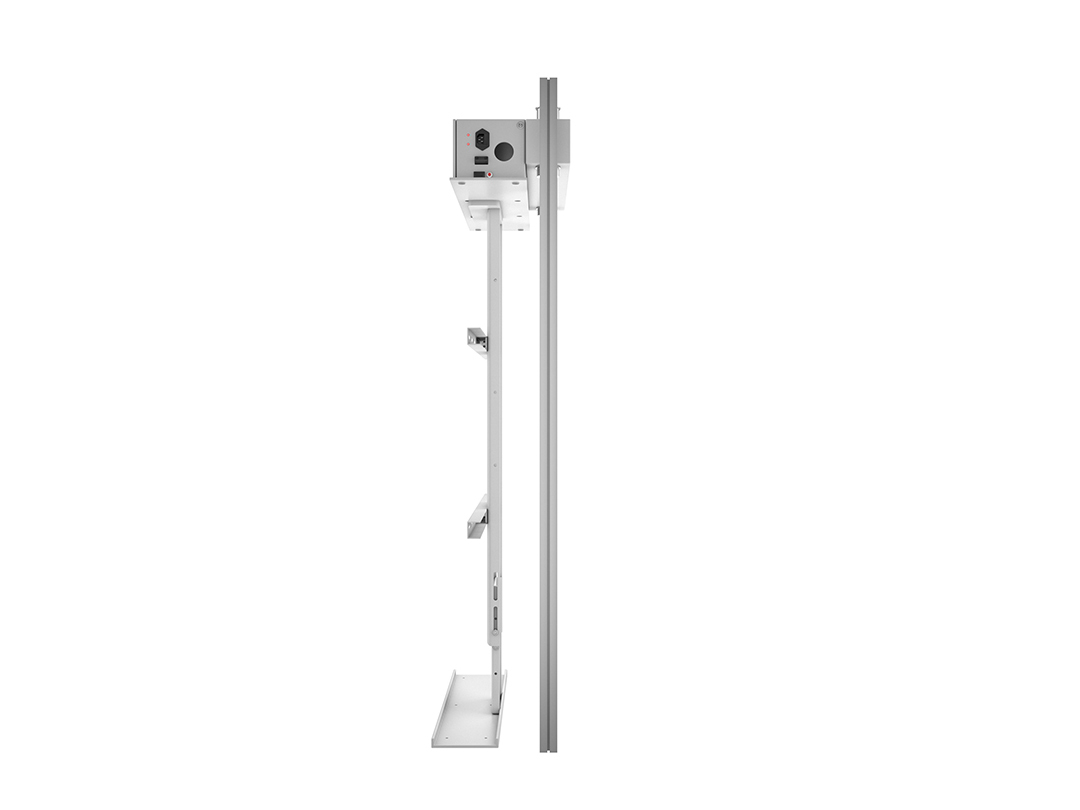

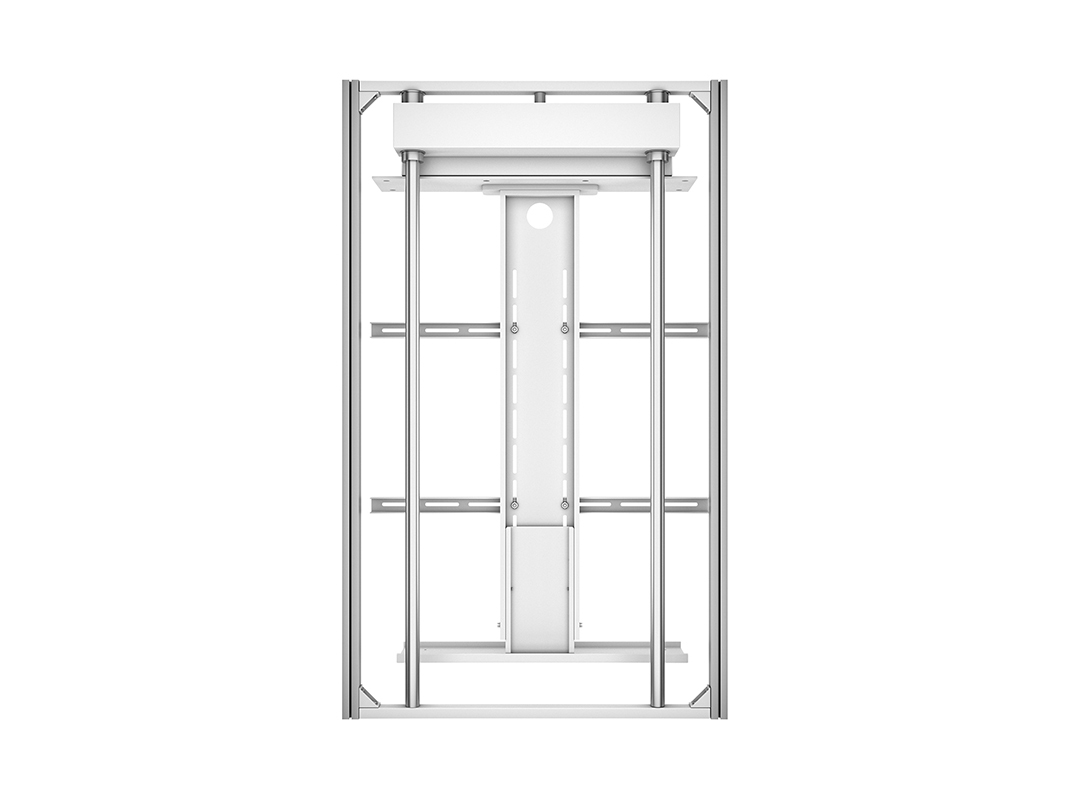

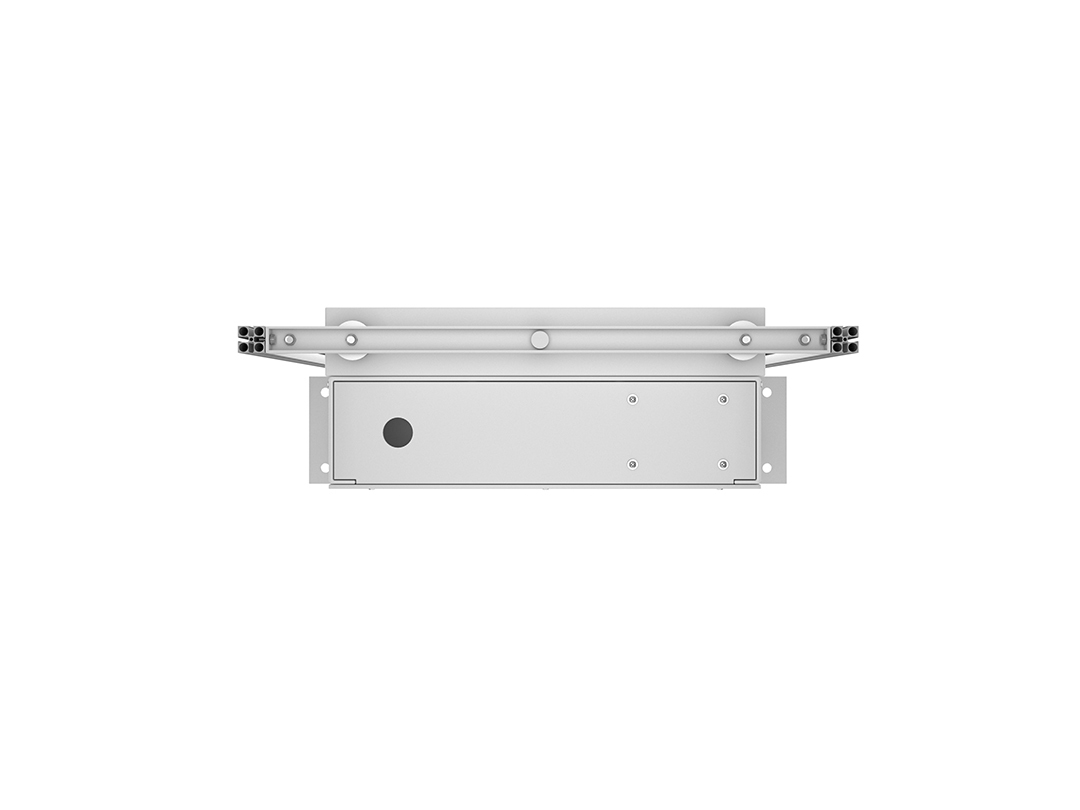

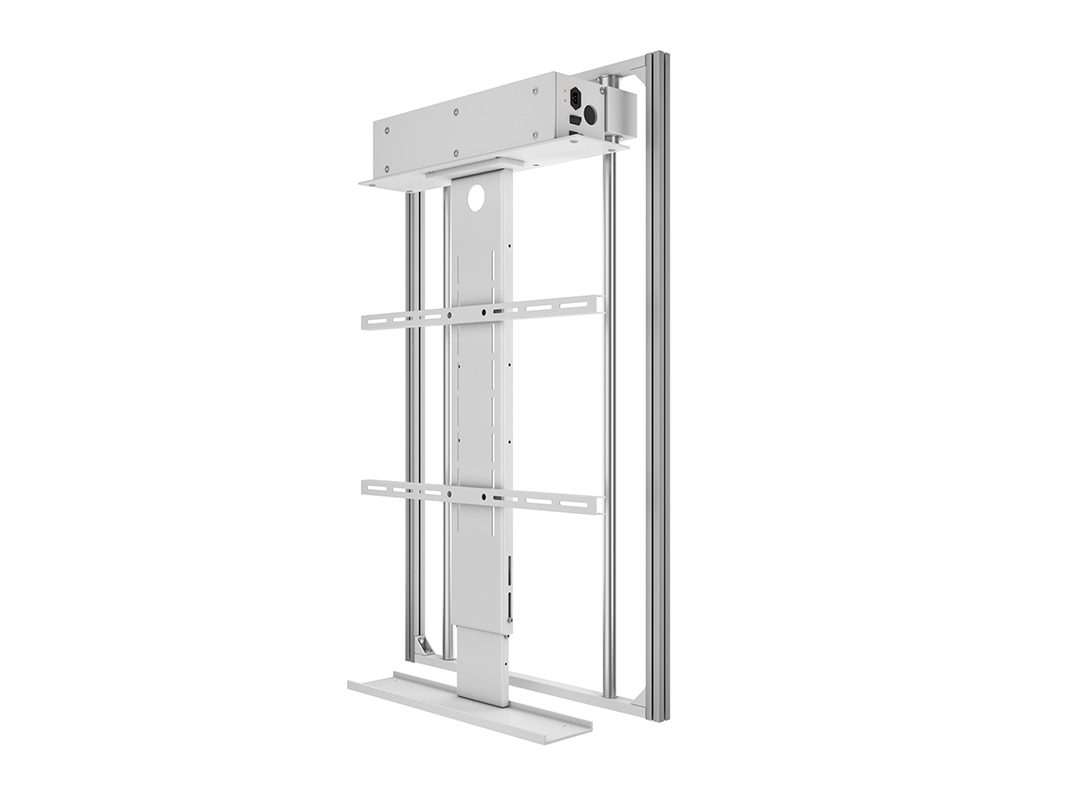

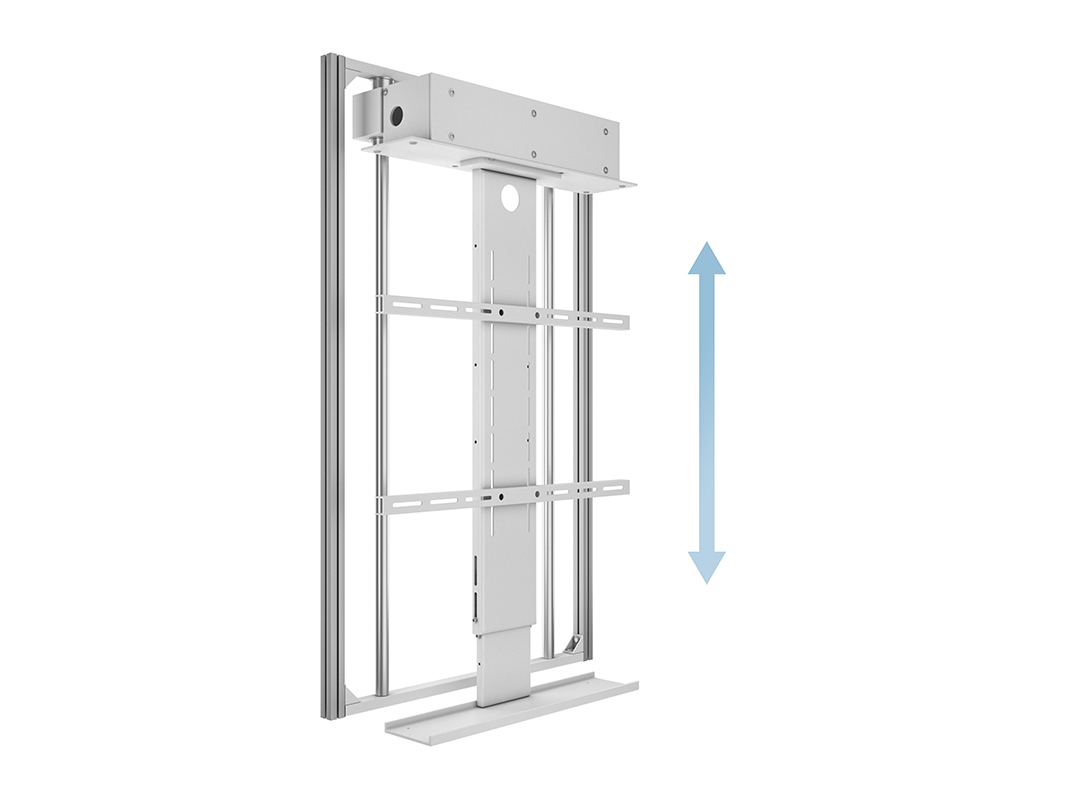

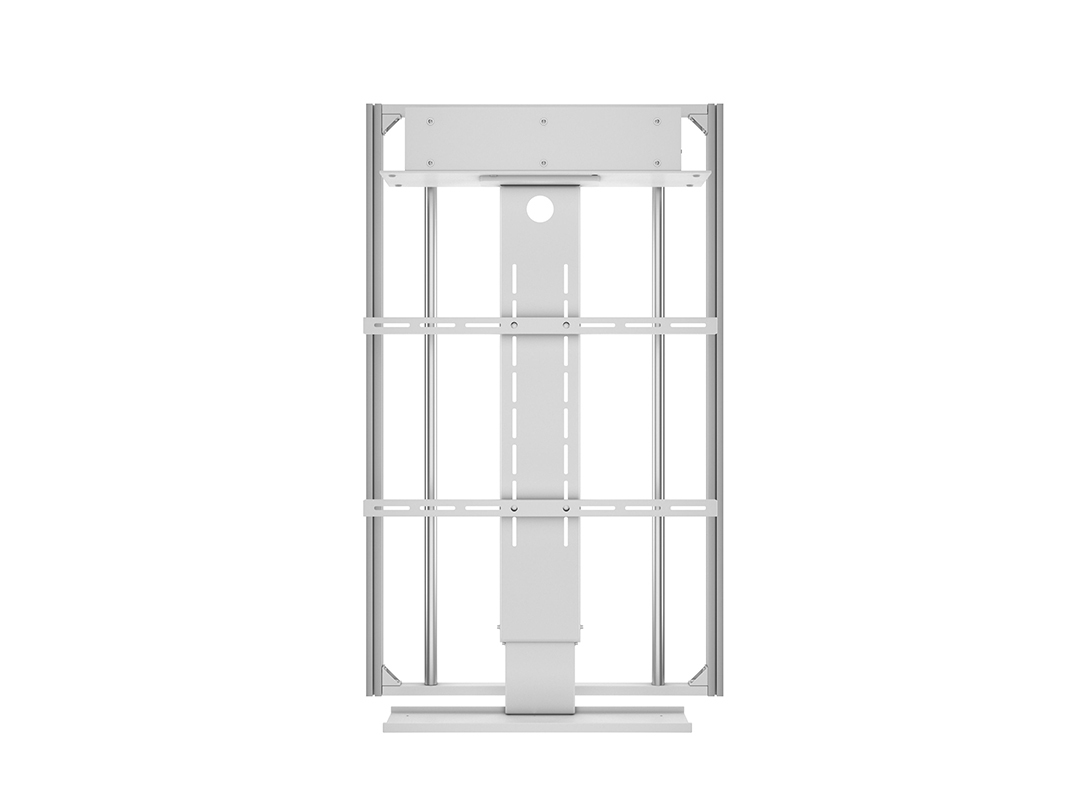

M Motorized Drop Down TV Lift
55"-75"
Model 5247EAN 7350105215247
28 specifications
- Weight40 kg
- ColourWhite
- Number of displays supported1
- Height adjustmentYes
- AC input voltage220 V
- Compliance certificatesCE
Overview
- Weight
- 40 kg
- Colour
- White
- Number of displays supported
- 1
- Height adjustment
- Yes
- AC input voltage
- 220 V
- Compliance certificates
- CE
- Brand
- Multibrackets
- Category
- TV Mounts & Stands
- Model
- 5247
- Part number
- 5247
- EAN / UPC
- 7350105215247
- Also known as
- Multibrackets M Motorized Drop Down TV Lift 55"-75"
Specifications
28 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 139.7 cm (55") |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 600 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 400,600 x 600 |
Ergonomics
| Specification | Value |
|---|---|

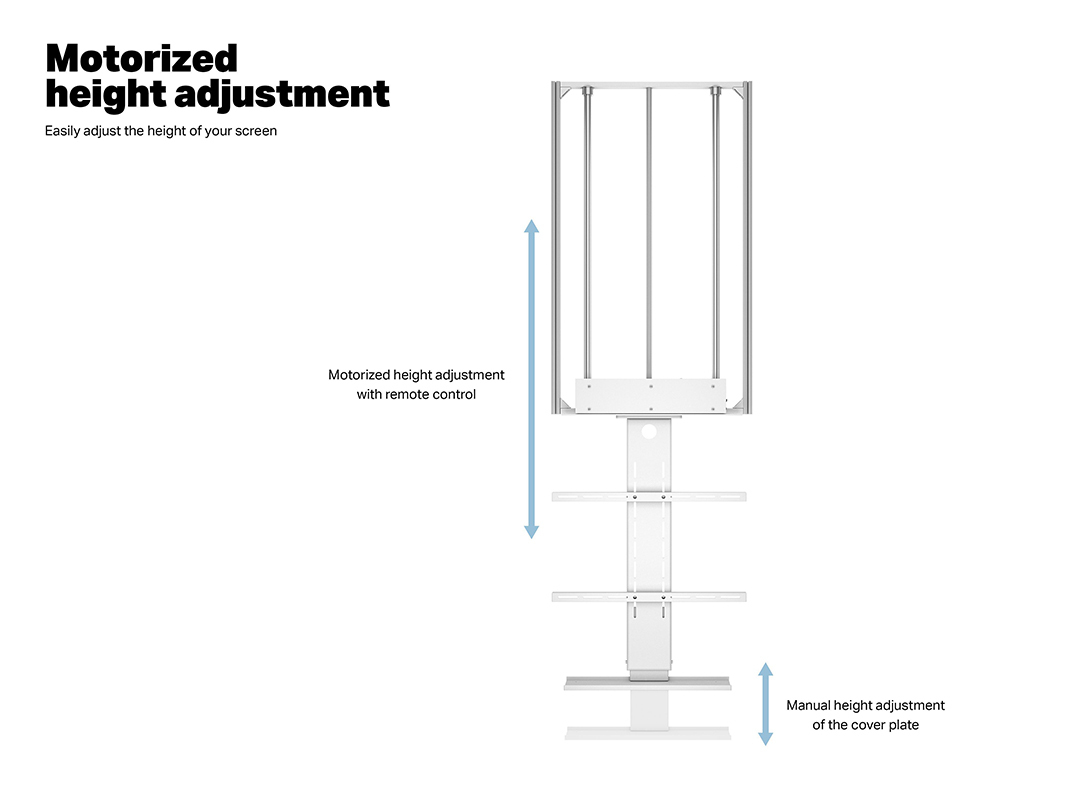

| Height adjustment | Yes |
| Height adjustment type | Electric |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180° |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| AC input voltage | 220 V |
| AC input frequency | 50 - 60 Hz |
| Power cable length | 2 m |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1150 mm |
| Depth (max) | 65 cm |
| Height | 210 mm |
| Weight | 40 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1170 mm |
| Package depth | 630 mm |
| Package height | 270 mm |
| Package weight | 44 kg |
