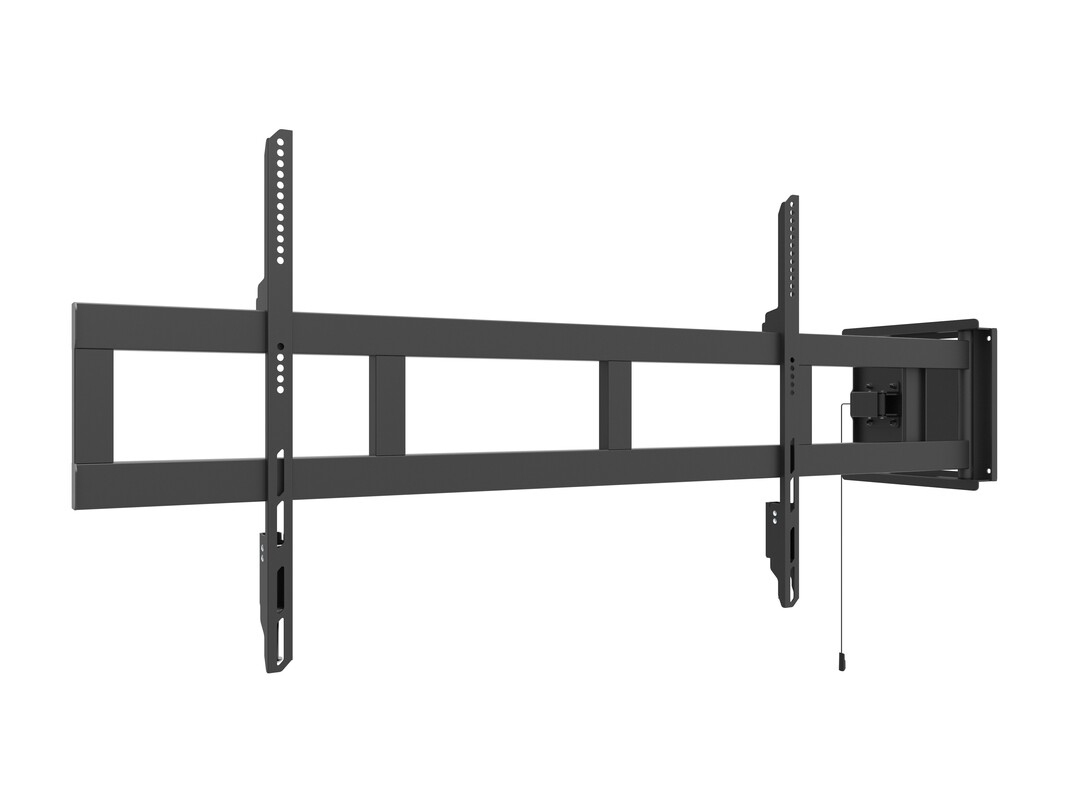

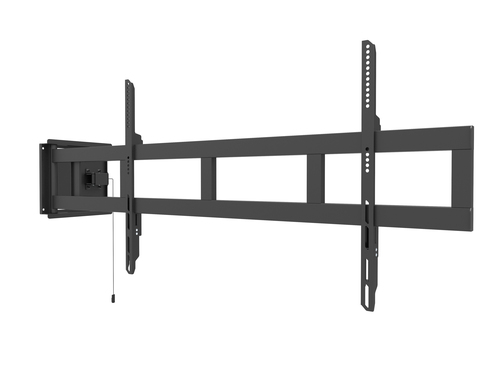

M Universal Swing Arm 180 Degrees x Large Black
Model 2654EAN 7350073732654
29 specifications
- Weight9.6 kg
- ColourBlack
- Number of displays supported1
- Turn angle180°
- Metal packaging weight14.7 kg
- Width1484 mm
Overview
- Weight
- 9.6 kg
- Colour
- Black
- Number of displays supported
- 1
- Turn angle
- 180°
- Metal packaging weight
- 14.7 kg
- Width
- 1484 mm
- Brand
- Multibrackets
- Category
- TV Mounts & Stands
- Model
- 2654
- Part number
- 2654
- EAN / UPC
- 7350073732654
- Also known as
- Multibrackets M Universal Swing Arm 180 Degrees x Large Black
Specifications
29 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 125 kg |
| Minimum screen size | 177.8 cm (70") |
| Maximum screen size | 2.13 m (84") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|

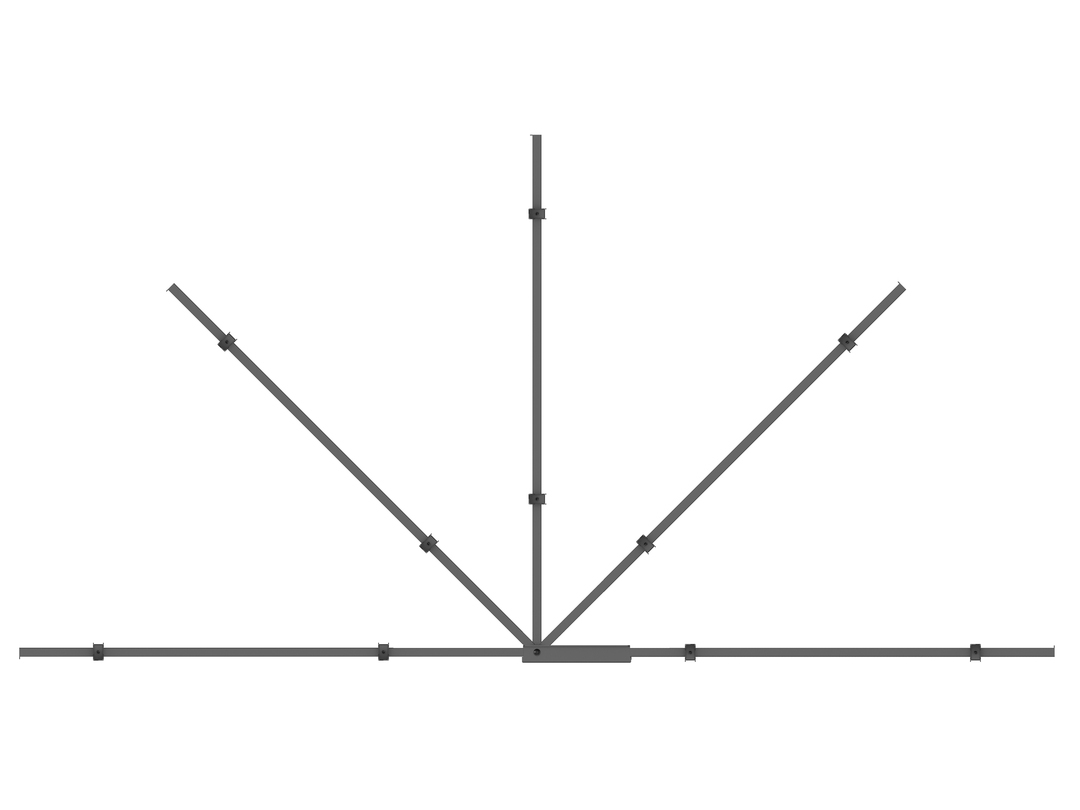

| Turn angle | 180° |
| Distance to the wall (max) | 148.1 cm |
| Distance to the wall (min) | 5.4 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Technical details
| Specification | Value |
|---|---|
| Metal packaging weight | 14.7 kg |
| Paper/cardboard packaging weight | 1 kg |
| Plastic packaging weight | 80 g |

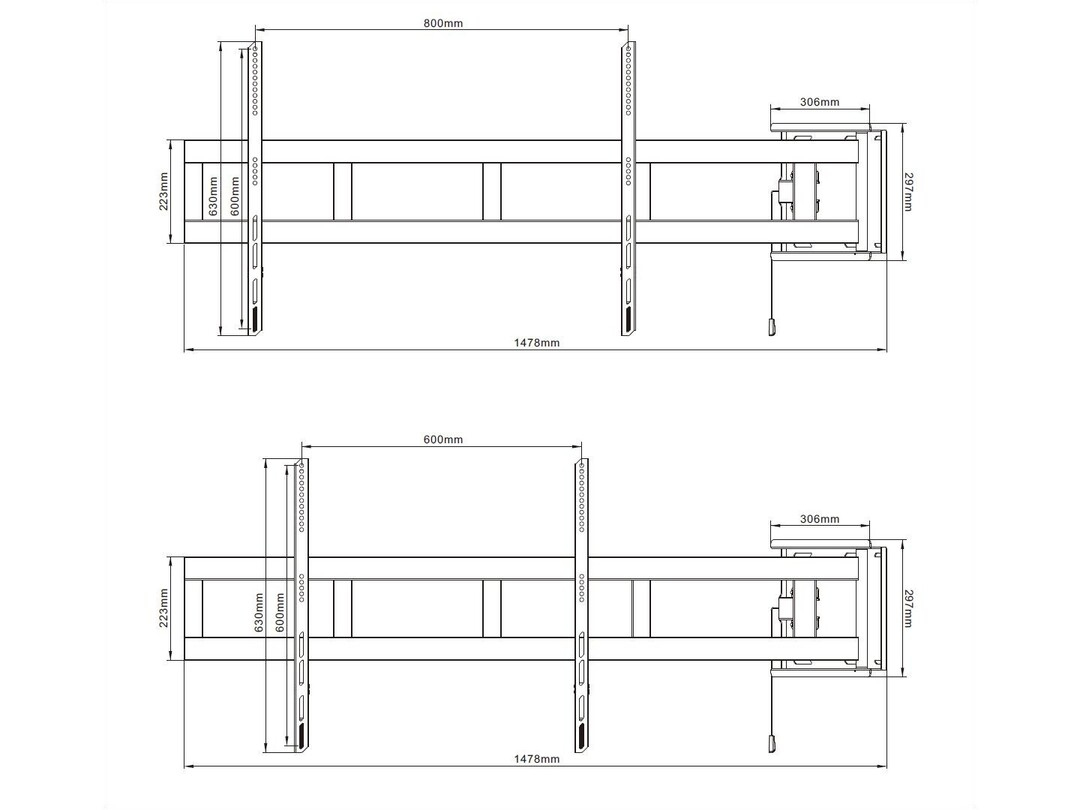

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1484 mm |
| Height | 430 mm |
| Weight | 9.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 1530 mm |
| Package height | 70 mm |
| Package weight | 15.8 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Shipping (inner) case width | 33 cm |
| Shipping (inner) case length | 153 cm |
| Shipping (inner) case height | 7 cm |
| Shipping (inner) case gross weight | 14.5 kg |
| Products per shipping (inner) case | 1 pc(s) |
