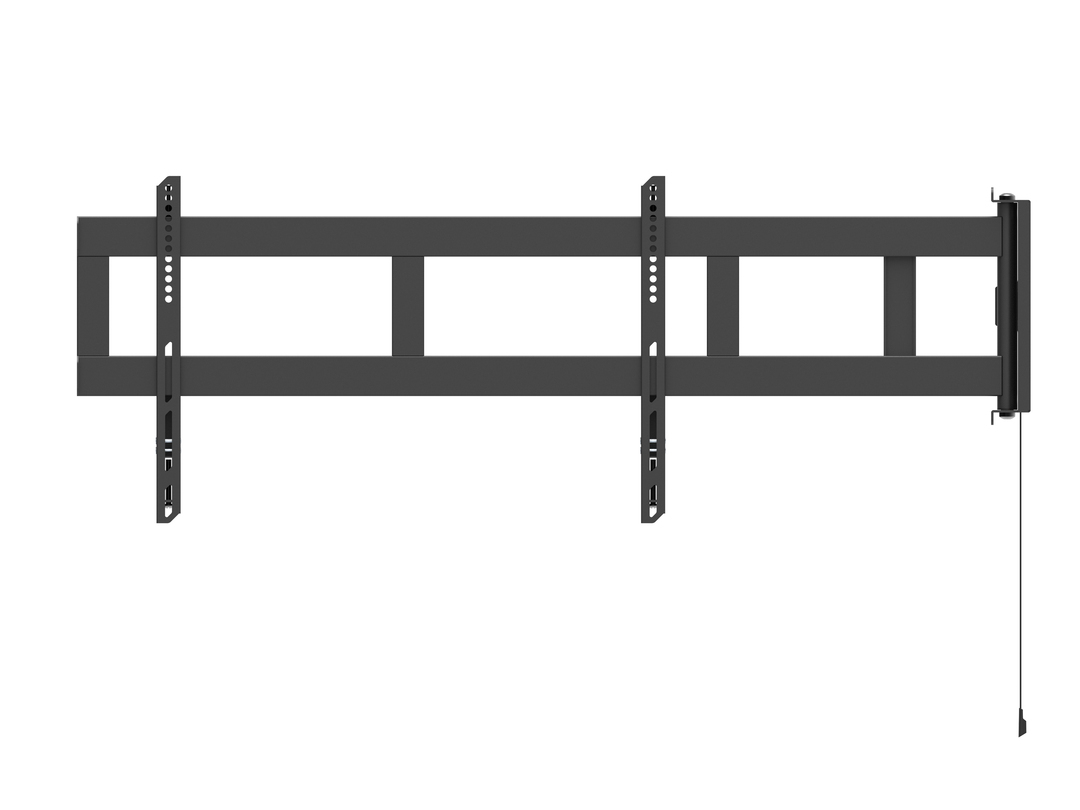

M Universal Swing Arm 180 Degrees Large Black
Model 2647EAN 7350073732647
29 specifications
- Weight8.1 kg
- ColourBlack
- Number of displays supported1
- Turn angle180°
- Metal packaging weight12.4 kg
- Width1184 mm
Overview
- Weight
- 8.1 kg
- Colour
- Black
- Number of displays supported
- 1
- Turn angle
- 180°
- Metal packaging weight
- 12.4 kg
- Width
- 1184 mm
- Brand
- Multibrackets
- Category
- TV Mounts & Stands
- Model
- 2647
- Part number
- 2647
- EAN / UPC
- 7350073732647
- Also known as
- Multibrackets M Universal Swing Arm 180 Degrees Large Black
Specifications
29 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 75 kg |
| Minimum screen size | 121.9 cm (48") |
| Maximum screen size | 175.3 cm (69") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 600 mm |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 600 |
Ergonomics
| Specification | Value |
|---|---|

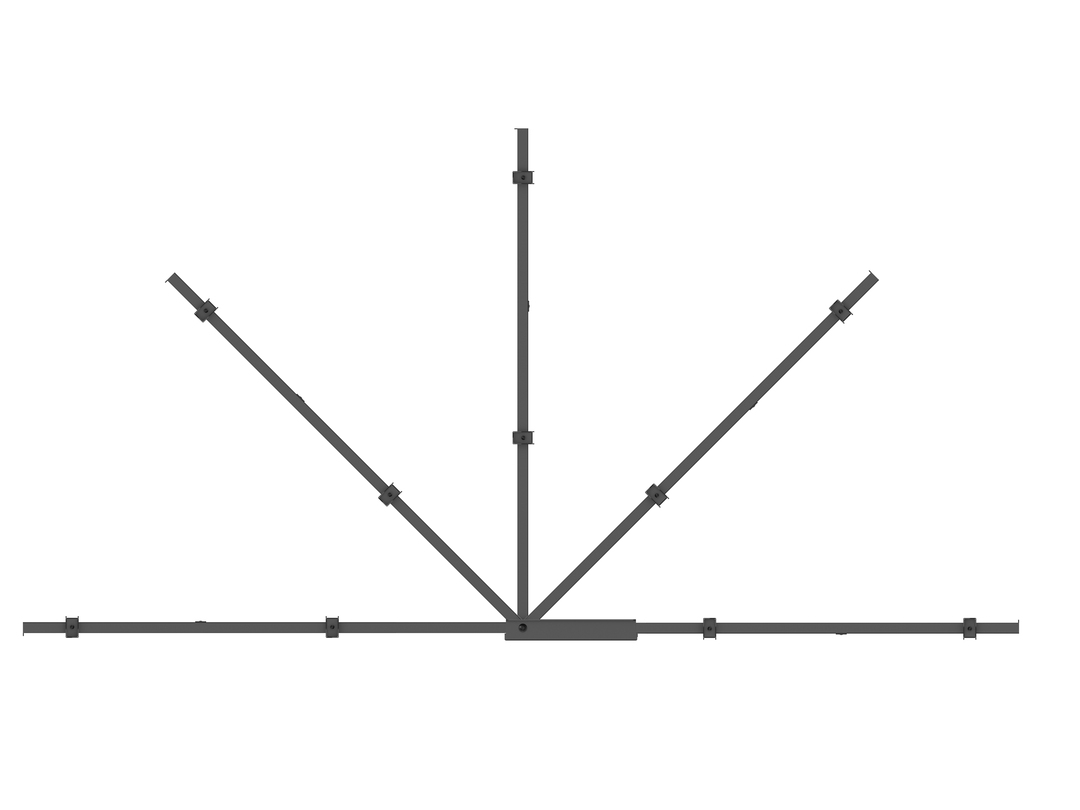

| Turn angle | 180° |
| Distance to the wall (max) | 118.1 cm |
| Distance to the wall (min) | 5.4 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Technical details
| Specification | Value |
|---|---|
| Metal packaging weight | 12.4 kg |
| Paper/cardboard packaging weight | 900 g |
| Plastic packaging weight | 50 g |

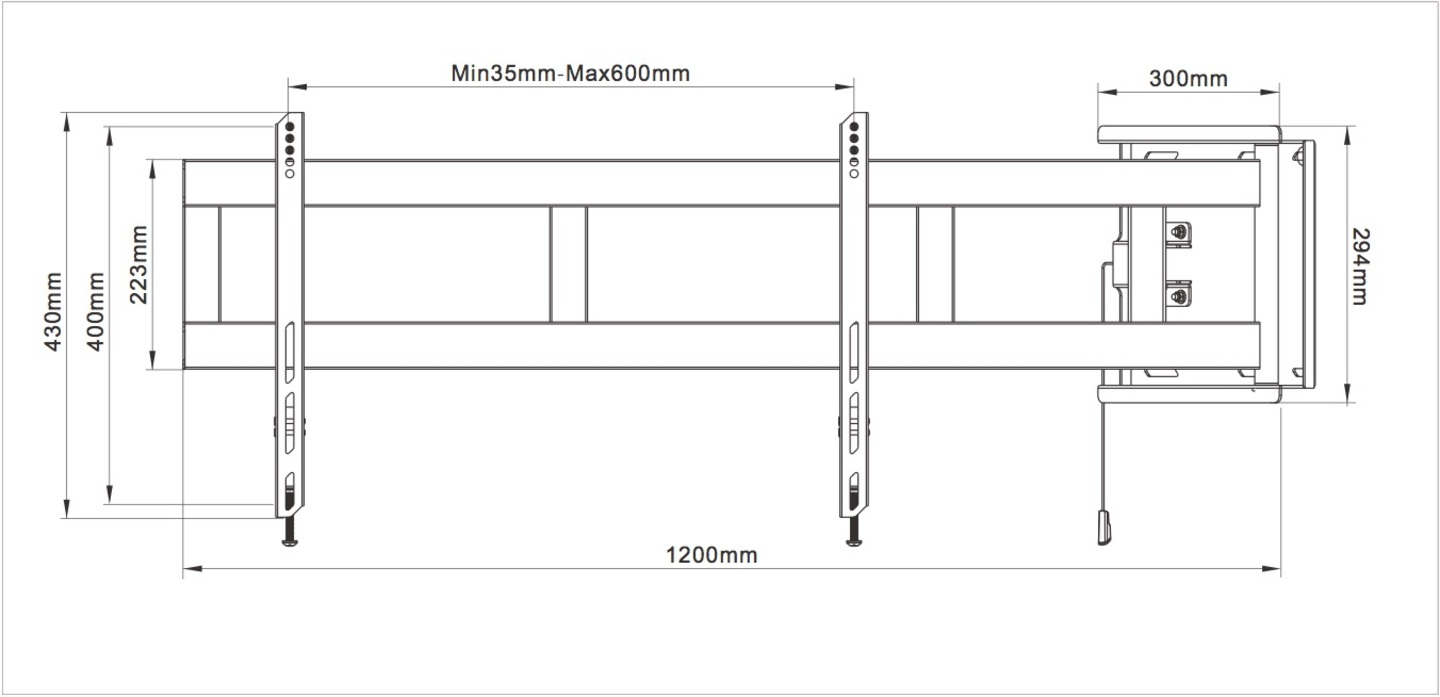

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1184 mm |
| Height | 430 mm |
| Weight | 8.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 1230 mm |
| Package height | 70 mm |
| Package weight | 13.4 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet (EU) | 24 pc(s) |
| Shipping (inner) case width | 33 cm |
| Shipping (inner) case length | 123 cm |
| Shipping (inner) case height | 7 cm |
| Shipping (inner) case gross weight | 12.3 kg |
| Products per shipping (inner) case | 0 pc(s) |
