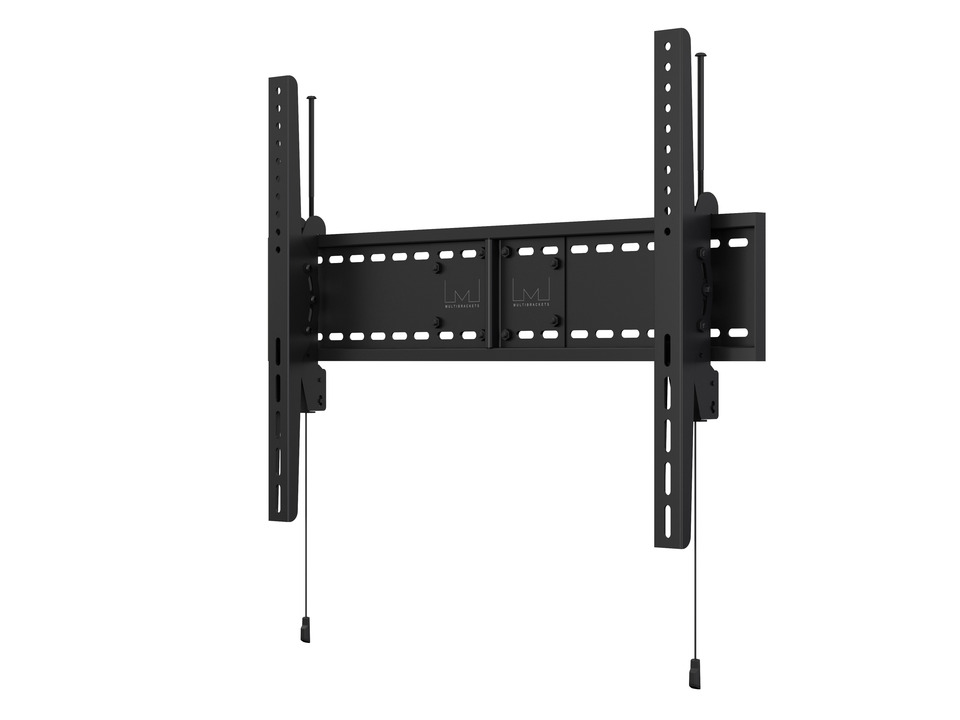

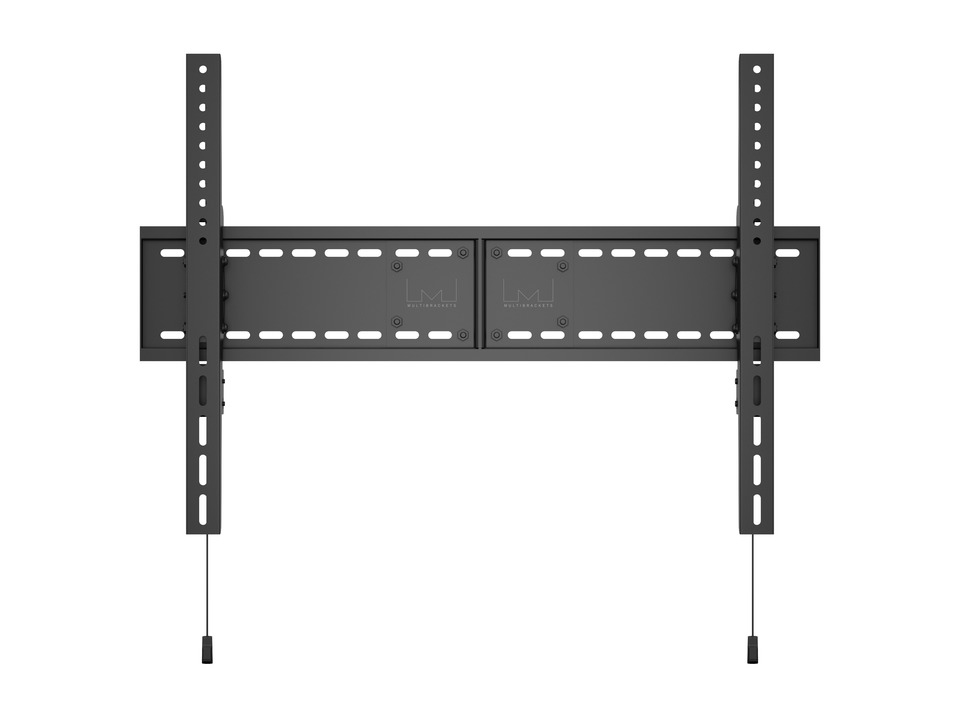

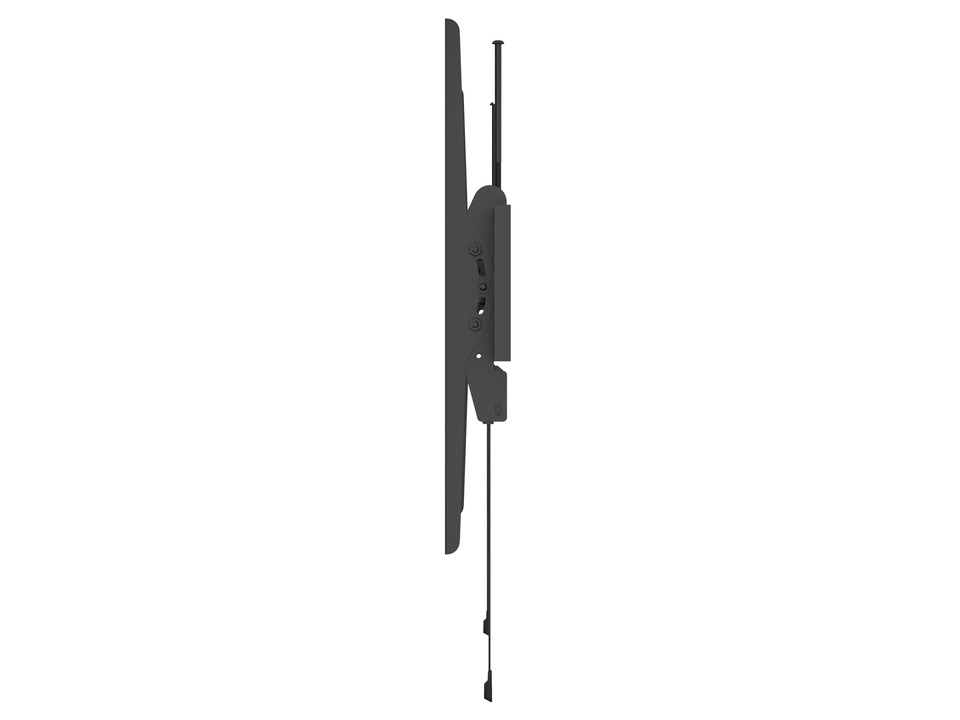

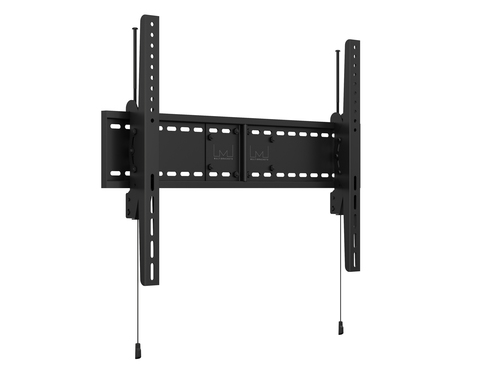

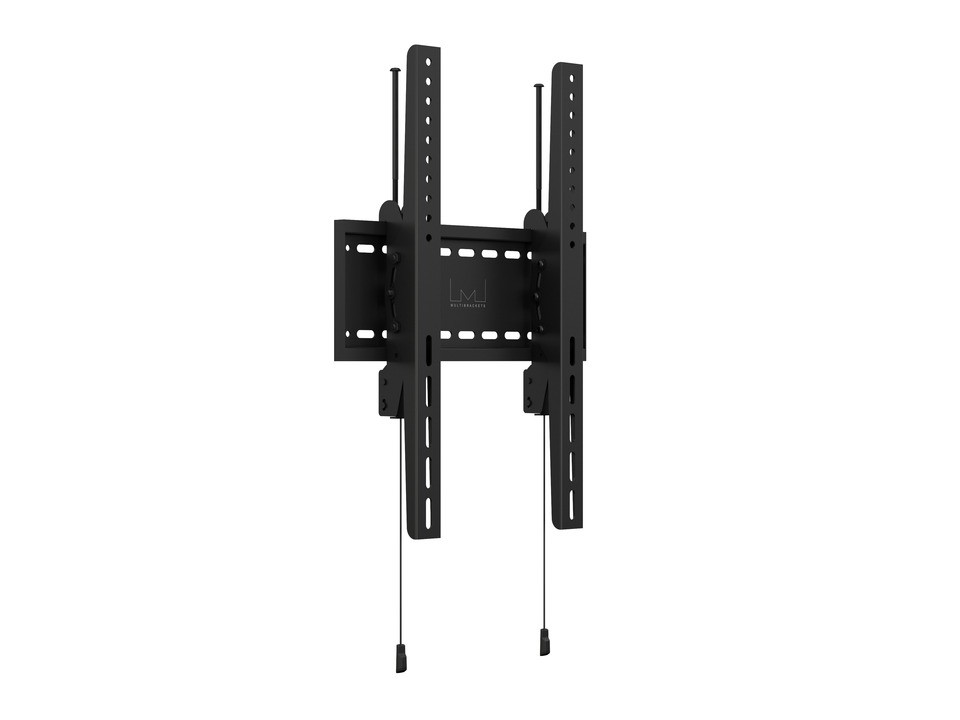

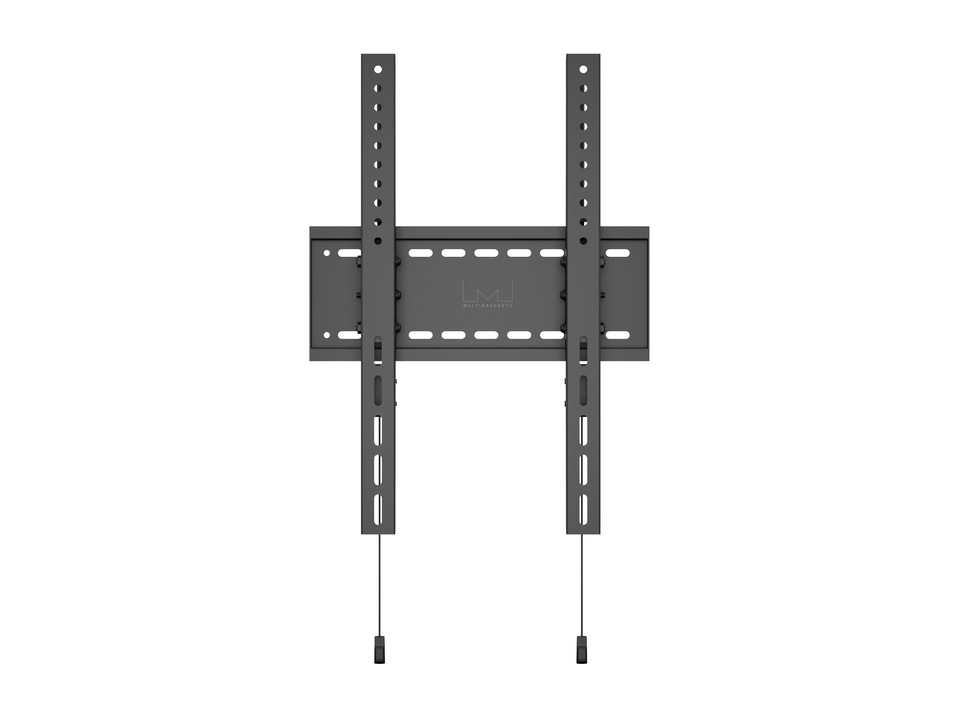

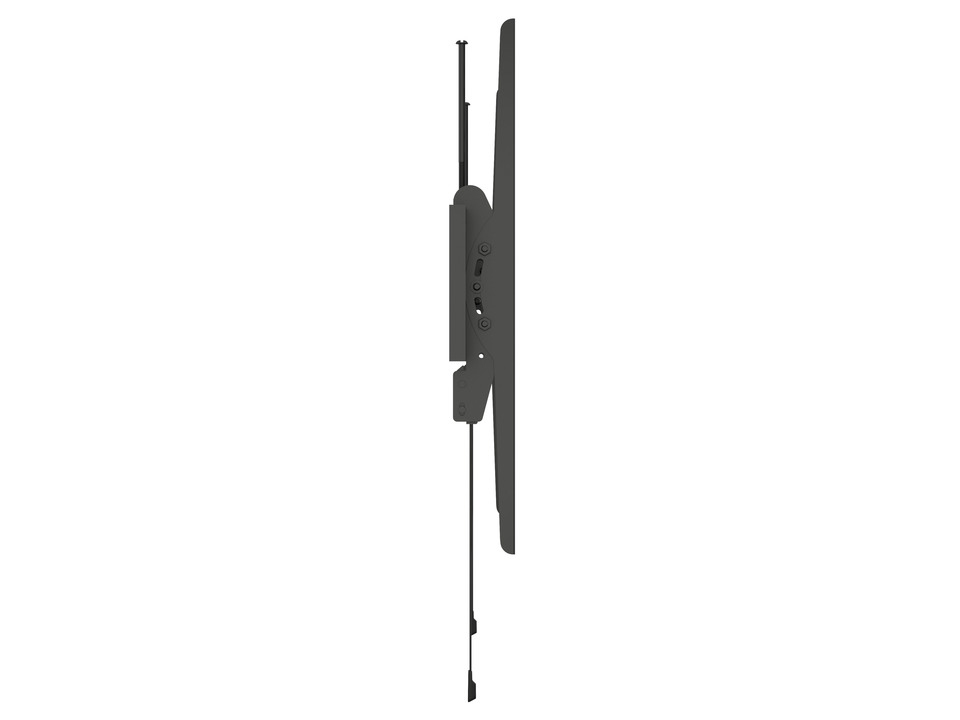

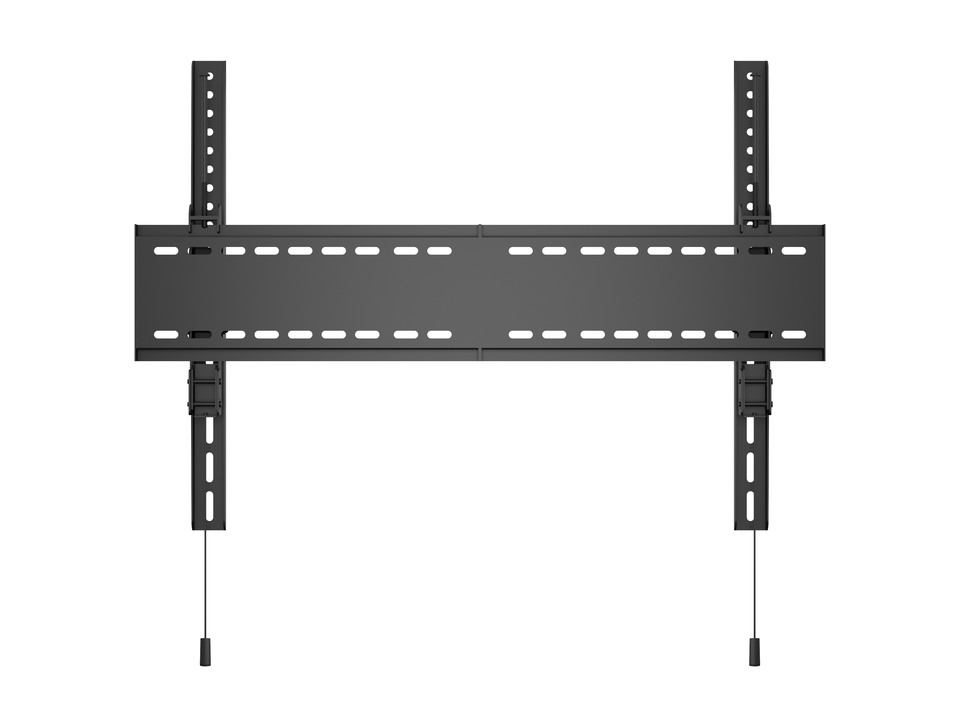

Multibrackets M Universal Tilt Wallmount SD MAX

M Universal Tilt Wallmount SD MAX

800x600

Model 1107EAN 5715063322208

32 specifications

Weight8.1 kg
ColourBlack
Number of displays supported1
Tilt adjustmentYes
Metal packaging weight4.92 kg
Depth (min)7.9 cm

See all specifications

Overview

Weight: 8.1 kg
Colour: Black
Number of displays supported: 1
Tilt adjustment: Yes
Metal packaging weight: 4.92 kg
Depth (min): 7.9 cm

Brand: Multibrackets
Category: TV Mounts & Stands
Model: 1107
Part number: 1107
EAN / UPC: 5715063322208, 7350073731107
Also known as: Multibrackets M Universal Tilt Wallmount SD MAX 800x600

Specifications

32 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity	125 kg
Minimum screen size	160 cm (63")
Maximum screen size	2.79 m (110")
Mounting type	Wall
Minimum VESA mount	200 x 300 mm
Maximum VESA mount	800 x 600 mm
Panel mounting interface	200 x 300,200 x 400,200 x 600,400 x 400,400 x 600,600 x 200,600 x 400,600 x 600,600 x 300,800 x 300,800 x 400,800 x 500,800 x 600

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	0 - 10°
Distance to the wall (max)	11.3 cm
Distance to the wall (min)	7.5 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel
Anti-theft function	Yes
Accepts padlock	Yes

Technical details

Specification	Value
Metal packaging weight	4.92 kg
Orientation	Landscape/Portrait
Paper/cardboard packaging weight	3.2 kg
Plastic packaging weight	45 g

Weight & dimensions

Specification	Value
Depth (min)	7.9 cm
Height	630 mm
Weight	8.1 kg

Packaging data

Specification	Value
Package width	200 mm
Package depth	680 mm
Package height	120 mm
Package weight	8.16 kg

Logistics data

Specification	Value
Shipping (inner) case width	39 cm
Shipping (inner) case length	68 cm
Shipping (inner) case height	23 cm
Shipping (inner) case gross weight	26.7 kg
Products per shipping (inner) case	5 pc(s)
