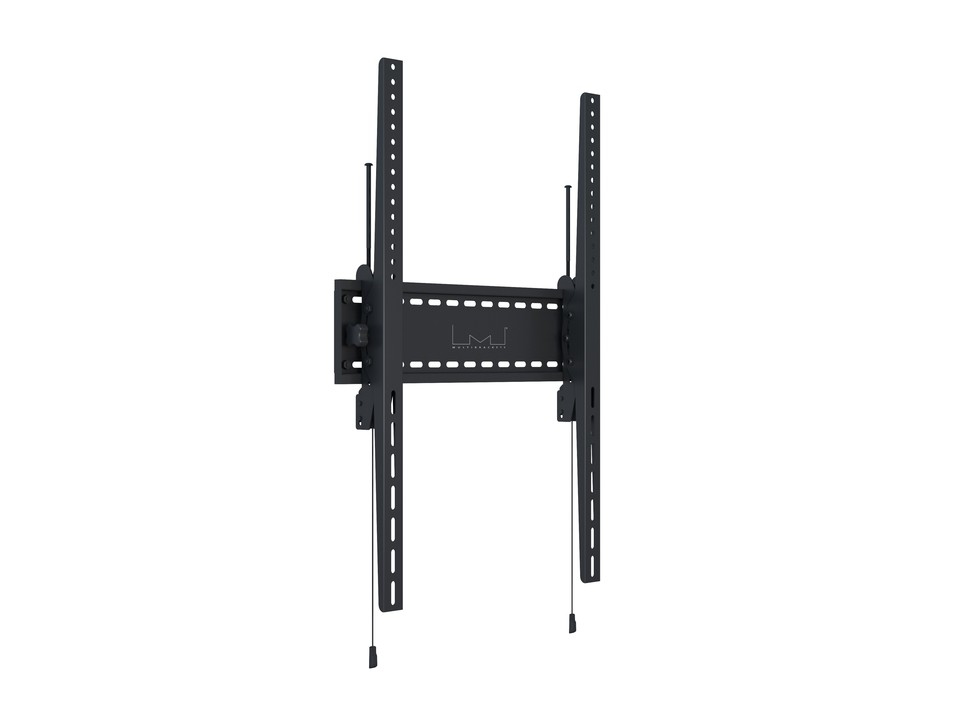

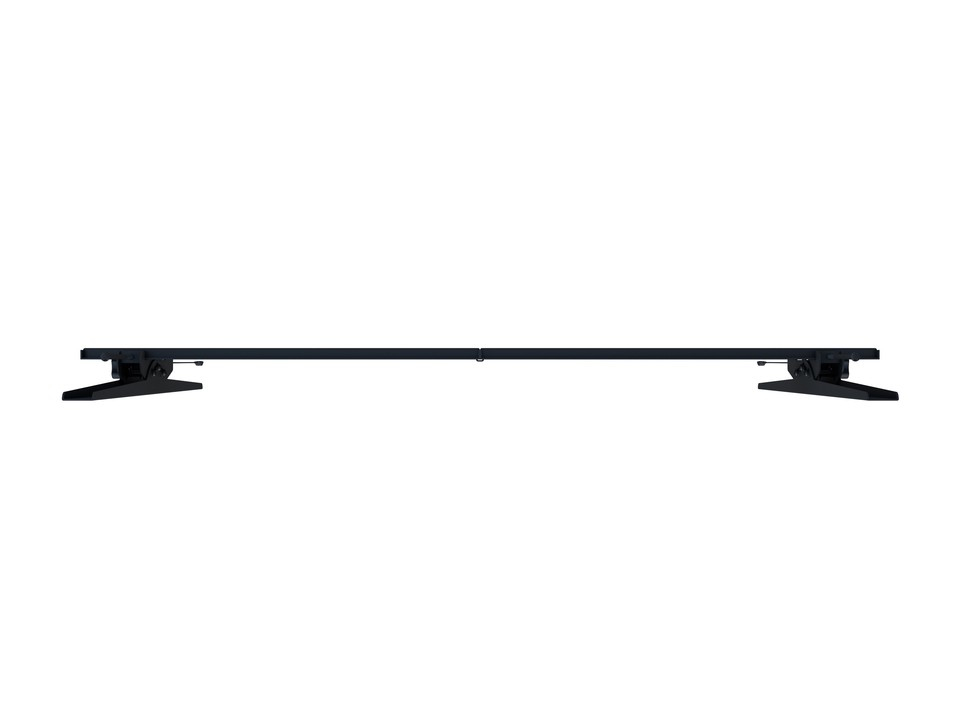

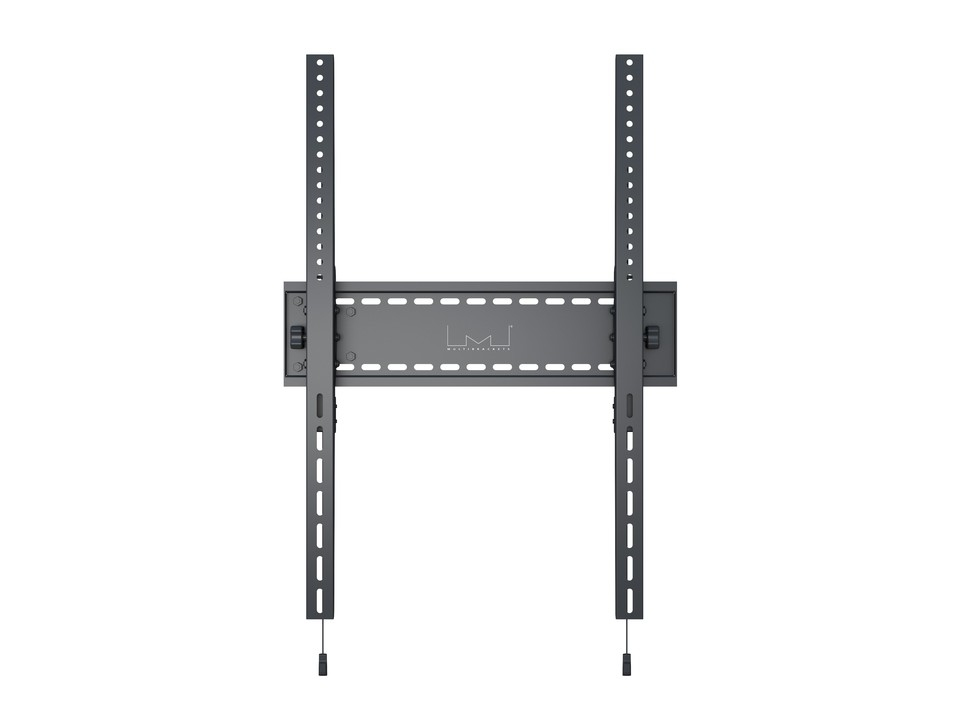

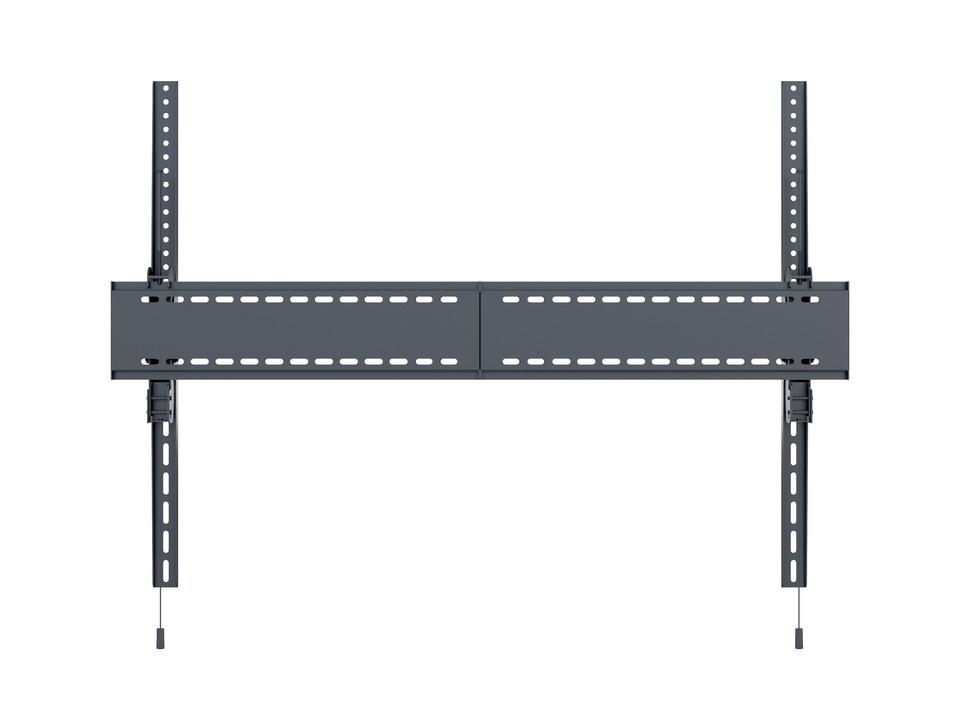

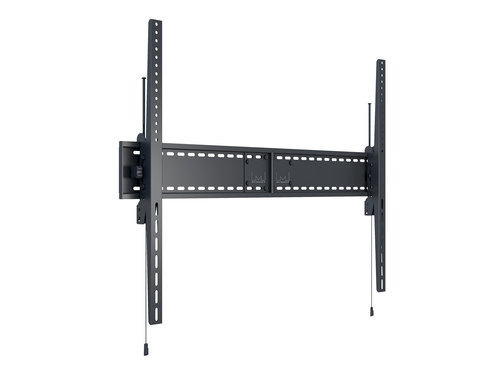

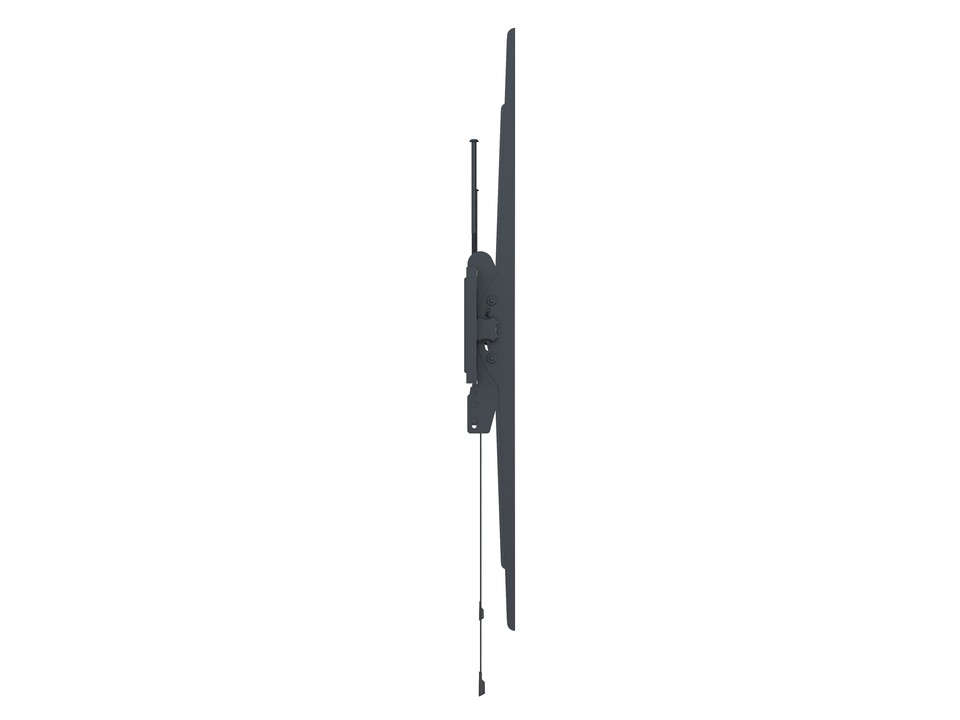

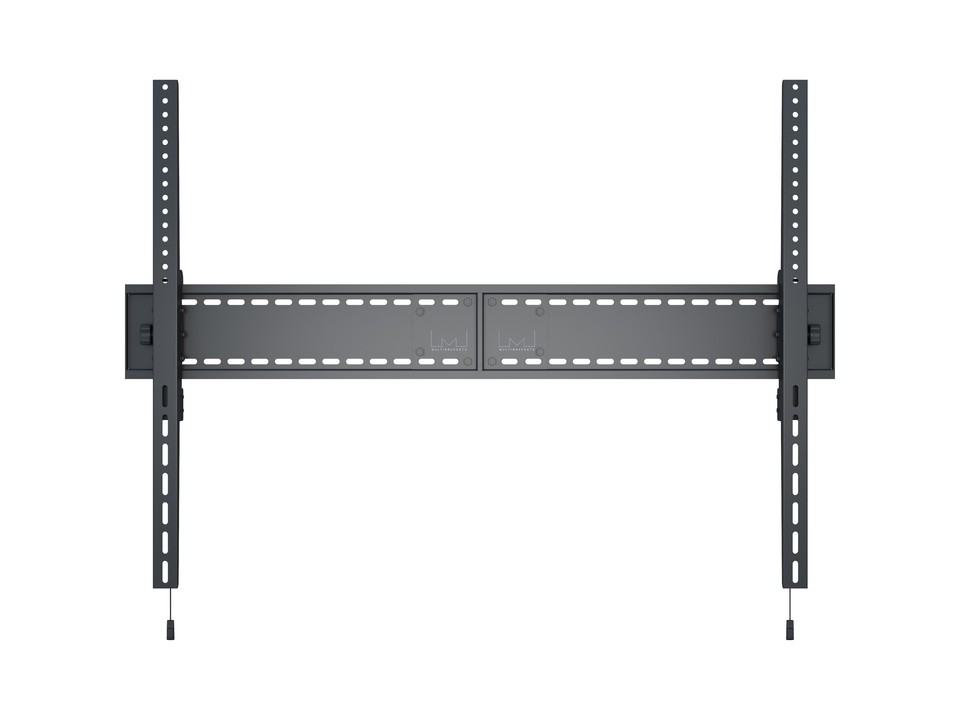

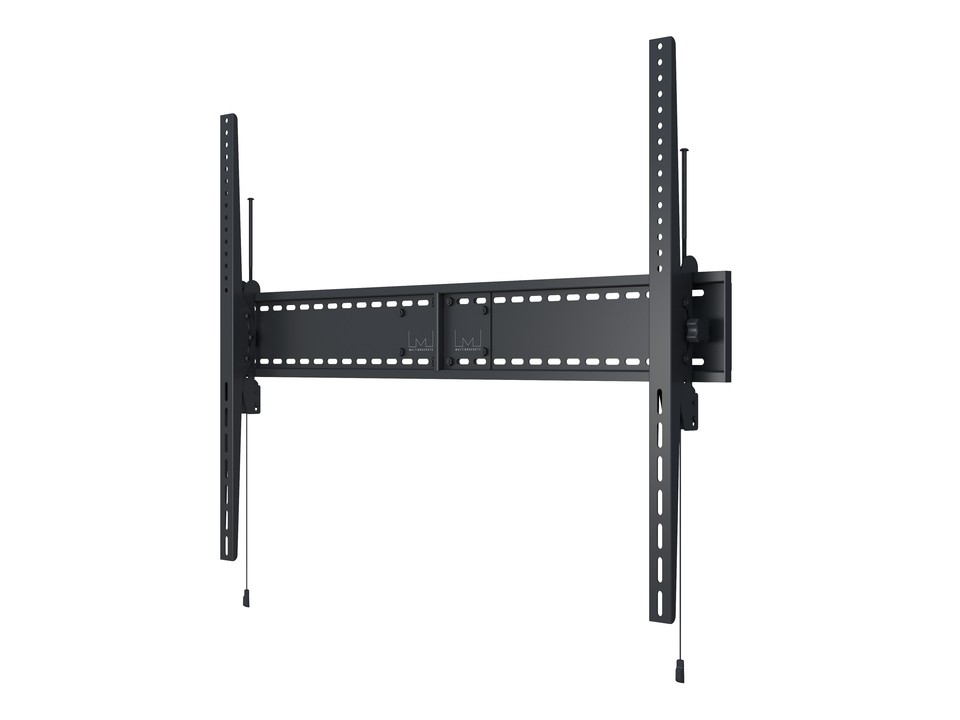

Multibrackets M Universal Tilt Wallmount SD MAX

M Universal Tilt Wallmount SD MAX

1200x900

Model 0926EAN 7350073730926

32 specifications

Weight12.5 kg
ColourBlack
Number of displays supported1
Tilt adjustmentYes
Metal packaging weight8.36 kg
Depth (min)7.9 cm

See all specifications

Overview

Weight: 12.5 kg
Colour: Black
Number of displays supported: 1
Tilt adjustment: Yes
Metal packaging weight: 8.36 kg
Depth (min): 7.9 cm

Brand: Multibrackets
Category: TV Mounts & Stands
Model: 0926
Part number: 0926
EAN / UPC: 7350073730926
Also known as: Multibrackets M Universal Tilt Wallmount SD MAX 1200x900

Specifications

32 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity	125 kg
Minimum screen size	160 cm (63")
Maximum screen size	2.79 m (110")
Mounting type	Wall
Minimum VESA mount	200 x 300 mm
Maximum VESA mount	1200 x 900 mm
Panel mounting interface	200 x 300,200 x 400,300 x 900,400 x 900,600 x 800,600 x 900,800 x 400,800 x 500,800 x 600,900 x 400,900 x 600,900 x 800,1200 x 600,1200 x 800,1200 x 900

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	0 - 10°
Distance to the wall (max)	11.3 cm
Distance to the wall (min)	7.5 cm

Design

Specification	Value
Product colour	Black
Housing material	Steel
Anti-theft function	Yes
Accepts padlock	Yes

Technical details

Specification	Value
Metal packaging weight	8.36 kg
Orientation	Landscape/Portrait
Paper/cardboard packaging weight	3 kg
Plastic packaging weight	42 g

Weight & dimensions

Specification	Value
Depth (min)	7.9 cm
Height	930 mm
Weight	12.5 kg

Packaging data

Specification	Value
Package width	200 mm
Package depth	960 mm
Package height	120 mm
Package weight	11.4 kg

Logistics data

Specification	Value
Shipping (inner) case width	39 cm
Shipping (inner) case length	97 cm
Shipping (inner) case height	22 cm
Shipping (inner) case gross weight	32.3 kg
Products per shipping (inner) case	3 pc(s)
