M Counterbalanced Wallmount 15-40kg
Model 0228EAN 7350105210228
28 specifications
- Weight25.2 kg
- ColourBlack
- Number of displays supported1
- Height adjustmentYes
- Compliance certificatesCE
- Width125 mm
Overview
- Weight
- 25.2 kg
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- Yes
- Compliance certificates
- CE
- Width
- 125 mm
- Brand
- Multibrackets
- Category
- TV Mounts & Stands
- Model
- 0228
- Part number
- 0228
- EAN / UPC
- 7350105210228
- Also known as
- Multibrackets M Counterbalanced Wallmount 15-40kg
Specifications
28 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 400 mm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium, Stainless steel |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Metal packaging weight | 25.2 kg |
| Paper/cardboard packaging weight | 3.95 kg |
| Plastic packaging weight | 190 g |

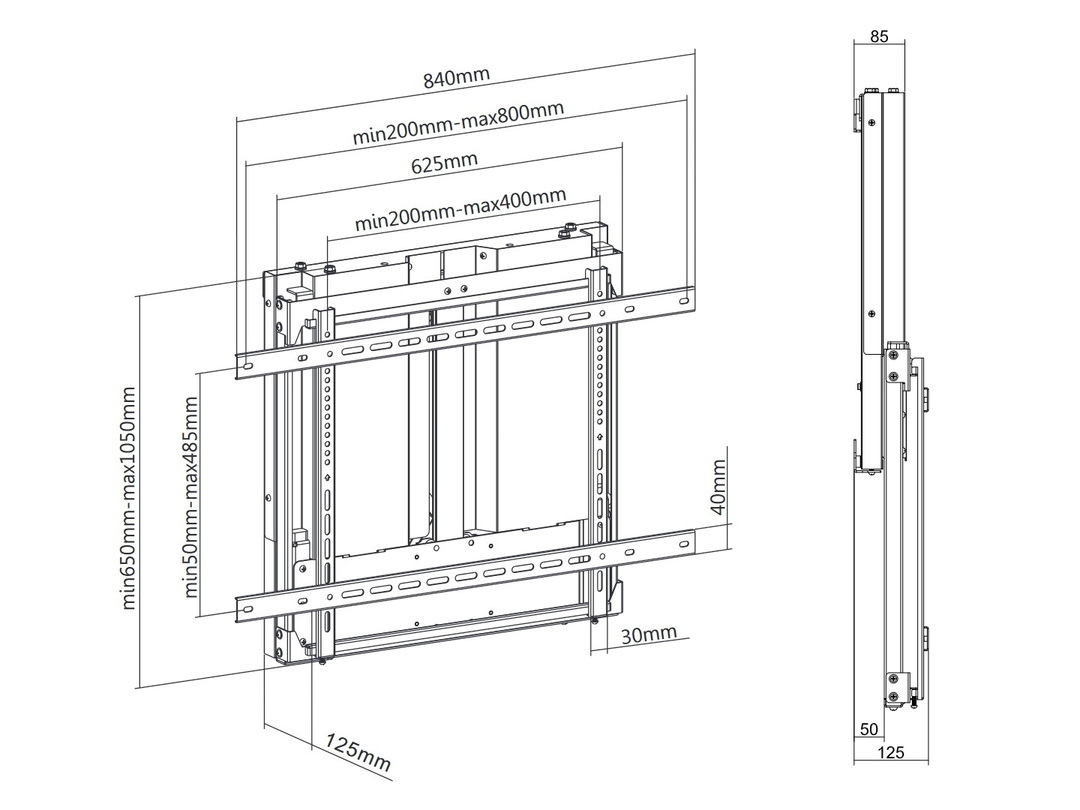

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth (max) | 65 cm |
| Height | 840 mm |
| Weight | 25.2 kg |
| Aluminium content weight | 24.6 kg |
| Steel content weight | 670 g |
| Other metals content weight | 0 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 730 mm |
| Package depth | 755 mm |
| Package height | 140 mm |
| Package weight | 29.4 kg |
