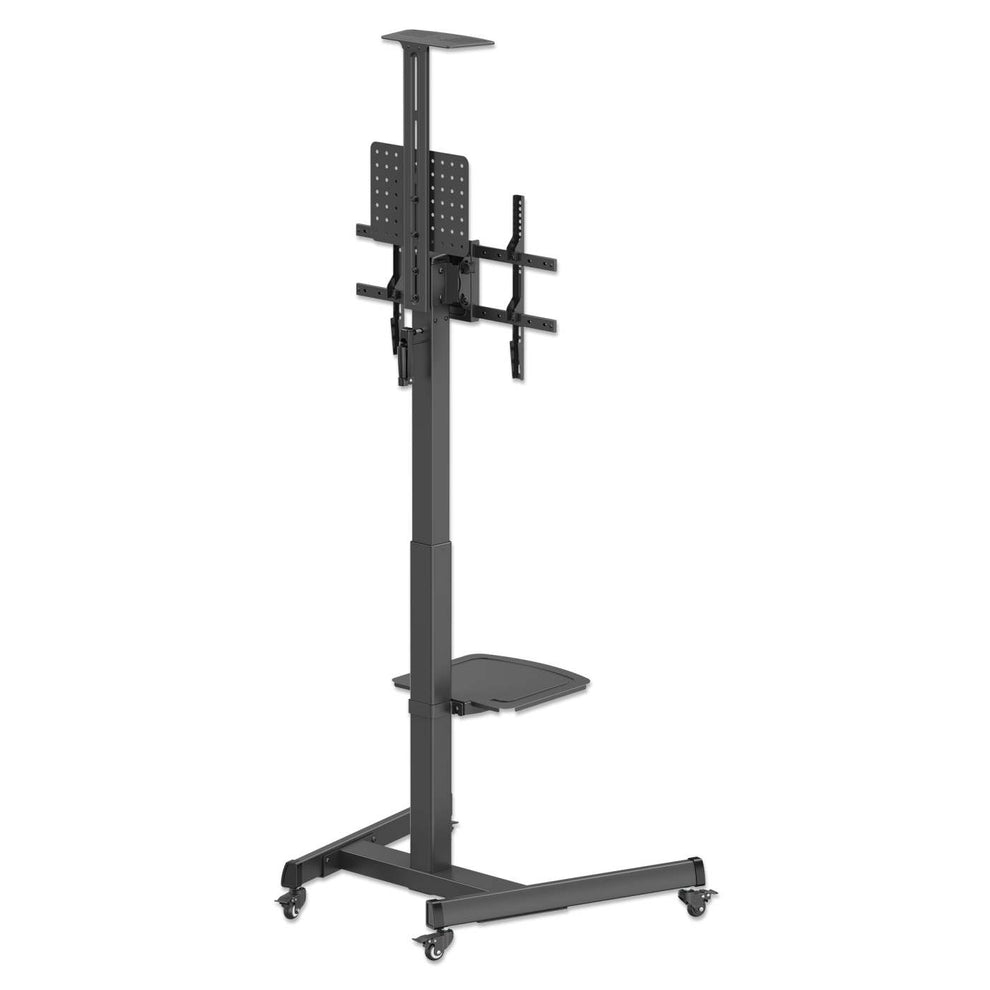

Manhattan Trolley Mount Stand for TV & Monitors (crank handle height adjust), For screens:

Trolley Mount Stand for TV & Monitors (crank handle height adjust), For screens:

37" to 65", VESA compatibility: all between 200x200 to 600x400mm -che

Model 462693EAN 766623462693

34 specifications

Weight24.3 kg
ColourBlack
Number of displays supported1
Height adjustmentYes
Width740 mm

See all specifications

Overview

Weight: 24.3 kg
Colour: Black
Number of displays supported: 1
Height adjustment: Yes
Width: 740 mm

Brand: Manhattan
Category: TV Mounts & Stands
Model: 462693
Part number: 462693
EAN / UPC: 766623462693
Also known as: Manhattan Trolley Mount Stand for TV & Monitors (crank handle height adjust), For screens: 37" to 65", VESA compatibility: all between 200x200 to 600x400mm -che

Specifications

34 specifications in 7 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity (per display)	70 kg
Maximum weight capacity	70 kg
Minimum screen size	94 cm (37")
Maximum screen size	2.18 m (86")
Mounting type	Floor
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400

Ergonomics

Specification	Value
Height adjustment	Yes

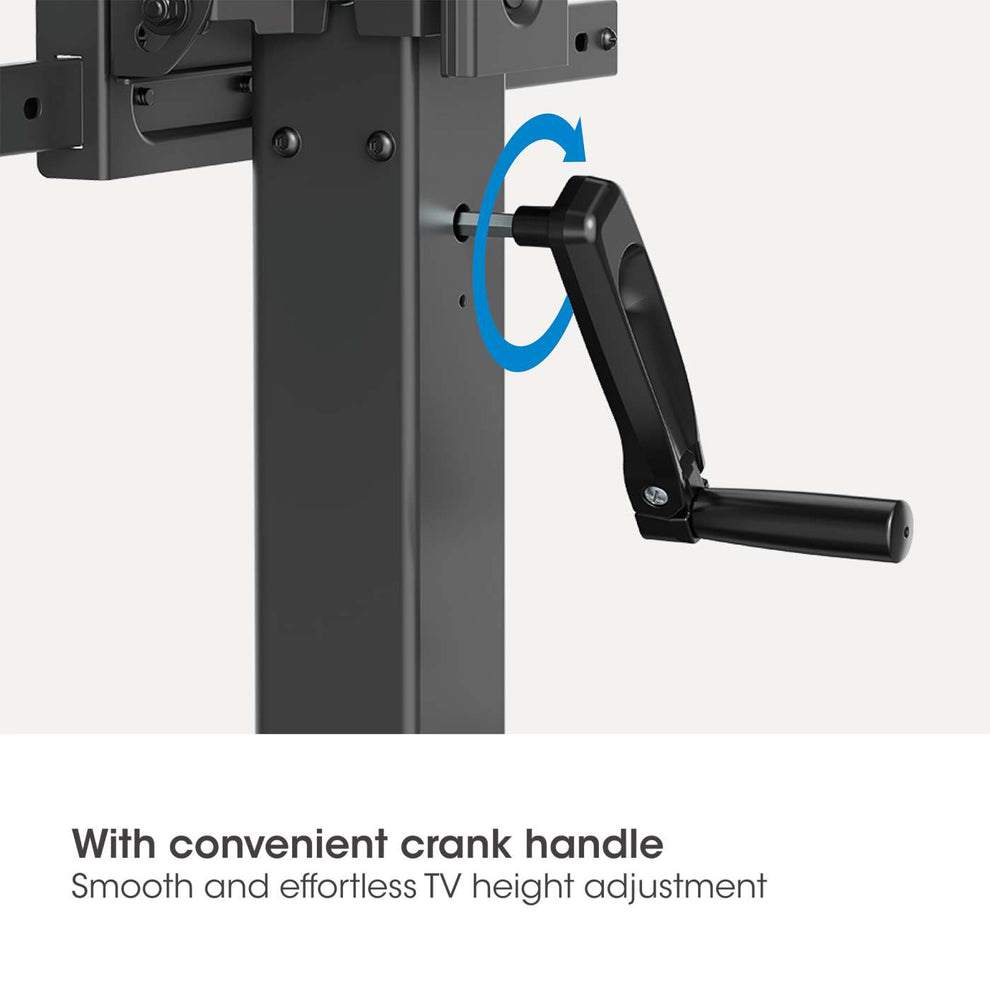

Height adjustment type	Manual
Height adjustment range	1120 - 1570 mm

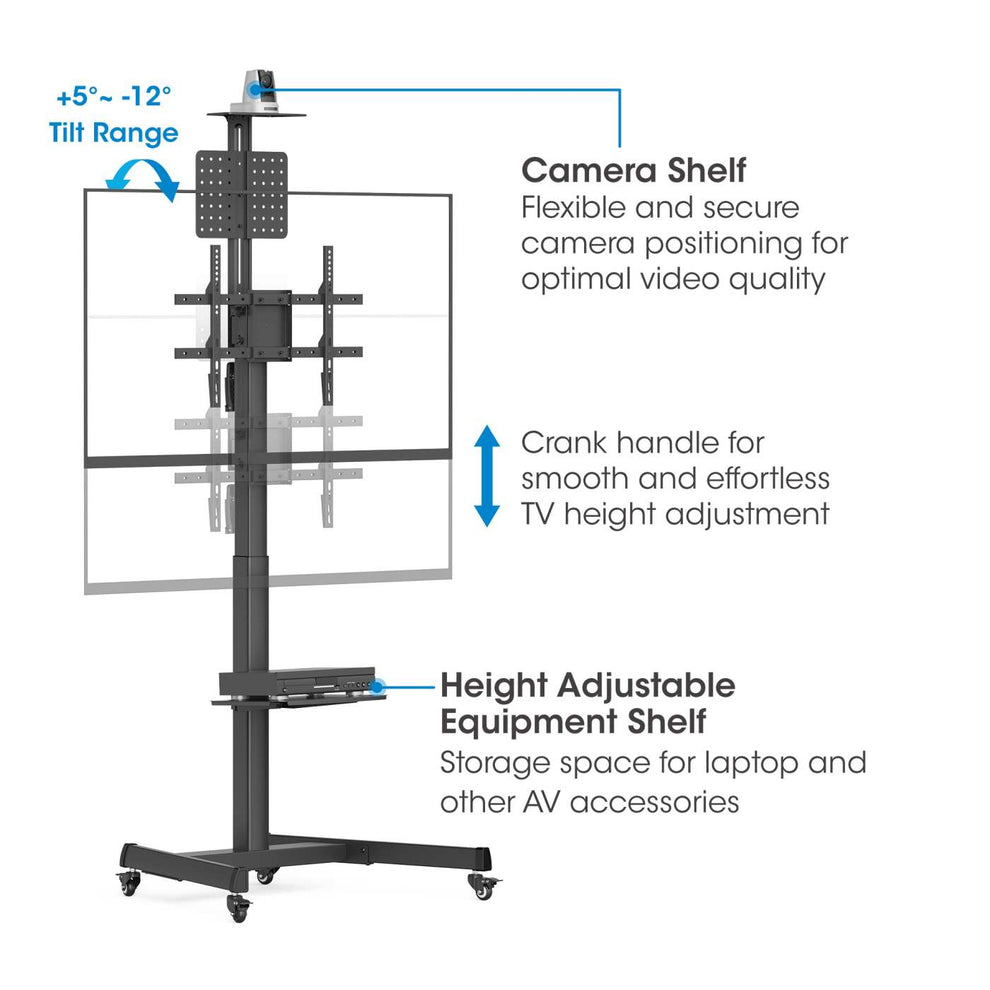

Tilt adjustment	Yes
Tilt angle range	-12 - 5°
Rotating	Yes
Angle of rotation	90°
Wheels	Yes
Number of wheels	4 wheel(s)

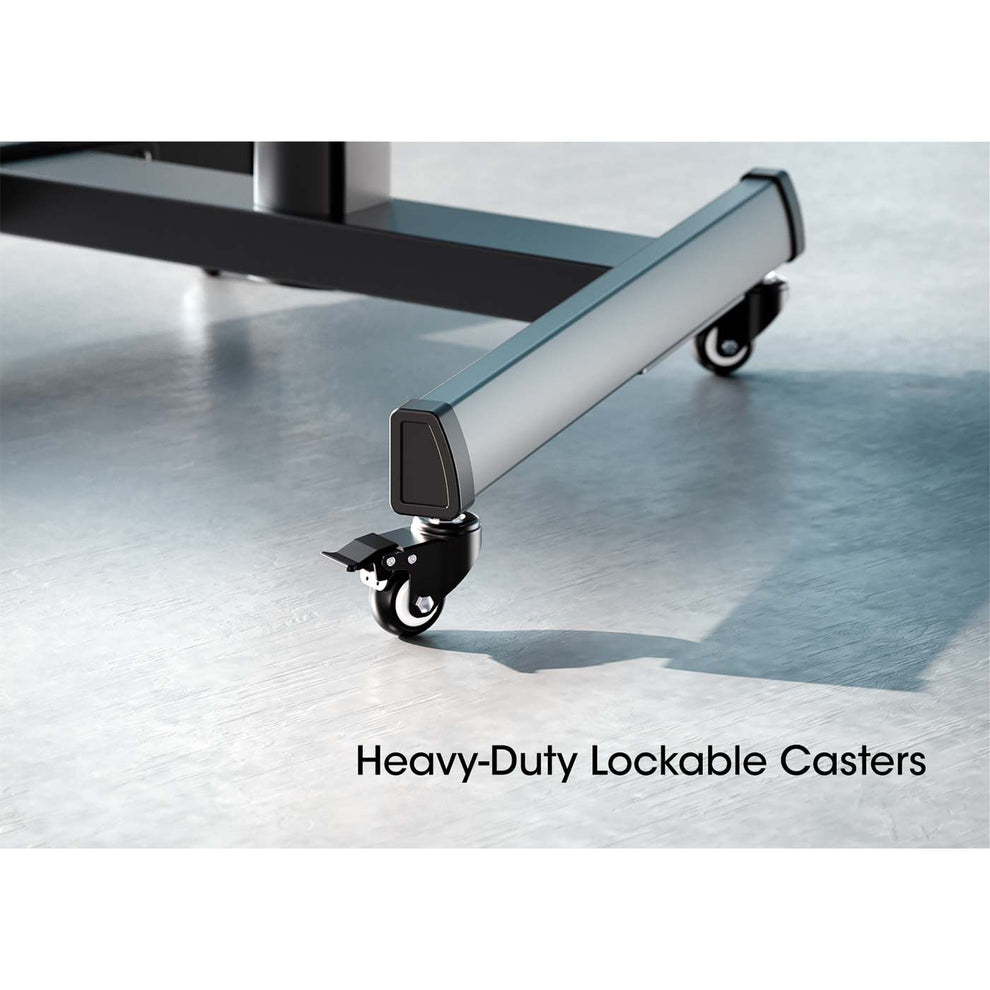

Lockable wheels	Yes

Design

Specification	Value
Product colour	Black
Housing material	Plastic, Steel

Packaging content

Specification	Value
Mounting kit	Yes

Technical details

Specification	Value
Easy to install	Yes
Quantity per pack	1 pc(s)

Weight & dimensions

Specification	Value
Width	740 mm
Depth (min)	91.7 cm
Depth (max)	91.7 cm
Height	2148 mm
Weight	24.3 kg

Packaging data

Specification	Value
Quantity per pack	1 pair(s)
Package width	390 mm
Package depth	1137 mm
Package height	203 mm
Package weight	28.1 kg
