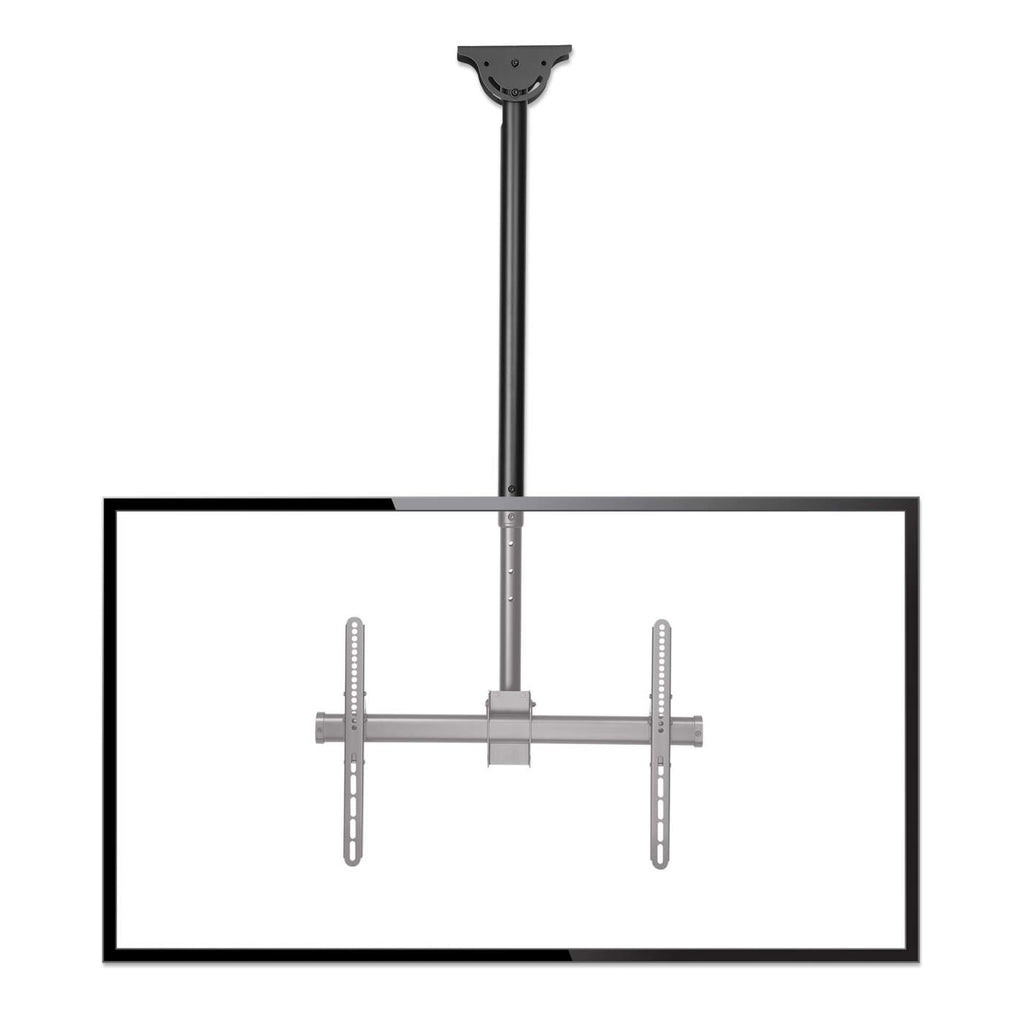

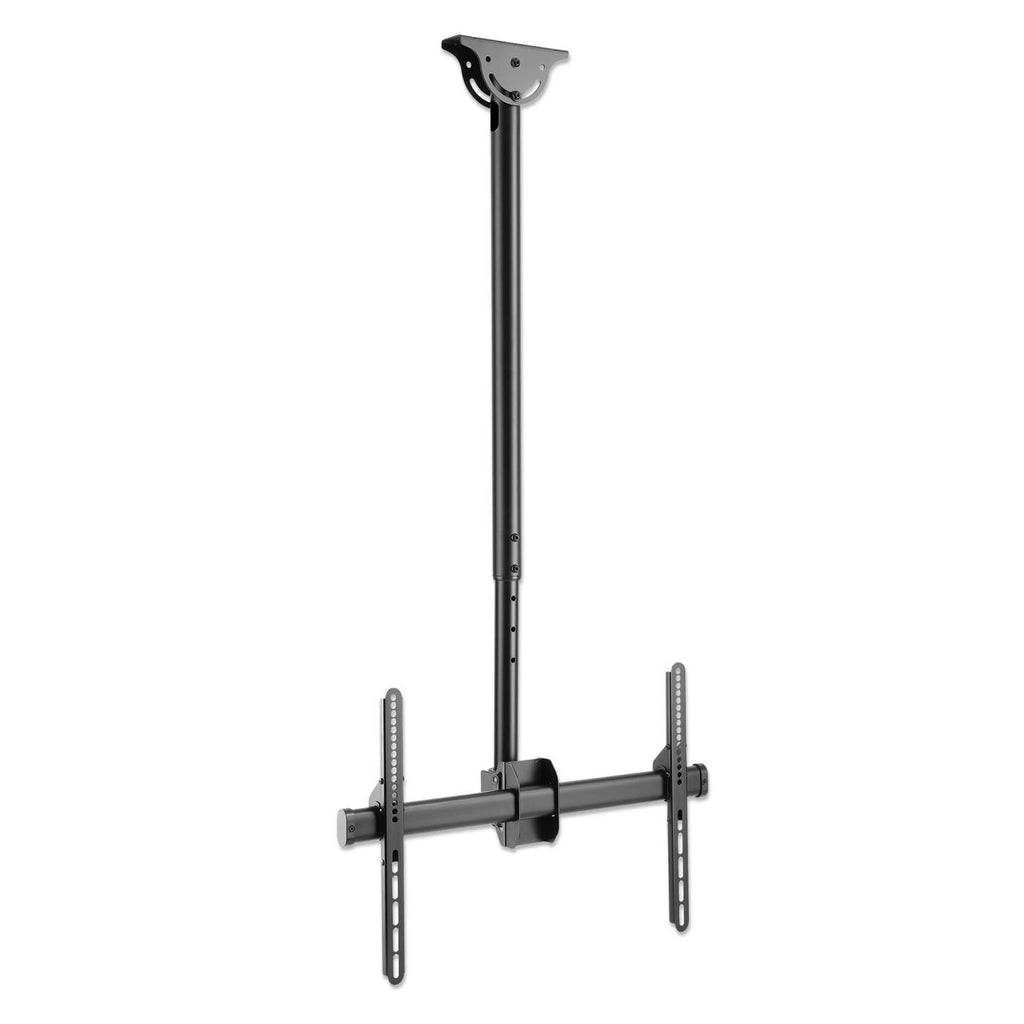

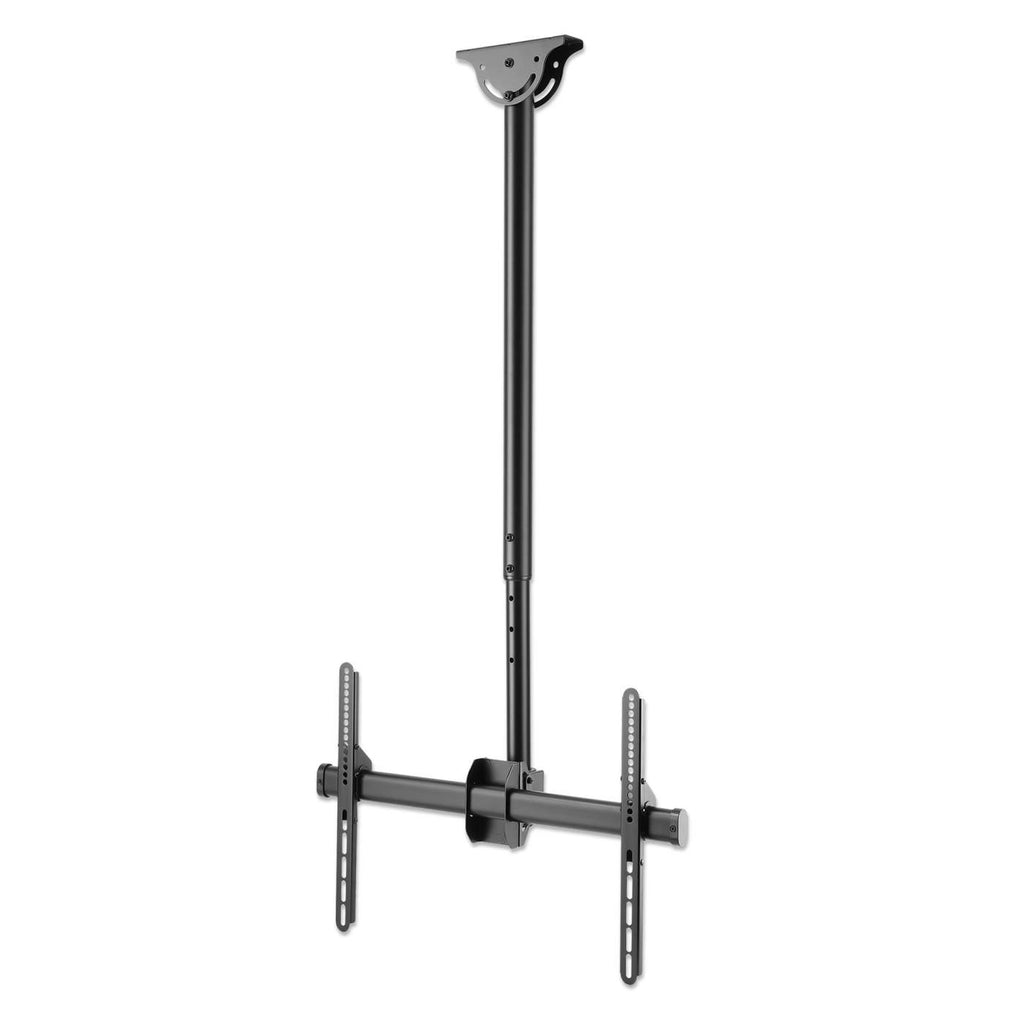

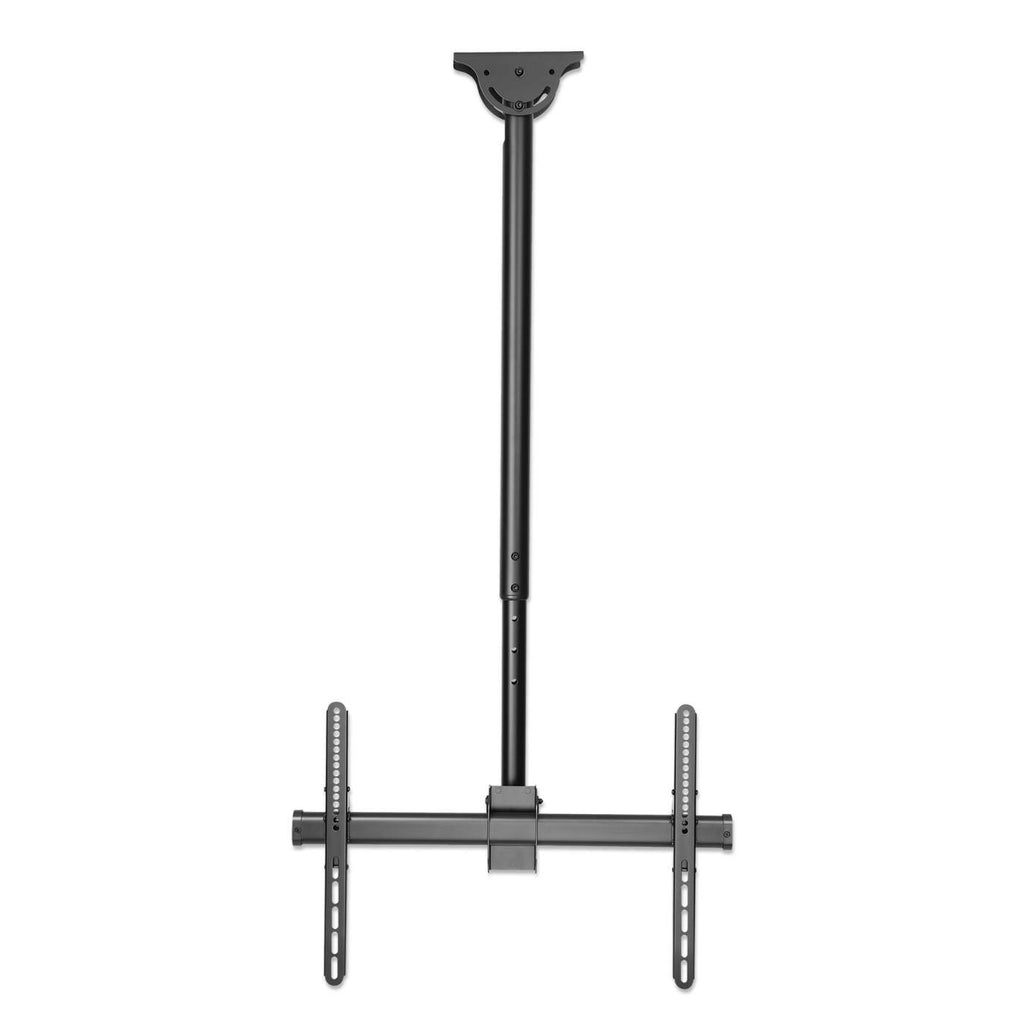

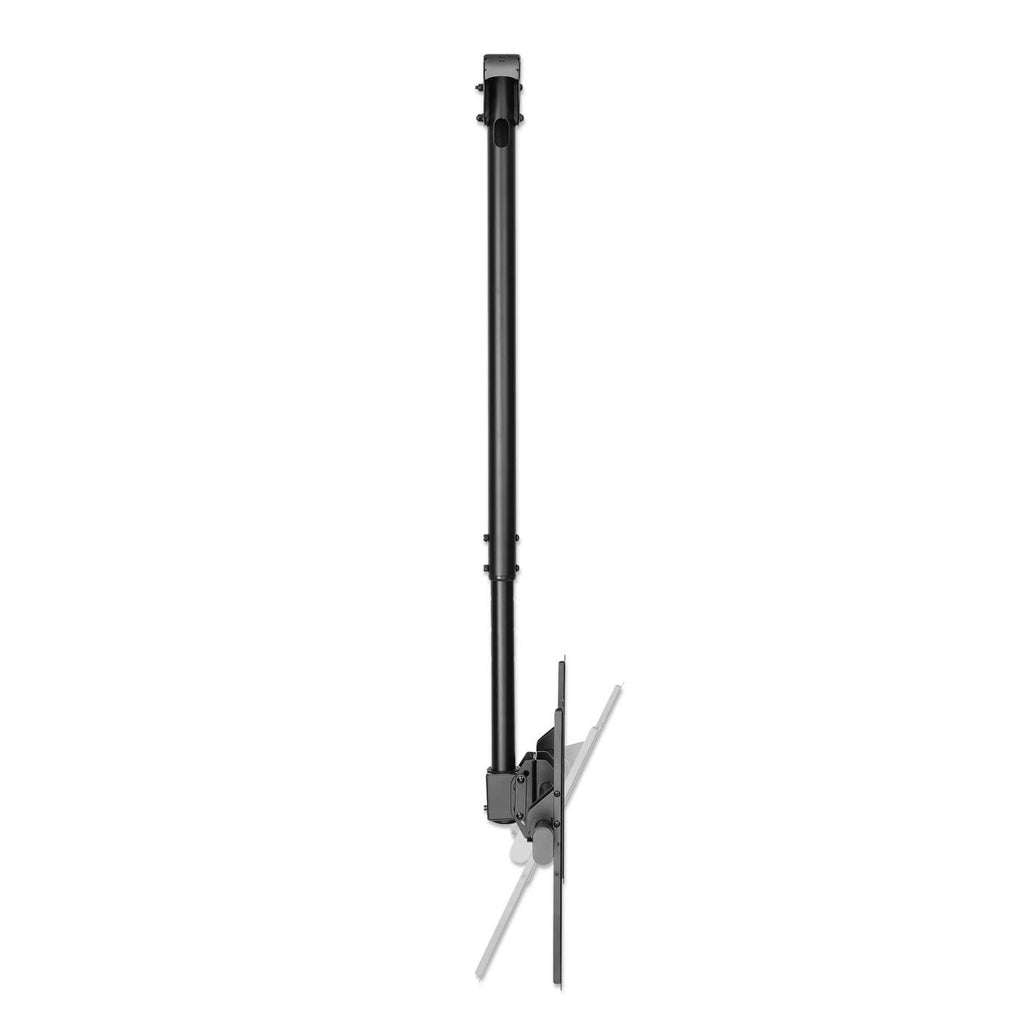

Ceiling Mount for TV & Monitors, For screens:
37" to 75", Adjustable height: 106-156 cm, VESA compatibility: all between 200x200 to 600x400mm - check
Model 462204EAN 766623462204
23 specifications
- Weight7 kg
- ColourBlack
- Number of displays supported1
- Height adjustmentYes
- Compatible pole diameter (max)4.8 cm
- Width680 mm
Overview
- Weight
- 7 kg
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- Yes
- Compatible pole diameter (max)
- 4.8 cm
- Width
- 680 mm
- Brand
- Manhattan
- Category
- TV Mounts & Stands
- Model
- 462204
- Part number
- 462204
- EAN / UPC
- 766623462204
- Also known as
- Manhattan Ceiling Mount for TV & Monitors, For screens: 37" to 75", Adjustable height: 106-156 cm, VESA compatibility: all between 200x200 to 600x400mm - check
Specifications
23 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 1060 - 1560 mm |

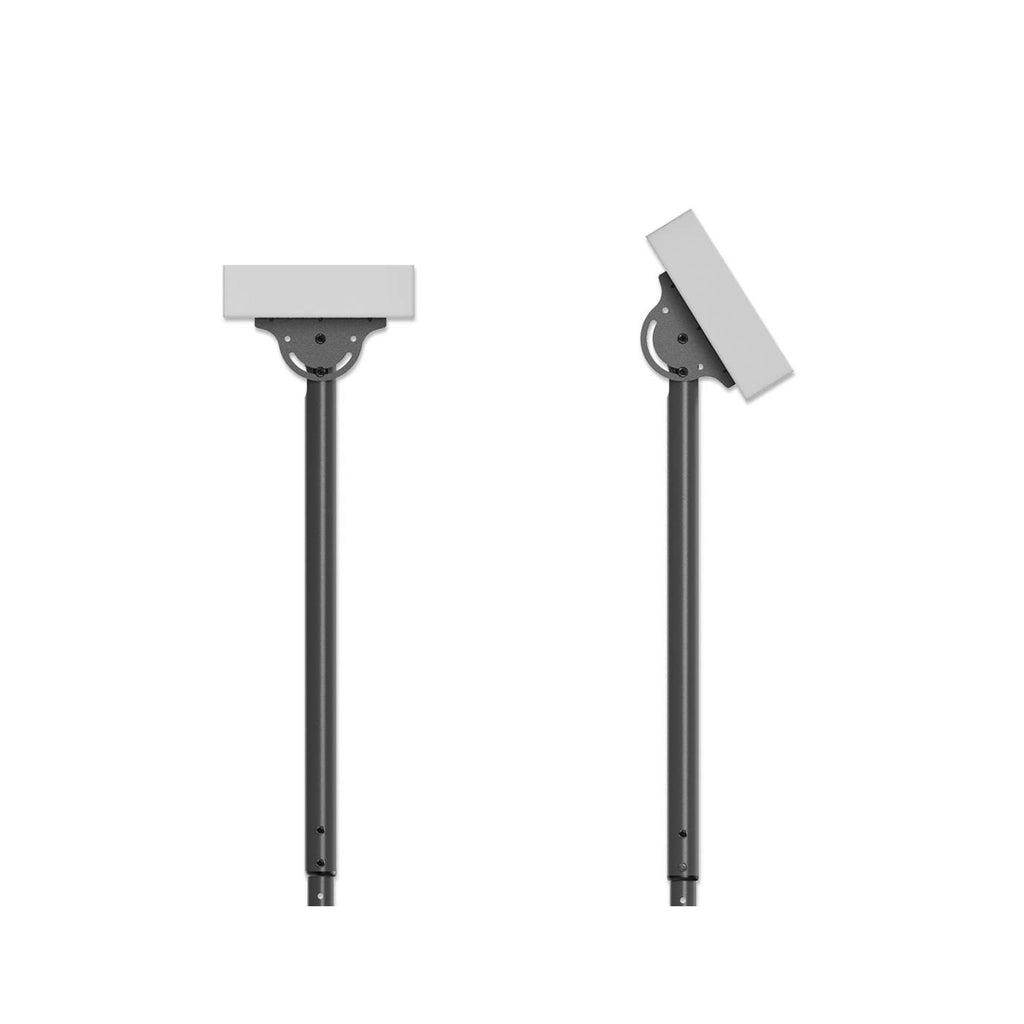

| Tilt adjustment | Yes |
| Tilt angle range | 0 - 25° |
| Swivel angle range | -180 - 180° |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compatible pole diameter (max) | 4.8 cm |
| Compatible pole diameter (min) | 4 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 680 mm |
| Depth (max) | 43.5 cm |
| Height | 1778 mm |
| Weight | 7 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
