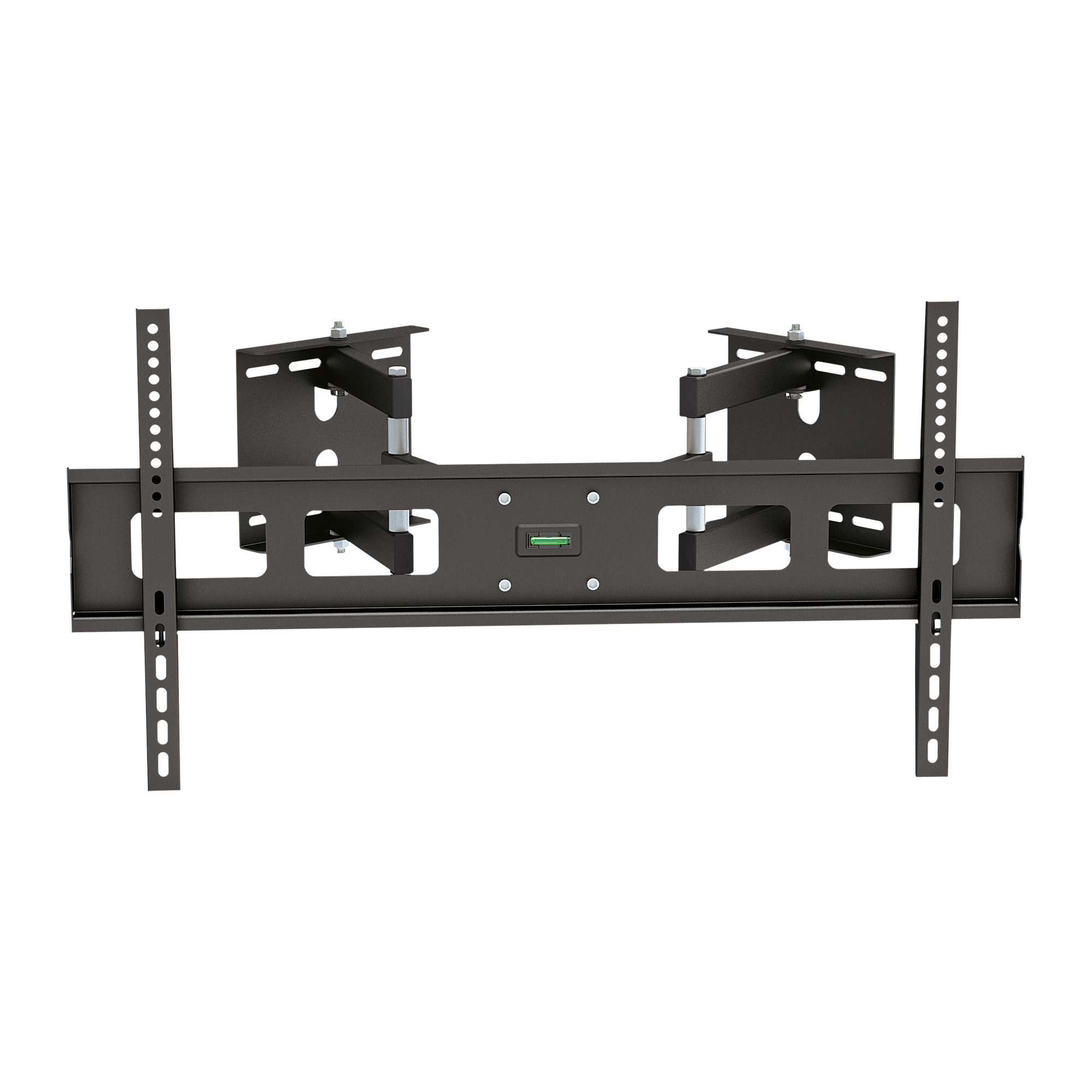

Corner Wall Bracket for TFT / LED / Plasma
37" to 63" up to 60kg
Model 23144AEAN 4043718172450
24 specifications
- Weight8.42 kg
- ColourBlack
- Maximum weight capacity60 kg
- Tilt adjustmentYes
- Width440 mm
Overview
- Weight
- 8.42 kg
- Colour
- Black
- Maximum weight capacity
- 60 kg
- Tilt adjustment
- Yes
- Width
- 440 mm
- Brand
- InLine
- Category
- TV Mounts & Stands
- Model
- 23144A
- Part number
- 23144A
- EAN / UPC
- 4043718172450
- Also known as
- InLine Corner Wall Bracket for TFT / LED / Plasma 37" to 63" up to 60kg
Specifications
24 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 60 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,300 x 200,400 x 200,400 x 300,400 x 400,600 x 400,800 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 15° |
| Rotating | No |
| Cable management | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 858 mm |
| Height | 110 mm |
| Weight | 8.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 235 mm |
| Package depth | 900 mm |
| Package height | 115 mm |
| Package volume | 24300 cm³ |
| Package weight | 9.26 kg |
Other features
| Specification | Value |
|---|---|

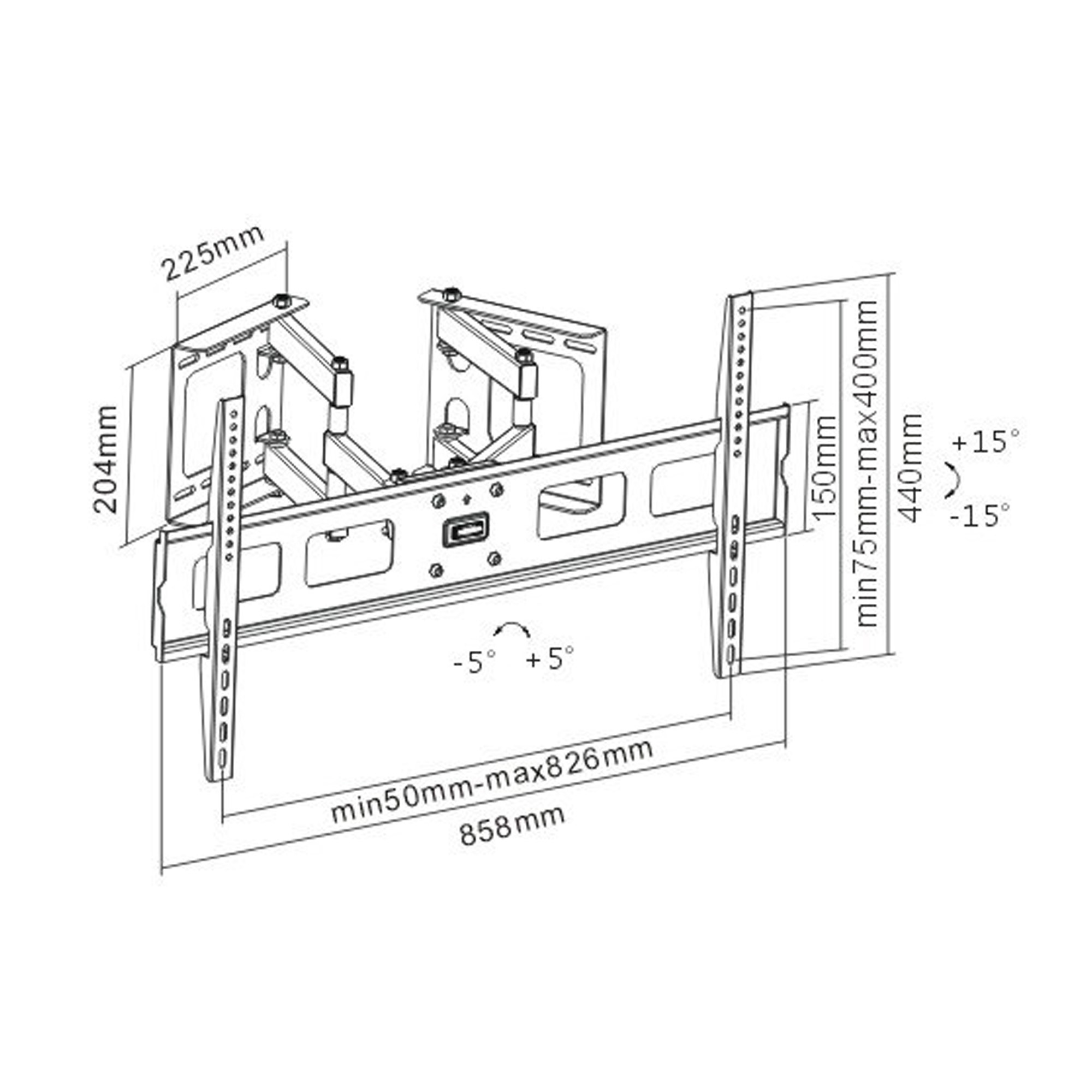

| Dimensions (WxDxH) | 440 x 858 x 110 mm |
| Screen size compatibility | 939.8 - 1600.2 mm (37 - 63") |
