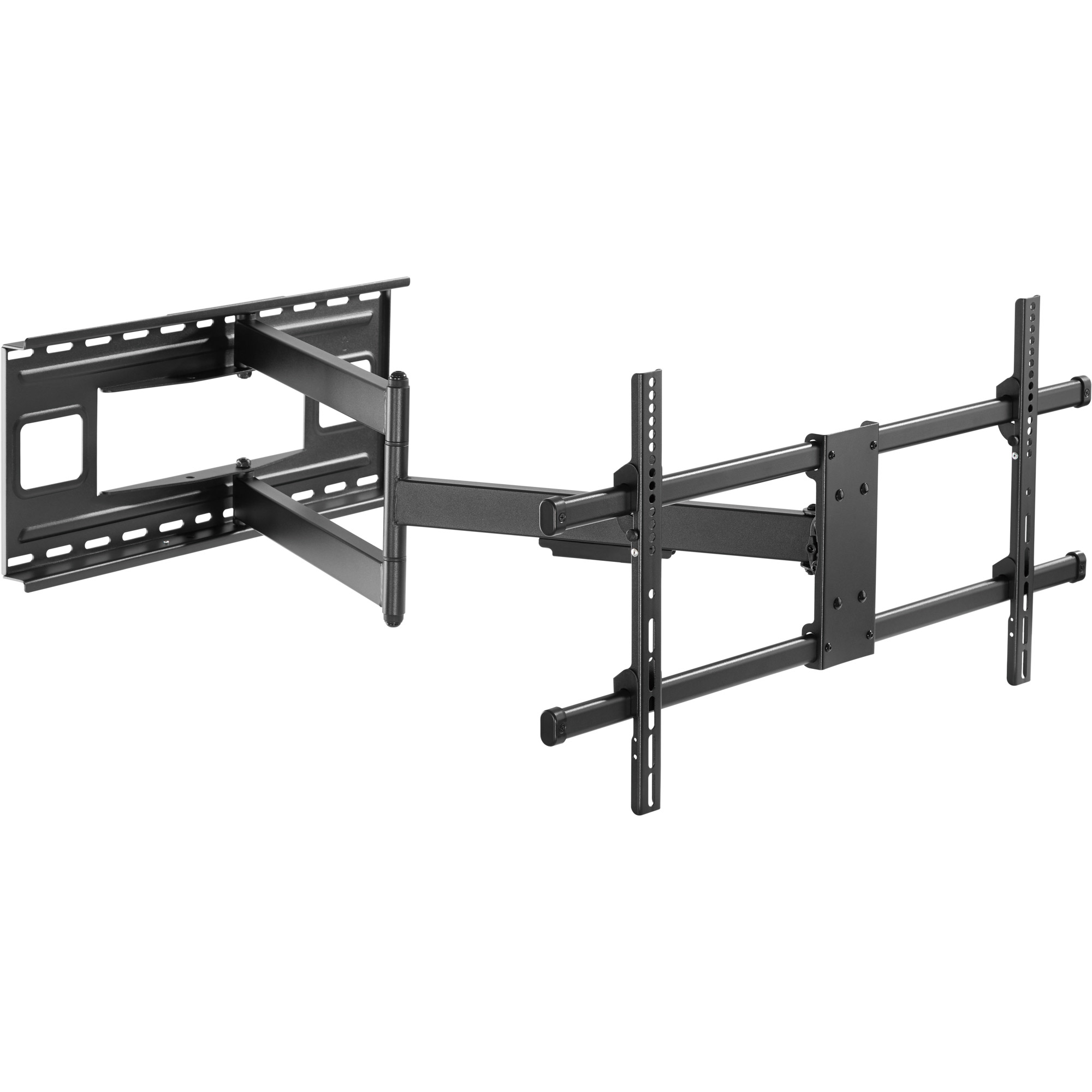

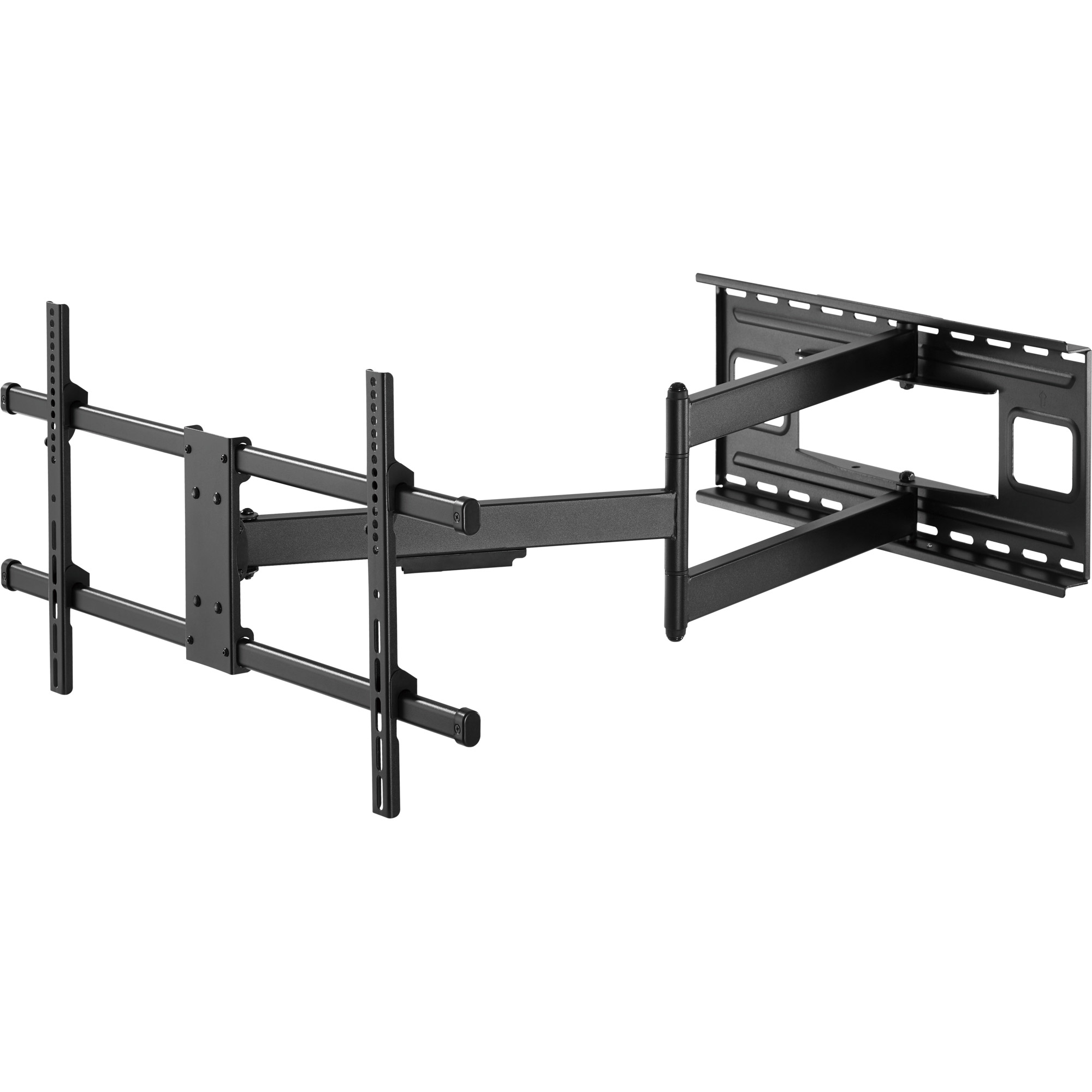

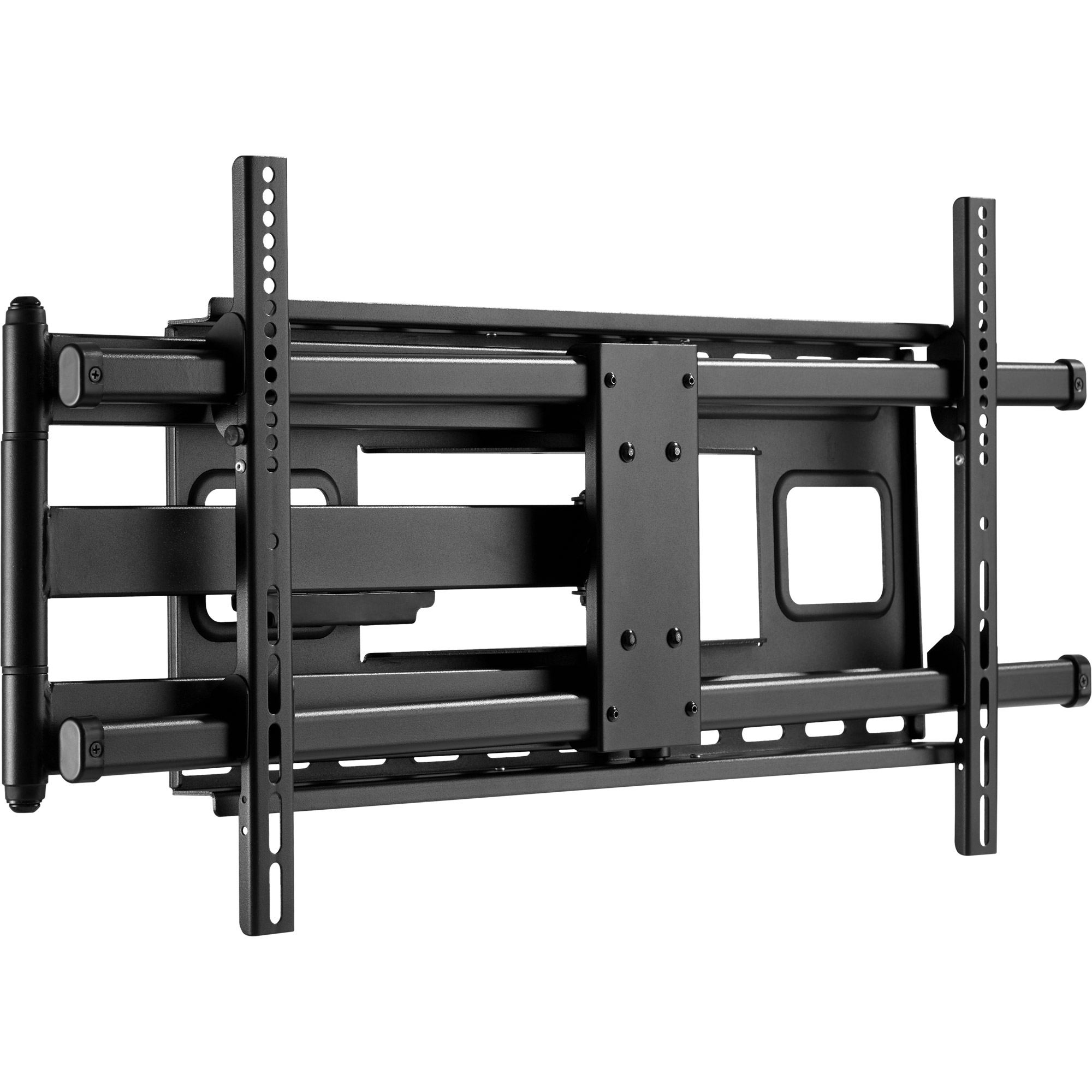

XL-Arm Full-Motion TV Wall Mount, for
43"-80" Flat Panel TVs, max. 50kg
Model 23130AEAN 4043718305674
27 specifications
- ColourBlack
- Number of displays supported1
- Adjustable depthYes
- Quantity per pack1 pc(s)
- Width885 mm
Overview
- Colour
- Black
- Number of displays supported
- 1
- Adjustable depth
- Yes
- Quantity per pack
- 1 pc(s)
- Width
- 885 mm
- Brand
- InLine
- Category
- TV Mounts & Stands
- Model
- 23130A
- Part number
- 23130A
- EAN / UPC
- 4043718305674
- Also known as
- InLine XL-Arm Full-Motion TV Wall Mount, for 43"-80" Flat Panel TVs, max. 50kg
Specifications
27 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 109.2 cm (43") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Adjustable depth | Yes |

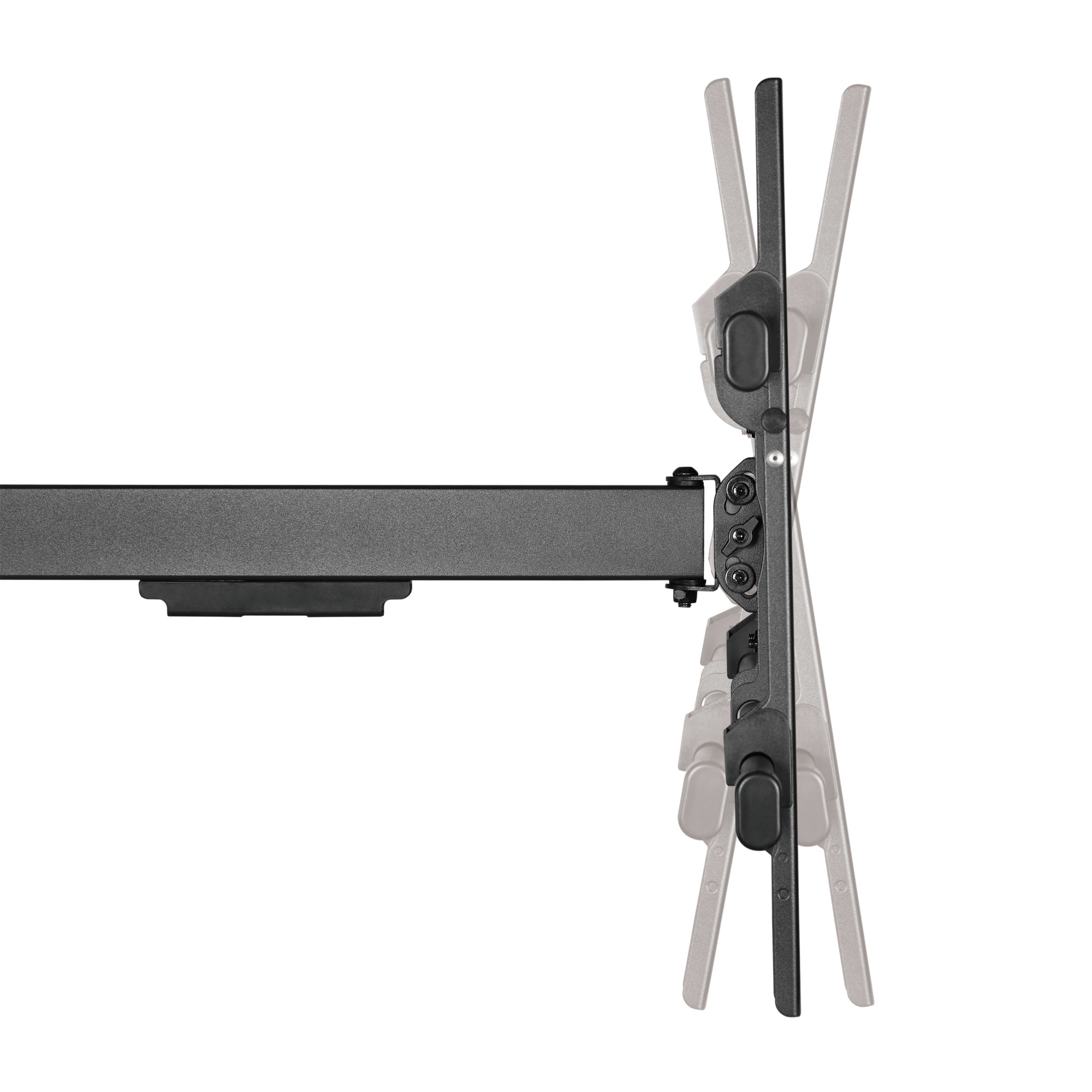

| Tilt adjustment | Yes |
| Tilt angle range | -15 - 5° |
| Swivel angle range | -90 - 90° |
| Pivot angle | -3 - 30° |

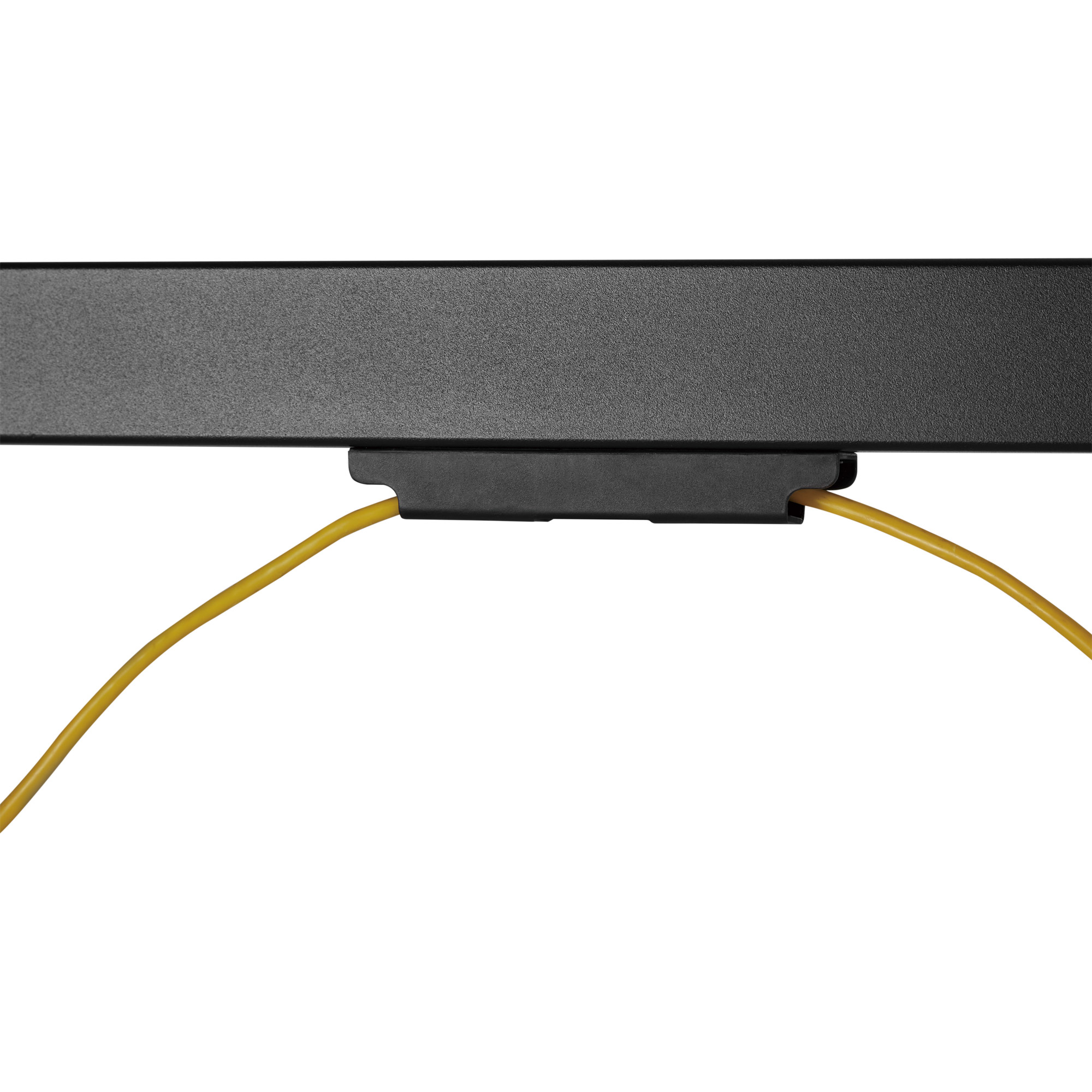

| Cable management | Yes |
| Distance to the wall (max) | 101.5 cm |
| Distance to the wall (min) | 8.2 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | No |
Technical details
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |

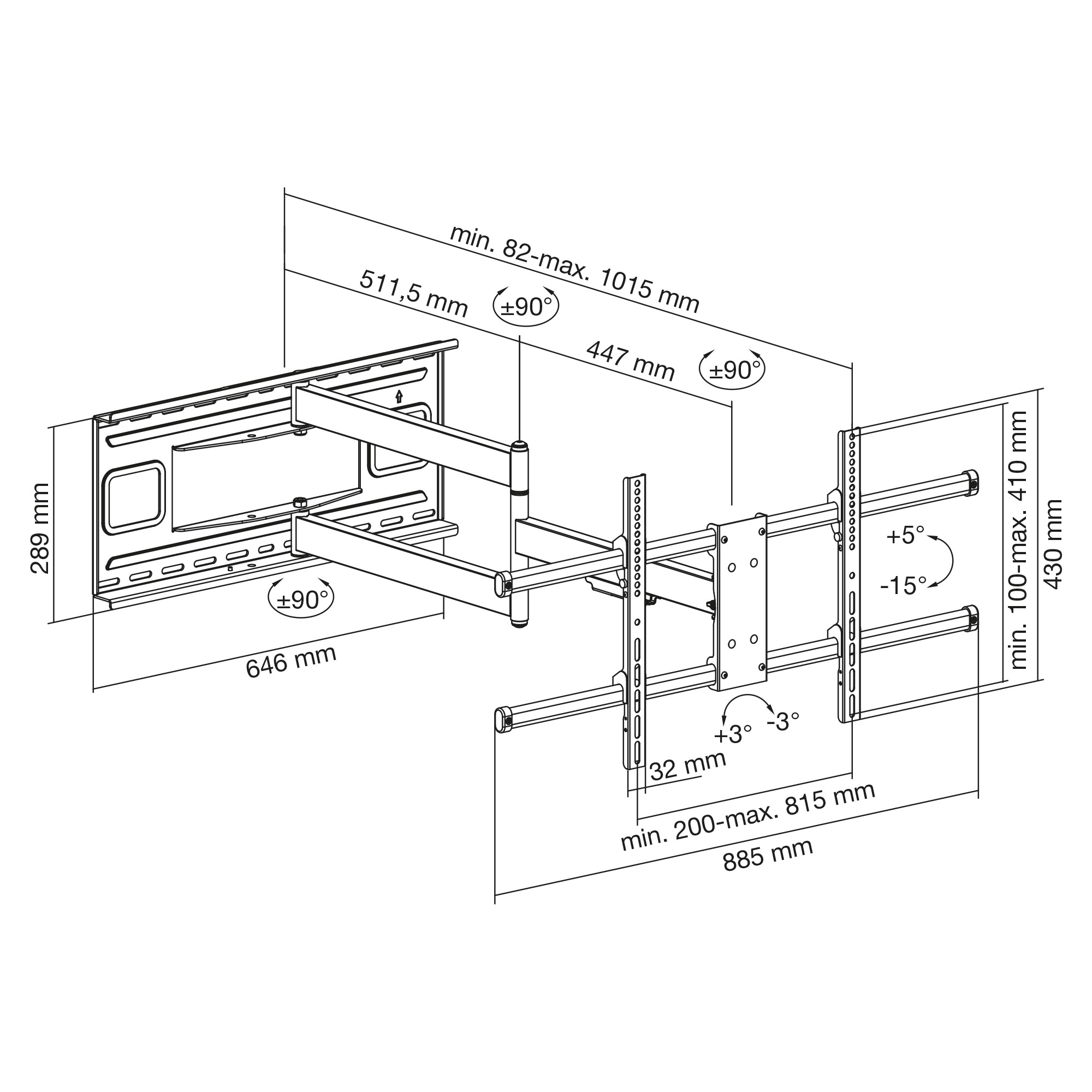

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 885 mm |
| Height | 430 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 342 mm |
| Package depth | 942 mm |
| Package height | 74 mm |
| Package volume | 23800 cm³ |
| Package weight | 12.4 kg |
