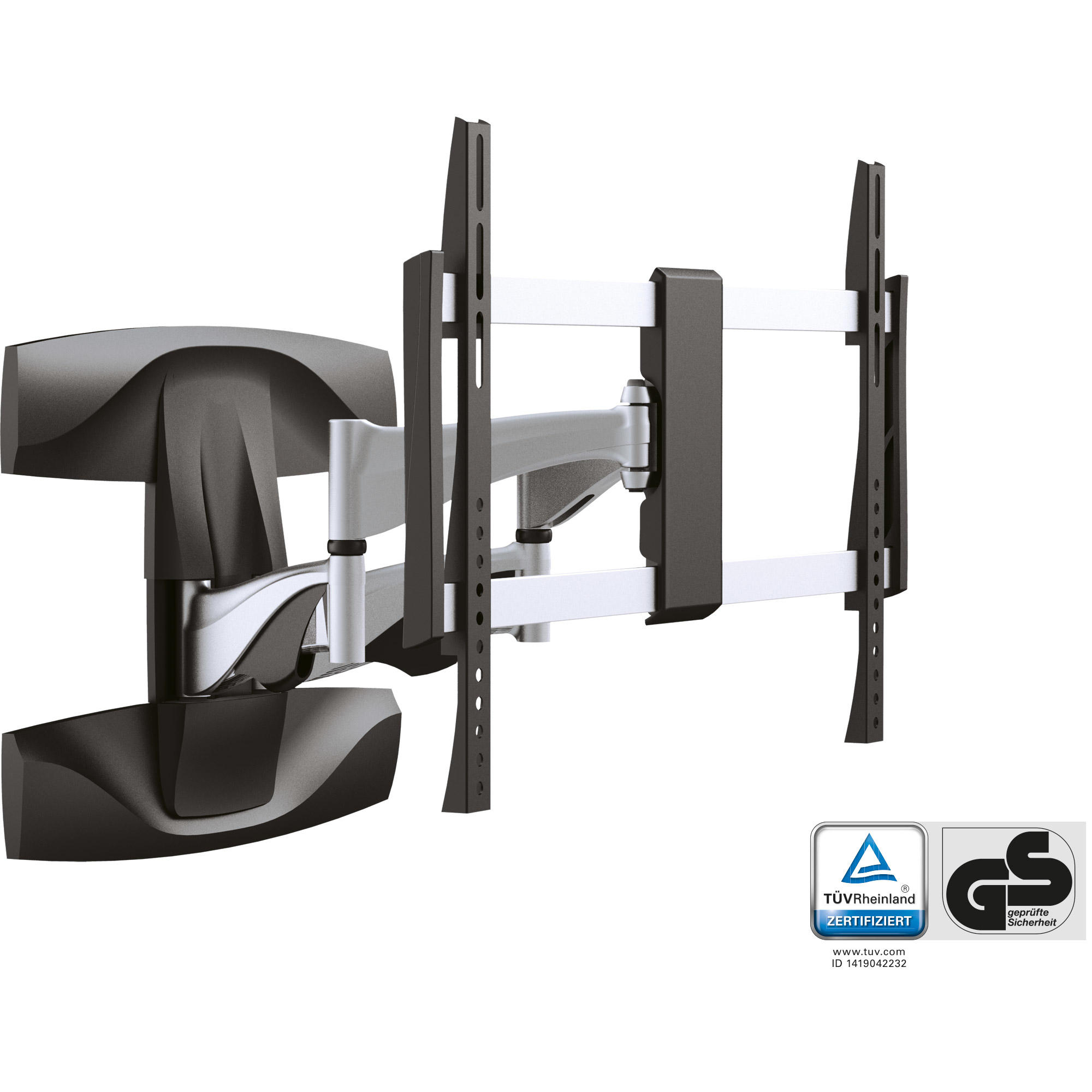

TV Wall Bracket for TFT / LED / Plasma 81
178cm 32 - 70" max. 45kg
Model 23110BEAN 4043718193691
15 specifications
- Maximum weight capacity45 kg
- Tilt adjustmentYes
- CertificationGS Mark
Overview
- Maximum weight capacity
- 45 kg
- Tilt adjustment
- Yes
- Certification
- GS Mark
- Brand
- InLine
- Category
- TV Mounts & Stands
- Model
- 23110B
- Part number
- 23110B
- EAN / UPC
- 4043718193691
- Also known as
- InLine TV Wall Bracket for TFT / LED / Plasma 81 - 178cm 32 - 70" max. 45kg
Specifications
15 specifications in 3 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 45 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 300 x 300 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 300 x 300,400 x 200,400 x 400,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 15° |
| Swivel angle | 120° |
| Swivel angle range | 120 |
| Cable management | No |

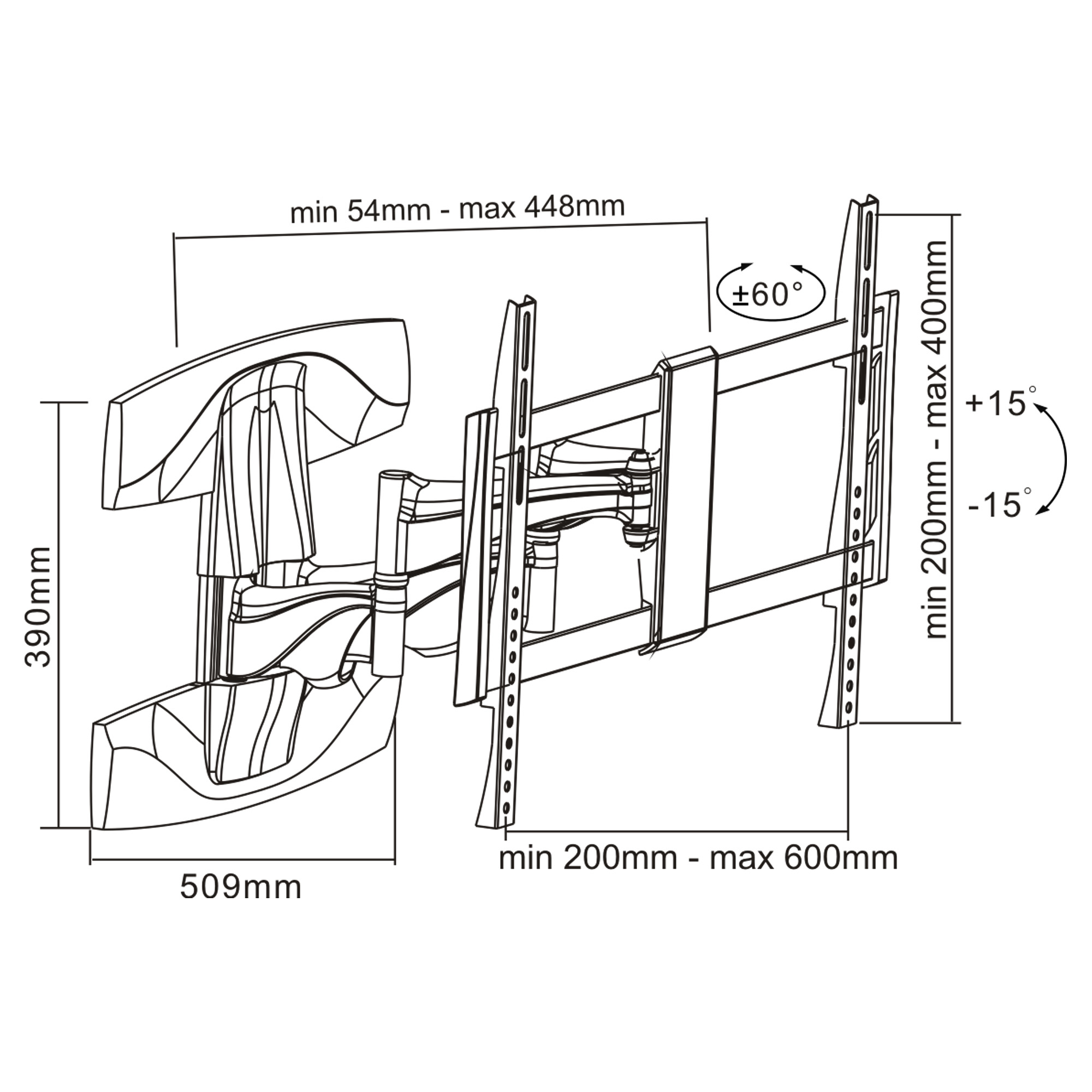

| Distance to the wall (max) | 44.8 cm |
| Distance to the wall (min) | 5.4 cm |
Design
| Specification | Value |
|---|---|
| Certification | GS Mark |
