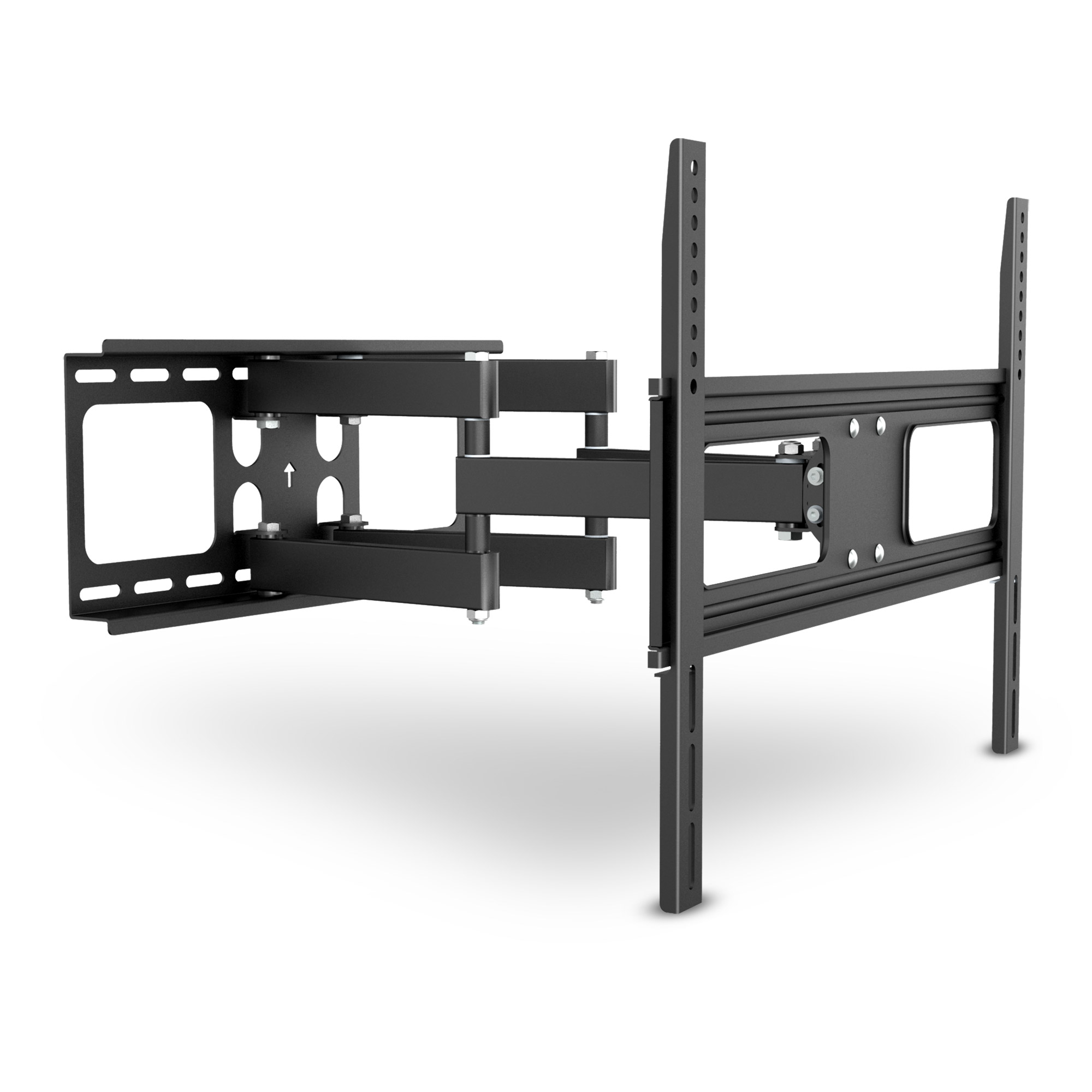

Wall Bracket for Display 94-178cm 37-70" max.
50kg
Model 23110AEAN 4043718172276
22 specifications
- Weight6.67 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
Overview
- Weight
- 6.67 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Brand
- InLine
- Category
- TV Mounts & Stands
- Model
- 23110A
- Part number
- 23110A
- EAN / UPC
- 4043718172276
- Also known as
- InLine Wall Bracket for Display 94-178cm 37-70" max. 50kg
Specifications
22 specifications in 5 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 94 cm (37") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |

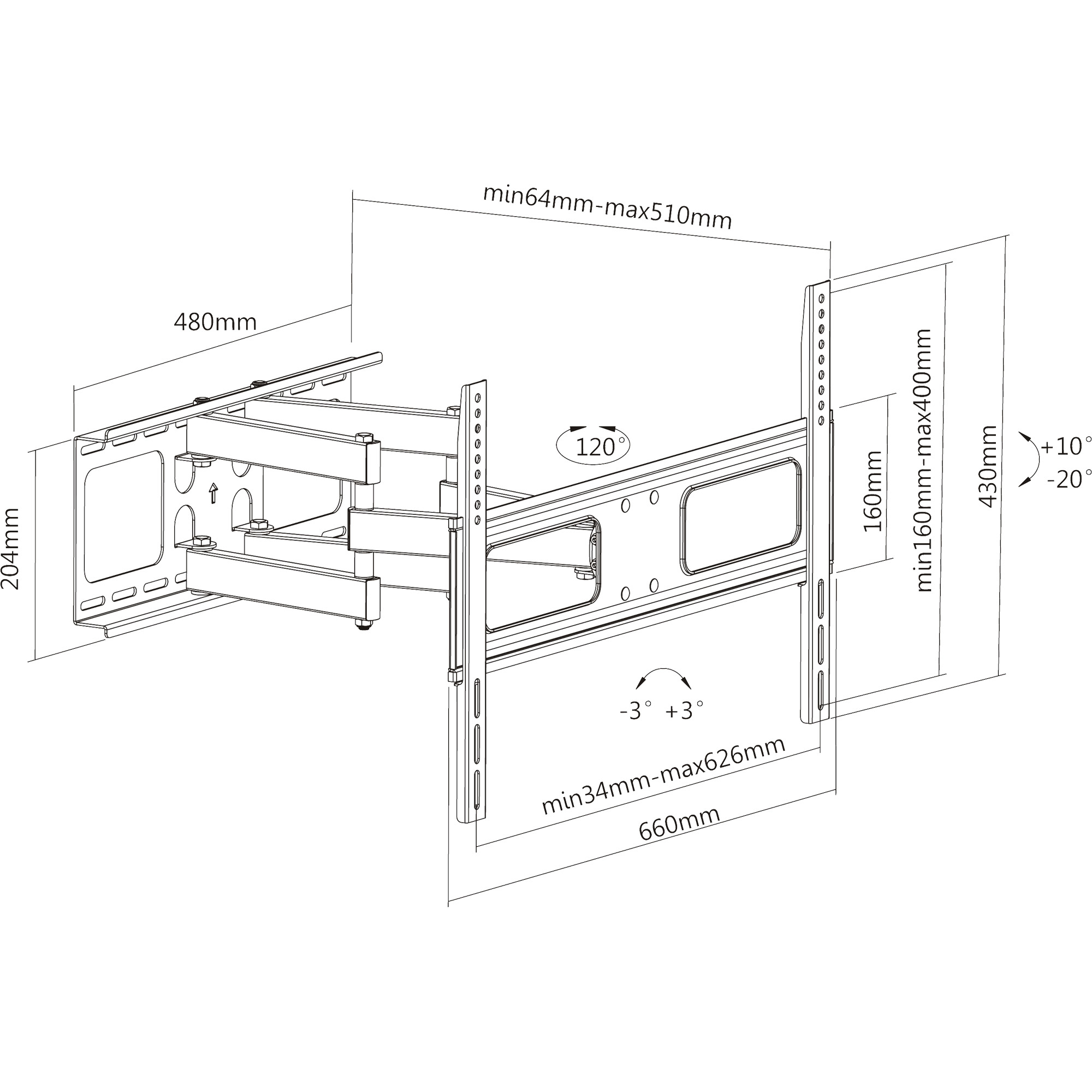

Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 20° |
| Swivel angle range | -60 - 60° |
| Cable management | No |
| Distance to the wall (max) | 51 cm |
| Distance to the wall (min) | 6.4 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.67 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 225 mm |
| Package depth | 700 mm |
| Package height | 71 mm |
| Package volume | 11200 cm³ |
| Package weight | 7.08 kg |
