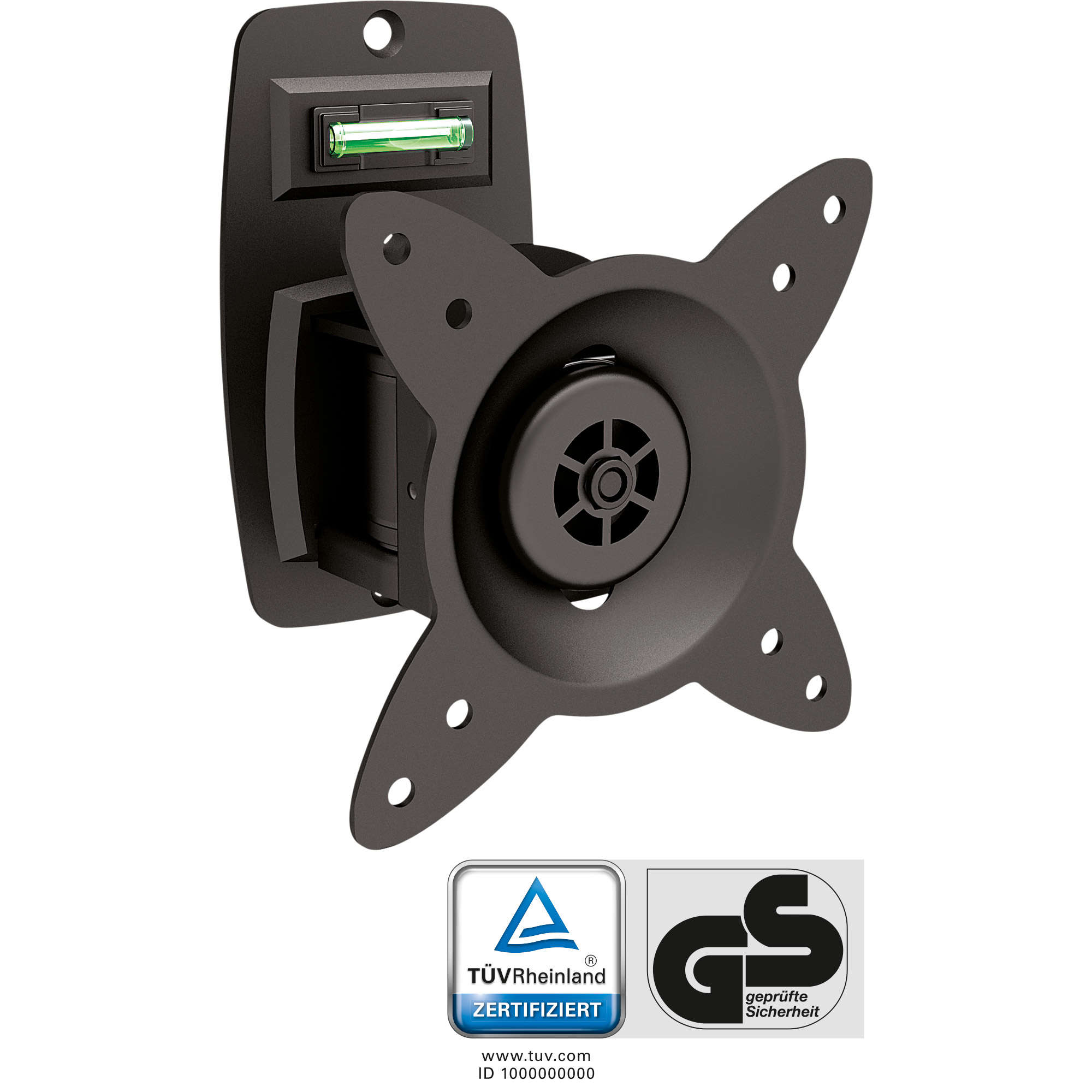

Wall Bracket for TFT up to
68cm 27" max. 15kg
Model 23107AEAN 4043718172047
16 specifications
- ColourBlack
- Maximum weight capacity15 kg
- Tilt adjustmentYes
Overview
- Colour
- Black
- Maximum weight capacity
- 15 kg
- Tilt adjustment
- Yes
- Brand
- InLine
- Category
- TV Mounts & Stands
- Model
- 23107A
- Part number
- 23107A
- EAN / UPC
- 4043718172047
- Also known as
- InLine Wall Bracket for TFT up to 68cm 27" max. 15kg
Specifications
16 specifications in 4 groups

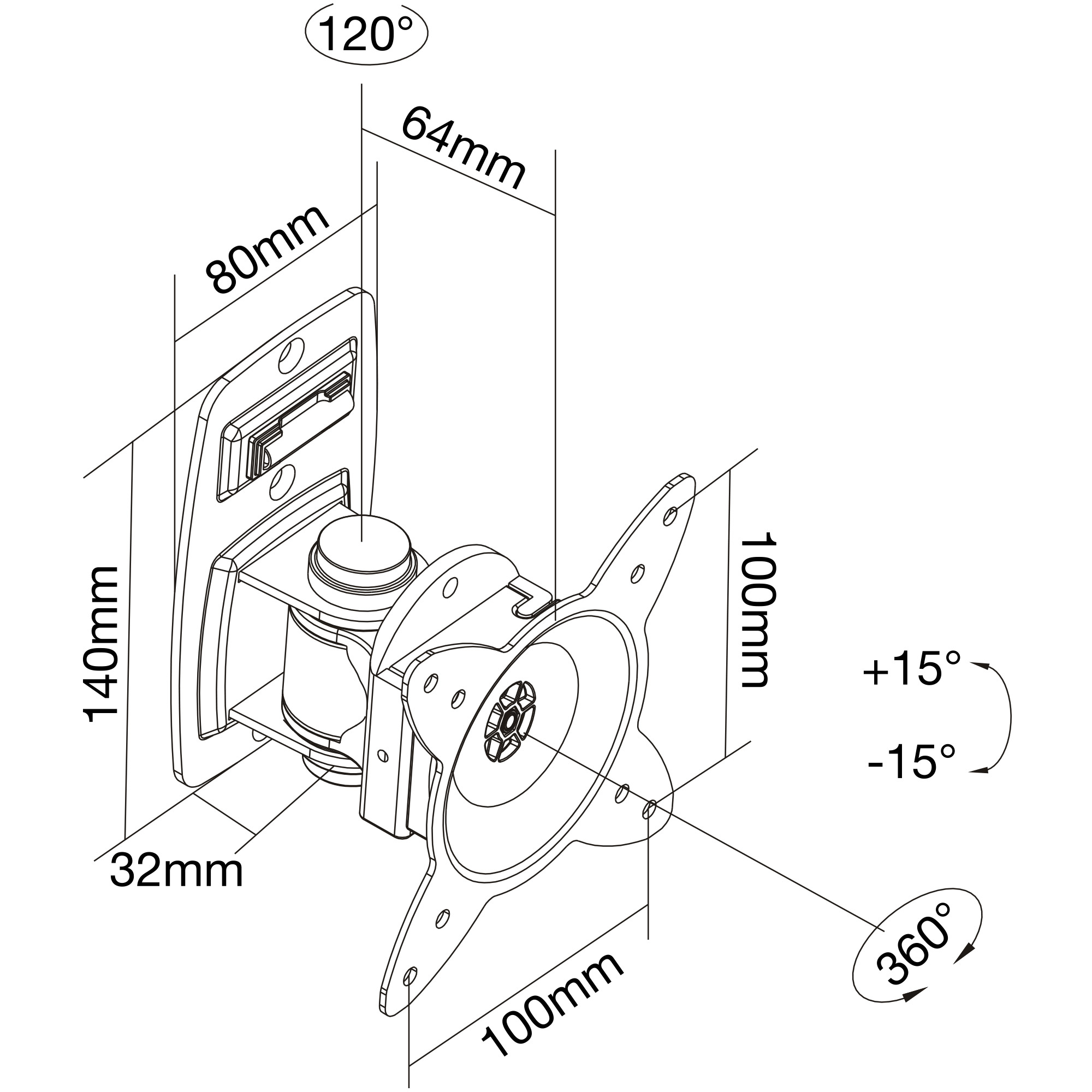

Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 15 kg |
| Minimum screen size | 33 cm (13") |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 15° |
| Swivel angle range | -60 - 60° |
| Cable management | No |
| Distance to the wall (max) | 9.6 cm |
| Distance to the wall (min) | 9.6 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | GS Mark |
Other features
| Specification | Value |
|---|---|
| Pivot | Yes |
| Screen size compatibility | 330.2 - 609.6 mm (13 - 24") |
