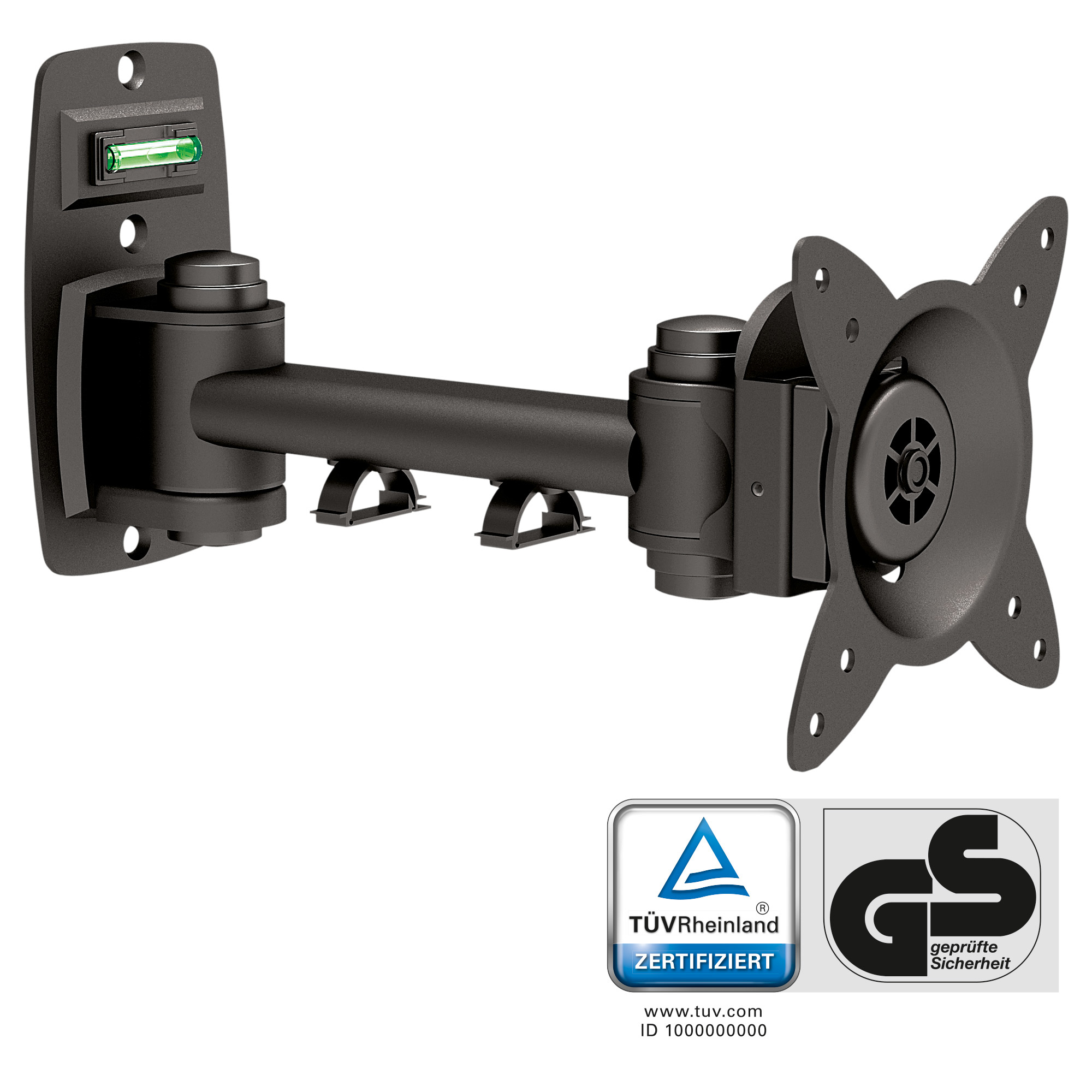

Wall Bracket for TFT up to
69cm 27" max. 15kg one-piece arm
Model 23106AEAN 4043718172023
17 specifications
- ColourBlack
- Maximum weight capacity15 kg
- Tilt adjustmentYes
Overview
- Colour
- Black
- Maximum weight capacity
- 15 kg
- Tilt adjustment
- Yes
- Brand
- InLine
- Category
- TV Mounts & Stands
- Model
- 23106A
- Part number
- 23106A
- EAN / UPC
- 4043718172023
- Also known as
- InLine Wall Bracket for TFT up to 69cm 27" max. 15kg one-piece arm
Specifications
17 specifications in 4 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 15 kg |
| Minimum screen size | 33 cm (13") |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -90 - 90° |
| Swivel angle range | 0 - 360° |
| Angle of rotation | 360° |
| Cable management | Yes |
| Distance to the wall (max) | 25.1 cm |
| Distance to the wall (min) | 9.6 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | GS Mark |
Other features
| Specification | Value |
|---|---|
| Pivot | Yes |
| Screen size compatibility | 330.2 - 609.6 mm (13 - 24") |
