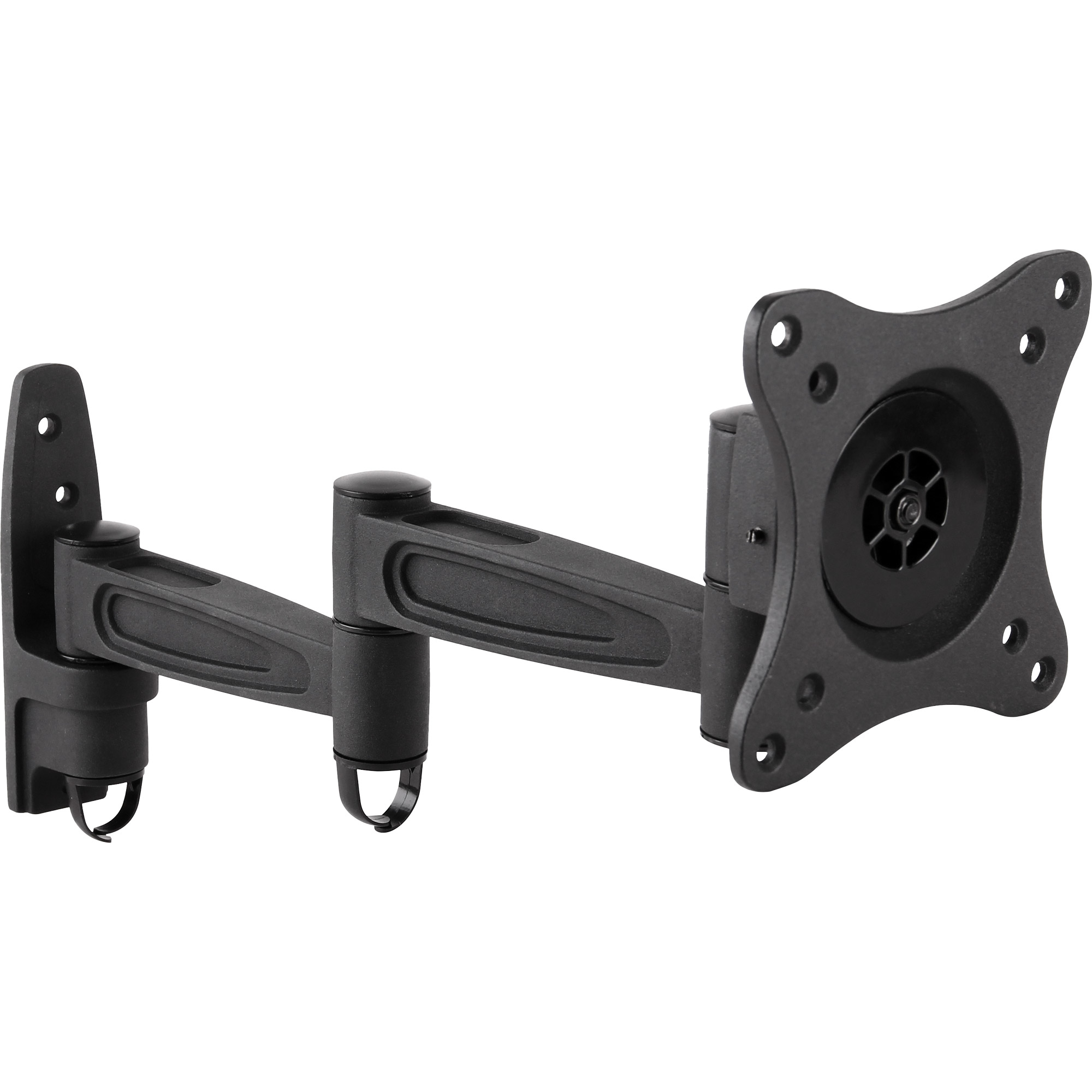

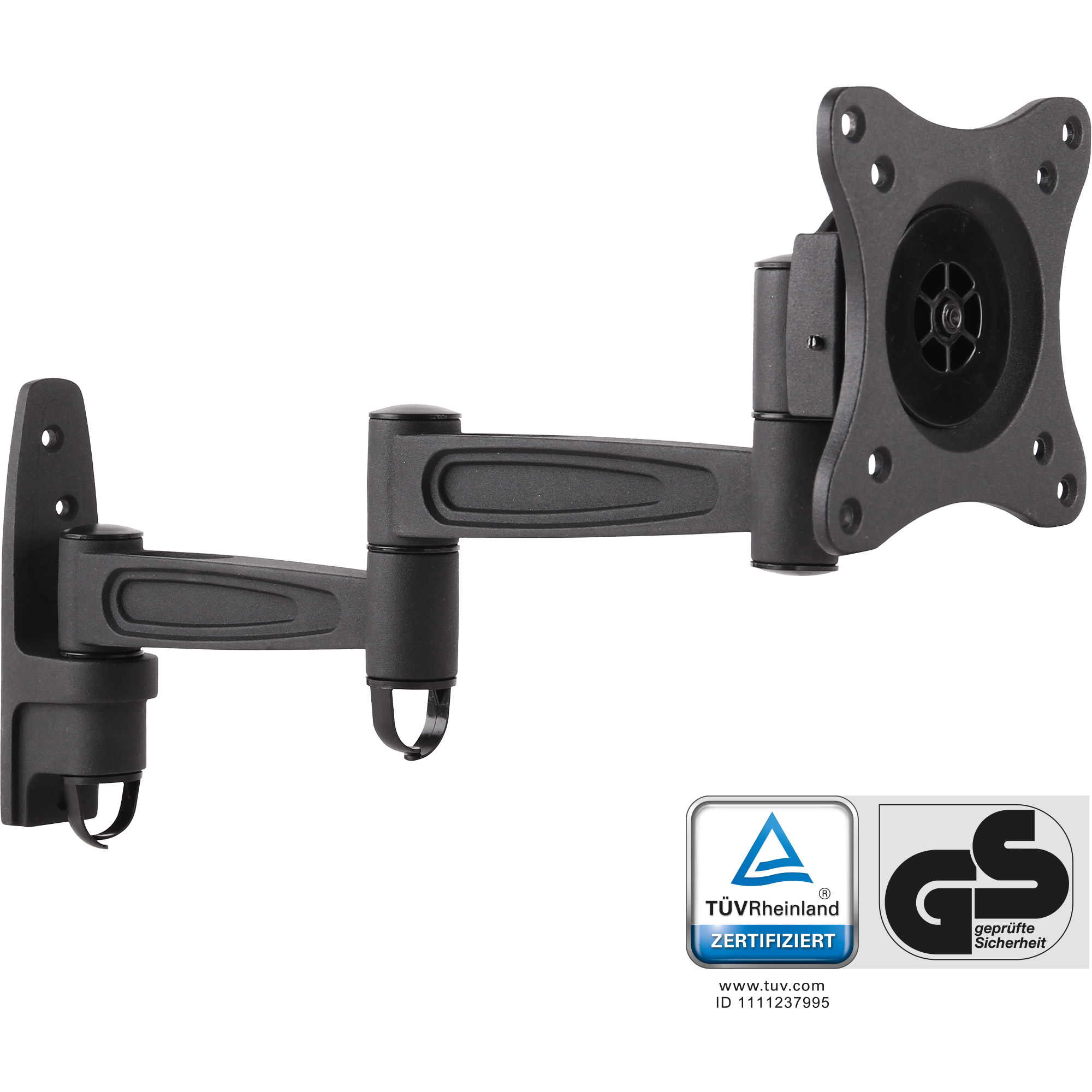

Wall mount, for monitors up to
69cm (27"), max. 15kg, 2-part arm
Model 23105DEAN 4043718299898
33 specifications
- Weight1.4 kg
- ColourBlack
- Number of displays supported1
- Adjustable depthYes
- Width120 mm
Overview
- Weight
- 1.4 kg
- Colour
- Black
- Number of displays supported
- 1
- Adjustable depth
- Yes
- Width
- 120 mm
- Brand
- InLine
- Category
- TV Mounts & Stands
- Model
- 23105D
- Part number
- 23105D
- EAN / UPC
- 4043718299898
- Also known as
- InLine Wall mount, for monitors up to 69cm (27"), max. 15kg, 2-part arm
Specifications
33 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 15 kg |
| Minimum screen size | 33 cm (13") |
| Maximum screen size | 33 cm (13") |
| Mounting type | Wall |
| Suitable for computer monitor | Yes |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
Ergonomics
| Specification | Value |
|---|---|
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 15° |
| Swivel angle range | -90 - 90° |
| Angle of rotation | 360° |
| Pivot angle | -180 - 190° |
| Number of pivot points | 3 |
| Cable management | Yes |
| Distance to the wall (max) | 40.8 cm |
| Distance to the wall (min) | 8.8 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| Certification | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 420 mm |
| Height | 250 mm |
| Weight | 1.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 265 mm |
| Package depth | 285 mm |
| Package height | 100 mm |
| Package volume | 7400 cm³ |
| Package weight | 1.73 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 120 x 420 x 250 mm |
