23103B TV mount/stand
109.2 cm (43") Black
Model 23103BEAN 4043718345748
33 specifications
- Weight2.2 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Compliance certificatesTÜV mark
- Width224 mm
Overview
- Weight
- 2.2 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Compliance certificates
- TÜV mark
- Width
- 224 mm
- Brand
- InLine
- Category
- TV Mounts & Stands
- Model
- 23103B
- Part number
- 23103B
- EAN / UPC
- 4043718345748
- Also known as
- InLine 23103B TV mount/stand 109.2 cm (43") Black
Specifications
33 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 35 kg |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 109.2 cm (43") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,200 x 100,100 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 5° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Cable management | Yes |
| Distance to the wall (max) | 41.8 cm |
| Distance to the wall (min) | 4.8 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
| Country of origin | Taiwan |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 224 mm |
| Depth | 48 mm |
| Depth (max) | 4.8 cm |
| Height | 290 mm |
| Weight | 2.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 310 mm |
| Package height | 60 mm |
| Package volume | 5000 cm³ |
| Package weight | 2.6 kg |
| Package type | Box |
Other features
| Specification | Value |
|---|---|

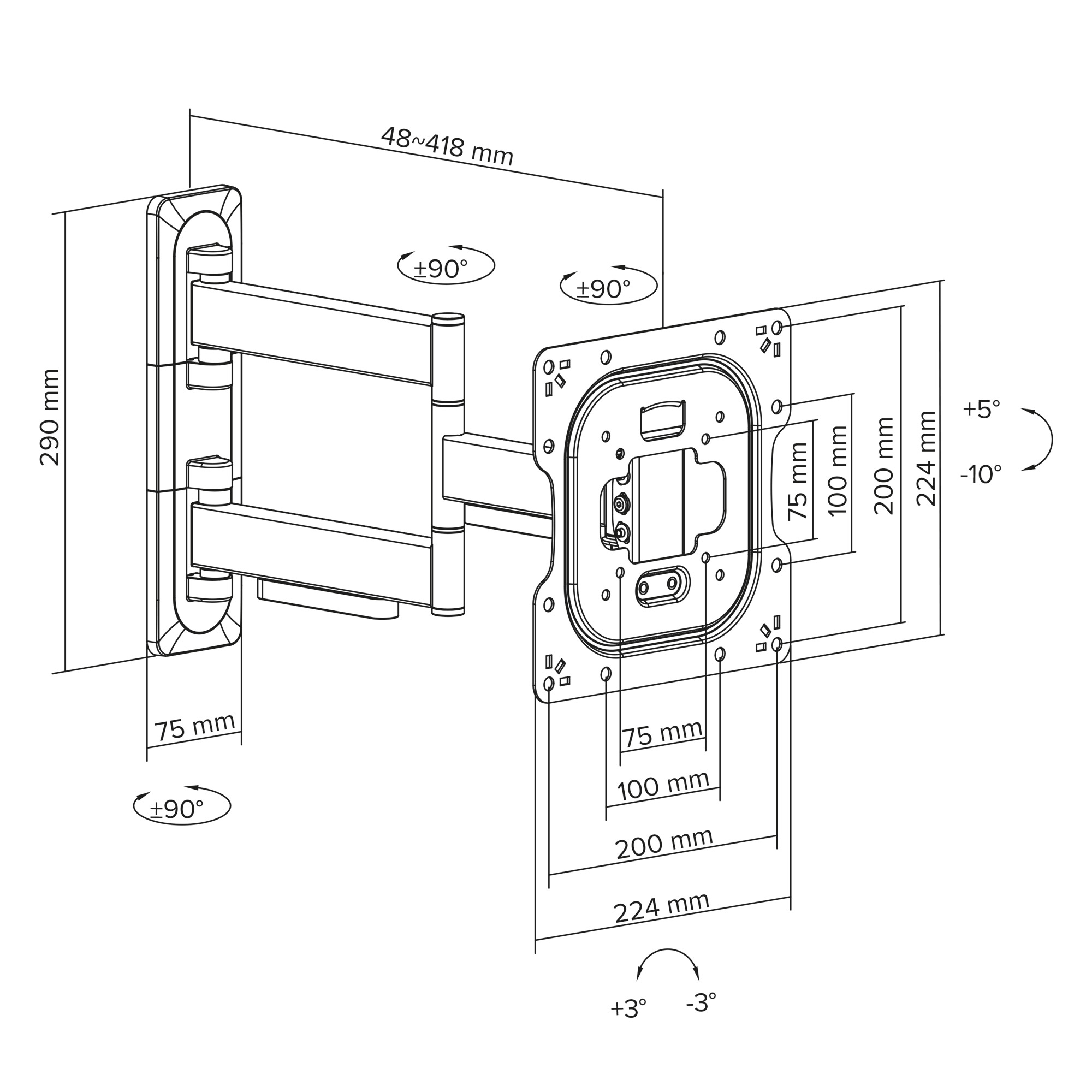

| Dimensions (WxDxH) | 224 x 48 x 290 mm |
