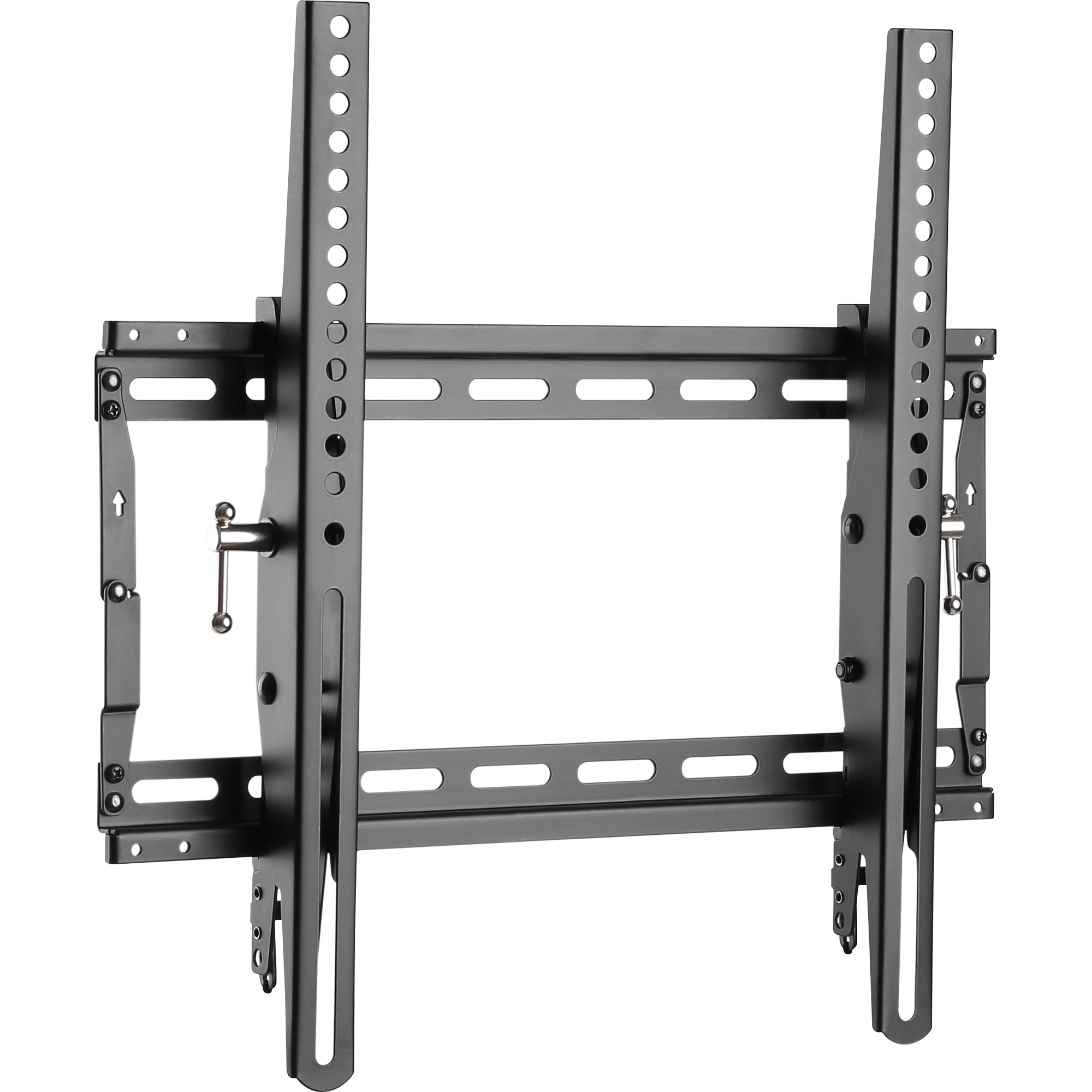

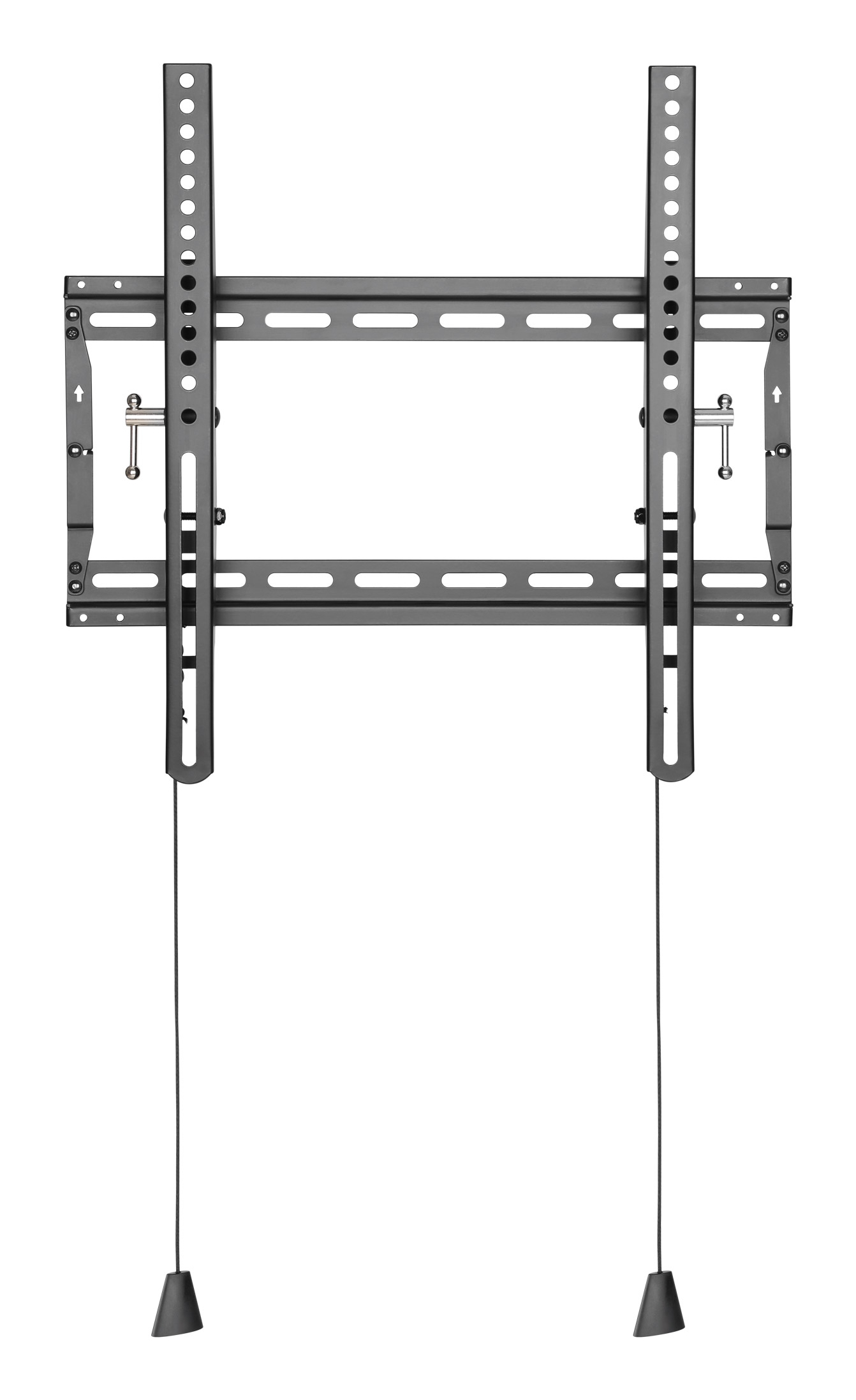

23101B TV mount/stand
177.8 cm (70") Black
Model 23101BEAN 4043718345755
27 specifications
- Weight1.61 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Compliance certificatesTÜV mark
- Width431 mm
Overview
- Weight
- 1.61 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Compliance certificates
- TÜV mark
- Width
- 431 mm
- Brand
- InLine
- Category
- TV Mounts & Stands
- Model
- 23101B
- Part number
- 23101B
- EAN / UPC
- 4043718345755
- Also known as
- InLine 23101B TV mount/stand 177.8 cm (70") Black
Specifications
27 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 70 kg |
| Maximum weight capacity | 70 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 400 x 400 mm |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |

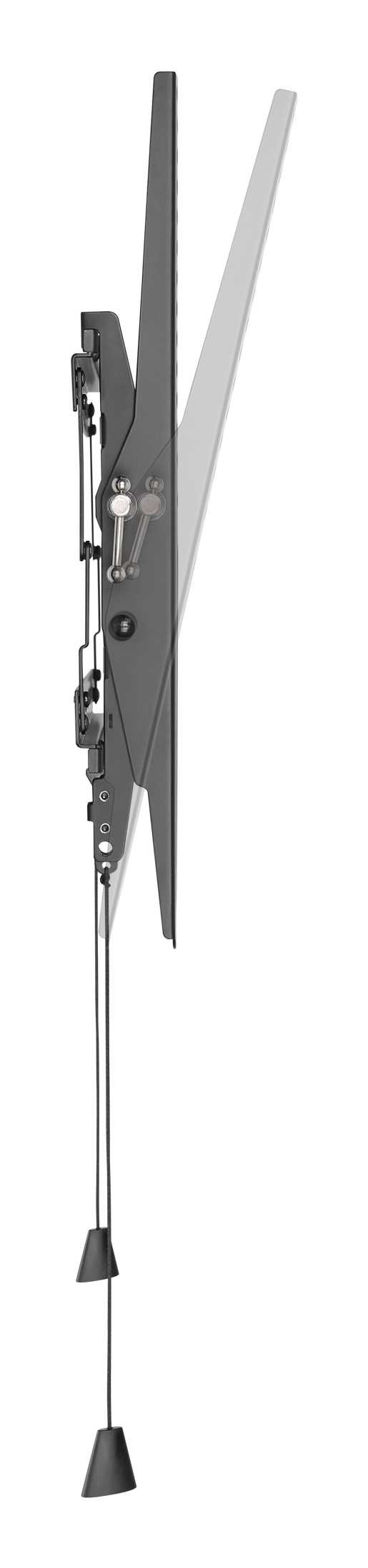

| Tilt angle range | -12 - 3° |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Packaging content
| Specification | Value |
|---|---|

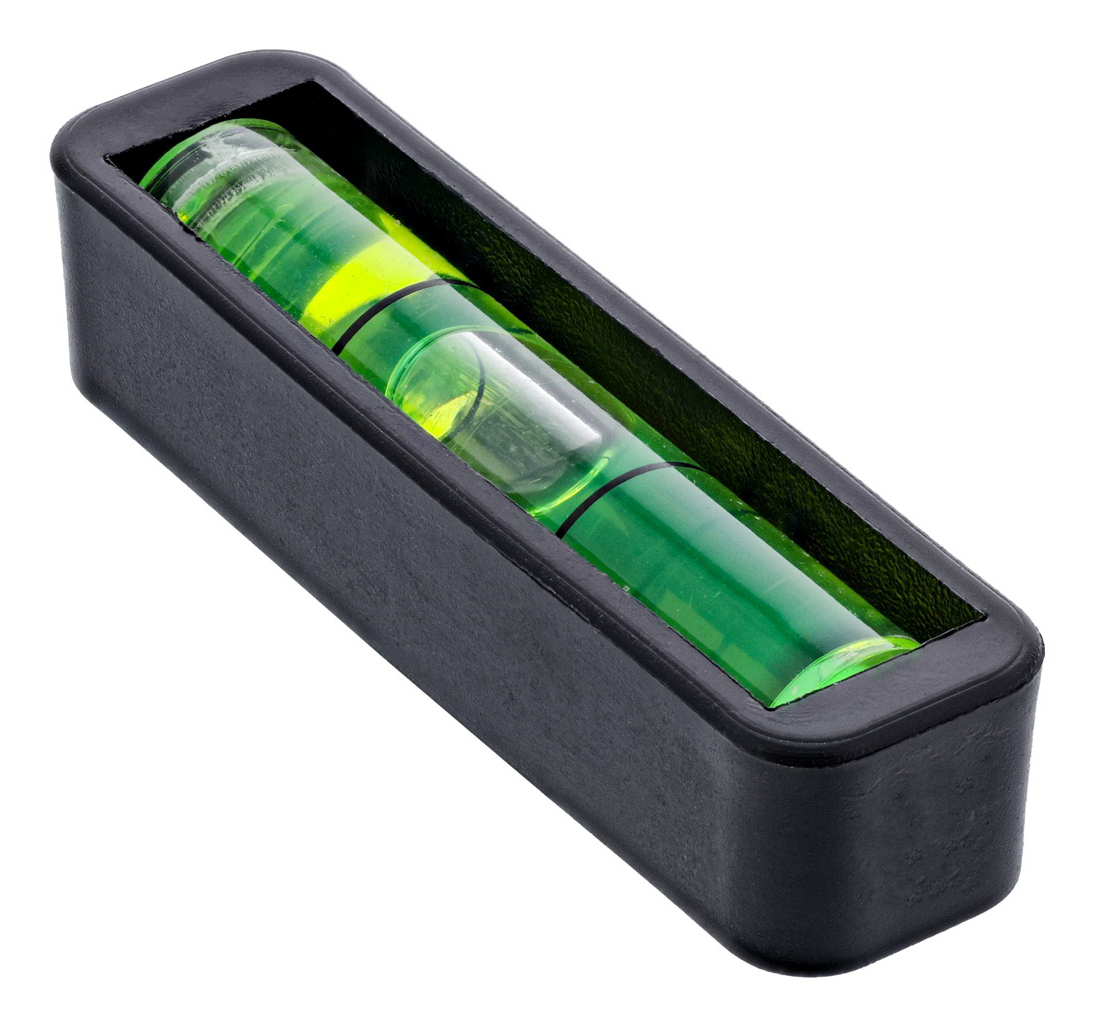

| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
| Country of origin | Taiwan |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431 mm |
| Depth | 445 mm |
| Depth (max) | 4.9 cm |
| Height | 49 mm |
| Weight | 1.61 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 125 mm |
| Package depth | 450 mm |
| Package height | 65 mm |
| Package volume | 3700 cm³ |
| Package weight | 2 kg |
| Package type | Box |
Other features
| Specification | Value |
|---|---|

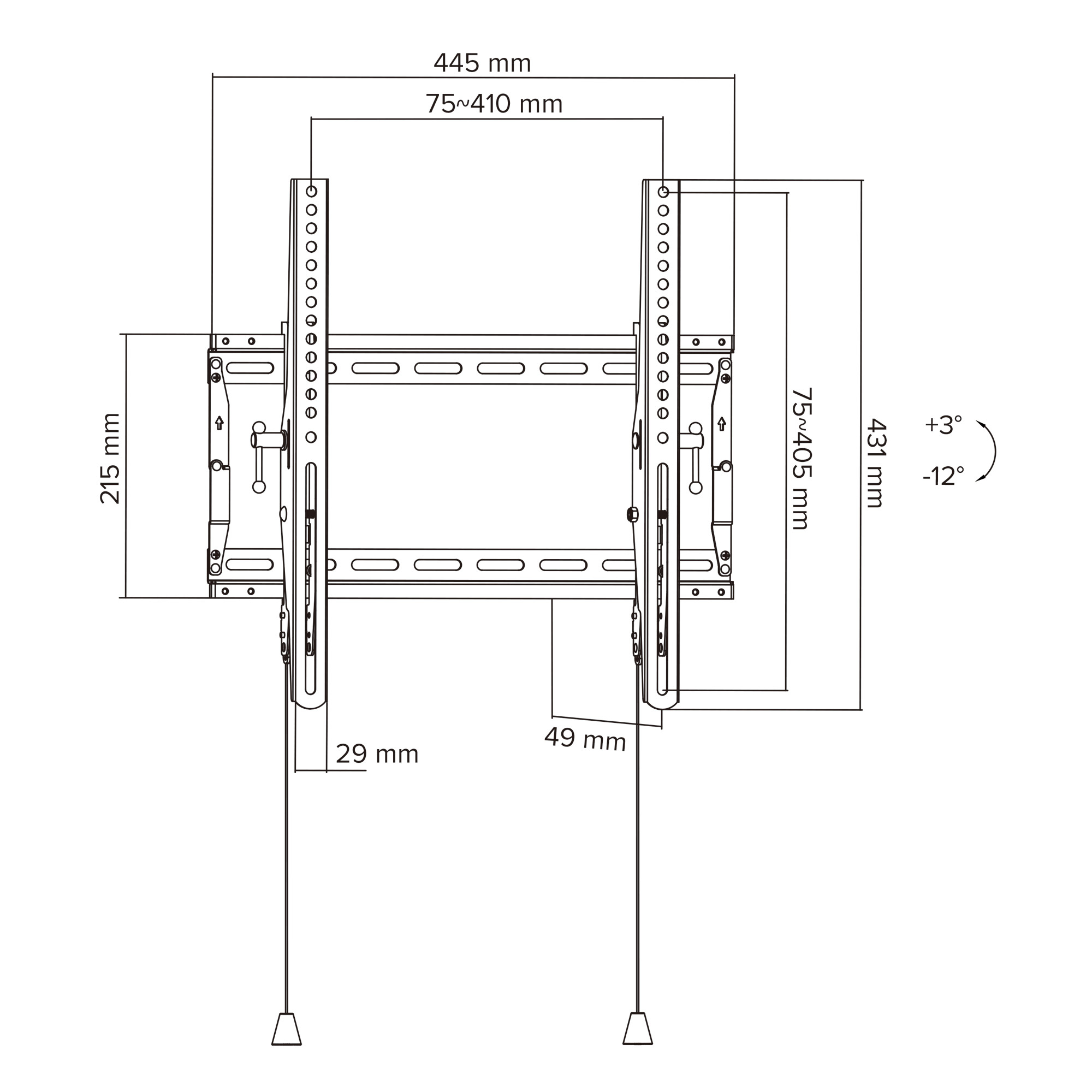

| Dimensions (WxDxH) | 431 x 445 x 49 mm |
