SPTV09-L 165.1 cm (65") Black
Model SPTV09-LPart no. IGG319741EAN 8435364319741
28 specifications
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Compliance certificatesRoHS
Overview
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Compliance certificates
- RoHS
- Brand
- iggual
- Category
- TV Mounts & Stands
- Model
- SPTV09-L
- Part number
- IGG319741
- EAN / UPC
- 8435364319741
- Also known as
- iggual SPTV09-L 165.1 cm (65") Black
Specifications
28 specifications in 6 groups

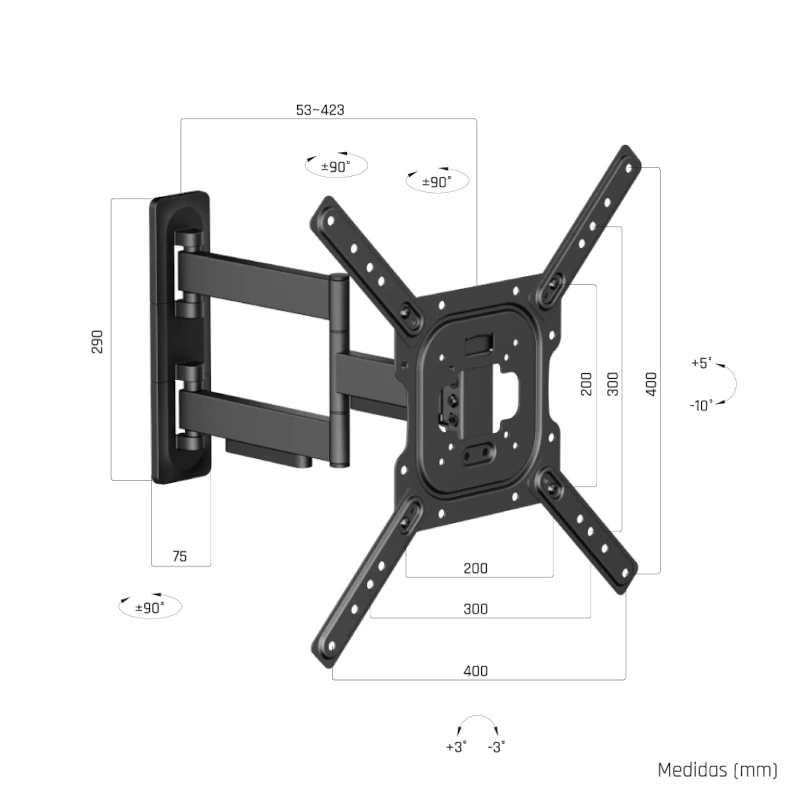

Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 35 kg |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 165.1 cm (65") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 5° |
| Swivelling | Yes |
| Swivel angle range | -3 - 3° |
| Rotating | Yes |
| Angle of rotation | 180° |
| Distance to the wall (max) | 42.3 cm |
| Distance to the wall (min) | 5.3 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Iron |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 270 mm |
| Package depth | 303 mm |
| Package height | 60 mm |
| Package weight | 3.15 kg |
| Package type | Box |
