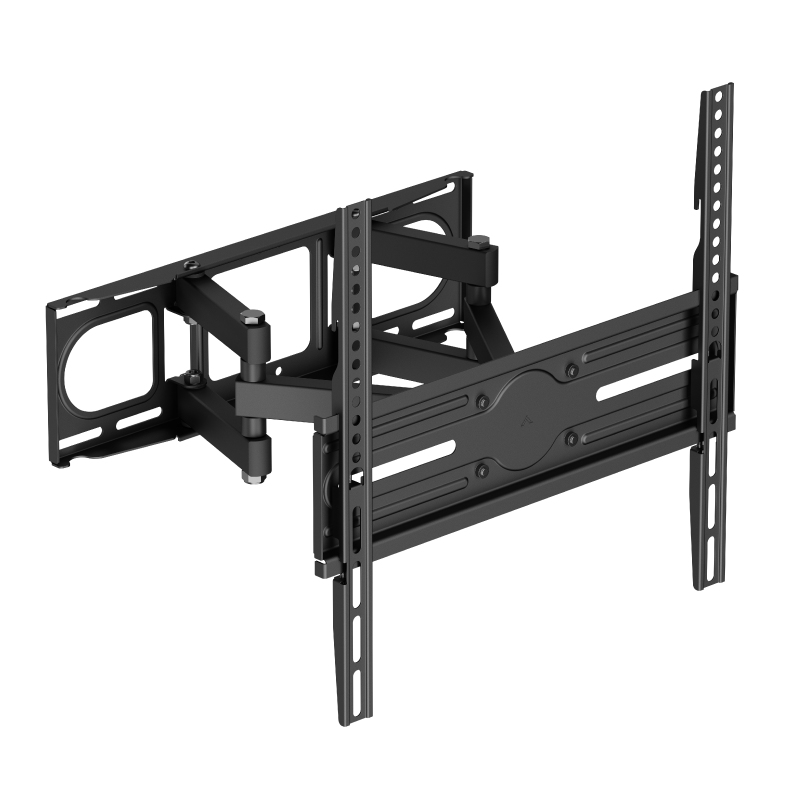

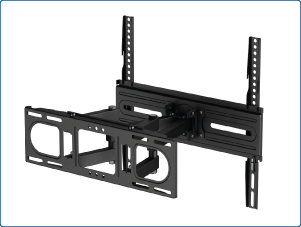

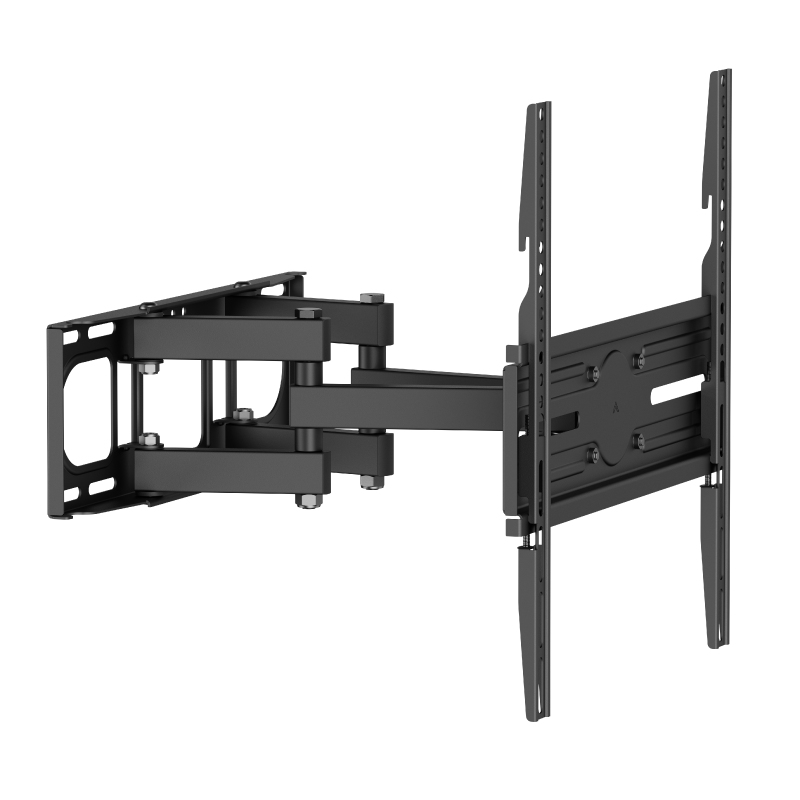

SPTV03-L 190.5 cm (75") Black
Model SPTV03-LPart no. IGG320617EAN 8435364320617
30 specifications
- Weight3.56 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Compliance certificatesRoHS
- Width440 mm
Overview
- Weight
- 3.56 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Compliance certificates
- RoHS
- Width
- 440 mm
- Brand
- iggual
- Category
- TV Mounts & Stands
- Model
- SPTV03-L
- Part number
- IGG320617
- EAN / UPC
- 8435364320617
- Also known as
- iggual SPTV03-L 190.5 cm (75") Black
Specifications
30 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 40 kg |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,400 x 400,100 x 150,150 x 100,100 x 200,200 x 100,150 x 150,200 x 200,300 x 200,300 x 300,400 x 200,400 x 300 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 3° |
| Swivelling | Yes |
| Swivel angle | 6° |
| Swivel angle range | -3 - 3° |
| Rotating | Yes |
| Angle of rotation | 120° |
| Distance to the wall (max) | 35.5 cm |
| Distance to the wall (min) | 6.7 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |

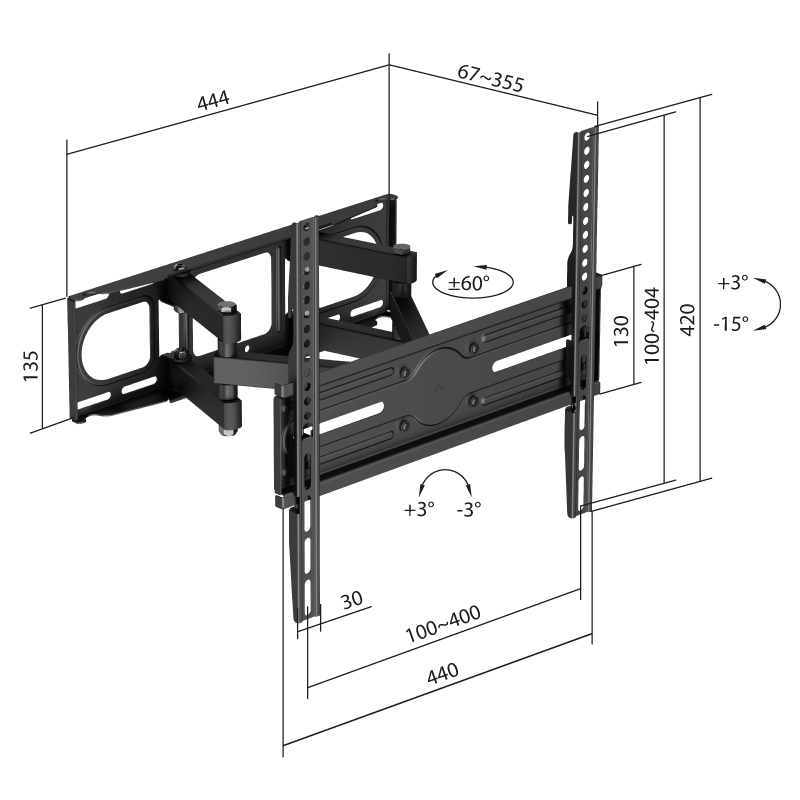

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Height | 420 mm |
| Weight | 3.56 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 150 mm |
| Package depth | 448 mm |
| Package height | 64 mm |
| Package weight | 3.7 kg |
