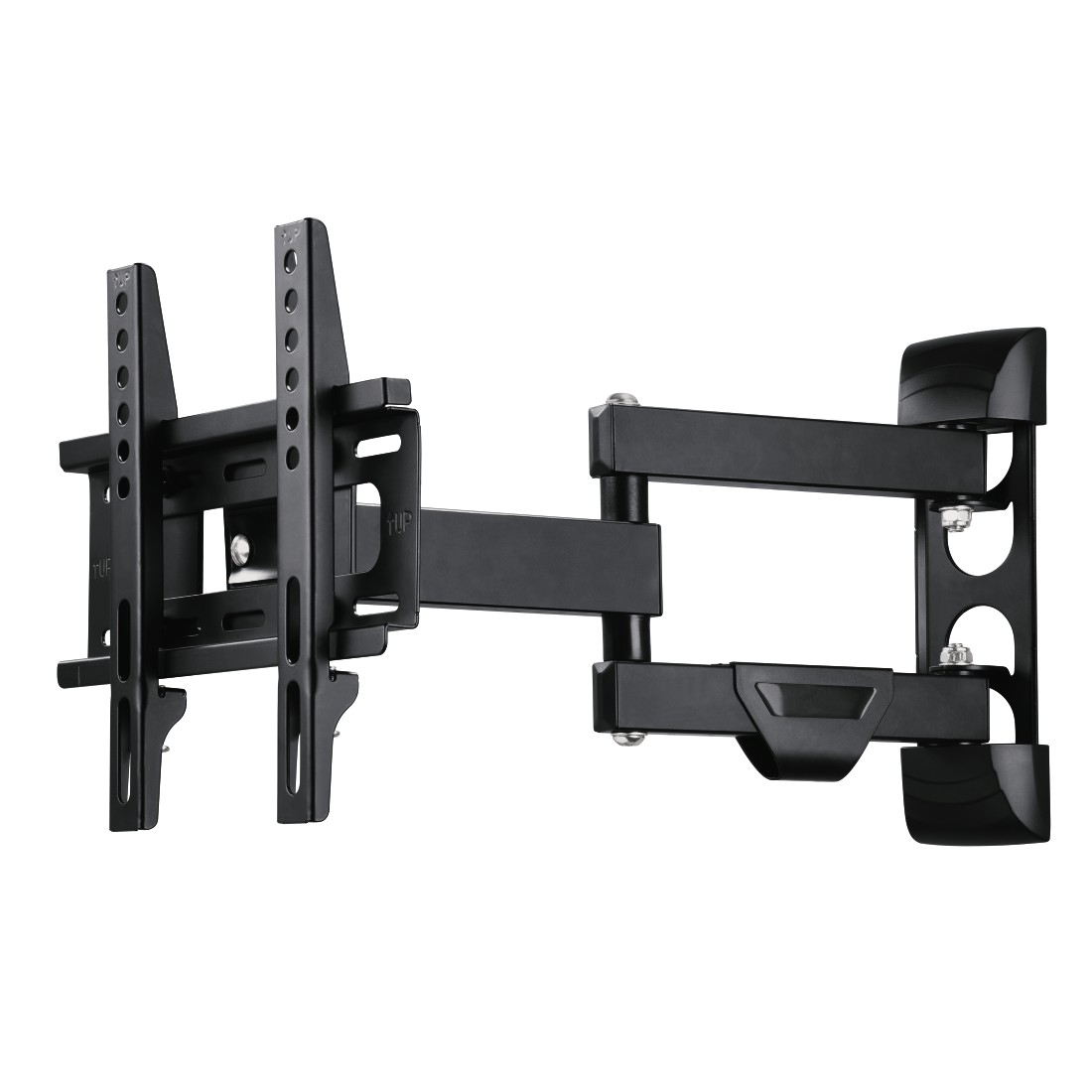

00108713 TV mount/stand
121.9 cm (48") Black
Model 00108713EAN 4047443328823
27 specifications
- ColourBlack
- Number of displays supported1
- Adjustable depthYes
- Remotely operatedNo
- Width245 mm
Overview
- Colour
- Black
- Number of displays supported
- 1
- Adjustable depth
- Yes
- Remotely operated
- No
- Width
- 245 mm
- Brand
- Hama
- Category
- TV Mounts & Stands
- Model
- 00108713
- Part number
- 00108713
- EAN / UPC
- 4047443328823
- Also known as
- Hama 00108713 TV mount/stand 121.9 cm (48") Black
Specifications
27 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 48.3 cm (19") |
| Maximum screen size | 121.9 cm (48") |
| Mounting type | Wall |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,100 x 200,100 x 75,120 x 120,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Adjustable depth | Yes |

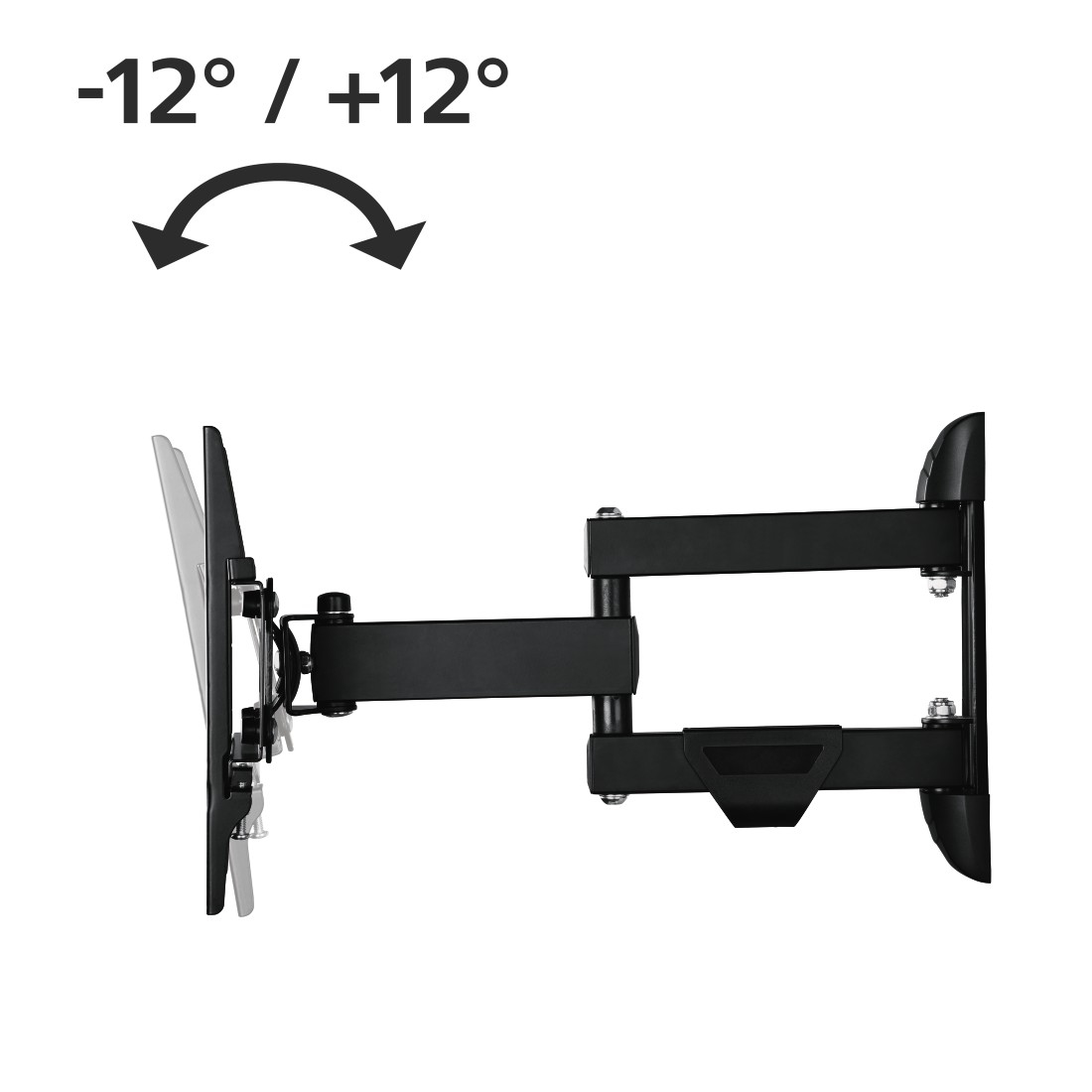

| Tilt angle range | -12 - 12° |

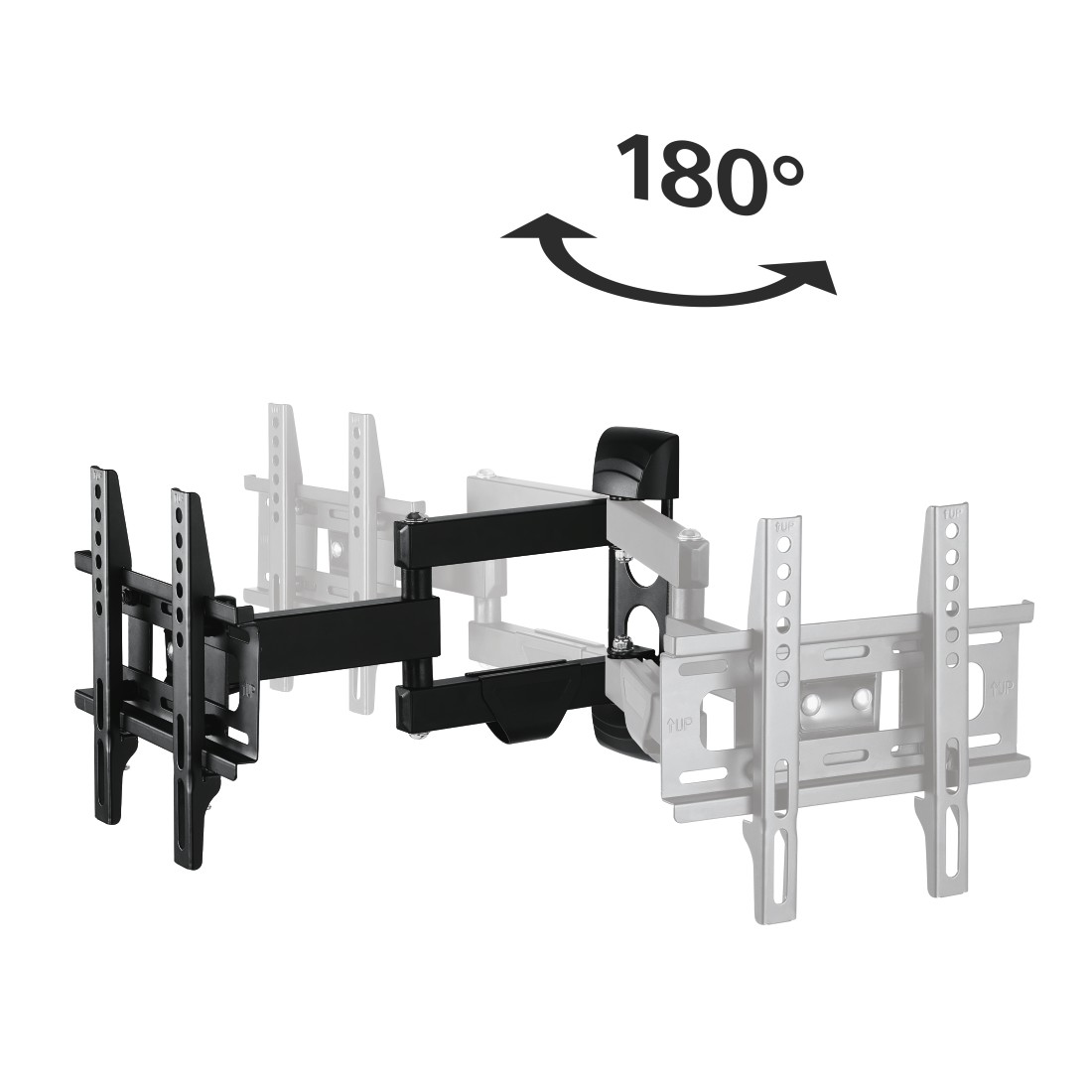

| Swivel angle | 180° |
| Swivel angle range | 0 - 180° |
| Angle of rotation | 3° |

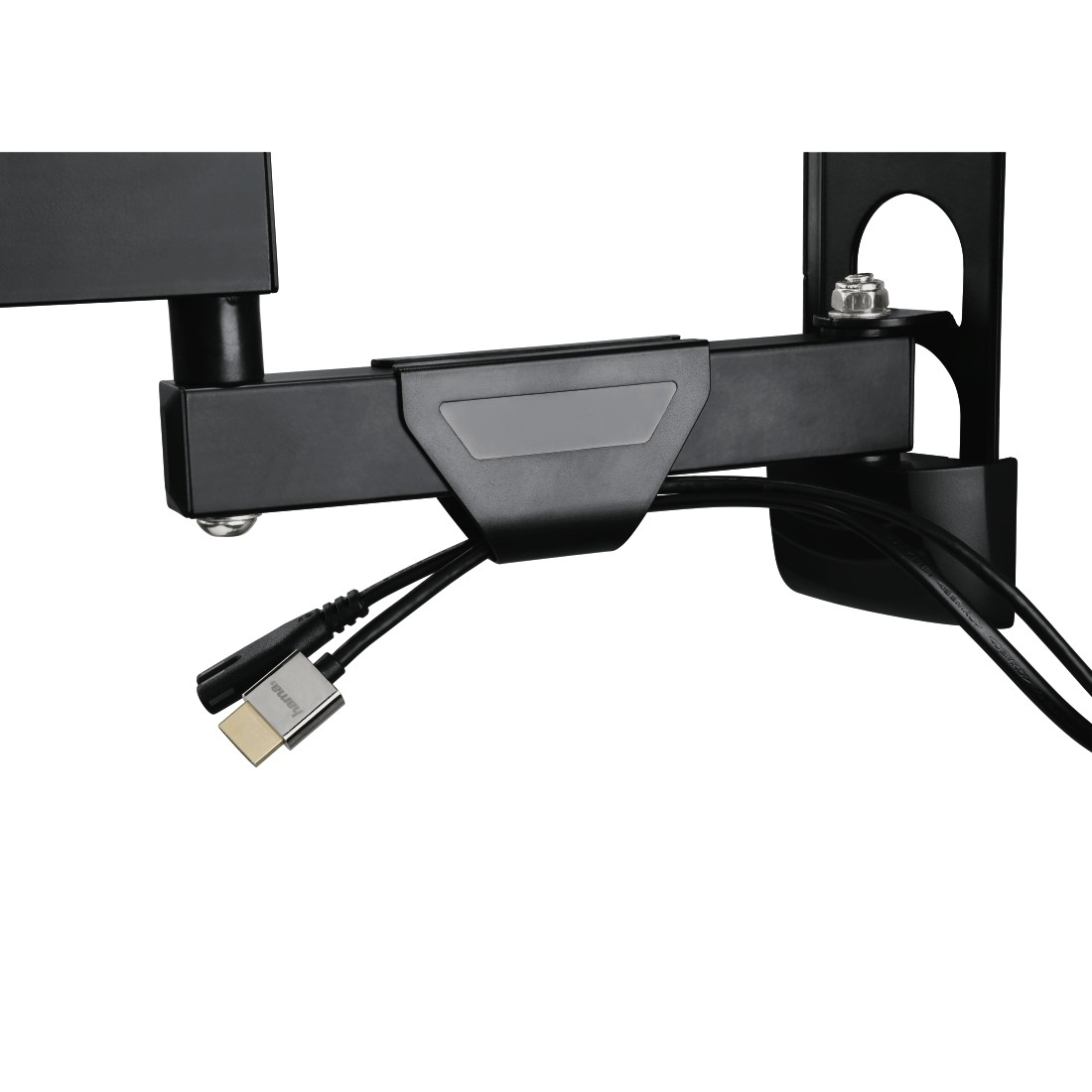

| Cable management | Yes |

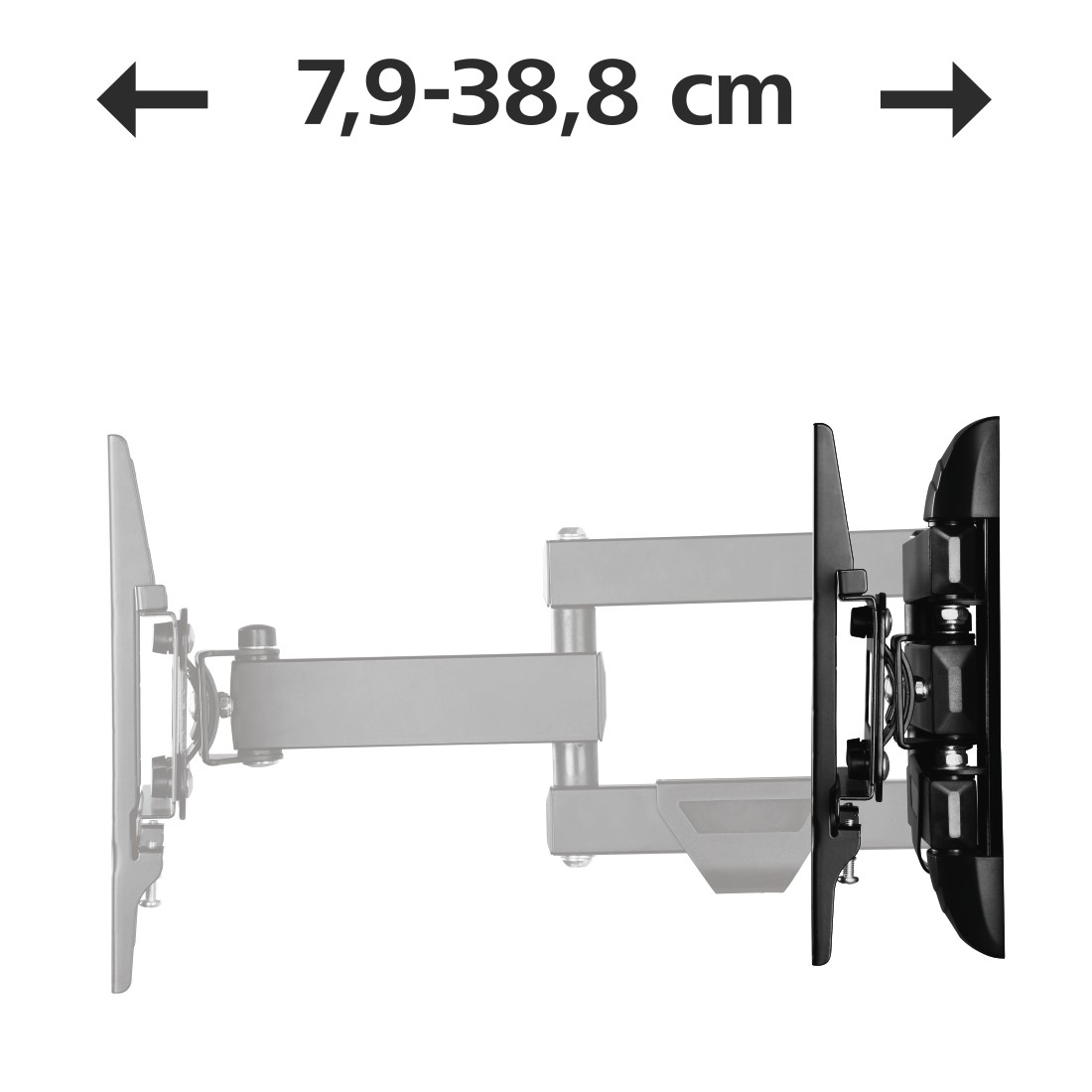

| Distance to the wall (max) | 38.8 cm |
| Distance to the wall (min) | 7.9 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Power
| Specification | Value |
|---|---|
| Remotely operated | No |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Mounting kit | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Height | 234 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 245 mm |
| Package height | 85 mm |
| Package weight | 2.8 kg |
