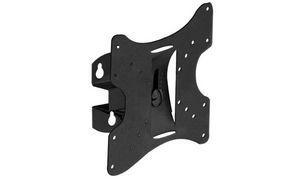

LCD Wall Bracket
Model LCD Wall BracketPart no. 650101EAN 4015867159422
21 specifications
- Weight1 kg
- ColourBlack
- Maximum weight capacity30 kg
- Tilt angle range-20 - 20°
- Width220 mm
Overview
- Weight
- 1 kg
- Colour
- Black
- Maximum weight capacity
- 30 kg
- Tilt angle range
- -20 - 20°
- Width
- 220 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- LCD Wall Bracket
- Part numbers
- 650101, 650102, 650301
- EAN / UPC
- 4015867159422, 4015867159361, 4015867159378
- Also known as
- Equip LCD Wall Bracket 81.3 cm (32") Black
Specifications
21 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Maximum weight capacity | 30 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 81.3 cm (32") |
| Mounting type | Wall |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -20 - 20° |
| Swivel angle range | 0 - 90° |
| Distance to the wall (min) | 9 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 90 mm |
| Height | 220 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.2 kg |
Other features
| Specification | Value |
|---|---|
| Control type | Not available |
| Package dimensions (WxDxH) | 234 x 230 x 98 mm |
| Screen size compatibility | 254 - 812.8 mm (10 - 32") |
