Equip 23"-55" Full Motion TV Wall Mount Bracket

23"-55" Full Motion TV Wall Mount Bracket

Model 650413EAN 4015867238424

35 specifications

Weight2.05 kg
ColourBlack
Number of displays supported1
Tilt adjustmentYes
Compliance certificatesREACH, RoHS
Width430 mm

See all specifications

Overview

Weight: 2.05 kg
Colour: Black
Number of displays supported: 1
Tilt adjustment: Yes
Compliance certificates: REACH, RoHS
Width: 430 mm

Brand: Equip
Category: TV Mounts & Stands
Model: 650413
Part number: 650413
EAN / UPC: 4015867238424
Also known as: Equip 23"-55" Full Motion TV Wall Mount Bracket

Specifications

35 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity	30 kg
Minimum screen size	58.4 cm (23")
Maximum screen size	139.7 cm (55")
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	100 x 100,100 x 200,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300

Ergonomics

Specification	Value

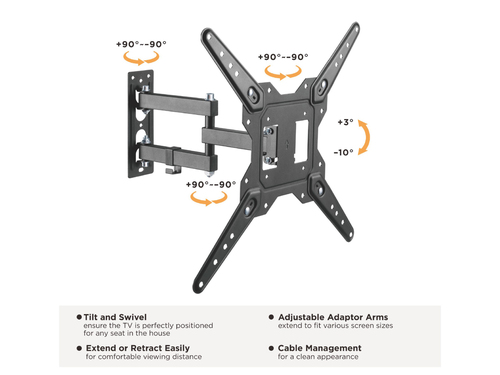

Tilt adjustment	Yes
Tilt angle range	-10 - 3°
Swivelling	Yes
Swivel angle range	-90 - 90°

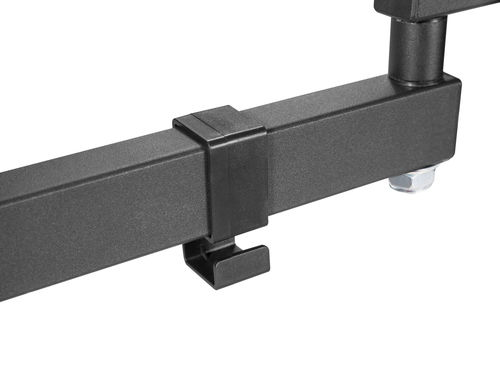

Cable management	Yes
Distance to the wall (max)	38.2 cm
Distance to the wall (min)	6 cm

Design

Specification	Value
Product colour	Black
Housing material	Stainless steel
Anti-theft function	No

Packaging content

Specification	Value
Screws included	Yes
Manual	Yes

Technical details

Specification	Value
Compliance certificates	REACH, RoHS
Country of origin	China

Weight & dimensions

Specification	Value
Width	430 mm
Height	430 mm
Weight	2.05 kg

Packaging data

Specification	Value
Package width	295 mm
Package depth	238 mm
Package height	65 mm
Package weight	2.3 kg

Logistics data

Specification	Value
Master (outer) case width	495 mm
Master (outer) case length	310 mm
Master (outer) case height	290 mm
Master (outer) case gross weight	19.2 kg
Products per master (outer) case	8 pc(s)
Customs product code (TARIC)	8529909700
