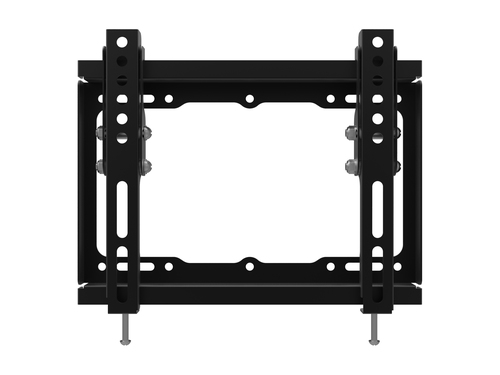

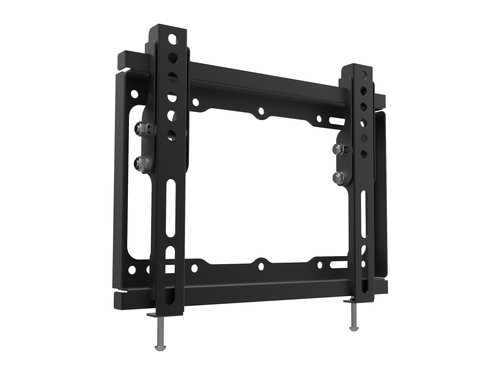

650408 23"-43" Tilt TV Wall Mount Bracket
Model 650408EAN 4015867224984
27 specifications
- Weight600 g
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Quantity per pack1 pc(s)
- Width205 mm
Overview
- Weight
- 600 g
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Quantity per pack
- 1 pc(s)
- Width
- 205 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650408
- Part number
- 650408
- EAN / UPC
- 4015867224984
- Also known as
- Equip 650408 23"-43" Tilt TV Wall Mount Bracket
Specifications
27 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 106.7 cm (42") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -12 - 0° |
| Cable management | Yes |
| Distance to the wall (max) | 2.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Screw nuts included | Yes |
Technical details
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth (max) | 2.5 cm |
| Height | 273 mm |
| Weight | 600 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 200 mm |
| Package depth | 30 mm |
| Package height | 288 mm |
| Package weight | 630 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
