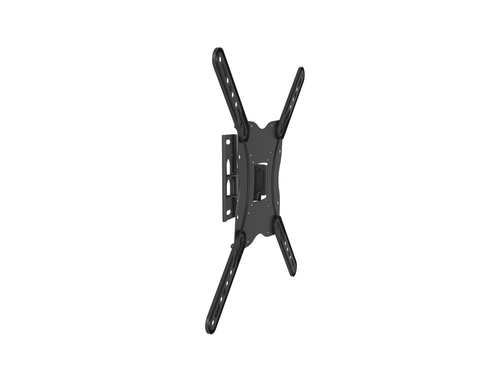

13"-55" Articulating TV Wall Mount Bracket
Model 650405EAN 4015867209189
30 specifications
- Weight1.4 kg
- ColourBlack
- Number of displays supported1
- Height adjustmentNo
- Country of originChina
- Width403 mm
Overview
- Weight
- 1.4 kg
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- No
- Country of origin
- China
- Width
- 403 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650405
- Part number
- 650405
- EAN / UPC
- 4015867209189
- Also known as
- Equip 13"-55" Articulating TV Wall Mount Bracket
Specifications
30 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 30 kg |
| Minimum screen size | 33 cm (13") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -14 - 5° |
| Swivel angle | 15° |
| Cable management | No |
| Distance to the wall (max) | 6.5 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | CE |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 403 mm |
| Depth (max) | 6.2 cm |
| Height | 403 mm |
| Weight | 1.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 227 mm |
| Package depth | 70 mm |
| Package height | 230 mm |
| Package weight | 1.6 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
